COGIS - WELL SCOUT CARD
Click image to view related facilities. Related  Click image to view inspection information. InspClick image to view MIT information. MITClick image to access interactive map at well/facility location. GISClick image to view imaged documents for this well/facility. DocClick image to view imaged documents for this well/facility. COAClick image to view wellbore completion diagram. WellboreClick image to search for orders within this facility's section. OrdersClick image to view bradenhead scoutcard data. Bradenhead
 Surface Location
 API# 05-123-20003		Well Classification: GW Status: PA - 7/10/2018
Well Name/No:DECHANT STATE V #16-5 JI
(Click Well Name for Production Data)		Click Here for Transporter Gatherer Info
Operator:KERR MCGEE OIL & GAS ONSHORE LP - 47120
(Click Operator Name for Company Detail Report)		Federal Or State Lease #:72-3317S
Facility Status:PAStatus Date7/10/2018
FacilityID:257595LocationID:336321
County:WELD #123Location:SWNW 16 2N67W 6
Field:WATTENBERG - #90750Elevation:4972 ft.
Planned Location:2062FNL  490 FWLLat/Long: 40.139837 / -104.903344Lat/Long Source: Calculated From Footages
As Drilled Location:Footages Not AvailableLat/Long: 40.139860 / -104.903200Lat/Long Source: Field Measured
 Wellbore And Formation Details -- select either a wellbore Or formation to expand.


Wellbore #00             Wellbore Classification: GW             Status: PA - 7/10/2018             Measured TD: 8138 ft.

 Wellbore Data for Original WellboreWellbore Classification: GW        PA - 7/10/2018
Wellbore Permit
Permit #:000697 Expiration Date:7/10/2001
Proposed Depth/Form:8200 ft.
Surface Mineral Owner Same:Yes
Mineral Owner:STATESurface Owner:STATE
Unit: Unit Number:
Formation And Spacing:Code: JSND , Formation: J SAND , Order: 318A , Unit Acreage: 320, Drill Unit: W2
Wellbore Completed
Completion Date:9/8/2000
Spud Date:8/9/2000Spud Date Is:ACTUAL
Measured TD:8138 ft.Measured PB depth:8089 ft.
True Vertical TD:True Vertical PB depth:
Log Types:DENSITY,NEUTRON,GR,IND,CBL

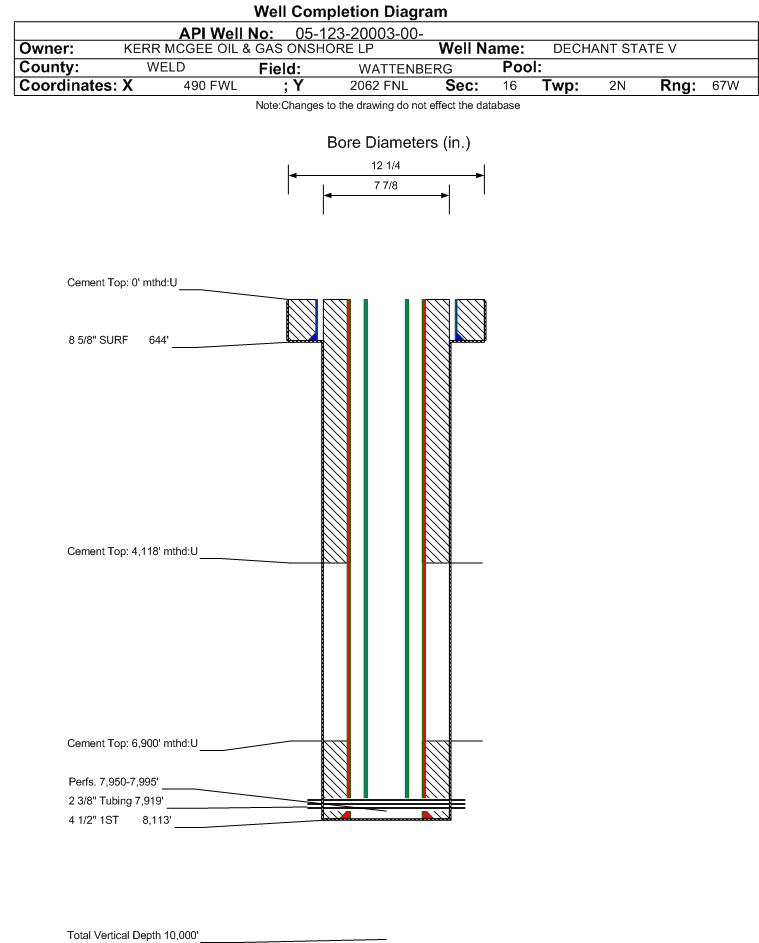

Casing:String Type: SURF, Hole Size: 12.25 in., Size: 8.625 in., Top: 0 ft., Depth: 644 ft., Weight: 24 , Citings Type: ACTUAL
Cement:Sacks: 450, Top: 0 ft., Bottom: 644 ft., Determination Method: VISU
Casing:String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: 0 ft., Depth: 8113 ft., Weight: 11.6 , Citings Type: ACTUAL
Cement:Sacks: 180, Top: 6900 ft., Bottom: 8113 ft., Determination Method: CBL
Casing:String Type: S.C. 1.1, Hole Size: , Size: , Top: , Depth: , Weight: , Citings Type: ACTUAL
Cement:Sacks: , Top: 4118 ft., Bottom: , Determination Method: CBL
Casing:String Type: STAGE TOOL, Hole Size: , Size: , Top: , Depth: 5175 ft., Weight: , Citings Type: ACTUAL
Cement:Sacks: 220, Top: 4178 ft., Bottom: 5184 ft., Determination Method: CBL
FormationInterval TopLog BottomCoredDSTs
SUSSEX4385 ft.NN
SHANNON4960 ft.NN
NIOBRARA7255 ft.NN
CODELL7520 ft.NN
J SAND7960 ft.NN

Formation JSND                     Formation Classification:  GW                     Status:  AB - 7/10/2018                 Interval Top: 7950 ft.    Interval Bottom: 7995 ft.

 Completed Information for Formation J SAND
1st Production Date:N/AChoke Size:0.281 in.
Formation Name:J SANDCommingled:No
Production Method:FLOWING
Open Hole Completion:No
Formation Treatment
Treatment Date:9/8/2000
Treatment Summary:118188 GALS FLUID & 300220# 20/40.
Tubing Size:2.375 in.Tubing Setting Depth:7919 ft.
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:9/25/2000Test Method:FLOWING
Hours Tested:24Gas Type:
Gas Disposal:SOLD
Test TypeMeasure
BBLS_H2O 15
BBLS_OIL 0
CALC_BBLS_H2O 0
CALC_BBLS_OIL 0
CALC_MCF_GAS 170
CASING_PRESS 500
MCF_GAS 170
TUBING_PRESS 350
Perforation Data:
Interval Top:7950 ft.# Of Holes:74
Interval Bottom:7995 ft.Hole Size:
Primary Well Designation:
None      i
            All DesignationsDate
Reported PluggedY07/10/2018
Out Of Service RepurposedN
Out Of ServiceN
Inactive ExceptionN
Noticed InactiveN
Defined InactiveN
Low ProducingN

BOE/MCFE/GOR Calculations
Production for Previous 12 Months
May 2024 - April 2025i
Total Oil Produced (Barrels)0
Total Gas Produced (MCF)0
GOR
GOR Determination
Average BOE per Day0.000
Average MCFE per Day0.000

 Federal Financial Assurance  i

 Tribal Well  i No
