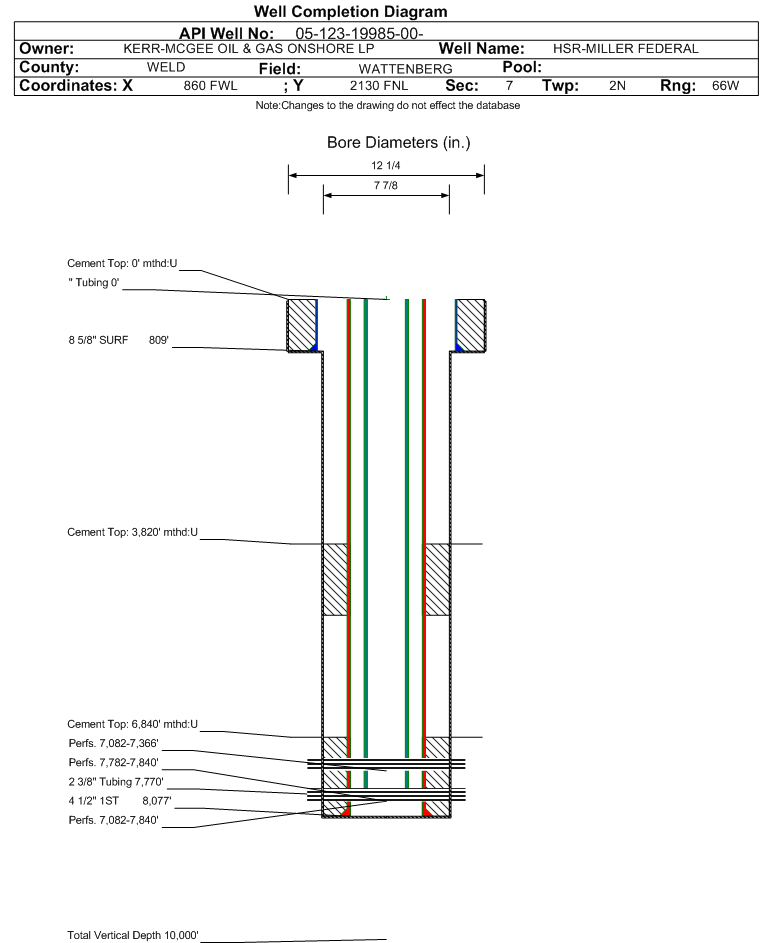

Wellbore #00 Wellbore Classification: GW Status: AB - 8/16/2024 Measured TD: 8091 ft.| Wellbore Data for Original Wellbore | Wellbore Classification: GW AB - 8/16/2024 | | Wellbore Permit | | | Permit #: | | Expiration Date: | 10/12/2010 | | Proposed Depth/Form: | 8091 ft. | | Surface Mineral Owner Same: | Yes | | Mineral Owner: | FEE | Surface Owner: | FEE | | Unit: | | Unit Number: | | | Formation And Spacing: | Code: DKTA , Formation: DAKOTA , Order: 499 , Unit Acreage: 320, Drill Unit: N2 | | Formation And Spacing: | Code: JSND , Formation: J SAND , Order: 232 , Unit Acreage: 320, Drill Unit: N2 | | Formation And Spacing: | Code: NB-CD , Formation: NIOBRARA-CODELL , Order: 407 , Unit Acreage: 80, Drill Unit: S2NW | | Casing: | String Type: SURF, Hole Size: 12.25 in., Size: 8.625 in., Top: , Depth: 809 ft., Weight: 24 , Citings Type: PLANNED | | Cement: | Sacks: 565, Top: 0 ft., Bottom: 809 ft. | | Casing: | String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: , Depth: 8077 ft., Weight: 11.6 , Citings Type: PLANNED | | Cement: | Sacks: 200, Top: 6880 ft., Bottom: 8077 ft. | | Casing: | String Type: STAGE TOOL, Hole Size: , Size: , Top: , Depth: 4937 ft., Weight: , Citings Type: PLANNED | | Cement: | Sacks: 280, Top: 3822 ft., Bottom: 4937 ft. |
| | |
| Wellbore Completed | | Completion Date: | 12/16/2000 | | Spud Date: | 12/1/2000 | Spud Date Is: | ACTUAL | | Measured TD: | 8091 ft. | Measured PB depth: | 8066 ft. | | True Vertical TD: | | True Vertical PB depth: | | | Log Types: | CDLD, AILC, MLGR, CBL | | Casing: | String Type: SURF, Hole Size: 12.25 in., Size: 8.625 in., Top: 0 ft., Depth: 809 ft., Weight: 24 , Citings Type: ACTUAL | | Cement: | Sacks: 565, Top: 0 ft., Bottom: 809 ft., Determination Method: VISU | | Casing: | String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: 0 ft., Depth: 8077 ft., Weight: 11.6 , Citings Type: ACTUAL | | Cement: | Sacks: 200, Top: 6880 ft., Bottom: 8077 ft., Determination Method: CBL | | Casing: | String Type: S.C. 1.1, Hole Size: , Size: , Top: , Depth: 4937 ft., Weight: , Citings Type: ACTUAL | | Cement: | Sacks: 280, Top: 3820 ft., Bottom: 4937 ft., Determination Method: CBL | | Formation | Interval Top | Log Bottom | Cored | DSTs | | SUSSEX | 4352 ft. | | N | N | | NIOBRARA | 7082 ft. | | N | N | | FORT HAYS | 7324 ft. | | N | N | | CODELL | 7348 ft. | | N | N | | J SAND | 7780 ft. | | N | N | | DAKOTA | 7986 ft. | | N | N |
Formation JSND Formation Classification: GW Status: AB - 8/16/2024 Interval Top: 7782 ft. Interval Bottom: 7840 ft.| Completed Information for Formation J SAND | | 1st Production Date: | 12/22/2000 | Choke Size: | | | Formation Name: | J SAND | Commingled: | Yes | | Production Method: | | | Open Hole Completion: | No |
| | Formation Treatment | | Treatment Date: | 8/22/2011 | | Treatment Summary: | 12/1/09 -set sand plug over Jsnd @ 7560' for NB/CD Recomplete
8/22/11 -remove sand plug and commingle well with NB/CD
8/30/11 -commingle NB-CD/JSND production | | Formation Treatment | | Treatment Date: | 12/16/2000 | | Treatment Summary: | FRAC'D J SAND W/ 561200# 20/40 MESH; 239233 GAL. GELLED FLUID |
| | Tubing Size: | | Tubing Setting Depth: | | | Tubing Packer Depth: | | Tubing Multiple Packer: | | | Open Hole Top: | | Open Hole Bottom: | | | Initial Test Data: | | Test Date: | N/A | Test Method: | | | Hours Tested: | | Gas Type: | WET | | Gas Disposal: | SOLD | |
| Test Type | Measure |
|---|
| BBLS_OIL | 3 | | CALC_GOR | 303333 | | CASING_PRESS | 950 | | GRAVITY_OIL | 60 | | MCF_GAS | 910 | | TUBING_PRESS | 850 |
| | Perforation Data: | | Interval Top: | 7782 ft. | # Of Holes: | 100 | | Interval Bottom: | 7840 ft. | Hole Size: | 0.38 in. |
|
Formation JNBCD Formation Classification: GW Status: CM - 8/30/2011 Interval Top: 7082 ft. Interval Bottom: 7840 ft.| Completed Information for Formation J-NIOBRARA-CODELL | | 1st Production Date: | 8/30/2011 | Choke Size: | | | Formation Name: | J-NIOBRARA-CODELL | Commingled: | No | | Production Method: | | | Open Hole Completion: | No |
| | Formation Treatment | | Treatment Date: | 8/22/2011 | | Treatment Summary: | NB PERF 7082-7224 HOLES 62 SIZE 0.42
CD PERF 7347-7366 HOLES 57 SIZE 0.38
J S PERF 7782-7840 HOLES 100 SIZE 0.38 |
| | Tubing Size: | 2.375 in. | Tubing Setting Depth: | 7770 ft. | | Tubing Packer Depth: | | Tubing Multiple Packer: | | | Open Hole Top: | | Open Hole Bottom: | | | Initial Test Data: | | Test Date: | 8/30/2011 | Test Method: | FLOWING | | Hours Tested: | 24 | Gas Type: | WET | | Gas Disposal: | SOLD | |
| Test Type | Measure |
|---|
| BBLS_OIL | 6 | | BTU_GAS | 1222 | | CALC_BBLS_OIL | 6 | | CALC_GOR | 4667 | | CALC_MCF_GAS | 28 | | CASING_PRESS | 538 | | GRAVITY_OIL | 50 | | MCF_GAS | 28 | | TUBING_PRESS | 425 |
| | Perforation Data: | | Interval Top: | 7082 ft. | # Of Holes: | 219 | | Interval Bottom: | 7840 ft. | Hole Size: | 0.38 in. |
|
Formation NB-CD Formation Classification: GW Status: AB - 8/16/2024 Interval Top: 7082 ft. Interval Bottom: 7366 ft.| Completed Information for Formation NIOBRARA-CODELL | | 1st Production Date: | 1/5/2010 | Choke Size: | | | Formation Name: | NIOBRARA-CODELL | Commingled: | Yes | | Production Method: | | | Open Hole Completion: | No |
| | Formation Treatment | | Treatment Date: | 12/9/2009 | | Treatment Summary: | NB PERF 7082-7224 HOLES 62 SIZE 0.42 CD PERF 7347-7366 HOLES 57 SIZE 0.38
Frac Niobrara w/ 500 gal 15% HCl & 239,442 gal Slickwater w/ 200,880# 40/70 & 4,060# 20/40 SB Excel
Frac Codell down 4-1/2" Csg w/ 166,656 gal Slickwater w/ 116,040# 40/70 & 4,100# 40/70 SB Excel |
| | Tubing Size: | | Tubing Setting Depth: | | | Tubing Packer Depth: | | Tubing Multiple Packer: | | | Open Hole Top: | | Open Hole Bottom: | | | No Initial Test Data was found for formation NB-CD. |
| | Perforation Data: | | Interval Top: | 7082 ft. | # Of Holes: | 119 | | Interval Bottom: | 7366 ft. | Hole Size: | 0.38 in. |
|
|
|
|
|
|
|
| Reported Plugged | Y | 08/16/2024 |
| Out Of Service Repurposed | N | |
| Out Of Service | Y | Plugging Due Date
12/31/2030 |
| Inactive Exception | N | |
| Noticed Inactive | N | |
| Defined Inactive | N | |
| Low Producing | N | |
| Total Oil Produced (Barrels) | 0 |
| Total Gas Produced (MCF) | 0 |
| GOR | |
| GOR Determination | MCFE |
| Average BOE per Day | 0.000 |
| Average MCFE per Day | 0.000 |
| Federal Financial Assurance | i | |
|
|
