COGIS - WELL SCOUT CARD

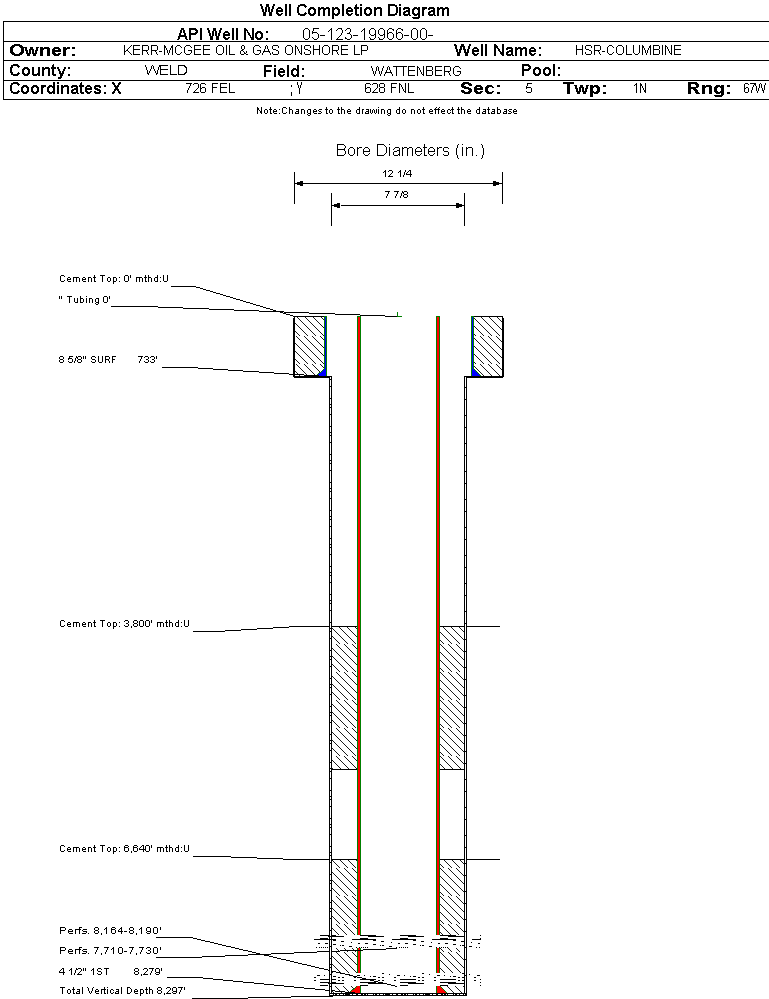

Click image to view related facilities. Related  Click image to view inspection information. InspClick image to view MIT information. MITGIS Map GISOld GIS Map Old GISClick image to view imaged documents for this well/facility. DocClick image to view imaged documents for this well/facility. COAClick image to view wellbore completion diagram. WellboreClick image to search for orders within this facility's section. OrdersClick image to view bradenhead scoutcard data. Bradenhead
 Surface Location
 API# 05-123-19966		Well Classification: GW Status: SI - 7/1/2020
Well Name/No:HSR-COLUMBINE #1-5A
(Click Well Name for Production Data)		Click Here for Transporter Gatherer Info
Operator:KERR MCGEE OIL & GAS ONSHORE LP - 47120
(Click Operator Name for Company Detail Report)		Federal Or State Lease #:
Facility Status:SIStatus Date7/1/2020
FacilityID:257362LocationID:336099
County:WELD #123Location:NENE 5 1N67W 6
Field:WATTENBERG - #90750Elevation:5055 ft.
Basin:DENVER (DJ) BASIN
Planned Location:628FNL  726 FELLat/Long: 40.085777 / -104.907913Lat/Long Source: Calculated From Footages
As Drilled Location:Footages Not AvailableLat/Long: 40.085860 / -104.907890Lat/Long Source: Field Measured
 Wellbore And Formation Details -- select either a wellbore Or formation to expand.


Wellbore #00             Wellbore Classification: GW             Status: SI - 7/1/2020             Measured TD: 8297 ft.

 Wellbore Data for Original WellboreWellbore Classification: GW        SI - 7/1/2020
Wellbore Permit
Permit #:20071637 Expiration Date:5/7/2008
Proposed Depth/Form:8297 ft.
Surface Mineral Owner Same:No
Mineral Owner:FEESurface Owner:FEE
Unit: Unit Number:
Formation And Spacing:Code: CODL , Formation: CODELL , Order: 407 , Unit Acreage: 160, Drill Unit: NE/4
Formation And Spacing:Code: JSND , Formation: J SAND , Order: 232 , Unit Acreage: 320, Drill Unit: N2
Casing:String Type: SURF, Hole Size: 12.25 in., Size: 8.625 in., Top: , Depth: 733 ft., Weight: 24 , Citings Type: PLANNED
Cement:Sacks: 515, Top: 0 ft., Bottom: 733 ft.
Casing:String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: , Depth: 8279 ft., Weight: 11.6 , Citings Type: PLANNED
Cement:Sacks: 720, Top: 3800 ft., Bottom: 8279 ft.
Wellbore Completed
Completion Date:10/23/2000
Spud Date:8/1/2000Spud Date Is:ACTUAL
Measured TD:8297 ft.Measured PB depth:8248 ft.
True Vertical TD:True Vertical PB depth:
Log Types:CDCNGR, DIGL GR, CBL
Casing:String Type: SURF, Hole Size: 12.25 in., Size: 8.625 in., Top: 0 ft., Depth: 733 ft., Weight: 24 , Citings Type: ACTUAL
Cement:Sacks: 515, Top: 0 ft., Bottom: 733 ft., Determination Method: CALC
Casing:String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: 0 ft., Depth: 8279 ft., Weight: 11.6 , Citings Type: ACTUAL
Cement:Sacks: 300, Top: 3800 ft., Bottom: 5533 ft., Determination Method: CBL
Casing:String Type: S.C. 1.1, Hole Size: , Size: , Top: , Depth: , Weight: , Citings Type: ACTUAL
Cement:Sacks: 420, Top: 6640 ft., Bottom: 8279 ft., Determination Method: CBL
FormationInterval TopLog BottomCoredDSTs
SUSSEX4770 ft.NN
SHANNON5154 ft.NN
NIOBRARA7414 ft.NN
CODELL7611 ft.NN
FORT HAYS7688 ft.NN
J SAND8144 ft.NN

Formation JSND                     Formation Classification:  GW                     Status:  SI - 7/1/2020                  Interval Top: 8164 ft.    Interval Bottom: 8190 ft.

 Completed Information for Formation J SAND
1st Production Date:N/AChoke Size:
Formation Name:J SANDCommingled:No
Production Method:
Open Hole Completion:No
Formation Treatment
Treatment Date:7/19/2007
Treatment Summary:
Tubing Size:Tubing Setting Depth:
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:N/ATest Method:
Hours Tested:Gas Type:
Gas Disposal:
Test TypeMeasure
BBLS_OIL 2
CALC_BBLS_OIL 2
CALC_GOR 262000
CALC_MCF_GAS 524
CASING_PRESS 600
GRAVITY_OIL 60
MCF_GAS 524
TUBING_PRESS 450
Perforation Data:
Interval Top:8164 ft.# Of Holes:78
Interval Bottom:8190 ft.Hole Size:0.38 in.

Formation CODL                     Formation Classification:  GW                     Status:  SI - 7/1/2020                  Interval Top: 7710 ft.    Interval Bottom: 7730 ft.

 Completed Information for Formation CODELL
1st Production Date:9/17/2007Choke Size:0.281 in.
Formation Name:CODELLCommingled:No
Production Method:
Open Hole Completion:No
Formation Treatment
Treatment Date:9/17/2007
Treatment Summary:200,745 GAL & 116,540 LBS 30/50 SAND
Tubing Size:Tubing Setting Depth:
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:12/29/2007Test Method:FLOWING
Hours Tested:Gas Type:WET
Gas Disposal:SOLD
Test TypeMeasure
BTU_GAS 1142
CALC_BBLS_H2O 0
CALC_BBLS_OIL 38
CALC_GOR 3263
CALC_MCF_GAS 124
CASING_PRESS 858
GRAVITY_OIL 51
Perforation Data:
Interval Top:7710 ft.# Of Holes:60
Interval Bottom:7730 ft.Hole Size:0.42 in.
Primary Well Designation:
Out Of Service      i
            All DesignationsDate
Reported PluggedN
Out Of Service RepurposedN
Out Of ServiceYPlugging Due Date
12/31/2030
Inactive ExceptionN
Noticed InactiveN
Defined Inactive (SI)YLast Production
06/30/2020
Low ProducingYProduction Period
01/2025 - 12/2025

BOE/MCFE/GOR Calculations
Production for Previous 12 Months
January 2025 - December 2025i
Total Oil Produced (Barrels)0
Total Gas Produced (MCF)0
GOR
GOR DeterminationMCFE
Average BOE per Day0.000
Average MCFE per Day0.000

 Federal Financial Assurance  i

 Tribal Well  i No
