COGIS - WELL SCOUT CARD

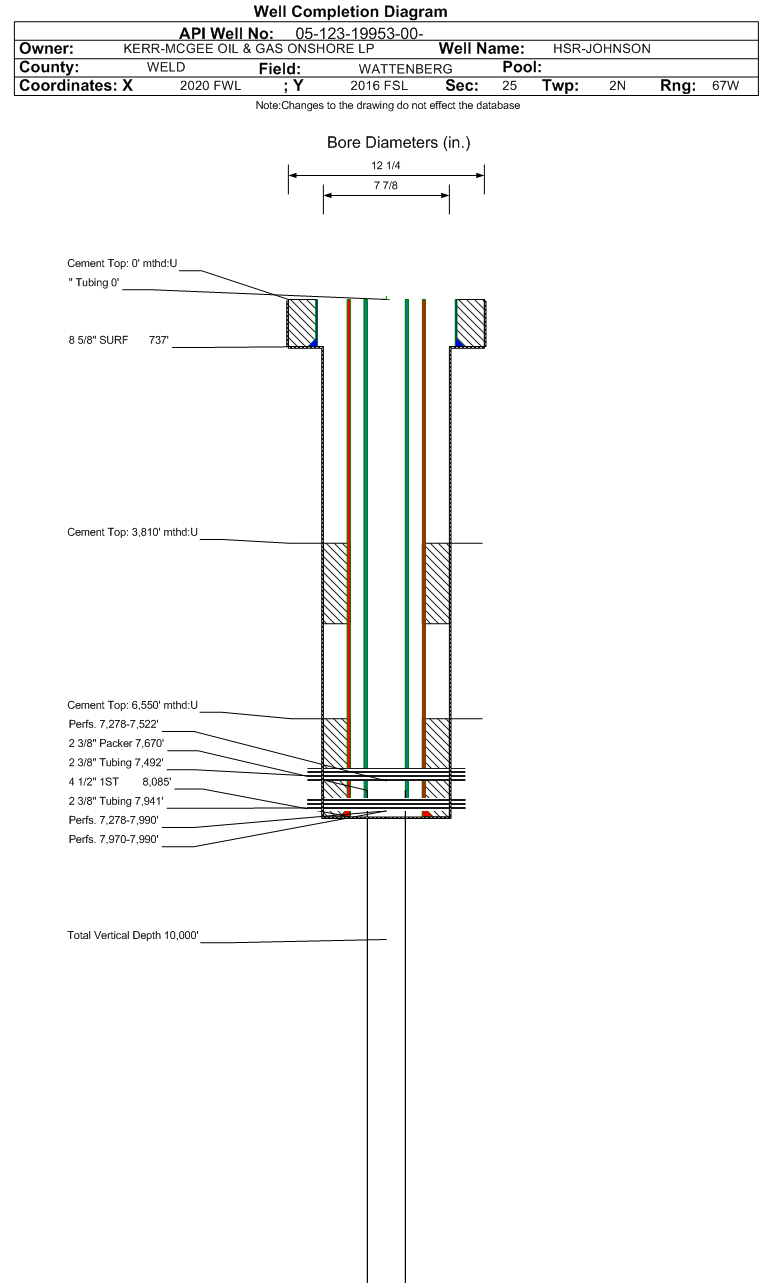

Click image to view related facilities. Related  Click image to view inspection information. InspClick image to view MIT information. MITGIS Map GISOld GIS Map Old GISClick image to view imaged documents for this well/facility. DocClick image to view imaged documents for this well/facility. COAClick image to view wellbore completion diagram. WellboreClick image to search for orders within this facility's section. OrdersClick image to view bradenhead scoutcard data. Bradenhead
 Surface Location
 API# 05-123-19953		Well Classification: GW Status: PA - 10/24/2024
Well Name/No:HSR-JOHNSON #11-25A
(Click Well Name for Production Data)		Click Here for Transporter Gatherer Info
Operator:KERR MCGEE OIL & GAS ONSHORE LP - 47120
(Click Operator Name for Company Detail Report)		Federal Or State Lease #:
Facility Status:PAStatus Date10/24/2024
FacilityID:257059LocationID:333006
County:WELD #123Location:NESW 25 2N67W 6
Field:WATTENBERG - #90750Elevation:4907 ft.
Basin:DENVER (DJ) BASIN
Planned Location:2016FSL  2020 FWLLat/Long: 40.107417 / -104.841681Lat/Long Source: Calculated From Footages
As Drilled Location:Footages Not AvailableLat/Long: 40.107509 / -104.841564Lat/Long Source: Field Measured
 Wellbore And Formation Details -- select either a wellbore Or formation to expand.


Wellbore #00             Wellbore Classification: GW             Status: AB - 10/24/2024             Measured TD: 8085 ft.

 Wellbore Data for Original WellboreWellbore Classification: GW        AB - 10/24/2024
Wellbore Permit
Permit #:20021021 Expiration Date:5/28/2003
Proposed Depth/Form:8085 ft.
Surface Mineral Owner Same:No
Mineral Owner:FEESurface Owner:FEE
Unit: Unit Number:
Formation And Spacing:Code: JSND , Formation: J SAND , Order: 232 , Unit Acreage: 320, Drill Unit: S2
Formation And Spacing:Code: NB-CD , Formation: NIOBRARA-CODELL , Order: 407 , Unit Acreage: 80, Drill Unit: N/2
Casing:String Type: SURF, Hole Size: 12.25 in., Size: 8.625 in., Top: , Depth: 737 ft., Weight: 24 , Citings Type: PLANNED
Cement:Sacks: 510, Top: 0 ft., Bottom: 737 ft.
Casing:String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: , Depth: 8085 ft., Weight: 11.6 , Citings Type: PLANNED
Cement:Sacks: 300, Top: 3810 ft., Bottom: 5030 ft.
Wellbore Completed
Completion Date:10/31/2000
Spud Date:5/25/2000Spud Date Is:ACTUAL
Measured TD:8085 ft.Measured PB depth:8066 ft.
True Vertical TD:True Vertical PB depth:
Top PZ Location:Sec: Twp: Footage:  FL   FL
Bottom Hole Location:Sec: Twp: Footage:  FL   FL
Log Types:PEAILC, PECNLD, PEML GR, CBL
Casing:String Type: SURF, Hole Size: 12.25 in., Size: 8.625 in., Top: 0 ft., Depth: 727 ft., Weight: 24 , Citings Type: ACTUAL
Cement:Sacks: 510, Top: 0 ft., Bottom: 727 ft., Determination Method: VISU
Casing:String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: 0 ft., Depth: 8085 ft., Weight: 11.6 , Citings Type: ACTUAL
Cement:Sacks: 350, Top: 6522 ft., Bottom: 8085 ft., Determination Method: CBL
Casing:String Type: S.C. 1.1, Hole Size: , Size: , Top: , Depth: 5060 ft., Weight: , Citings Type: ACTUAL
Cement:Sacks: 300, Top: 3808 ft., Bottom: 5078 ft., Determination Method: CBL
FormationInterval TopLog BottomCoredDSTs
SUSSEX4480 ft.NN
NIOBRARA7214 ft.NN
FORT HAYS7485 ft.NN
CODELL7507 ft.NN
J SAND7944 ft.NN

Formation JSND                     Formation Classification:  GW                     Status:  AB - 10/24/2024                Interval Top: 7970 ft.    Interval Bottom: 7990 ft.

 Completed Information for Formation J SAND
1st Production Date:11/15/2000Choke Size:
Formation Name:J SANDCommingled:Yes
Production Method:
Open Hole Completion:No
Formation Treatment
Treatment Type:
Treatment Date:3/8/2013Treatment End Date:N/A
Treatment Summary:CLEARED OUT SAND PLUG TO COMMINGLE JSND PRODUCTION WITH NB/CD PRODUCTION.
Total fluid used in treatment (bbls):Max pressure during treatment (psi):
Total gas used in treatment (mcf):Fluid density (lbs/gal):
Type Of gas:Number Of staged intervals:
Total acid used in treatment (bbls):Min frac gradient (psi/ft):
Recycled water used in treatment (bbls):Total flowback volume recovered (bbls):
Fresh water used in treatment (bbls):Disposition method For flowback:
Total proppant used (lbs):Green completions techniques utilized:--
Reason green techniques Not utilized:
Formation Treatment
Treatment Date:10/31/2000
Treatment Summary:
Tubing Size:Tubing Setting Depth:
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:N/ATest Method:
Hours Tested:Gas Type:
Gas Disposal:
Test TypeMeasure
BBLS_OIL 2
CALC_BBLS_OIL 2
CALC_GOR 151500
CALC_MCF_GAS 303
CASING_PRESS 490
GRAVITY_OIL 60
MCF_GAS 303
TUBING_PRESS 375
Perforation Data:
Interval Top:7970 ft.# Of Holes:60
Interval Bottom:7990 ft.Hole Size:

Formation JNBCD                   Formation Classification:  GW                   Status:  CM - 1/22/2013                 Interval Top: 7278 ft.    Interval Bottom: 7990 ft.

 Completed Information for Formation J-NIOBRARA-CODELL
1st Production Date:10/23/2012Choke Size:
Formation Name:J-NIOBRARA-CODELLCommingled:No
Production Method:
Open Hole Completion:No
Formation Treatment
Treatment Type:
Treatment Date:11/14/2012Treatment End Date:N/A
Treatment Summary:CLEARED OUT SAND PLUG TO COMMINGLE JSND PRODUCTION WITH NB/CD PRODUCTION.
Total fluid used in treatment (bbls):Max pressure during treatment (psi):
Total gas used in treatment (mcf):Fluid density (lbs/gal):
Type Of gas:Number Of staged intervals:
Total acid used in treatment (bbls):Min frac gradient (psi/ft):
Recycled water used in treatment (bbls):Total flowback volume recovered (bbls):
Fresh water used in treatment (bbls):Disposition method For flowback:
Total proppant used (lbs):Green completions techniques utilized:--
Reason green techniques Not utilized:
Formation Treatment
Treatment Date:10/31/2000
Treatment Summary:COMMINGLED JNBCD
Tubing Size:2.375 in.Tubing Setting Depth:7941 ft.
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:11/14/2012Test Method:FLOWING
Hours Tested:24Gas Type:WET
Gas Disposal:SOLD
Test TypeMeasure
BBLS_OIL 3
BTU_GAS 1305
CALC_BBLS_OIL 3
CALC_GOR 3333
CALC_MCF_GAS 10
CASING_PRESS 521
GRAVITY_OIL 46
MCF_GAS 10
TUBING_PRESS 412
Perforation Data:
Interval Top:7278 ft.# Of Holes:201
Interval Bottom:7990 ft.Hole Size:

Formation NB-CD                   Formation Classification:  GW                   Status:  AB - 10/24/2024                Interval Top: 7278 ft.    Interval Bottom: 7522 ft.

 Completed Information for Formation NIOBRARA-CODELL
1st Production Date:N/AChoke Size:0.375 in.
Formation Name:NIOBRARA-CODELLCommingled:No
Production Method:PLUNGER
Open Hole Completion:No
Formation Treatment
Treatment Date:10/31/2000
Treatment Summary:SEE SCANNED DOC# 1197816
Tubing Size:2.375 in.Tubing Setting Depth:7492 ft.
Tubing Packer Depth:7690 ft.Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:1/12/2003Test Method:PLUNGER
Hours Tested:24Gas Type:SHALE
Gas Disposal:SOLD
Test TypeMeasure
BBLS_OIL 22
CALC_BBLS_OIL 22
CALC_GOR 2636
CALC_MCF_GAS 58
CASING_PRESS 560
GRAVITY_OIL 60
MCF_GAS 58
TUBING_PRESS 400
Perforation Data:
Interval Top:7278 ft.# Of Holes:
Interval Bottom:7522 ft.Hole Size:
Primary Well Designation:
None      i
            All DesignationsDate
Reported PluggedY10/24/2024
Out Of Service RepurposedN
Out Of ServiceYPlugging Due Date
12/31/2030
Inactive ExceptionN
Noticed InactiveN
Defined InactiveN
Low ProducingN

BOE/MCFE/GOR Calculations
Production for Previous 12 Months
January 2025 - December 2025i
Total Oil Produced (Barrels)0
Total Gas Produced (MCF)0
GOR
GOR DeterminationMCFE
Average BOE per Day0.000
Average MCFE per Day0.000

 Federal Financial Assurance  i

 Tribal Well  i No
