Facility Detail

COGIS - WELL SCOUT CARD

Insp

Surface Location
API# 05-123-19902

Well Classification: GW

Status: PA - 4/29/2019

Well Name/No:

ECHEVERRIA #22-2
(Click Well Name for Production Data)

Click Here for Transporter Gatherer Info

Operator:

CRESTONE PEAK RESOURCES OPERATING LLC - 10633
(Click Operator Name for Company Detail Report)

Federal Or State Lease #:

Facility Status:

Status Date

4/29/2019

FacilityID:

256679

LocationID:

330937

County:

WELD #123

Location:

SENW 2 2N67W 6

Field:

WATTENBERG - #90750

Elevation:

4848 ft.

Planned Location:

2220FNL 2130 FWL

Lat/Long: 40.168277 / -104.859572

Lat/Long Source: Calculated From Footages

As Drilled Location:

Footages Not Available

Lat/Long: 40.168849 / -104.858906

Lat/Long Source: Field Measured

Disclosure: Sidetrack #00
Start Date: 6/4/2013
End Date: 6/4/2013
Reported: 8/1/2013
Days to report: 58

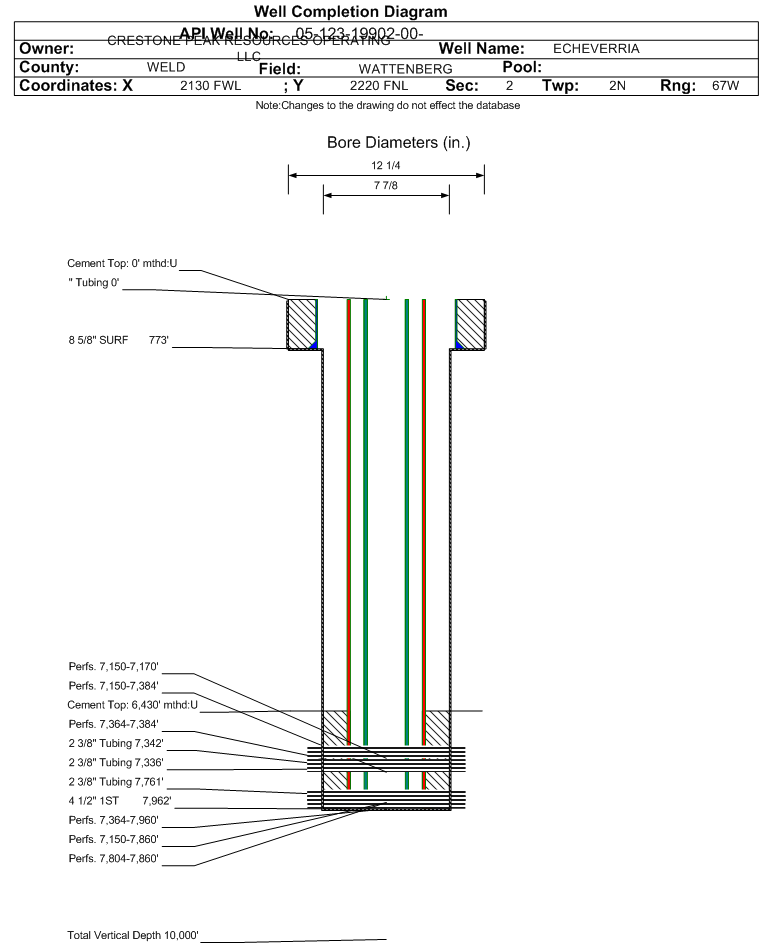

Wellbore And Formation Details -- select either a wellbore Or formation to expand.

Wellbore #00 Wellbore Classification: GW Status: PA - 4/29/2019 Measured TD: 7970 ft.

Wellbore Data for Original Wellbore		Wellbore Classification: GW PA - 4/29/2019
Wellbore Permit			DRIFTED
Permit #:	20000078	Expiration Date:	1/30/2002
Proposed Depth/Form:	7970 ft.
Surface Mineral Owner Same:	No
Mineral Owner:	FEE	Surface Owner:	FEE
Unit:		Unit Number:
Formation And Spacing:	Code: CODL , Formation: CODELL , Order: 407,407-66, Unit Acreage: 320, Drill Unit: W2
Formation And Spacing:	Code: JSND , Formation: J SAND , Order: 232 , Unit Acreage: 320, Drill Unit: W2
Casing:	String Type: STAGE TOOL, Hole Size: , Size: , Top: , Depth: 5100 ft., Weight: , Citings Type: PLANNED
Cement:	Sacks: 250, Top: 4000 ft., Bottom: 5100 ft.

Wellbore Completed
Completion Date:	4/17/2000
Spud Date:	3/12/2000	Spud Date Is:	ACTUAL
Measured TD:	7970 ft.	Measured PB depth:	7921 ft.
True Vertical TD:		True Vertical PB depth:
Log Types:	DUAL IND GL/GR; CBL VDL GR; COMP DENS COMP NEUT GR
Casing:	String Type: SURF, Hole Size: 12.25 in., Size: 8.625 in., Top: 0 ft., Depth: 773 ft., Weight: 24 , Citings Type: ACTUAL
Cement:	Sacks: 545, Top: 0 ft., Bottom: 773 ft., Determination Method: VISU
Casing:	String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: 0 ft., Depth: 7962 ft., Weight: 11.6 , Citings Type: ACTUAL
Cement:	Sacks: 300, Top: 6430 ft., Bottom: 7962 ft., Determination Method: CBL
Formation	Interval Top	Log Bottom	Cored	DSTs
SUSSEX	4252 ft.		N	N
SHANNON	4812 ft.		N	N
NIOBRARA	7064 ft.		N	N
FORT HAYS	7340 ft.		N	N
CODELL	7362 ft.		N	N
CARLILE	7384 ft.		N	N
GREENHORN	7414 ft.		N	N
BENTONITE	7633 ft.		N	N
GRANEROS	7634 ft.		N	N
MOWRY	7787 ft.		N	N
J-2 SAND	7802 ft.		N	N
SKULL CREEK	7916 ft.		N	N

Formation JSND Formation Classification: GW Status: AB - 4/29/2019 Interval Top: 7804 ft. Interval Bottom: 7860 ft.

Completed Information for Formation J SAND

1st Production Date:	N/A	Choke Size:
Formation Name:	J SAND	Commingled:	Yes
Production Method:
Open Hole Completion:	No

Formation Treatment
Treatment Date:	4/17/2000
Treatment Summary:

Test Type	Measure
Tubing Size:		Tubing Setting Depth:
Tubing Packer Depth:		Tubing Multiple Packer:
Open Hole Top:		Open Hole Bottom:
Initial Test Data:
Test Date:	N/A	Test Method:
Hours Tested:		Gas Type:
Gas Disposal:
BBLS_H2O	34
BBLS_OIL	10
CALC_BBLS_H2O	34
CALC_BBLS_OIL	10
CALC_GOR	110700
CALC_MCF_GAS	1107
CASING_PRESS	760
MCF_GAS	1107
TUBING_PRESS	550

Perforation Data:
Interval Top:	7804 ft.	# Of Holes:	92
Interval Bottom:	7860 ft.	Hole Size:	0.375 in.

Formation CODL Formation Classification: GW Status: CM - 7/18/2013 Interval Top: 7364 ft. Interval Bottom: 7384 ft.

Completed Information for Formation CODELL

1st Production Date:	3/22/2001	Choke Size:
Formation Name:	CODELL	Commingled:	Yes
Production Method:
Open Hole Completion:

Formation Treatment
Treatment Type:	FRACTURE STIMULATION
Treatment Date:	6/4/2013	Treatment End Date:	6/4/2013
Treatment Summary:	Set CIBP @ 7440'. Frac'd the CD w/67,926 # sand and 30,031 gal (715 bbls) frac fluid.
Total fluid used in treatment (bbls):	715	Max pressure during treatment (psi):	4258
Total gas used in treatment (mcf):		Fluid density (lbs/gal):	8.34
Type Of gas:		Number Of staged intervals:	1
Total acid used in treatment (bbls):		Min frac gradient (psi/ft):	0.89
Recycled water used in treatment (bbls):		Total flowback volume recovered (bbls):	633
Fresh water used in treatment (bbls):	715	Disposition method For flowback:	DISPOSAL
Total proppant used (lbs):	67926	Green completions techniques utilized:	Yes
Reason green techniques Not utilized:
Formation Treatment
Treatment Date:	4/17/2000
Treatment Summary:	FRAC WELL WITH 10,000# 100 MESH, 300000# 20/40 FRAC SAND. 128,000 GALS VISTAR 22 LHT, 20 LHT.

Test Type	Measure
Tubing Size:		Tubing Setting Depth:
Tubing Packer Depth:		Tubing Multiple Packer:
Open Hole Top:		Open Hole Bottom:
Initial Test Data:
Test Date:	N/A	Test Method:
Hours Tested:		Gas Type:
Gas Disposal:
BBLS_H2O	12
BBLS_OIL	25
CALC_BBLS_H2O	12
CALC_BBLS_OIL	25
CALC_GOR	2520
CALC_MCF_GAS	63
CASING_PRESS	180
MCF_GAS	63

Perforation Data:
Interval Top:	7364 ft.	# Of Holes:	80
Interval Bottom:	7384 ft.	Hole Size:	0.38 in.

Formation J-CDL Formation Classification: GW Status: CM - 1/27/2009 Interval Top: 7364 ft. Interval Bottom: 7960 ft.

Completed Information for Formation J-CODELL

1st Production Date:	3/22/2001	Choke Size:	0.344 in.
Formation Name:	J-CODELL	Commingled:	Yes
Production Method:	FLOWING
Open Hole Completion:	No

Formation Treatment
Treatment Date:	4/17/2000
Treatment Summary:

Test Type	Measure
Tubing Size:	2.375 in.	Tubing Setting Depth:	7336 ft.
Tubing Packer Depth:		Tubing Multiple Packer:
Open Hole Top:		Open Hole Bottom:
Initial Test Data:
Test Date:	4/5/2001	Test Method:	FLOWING
Hours Tested:	24	Gas Type:
Gas Disposal:	SOLD
BBLS_H2O	12
BBLS_OIL	33
CALC_BBLS_H2O	12
CALC_BBLS_OIL	33
CALC_GOR	11545
CALC_MCF_GAS	381
CASING_PRESS	480
MCF_GAS	381
TUBING_PRESS	220

Perforation Data:
Interval Top:	7364 ft.	# Of Holes:	172
Interval Bottom:	7960 ft.	Hole Size:	0.38 in.

Formation JNBCD Formation Classification: GW Status: CM - 7/18/2013 Interval Top: 7150 ft. Interval Bottom: 7860 ft.

Completed Information for Formation J-NIOBRARA-CODELL

1st Production Date:	N/A	Choke Size:
Formation Name:	J-NIOBRARA-CODELL	Commingled:	Yes
Production Method:
Open Hole Completion:

Formation Treatment
Treatment Type:
Treatment Date:	5/29/2013	Treatment End Date:	N/A
Treatment Summary:	Well was commingled and turned to production 6/20/2013.
Total fluid used in treatment (bbls):		Max pressure during treatment (psi):
Total gas used in treatment (mcf):		Fluid density (lbs/gal):
Type Of gas:		Number Of staged intervals:
Total acid used in treatment (bbls):		Min frac gradient (psi/ft):
Recycled water used in treatment (bbls):		Total flowback volume recovered (bbls):
Fresh water used in treatment (bbls):		Disposition method For flowback:
Total proppant used (lbs):		Green completions techniques utilized:	--
Reason green techniques Not utilized:
Formation Treatment
Treatment Date:	4/17/2000
Treatment Summary:	JSND-NBRR-CDL COMMINGLE. DRILLED OUT CBP @ 7450' TO COMMINGLE THE JSND-NBRR-CDL. 02/25/09.

Test Type	Measure
Tubing Size:	2.375 in.	Tubing Setting Depth:	7761 ft.
Tubing Packer Depth:		Tubing Multiple Packer:
Open Hole Top:		Open Hole Bottom:
Initial Test Data:
Test Date:	5/29/2013	Test Method:	Flow
Hours Tested:	2	Gas Type:	DRY
Gas Disposal:	SOLD
BBLS_H2O	6
BBLS_OIL	8
BTU_GAS	1331
CALC_BBLS_H2O	72
CALC_BBLS_OIL	96
CALC_GOR	5625
CALC_MCF_GAS	540
CASING_PRESS	736
GRAVITY_OIL	56
MCF_GAS	45
TUBING_PRESS	379

Perforation Data:
Interval Top:	7150 ft.	# Of Holes:	212
Interval Bottom:	7860 ft.	Hole Size:	0.42 in.

Formation NB-CD Formation Classification: GW Status: AB - 4/29/2019 Interval Top: 7150 ft. Interval Bottom: 7384 ft.

Completed Information for Formation NIOBRARA-CODELL

1st Production Date:	N/A	Choke Size:
Formation Name:	NIOBRARA-CODELL	Commingled:	No
Production Method:
Open Hole Completion:	No

Formation Treatment
Treatment Date:	1/21/2009
Treatment Summary:	NBRR-CDL COMMINGLE DRILLED OUT CFP @ 7280' TO COMMINGLE THE NBRR-CDL. 01-22-09.

Test Type	Measure
Tubing Size:	2.375 in.	Tubing Setting Depth:	7342 ft.
Tubing Packer Depth:		Tubing Multiple Packer:
Open Hole Top:		Open Hole Bottom:
Initial Test Data:
Test Date:	1/27/2009	Test Method:	FLOWING
Hours Tested:	24	Gas Type:	SHALE
Gas Disposal:	SOLD
BBLS_H2O	68
BBLS_OIL	33
BTU_GAS	1283
CALC_BBLS_H2O	68
CALC_BBLS_OIL	33
CALC_GOR	6455
CALC_MCF_GAS	213
CASING_PRESS	769
GRAVITY_OIL	56
MCF_GAS	213
TUBING_PRESS	187

Perforation Data:
Interval Top:	7150 ft.	# Of Holes:	120
Interval Bottom:	7384 ft.	Hole Size:	0.42 in.

Formation NBRR Formation Classification: GW Status: CM - 10/24/2013 Interval Top: 7150 ft. Interval Bottom: 7170 ft.

Completed Information for Formation NIOBRARA

1st Production Date:	2/25/2013	Choke Size:
Formation Name:	NIOBRARA	Commingled:	Yes
Production Method:
Open Hole Completion:

Formation Treatment
Treatment Type:	FRACTURE STIMULATION
Treatment Date:	6/4/2013	Treatment End Date:	6/4/2013
Treatment Summary:	Set CFP @ 7230'. Frac'd NB w/125,896 # sand and 56,606 gal (1348 bbls) frac fluid.
Total fluid used in treatment (bbls):	1348	Max pressure during treatment (psi):	4830
Total gas used in treatment (mcf):		Fluid density (lbs/gal):	8.34
Type Of gas:		Number Of staged intervals:	1
Total acid used in treatment (bbls):		Min frac gradient (psi/ft):	0.96
Recycled water used in treatment (bbls):		Total flowback volume recovered (bbls):	632
Fresh water used in treatment (bbls):	1348	Disposition method For flowback:	DISPOSAL
Total proppant used (lbs):	125896	Green completions techniques utilized:	Yes
Reason green techniques Not utilized:

Tubing Size:		Tubing Setting Depth:
Tubing Packer Depth:		Tubing Multiple Packer:
Open Hole Top:		Open Hole Bottom:
No Initial Test Data was found for formation NBRR.

Perforation Data:
Interval Top:	7150 ft.	# Of Holes:	40
Interval Bottom:	7170 ft.	Hole Size:

All Designations		Date
Primary Well Designation: None i
Reported Plugged	Y	04/29/2019
Out Of Service Repurposed	N
Out Of Service	N
Inactive Exception	N
Noticed Inactive	N
Defined Inactive	N
Low Producing	N

May 2024 - April 2025	i
BOE/MCFE/GOR Calculations Production for Previous 12 Months
Total Oil Produced (Barrels)	0
Total Gas Produced (MCF)	0
GOR
GOR Determination
Average BOE per Day	0.000
Average MCFE per Day	0.000

Federal Financial Assurance

Tribal Well
