COGIS - WELL SCOUT CARD

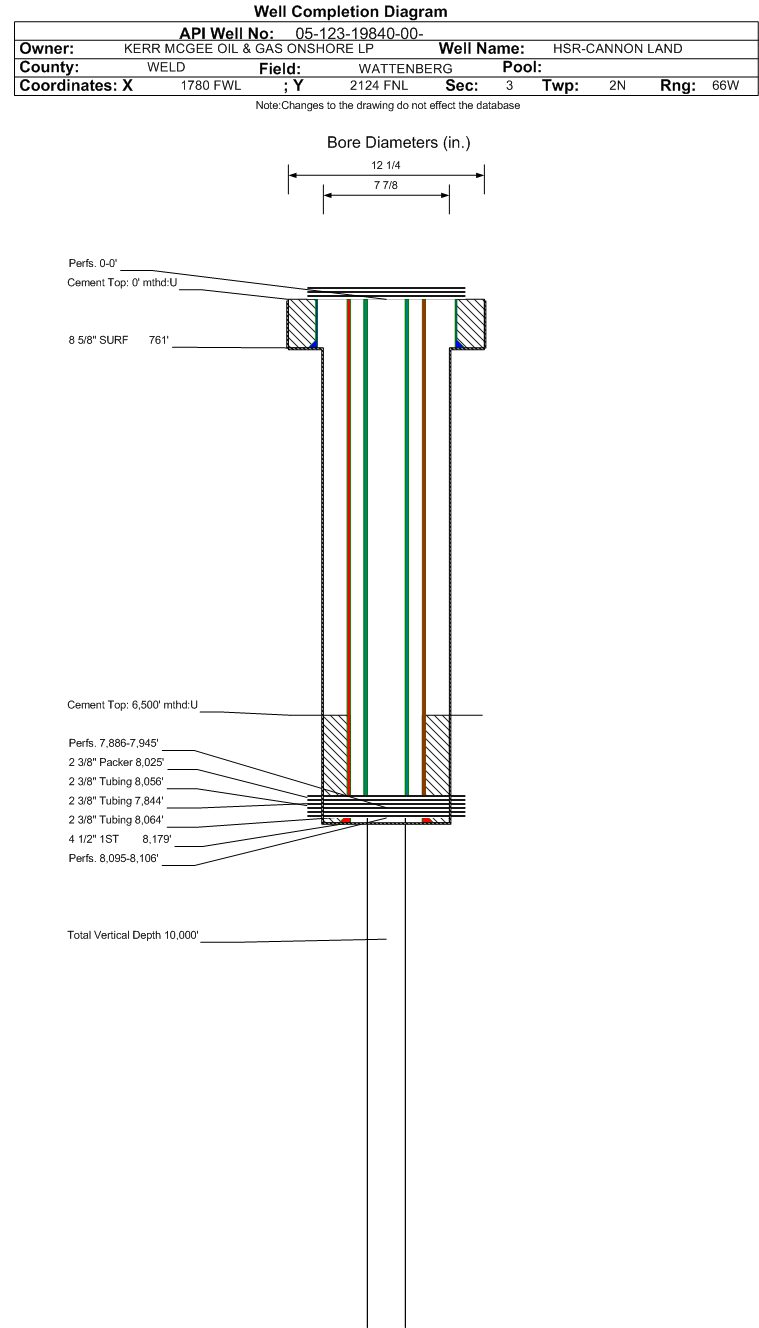

Click image to view related facilities. Related  Click image to view inspection information. InspClick image to view MIT information. MITClick image to access interactive map at well/facility location. GISClick image to view imaged documents for this well/facility. DocClick image to view imaged documents for this well/facility. COAClick image to view wellbore completion diagram. WellboreClick image to search for orders within this facility's section. OrdersClick image to view bradenhead scoutcard data. Bradenhead
 Surface Location
 API# 05-123-19840		Well Classification: GW Status: PA - 4/23/2018
Well Name/No:HSR-CANNON LAND #6-3A
(Click Well Name for Production Data)		Click Here for Transporter Gatherer Info
Operator:KERR MCGEE OIL & GAS ONSHORE LP - 47120
(Click Operator Name for Company Detail Report)		Federal Or State Lease #:
Facility Status:PAStatus Date4/23/2018
FacilityID:256356LocationID:330899
County:WELD #123Location:SENW 3 2N66W 6
Field:WATTENBERG - #90750Elevation:4976 ft.
Planned Location:2124FNL  1780 FWLLat/Long: 40.168497 / -104.766240Lat/Long Source: Calculated From Footages
As Drilled Location:Footages Not AvailableLat/Long: 40.168547 / -104.766269Lat/Long Source: Field Measured
 Wellbore And Formation Details -- select either a wellbore Or formation to expand.


Wellbore #00             Wellbore Classification: GW             Status: PA - 4/23/2018             Measured TD: 8191 ft.

 Wellbore Data for Original WellboreWellbore Classification: GW        PA - 4/23/2018
Wellbore PermitDRIFTED
Permit #:19990830 Expiration Date:11/2/2000
Proposed Depth/Form:8200 ft.
Surface Mineral Owner Same:No
Mineral Owner:FEESurface Owner:FEE
Unit: Unit Number:
Formation And Spacing:Code: DKTA , Formation: DAKOTA , Order: 499 , Unit Acreage: 320, Drill Unit: N2
Formation And Spacing:Code: JSND , Formation: J SAND , Order: 232, 318A , Unit Acreage: 320, Drill Unit: N2
Wellbore Completed
Completion Date:11/22/2000
Spud Date:10/21/2000Spud Date Is:ACTUAL
Measured TD:8191 ft.Measured PB depth:8179 ft.
True Vertical TD:True Vertical PB depth:
Log Types:DIGL GR, CDCNM, CBL
Casing:String Type: SURF, Hole Size: 12.25 in., Size: 8.625 in., Top: 0 ft., Depth: 761 ft., Weight: 24 , Citings Type: ACTUAL
Cement:Sacks: 535, Top: 0 ft., Bottom: 761 ft., Determination Method: VISU
Casing:String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: 0 ft., Depth: 8179 ft., Weight: 11.6 , Citings Type: ACTUAL
Cement:Sacks: 350, Top: 6500 ft., Bottom: 8179 ft., Determination Method: CBL
FormationInterval TopLog BottomCoredDSTs
SUSSEX4570 ft.NN
NIOBRARA7164 ft.NN
FORT HAYS7410 ft.NN
CODELL7438 ft.NN
J SAND7884 ft.NN
DAKOTA8093 ft.NN

Formation DKTA                     Formation Classification:  GW                     Status:  AB - 4/23/2018                 Interval Top: 8095 ft.    Interval Bottom: 8106 ft.

 Completed Information for Formation DAKOTA
1st Production Date:11/29/2000Choke Size:0.281 in.
Formation Name:DAKOTACommingled:No
Production Method:FLOWING
Open Hole Completion:No
Formation Treatment
Treatment Date:11/22/2000
Treatment Summary:FRAC'D W/3380# 100MESH; 55780# 20/40 MESH; 14093 GAL GELLED FLUID
Tubing Size:2.375 in.Tubing Setting Depth:8056 ft.
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:12/24/2000Test Method:FLOWING
Hours Tested:24Gas Type:
Gas Disposal:SOLD
Test TypeMeasure
BBLS_OIL 2
CALC_GOR 379000
CASING_PRESS 1100
GRAVITY_OIL 60
MCF_GAS 758
TUBING_PRESS 800
Perforation Data:
Interval Top:8095 ft.# Of Holes:33
Interval Bottom:8106 ft.Hole Size:0.38 in.

Formation JSND                     Formation Classification:  GW                     Status:  AB - 4/23/2018                 Interval Top: 7886 ft.    Interval Bottom: 7945 ft.

 Completed Information for Formation J SAND
1st Production Date:11/28/2001Choke Size:
Formation Name:J SANDCommingled:No
Production Method:FLOWING
Open Hole Completion:No
Formation Treatment
Treatment Date:11/22/2000
Treatment Summary:FRACE'D J SAND W/501400# 20/40 MESH; 204991 GAL. GELLED FLUID
Tubing Size:2.375 in.Tubing Setting Depth:7844 ft.
Tubing Packer Depth:8045 ft.Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:1/1/2002Test Method:FLOWING
Hours Tested:24Gas Type:
Gas Disposal:SOLD
Test TypeMeasure
BBLS_OIL 2
CALC_GOR 390500
CASING_PRESS 1000
GRAVITY_OIL 60
MCF_GAS 781
TUBING_PRESS 500
Perforation Data:
Interval Top:7886 ft.# Of Holes:92
Interval Bottom:7945 ft.Hole Size:0.38 in.

Formation DK-J                     Formation Classification:  GW                     Status:  CM - 3/13/2004

 Completed Information for Formation DAKOTA-JSND
1st Production Date:N/AChoke Size:0.250 in.
Formation Name:DAKOTA-JSNDCommingled:Yes
Production Method:FLOWING
Open Hole Completion:No
Formation Treatment
Treatment Date:11/22/2000
Treatment Summary:
Tubing Size:2.375 in.Tubing Setting Depth:8064 ft.
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:3/13/2004Test Method:FLOWING
Hours Tested:24Gas Type:
Gas Disposal:SOLD
Test TypeMeasure
BBLS_H2O 0
BBLS_OIL 1
CALC_BBLS_OIL 1
CALC_GOR 359000
CALC_MCF_GAS 359
CASING_PRESS 684
GRAVITY_OIL 53
MCF_GAS 359
TUBING_PRESS 550
Perforation Data:
Interval Top:# Of Holes:
Interval Bottom:Hole Size:
Primary Well Designation:
None      i
            All DesignationsDate
Reported PluggedY04/23/2018
Out Of Service RepurposedN
Out Of ServiceN
Inactive ExceptionN
Noticed InactiveN
Defined InactiveN
Low ProducingN

BOE/MCFE/GOR Calculations
Production for Previous 12 Months
February 2024 - January 2025i
Total Oil Produced (Barrels)0
Total Gas Produced (MCF)0
GOR
GOR Determination
Average BOE per Day0.000
Average MCFE per Day0.000

 Federal Financial Assurance  i

 Tribal Well  i No
