Wellbore #00 Wellbore Classification: GW Status: PA - 7/19/2018 Measured TD: 8050 ft.| Wellbore Data for Original Wellbore | Wellbore Classification: GW PA - 7/19/2018 | | Wellbore Permit | | | Permit #: | 19990263 | Expiration Date: | 3/2/2001 | | Proposed Depth/Form: | 8050 ft. | | Surface Mineral Owner Same: | Yes | | Mineral Owner: | FEE | Surface Owner: | FEE | | Unit: | | Unit Number: | | | Formation And Spacing: | Code: CODL , Formation: CODELL , Order: 407-87 , Unit Acreage: 160, Drill Unit: SW4 | | Formation And Spacing: | Code: DK-J , Formation: DAKOTA-JSND , Order: 232 , Unit Acreage: 320, Drill Unit: S2 |
| | |

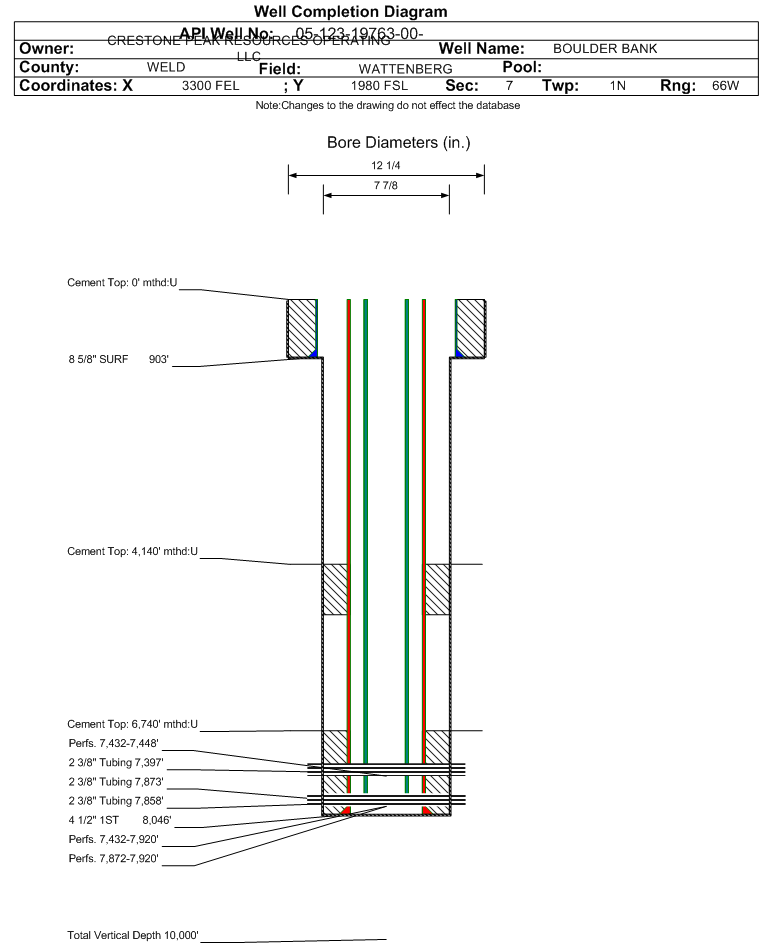

| Wellbore Completed | | Completion Date: | 6/7/1999 | | Spud Date: | 5/13/1999 | Spud Date Is: | ACTUAL | | Measured TD: | 8050 ft. | Measured PB depth: | 8028 ft. | | True Vertical TD: | | True Vertical PB depth: | | | Log Types: | CD, NEU GR; DIGL/GR, CBL,CCL,GR | | Casing: | String Type: SURF, Hole Size: 12.25 in., Size: 8.625 in., Top: 0 ft., Depth: 903 ft., Weight: 24 , Citings Type: ACTUAL | | Cement: | Sacks: 630, Top: 0 ft., Bottom: 903 ft., Determination Method: VISU | | Casing: | String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: 0 ft., Depth: 8046 ft., Weight: 11.6 , Citings Type: ACTUAL | | Cement: | Sacks: 275, Top: 6740 ft., Bottom: 8046 ft., Determination Method: CBL | | Casing: | String Type: S.C. 1.1, Hole Size: , Size: , Top: , Depth: 4928 ft., Weight: , Citings Type: ACTUAL | | Cement: | Sacks: 225, Top: 4140 ft., Bottom: 4928 ft., Determination Method: CBL | | Casing: | String Type: STAGE TOOL, Hole Size: , Size: , Top: , Depth: 4928 ft., Weight: , Citings Type: ACTUAL | | Cement: | Sacks: 225, Top: 4140 ft., Bottom: 4928 ft., Determination Method: CBL | | Formation | Interval Top | Log Bottom | Cored | DSTs | | SUSSEX | 4738 ft. | | N | N | | NIOBRARA | 7109 ft. | | N | N | | FORT HAYS | 7407 ft. | | N | N | | CODELL | 7431 ft. | | N | N | | CARLILE | 7451 ft. | | N | N | | GREENHORN | 7485 ft. | | N | N | | BENTONITE | 7701 ft. | | N | N | | GRANEROS | 7702 ft. | | N | N | | MOWRY | 7851 ft. | | N | N | | J-2 SAND | 7869 ft. | | N | N | | J SAND | 7889 ft. | | N | N | | SKULL CREEK | 7974 ft. | | N | N |
Formation JSND Formation Classification: GW Status: AB - 7/19/2018 Interval Top: 7872 ft. Interval Bottom: 7920 ft.| Completed Information for Formation J SAND | | 1st Production Date: | 6/8/1999 | Choke Size: | 2.375 in. | | Formation Name: | J SAND | Commingled: | No | | Production Method: | FLOWING | | Open Hole Completion: | No |
| | Formation Treatment | | Treatment Date: | 6/7/1999 | | Treatment Summary: | FRACD WELL WITH 550340# 20/40 FRAC SAND 1 PPG THRU 5 PPG IN 46914 GALS SATURN 1 30 PAD, 179424 GALS SATURN 1 30, 24 GAL. |
| | Tubing Size: | 2.375 in. | Tubing Setting Depth: | 7873 ft. | | Tubing Packer Depth: | | Tubing Multiple Packer: | | | Open Hole Top: | | Open Hole Bottom: | | | Initial Test Data: | | Test Date: | 7/7/1999 | Test Method: | FLOWING | | Hours Tested: | 24 | Gas Type: | | | Gas Disposal: | | |
| Test Type | Measure |
|---|
| BBLS_H2O | 20 | | BBLS_OIL | 6 | | CALC_BBLS_H2O | 20 | | CALC_BBLS_OIL | 6 | | CALC_GOR | 71167 | | CALC_MCF_GAS | 427 | | CASING_PRESS | 360 | | MCF_GAS | 427 | | TUBING_PRESS | 190 |
| | Perforation Data: | | Interval Top: | 7872 ft. | # Of Holes: | 74 | | Interval Bottom: | 7920 ft. | Hole Size: | 0.38 in. |
|
Formation CODL Formation Classification: GW Status: AB - 7/19/2018 Interval Top: 7432 ft. Interval Bottom: 7448 ft.| Completed Information for Formation CODELL | | 1st Production Date: | 4/1/2000 | Choke Size: | | | Formation Name: | CODELL | Commingled: | Yes | | Production Method: | PLUNGER | | Open Hole Completion: | No |
| | Formation Treatment | | Treatment Date: | 6/7/1999 | | Treatment Summary: | FRAC WELL W/10260# 100 MESH, 1/2 PPG & 1 PPG, 300460# 20/40 1 PPG THRU 4 PPG IN 125000 GAL VISTAR 22 LHT & 20 LH. |
| | Tubing Size: | 2.375 in. | Tubing Setting Depth: | 7397 ft. | | Tubing Packer Depth: | | Tubing Multiple Packer: | | | Open Hole Top: | | Open Hole Bottom: | | | Initial Test Data: | | Test Date: | 5/16/2000 | Test Method: | PLUNGER | | Hours Tested: | 24 | Gas Type: | | | Gas Disposal: | SOLD | |
| Test Type | Measure |
|---|
| BBLS_H2O | 5 | | BBLS_OIL | 19 | | CALC_BBLS_H2O | 5 | | CALC_BBLS_OIL | 19 | | CALC_GOR | 4895 | | CALC_MCF_GAS | 93 | | CASING_PRESS | 340 | | MCF_GAS | 93 | | TUBING_PRESS | 160 |
| | Perforation Data: | | Interval Top: | 7432 ft. | # Of Holes: | 32 | | Interval Bottom: | 7448 ft. | Hole Size: | 0.38 in. |
|
Formation J-CDL Formation Classification: GW Status: CM - 7/10/2000 Interval Top: 7432 ft. Interval Bottom: 7920 ft.| Completed Information for Formation J-CODELL | | 1st Production Date: | 6/11/2000 | Choke Size: | 0.281 in. | | Formation Name: | J-CODELL | Commingled: | Yes | | Production Method: | FLOWING | | Open Hole Completion: | No |
| | Formation Treatment | | Treatment Date: | 6/7/1999 | | Treatment Summary: | |
| | Tubing Size: | 2.375 in. | Tubing Setting Depth: | 7858 ft. | | Tubing Packer Depth: | | Tubing Multiple Packer: | | | Open Hole Top: | | Open Hole Bottom: | | | Initial Test Data: | | Test Date: | 7/10/2000 | Test Method: | FLOWING | | Hours Tested: | 24 | Gas Type: | | | Gas Disposal: | SOLD | |
| Test Type | Measure |
|---|
| BBLS_H2O | 10 | | BBLS_OIL | 18 | | CALC_BBLS_H2O | 10 | | CALC_BBLS_OIL | 18 | | CALC_GOR | 22556 | | CALC_MCF_GAS | 406 | | CASING_PRESS | 540 | | MCF_GAS | 406 | | TUBING_PRESS | 380 |
| | Perforation Data: | | Interval Top: | 7432 ft. | # Of Holes: | 106 | | Interval Bottom: | 7920 ft. | Hole Size: | 0.38 in. |
|
|
|
|
|
|
|
| Reported Plugged | Y | 07/19/2018 |
| Out Of Service Repurposed | N | |
| Out Of Service | N | |
| Inactive Exception | N | |
| Noticed Inactive | N | |
| Defined Inactive | N | |
| Low Producing | N | |
| Total Oil Produced (Barrels) | 0 |
| Total Gas Produced (MCF) | 0 |
| GOR | |
| GOR Determination | |
| Average BOE per Day | 0.000 |
| Average MCFE per Day | 0.000 |
| Federal Financial Assurance | i | |
|
|
