Facility Detail

COGIS - WELL SCOUT CARD

Insp

Surface Location
API# 05-123-19748

Well Classification: GW

Status: TA - 11/24/2020

Well Name/No:

HERMAN #34-8
(Click Well Name for Production Data)

Click Here for Transporter Gatherer Info

Operator:

CRESTONE PEAK RESOURCES OPERATING LLC - 10633
(Click Operator Name for Company Detail Report)

Federal Or State Lease #:

Facility Status:

Status Date

11/24/2020

FacilityID:

89443

LocationID:

330843

County:

WELD #123

Location:

SWSE 8 2N66W 6

Field:

WATTENBERG - #90750

Elevation:

4869 ft.

Basin:

DENVER (DJ) BASIN

Planned Location:

844FSL 1796 FEL

Lat/Long: 40.147547 / -104.798020

Lat/Long Source: Calculated From Footages

As Drilled Location:

Footages Not Available

Lat/Long: 40.147676 / -104.798143

Lat/Long Source: Field Measured

Disclosure: Sidetrack #00
Start Date: 1/16/2012
End Date: 1/16/2012
Reported: 7/31/2012
Prior to rule 205A.b.(2)(A)
Days to report: 197

Wellbore And Formation Details -- select either a wellbore Or formation to expand.

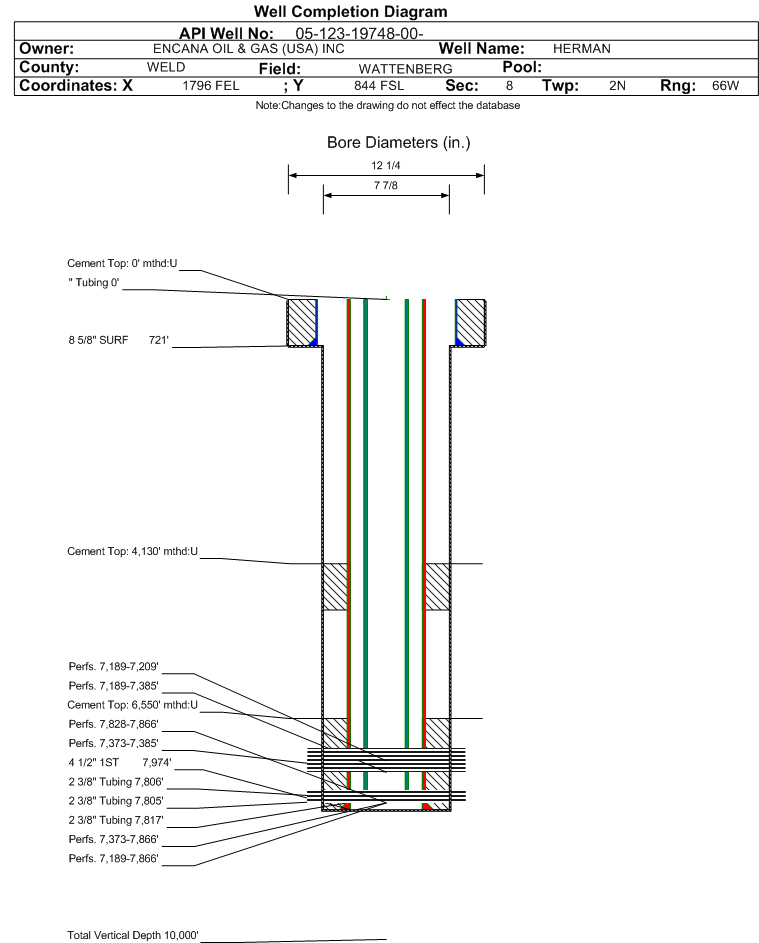

Wellbore #00 Wellbore Classification: GW Status: TA - 11/24/2020 Measured TD: 7982 ft.

Wellbore Data for Original Wellbore		Wellbore Classification: GW TA - 11/24/2020
Wellbore Permit
Permit #:	20020360	Expiration Date:	3/6/2003
Proposed Depth/Form:	8030 ft.
Surface Mineral Owner Same:	No
Mineral Owner:	FEE	Surface Owner:	FEE
Unit:		Unit Number:
Formation And Spacing:	Code: CODL , Formation: CODELL , Order: 407-66 , Unit Acreage: 320, Drill Unit: E2
Formation And Spacing:	Code: JSND , Formation: J SAND , Order: 232 , Unit Acreage: 320, Drill Unit: E2

Wellbore Completed
Completion Date:	5/15/2001
Spud Date:	3/27/2001	Spud Date Is:	ACTUAL
Measured TD:	7982 ft.	Measured PB depth:	7958 ft.
True Vertical TD:		True Vertical PB depth:
Log Types:	COMPENSATED DENSITY,COMPENSATED NEUTRON GR DUAL IND. GUARD LOG GR; CBL VDL GR
Casing:	String Type: SURF, Hole Size: 12.25 in., Size: 8.625 in., Top: 0 ft., Depth: 721 ft., Weight: 24 , Citings Type: ACTUAL
Cement:	Sacks: 505, Top: 0 ft., Bottom: 721 ft., Determination Method: CALC
Casing:	String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: 0 ft., Depth: 7974 ft., Weight: 11.6 , Citings Type: ACTUAL
Cement:	Sacks: 220, Top: 6550 ft., Bottom: 7974 ft., Determination Method: CBL
Casing:	String Type: S.C. 1.2, Hole Size: , Size: , Top: , Depth: 4853 ft., Weight: , Citings Type: ACTUAL
Cement:	Sacks: 200, Top: 4130 ft., Bottom: 4853 ft., Determination Method: CBL
Formation	Interval Top	Log Bottom	Cored	DSTs
SUSSEX	4354 ft.		N	N
SHANNON	4977 ft.		N	N
NIOBRARA	7128 ft.		N	N
FORT HAYS	7346 ft.		N	N
CODELL	7369 ft.		N	N
CARLILE	7380 ft.		N	N
GREENHORN	7427 ft.		N	N
GRANEROS	7639 ft.		N	N
BENTONITE	7639 ft.		N	N
MOWRY	7791 ft.		N	N
J-2 SAND	7815 ft.		N	N
SKULL CREEK	7916 ft.		N	N

Formation JSND Formation Classification: GW Status: TA - 11/24/2020 Interval Top: 7828 ft. Interval Bottom: 7866 ft.

Completed Information for Formation J SAND

1st Production Date:	5/15/2001	Choke Size:
Formation Name:	J SAND	Commingled:
Production Method:
Open Hole Completion:

Formation Treatment
Treatment Date:	5/15/2001
Treatment Summary:	FRAC WELL WITH 227,366 GALS FRAC GEL 22# HT & 20#. IN 550,000# 20/40 FRAC SAND. 1 PPG THRU 5 PPG.

Test Type	Measure
Tubing Size:		Tubing Setting Depth:
Tubing Packer Depth:		Tubing Multiple Packer:
Open Hole Top:		Open Hole Bottom:
Initial Test Data:
Test Date:	N/A	Test Method:
Hours Tested:		Gas Type:
Gas Disposal:
BBLS_H2O	34
BBLS_OIL	2
CALC_GOR	122417
CASING_PRESS	450
MCF_GAS	294
TUBING_PRESS	270

Perforation Data:
Interval Top:	7828 ft.	# Of Holes:	76
Interval Bottom:	7866 ft.	Hole Size:	0.38 in.

Formation CODL Formation Classification: GW Status: CM - 5/30/2012 Interval Top: 7373 ft. Interval Bottom: 7385 ft.

Completed Information for Formation CODELL

1st Production Date:	4/5/2002	Choke Size:
Formation Name:	CODELL	Commingled:	Yes
Production Method:
Open Hole Completion:

Formation Treatment
Treatment Date:	1/25/2012
Treatment Summary:	CIBP set @ 7425 on 1/19/12; drilled out 3/1/12 Refrac 7373-7385 w/ 122,934 gal frac fluid and 252,620 # sand (1/25/12)
Formation Treatment
Treatment Date:	5/15/2001
Treatment Summary:	SET RBP @ 7388'. PERF THE CODELL FROM 7373'-7385' W/4 SPF. FRAC W/241,400# 20/40 SAND IN 116,634 GALS DYNAFLOW-2. RUN ;

Test Type	Measure
Tubing Size:		Tubing Setting Depth:
Tubing Packer Depth:		Tubing Multiple Packer:
Open Hole Top:		Open Hole Bottom:
Initial Test Data:
Test Date:	N/A	Test Method:
Hours Tested:		Gas Type:
Gas Disposal:
BBLS_H2O	6
BBLS_OIL	22
CALC_GOR	4393
CASING_PRESS	200
MCF_GAS	98

Perforation Data:
Interval Top:	7373 ft.	# Of Holes:	48
Interval Bottom:	7385 ft.	Hole Size:	0.43 in.

Formation J-CDL Formation Classification: GW Status: CM - 11/21/2002 Interval Top: 7373 ft. Interval Bottom: 7866 ft.

Completed Information for Formation J-CODELL

1st Production Date:	N/A	Choke Size:
Formation Name:	J-CODELL	Commingled:	Yes
Production Method:	FLOWING
Open Hole Completion:	No

Formation Treatment
Treatment Date:	5/15/2001
Treatment Summary:	RETRIEVE RBP. RESET TBG. SWAB.

Test Type	Measure
Tubing Size:	2.375 in.	Tubing Setting Depth:	7817 ft.
Tubing Packer Depth:		Tubing Multiple Packer:
Open Hole Top:		Open Hole Bottom:
Initial Test Data:
Test Date:	11/21/2002	Test Method:	FLOWING
Hours Tested:	24	Gas Type:
Gas Disposal:	SOLD
BBLS_H2O	17
BBLS_OIL	9
CALC_BBLS_H2O	17
CALC_BBLS_OIL	9
CALC_GOR	51111
CALC_MCF_GAS	460
CASING_PRESS	430
MCF_GAS	460
TUBING_PRESS	200

Perforation Data:
Interval Top:	7373 ft.	# Of Holes:	124
Interval Bottom:	7866 ft.	Hole Size:

Formation JNBCD Formation Classification: GW Status: CM - 5/30/2012 Interval Top: 7189 ft. Interval Bottom: 7866 ft.

Completed Information for Formation J-NIOBRARA-CODELL

1st Production Date:	N/A	Choke Size:
Formation Name:	J-NIOBRARA-CODELL	Commingled:	No
Production Method:
Open Hole Completion:	No

Formation Treatment
Treatment Date:	5/15/2001
Treatment Summary:	JSND-NBRR-CDL COMMINGLE RELEASED RFP @ 7290'. 03-16-09. RELEASED RBP @ 7470' TO COMMINGLE THE JSND-NBRR-CDL. 03-17-09.

Test Type	Measure
Tubing Size:	2.375 in.	Tubing Setting Depth:	7806 ft.
Tubing Packer Depth:		Tubing Multiple Packer:
Open Hole Top:		Open Hole Bottom:
Initial Test Data:
Test Date:	3/10/2012	Test Method:	Flow
Hours Tested:	10	Gas Type:
Gas Disposal:	SOLD
BBLS_H2O	10
BBLS_OIL	18
BTU_GAS	1
CALC_BBLS_H2O	24
CALC_BBLS_OIL	43
CALC_GOR	14000
CALC_MCF_GAS	605
CASING_PRESS	540
GRAVITY_OIL	57
MCF_GAS	252
TUBING_PRESS	520

Perforation Data:
Interval Top:	7189 ft.	# Of Holes:	164
Interval Bottom:	7866 ft.	Hole Size:	0.42 in.

Formation NB-CD Formation Classification: GW Status: TA - 11/24/2020 Interval Top: 7189 ft. Interval Bottom: 7385 ft.

Completed Information for Formation NIOBRARA-CODELL

1st Production Date:	3/17/2009	Choke Size:
Formation Name:	NIOBRARA-CODELL	Commingled:
Production Method:
Open Hole Completion:

Formation Treatment
Treatment Date:	3/2/2009
Treatment Summary:	NBRR-CDL REFRAC AND RECOMPLETION SET RBP @ 7470'. 02-23-09. RE-FRAC'D THE CODELL WITH 108,864 GAL 24# VISTAR HYBRID CROSS LINKED GEL CONTAINING 250,260# 20/40 SAND. 03-02-09 SET RFP @ 7290'. 03-02-09. FRAC'D THE NIOBRARA WITH 140,658 GAL (CONT.)

Tubing Size:		Tubing Setting Depth:
Tubing Packer Depth:		Tubing Multiple Packer:
Open Hole Top:		Open Hole Bottom:
No Initial Test Data was found for formation NB-CD.

Perforation Data:
Interval Top:	7189 ft.	# Of Holes:	88
Interval Bottom:	7385 ft.	Hole Size:	0.42 in.

Formation NBRR Formation Classification: GW Status: CM - 10/24/2012 Interval Top: 7189 ft. Interval Bottom: 7209 ft.

Completed Information for Formation NIOBRARA

1st Production Date:	3/17/2009	Choke Size:
Formation Name:	NIOBRARA	Commingled:	Yes
Production Method:
Open Hole Completion:	No

Formation Treatment
Treatment Date:	1/25/2012
Treatment Summary:	CBP set @ 7290 on 1/20/12; drilled out 3/1/12 Refrac 7189 – 7209 w/ 133,142 gal frac fluid and 252,360 # sand (1/25/12)

Tubing Size:		Tubing Setting Depth:
Tubing Packer Depth:		Tubing Multiple Packer:
Open Hole Top:		Open Hole Bottom:
No Initial Test Data was found for formation NBRR.

Perforation Data:
Interval Top:	7189 ft.	# Of Holes:	40
Interval Bottom:	7209 ft.	Hole Size:

All Designations		Date
Primary Well Designation: Out Of Service i
Reported Plugged	N
Out Of Service Repurposed	N
Out Of Service	Y	Plugging Due Date 12/31/2030
Inactive Exception	N
Noticed Inactive	N
Defined Inactive (TA )	Y	Defined Inactive 05/31/2020
Low Producing	Y	Production Period 10/2024 - 09/2025

October 2024 - September 2025	i
BOE/MCFE/GOR Calculations Production for Previous 12 Months
Total Oil Produced (Barrels)	0
Total Gas Produced (MCF)	0
GOR
GOR Determination	MCFE
Average BOE per Day	0.000
Average MCFE per Day	0.000

Federal Financial Assurance

Tribal Well
