COGIS - WELL SCOUT CARD

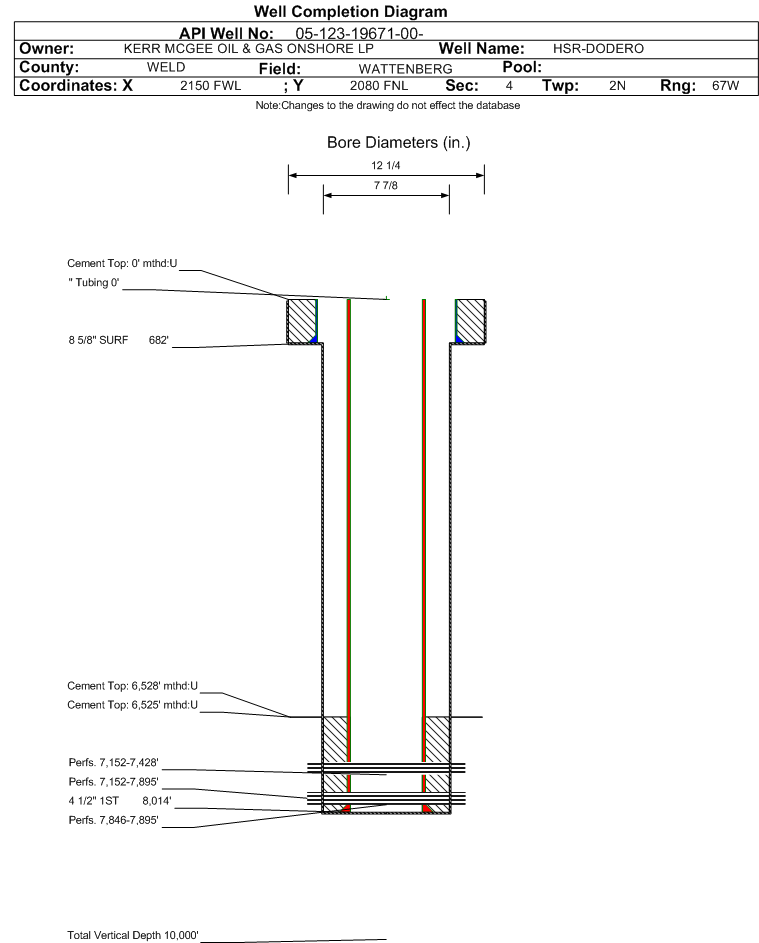

Click image to view related facilities. Related  Click image to view inspection information. InspClick image to view MIT information. MITClick image to access interactive map at well/facility location. GISClick image to view imaged documents for this well/facility. DocClick image to view imaged documents for this well/facility. COAClick image to view wellbore completion diagram. WellboreClick image to search for orders within this facility's section. OrdersClick image to view bradenhead scoutcard data. Bradenhead
 Surface Location
 API# 05-123-19671		Well Classification: GW Status: PA - 4/6/2017
Well Name/No:HSR-DODERO #6-4A
(Click Well Name for Production Data)		Click Here for Transporter Gatherer Info
Operator:KERR MCGEE OIL & GAS ONSHORE LP - 47120
(Click Operator Name for Company Detail Report)		Federal Or State Lease #:
Facility Status:PAStatus Date4/6/2017
FacilityID:251866LocationID:330811
Municipality/County:FIRESTONE / WELD #123Location:SENW 4 2N67W 6
Field:WATTENBERG - #90750Elevation:4883 ft.
Planned Location:2080FNL  2150 FWLLat/Long: 40.169302 / -104.896737Lat/Long Source: Field Measured
As Drilled Location:Footages Not AvailableLat/Long: 40.169300 / -104.896740Lat/Long Source: Field Measured
 Wellbore And Formation Details -- select either a wellbore Or formation to expand.


Wellbore #00             Wellbore Classification: GW             Status: PA - 4/6/2017             Measured TD: 8033 ft.    Vertical TD: 0 ft.

 Wellbore Data for Original WellboreWellbore Classification: GW        PA - 4/6/2017
Wellbore PermitDRIFTED
Permit #: Expiration Date:3/21/2011
Proposed Depth/Form:8033 ft.
Surface Mineral Owner Same:No
Mineral Owner:FEESurface Owner:FEE
Unit: Unit Number:
Formation And Spacing:Code: JSND , Formation: J SAND , Order: 0 , Unit Acreage: 320, Drill Unit: N2
Formation And Spacing:Code: NB-CD , Formation: NIOBRARA-CODELL , Order: , Unit Acreage: 80, Drill Unit: E/2NW/4
Casing:String Type: SURF, Hole Size: 12.25 in., Size: 8.625 in., Top: , Depth: 682 ft., Weight: 24 , Citings Type: PLANNED
Cement:Sacks: 500, Top: 0 ft., Bottom: 682 ft.
Casing:String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: , Depth: 8014 ft., Weight: 11.6 , Citings Type: PLANNED
Cement:Sacks: 265, Top: 4016 ft., Bottom: 5046 ft.
Casing:String Type: STAGE TOOL, Hole Size: , Size: , Top: , Depth: 8014 ft., Weight: , Citings Type: PLANNED
Cement:Sacks: 250, Top: 6525 ft., Bottom: 8033 ft.
Wellbore Completed
Completion Date:8/10/1998
Spud Date:7/17/1998Spud Date Is:ACTUAL
Measured TD:8033 ft.Measured PB depth:7987 ft.
True Vertical TD:0 ft.True Vertical PB depth:
Log Types:CDCNGR, DIGLGR, CBL
Casing:String Type: SURF, Hole Size: 12.25 in., Size: 8.625 in., Top: 0 ft., Depth: 682 ft., Weight: 24 , Citings Type: ACTUAL
Cement:Sacks: 500, Top: 0 ft., Bottom: 682 ft., Determination Method: VISU
Casing:String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: 0 ft., Depth: 8014 ft., Weight: 11.6 , Citings Type: ACTUAL
Cement:Sacks: 265, Top: 6528 ft., Bottom: 8014 ft., Determination Method: CBL
Casing:String Type: S.C. 1.1, Hole Size: , Size: , Top: , Depth: 8014 ft., Weight: , Citings Type: ACTUAL
Cement:Sacks: 250, Top: 6525 ft., Bottom: 8033 ft., Determination Method: CBL
Casing:String Type: STAGE TOOL, Hole Size: , Size: , Top: , Depth: 5043 ft., Weight: , Citings Type: ACTUAL
Cement:Sacks: 250, Top: 4020 ft., Bottom: 5060 ft., Determination Method: CBL
FormationInterval TopLog BottomCoredDSTs
SUSSEX4308 ft.
SHANNON4809 ft.
NIOBRARA7146 ft.
FORT HAYS7388 ft.
CODELL7409 ft.
J SAND7844 ft.

Formation JSND                     Formation Classification:  GW                     Status:  AB - 4/6/2017                  Interval Top: 7846 ft.    Interval Bottom: 7895 ft.

 Completed Information for Formation J SAND
1st Production Date:8/18/1998Choke Size:
Formation Name:J SANDCommingled:Yes
Production Method:
Open Hole Completion:No
Formation Treatment
Treatment Date:10/3/2011
Treatment Summary:REMOVED SAND PLUG SET @ 7600-7800 TO COMMINGLE JSND WITH NB/CD. HOLE SIZE N/A
Formation Treatment
Treatment Date:7/9/2010
Treatment Summary:SET SAND PLUG @ 7600'.
Formation Treatment
Treatment Date:8/10/1998
Treatment Summary:FRAC'D J SAND W/561,080# 20/40 JORDAN; 236,208 GALS SATURN 1 30,25,20,17
Tubing Size:Tubing Setting Depth:
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:N/ATest Method:
Hours Tested:Gas Type:
Gas Disposal:
Test TypeMeasure
BBLS_H2O 8
BBLS_OIL 8
CALC_BBLS_H2O 8
CALC_BBLS_OIL 8
CALC_GOR 98375
CALC_MCF_GAS 787
CASING_PRESS 800
GRAVITY_OIL 60
MCF_GAS 787
TUBING_PRESS 700
Perforation Data:
Interval Top:7846 ft.# Of Holes:63
Interval Bottom:7895 ft.Hole Size:

Formation JNBCD                   Formation Classification:  GW                   Status:  CM - 10/15/2011                Interval Top: 7152 ft.    Interval Bottom: 7895 ft.

 Completed Information for Formation J-NIOBRARA-CODELL
1st Production Date:10/5/2011Choke Size:
Formation Name:J-NIOBRARA-CODELLCommingled:No
Production Method:
Open Hole Completion:No
Formation Treatment
Treatment Date:10/3/2011
Treatment Summary:REMOVED SAND PLUG SET @ 7600-7800 TO COMMINGLE JSND WITH NB/CD
Tubing Size:Tubing Setting Depth:
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:10/15/2011Test Method:FLOWING
Hours Tested:24Gas Type:WET
Gas Disposal:SOLD
Test TypeMeasure
BBLS_OIL 34
BTU_GAS 1260
CALC_BBLS_OIL 34
CALC_GOR 8647
CALC_MCF_GAS 294
CASING_PRESS 553
GRAVITY_OIL 49
MCF_GAS 294
Perforation Data:
Interval Top:7152 ft.# Of Holes:187
Interval Bottom:7895 ft.Hole Size:0.38 in.

Formation NB-CD                   Formation Classification:  GW                   Status:  AB - 4/6/2017                  Interval Top: 7152 ft.    Interval Bottom: 7428 ft.

 Completed Information for Formation NIOBRARA-CODELL
1st Production Date:7/28/2010Choke Size:
Formation Name:NIOBRARA-CODELLCommingled:No
Production Method:
Open Hole Completion:No
Formation Treatment
Treatment Date:7/16/2010
Treatment Summary:NBRR PERF 7152-7278 HOLES 64 SIZE 0.42 CODL PERF 7408-7428 HOLES 60 SIZE 0.38 FRAC NBRR W/250 GAL 15% HCL & 250,096 GAL SW & 200,920# 40/70 SAND & 4,000# SB EXCEL. FRAC CODL W/207,352 GAL SW & 150,960# 40/70 SAND & 4,000# SB EXCEL.
Tubing Size:Tubing Setting Depth:
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:8/5/2010Test Method:FLOWING
Hours Tested:Gas Type:SHALE
Gas Disposal:SOLD
Test TypeMeasure
BTU_GAS 1270
CALC_BBLS_OIL 74
CALC_GOR 2676
CALC_MCF_GAS 198
CASING_PRESS 1700
GRAVITY_OIL 46
Perforation Data:
Interval Top:7152 ft.# Of Holes:124
Interval Bottom:7428 ft.Hole Size:0.38 in.
Primary Well Designation:
None      i
            All DesignationsDate
Reported PluggedY04/06/2017
Out Of Service RepurposedN
Out Of ServiceN
Inactive ExceptionN
Noticed InactiveN
Defined InactiveN
Low ProducingN

BOE/MCFE/GOR Calculations
Production for Previous 12 Months
April 2024 - March 2025i
Total Oil Produced (Barrels)0
Total Gas Produced (MCF)0
GOR
GOR Determination
Average BOE per Day0.000
Average MCFE per Day0.000

 Federal Financial Assurance  i

 Tribal Well  i No
