Wellbore #00 Wellbore Classification: GW Status: PA - 3/31/2020 Measured TD: 7186 ft.| Wellbore Data for Original Wellbore | Wellbore Classification: GW PA - 3/31/2020 | | Wellbore Permit | DRIFTED | | Permit #: | 980233 | Expiration Date: | 3/3/1999 | | Proposed Depth/Form: | | | Surface Mineral Owner Same: | Not available | | Mineral Owner: | FEE | Surface Owner: | Not available | | Unit: | | Unit Number: | | | Formation And Spacing: | Code: CODL , Formation: CODELL , Order: 0 , Unit Acreage: 80, Drill Unit: N2SW |
| | |

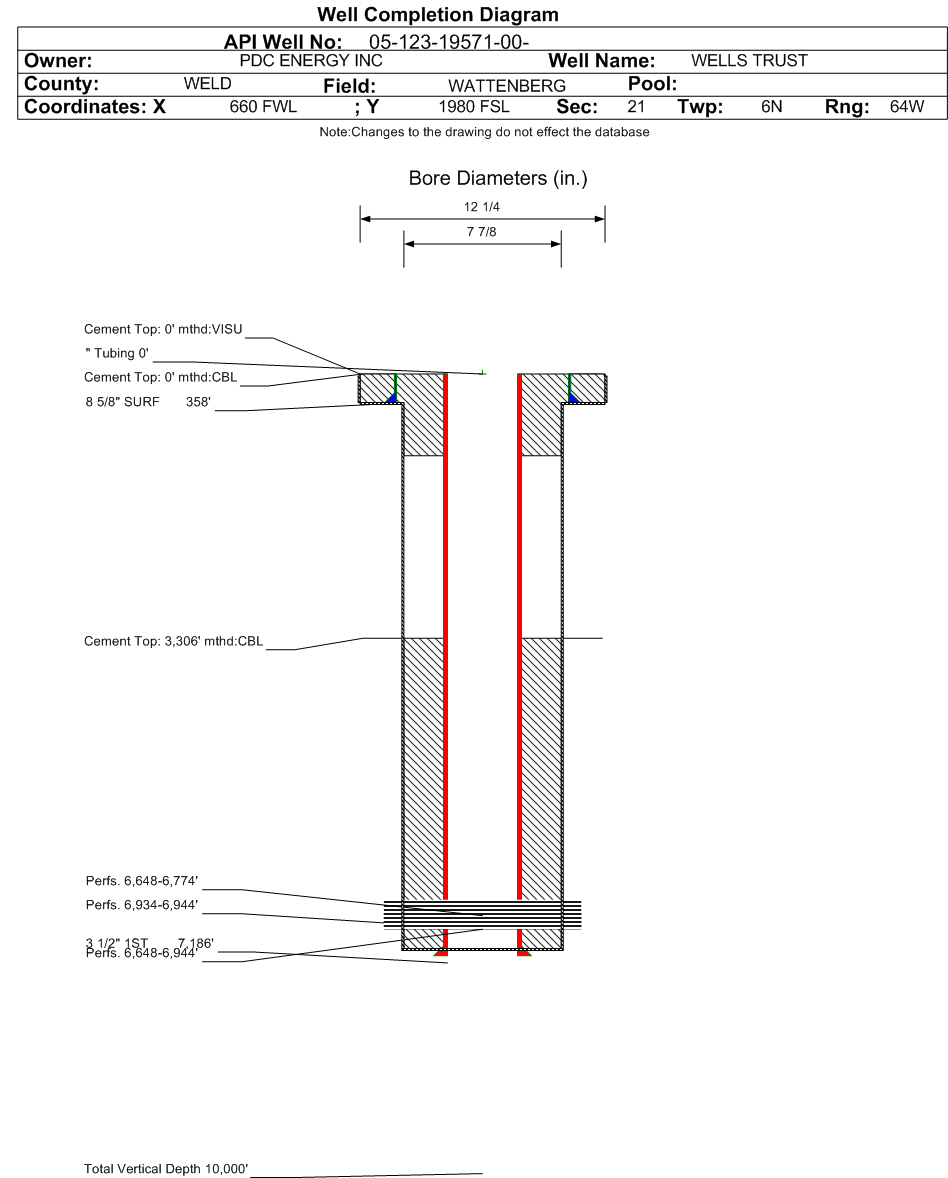

| Wellbore Completed | | Completion Date: | N/A | | Spud Date: | 3/8/1998 | Spud Date Is: | ACTUAL | | Measured TD: | 7186 ft. | Measured PB depth: | 7156 ft. | | True Vertical TD: | | True Vertical PB depth: | | | Log Types: | CBL | | Casing: | String Type: SURF, Hole Size: 12.25 in., Size: 8.625 in., Top: 0 ft., Depth: 358 ft., Weight: 24 , Citings Type: ACTUAL | | Cement: | Sacks: 260, Top: 0 ft., Bottom: 358 ft., Determination Method: VISU | | Casing: | String Type: 1ST, Hole Size: 7.875 in., Size: 3.5 in., Top: 0 ft., Depth: 7186 ft., Weight: 9.2 , Citings Type: ACTUAL | | Cement: | Sacks: 300, Top: 3306 ft., Bottom: 7186 ft., Determination Method: CBL | | Casing: | String Type: S.C. 1.1, Hole Size: , Size: , Top: , Depth: 1023 ft., Weight: , Citings Type: ACTUAL | | Cement: | Sacks: 247, Top: 0 ft., Bottom: 1023 ft., Determination Method: CBL | | Formation | Interval Top | Log Bottom | Cored | DSTs | | NIOBRARA | 6640 ft. | | | | | FORT HAYS | 6910 ft. | | | | | CODELL | 6932 ft. | | | |
Formation CODL Formation Classification: GW Status: CM - 2/15/2017 Interval Top: 6934 ft. Interval Bottom: 6944 ft.| Completed Information for Formation CODELL | | 1st Production Date: | N/A | Choke Size: | | | Formation Name: | CODELL | Commingled: | Yes | | Production Method: | | | Open Hole Completion: | No |
| | Formation Treatment | | Treatment Type: | | | Treatment Date: | 2/21/2017 | Treatment End Date: | N/A | | Treatment Summary: | See Doc # 2030023 | | Total fluid used in treatment (bbls): | | Max pressure during treatment (psi): | | | Total gas used in treatment (mcf): | | Fluid density (lbs/gal): | | | Type Of gas: | | Number Of staged intervals: | | | Total acid used in treatment (bbls): | | Min frac gradient (psi/ft): | | | Recycled water used in treatment (bbls): | | Total flowback volume recovered (bbls): | | | Fresh water used in treatment (bbls): | | Disposition method For flowback: | | | Total proppant used (lbs): | | Green completions techniques utilized: | -- | | Reason green techniques Not utilized: |
| | Tubing Size: | | Tubing Setting Depth: | | | Tubing Packer Depth: | | Tubing Multiple Packer: | | | Open Hole Top: | | Open Hole Bottom: | | | No Initial Test Data was found for formation CODL. |
| | Perforation Data: | | Interval Top: | 6934 ft. | # Of Holes: | 40 | | Interval Bottom: | 6944 ft. | Hole Size: | 0.34 in. |
|
Formation NB-CD Formation Classification: GW Status: AB - 7/5/2017 Interval Top: 6648 ft. Interval Bottom: 6944 ft.| Completed Information for Formation NIOBRARA-CODELL | | 1st Production Date: | 11/7/2007 | Choke Size: | | | Formation Name: | NIOBRARA-CODELL | Commingled: | | | Production Method: | | | Open Hole Completion: | |
| | Formation Treatment | | Treatment Date: | 3/27/1998 | | Treatment Summary: | COMMINGLE NBRR AND CODELL; CODELL PERFS: 6934-6844', 40 HOLES |
| | Tubing Size: | | Tubing Setting Depth: | | | Tubing Packer Depth: | | Tubing Multiple Packer: | | | Open Hole Top: | | Open Hole Bottom: | | | Initial Test Data: | | Test Date: | N/A | Test Method: | | | Hours Tested: | | Gas Type: | | | Gas Disposal: | | |
| Test Type | Measure |
|---|
| BBLS_H2O | 15 | | BBLS_OIL | 5 | | BTU_GAS | 1285 | | CALC_BBLS_H2O | 15 | | CALC_BBLS_OIL | 5 | | CALC_GOR | 13200 | | CALC_MCF_GAS | 66 | | CASING_PRESS | 600 | | GRAVITY_OIL | 53 | | MCF_GAS | 66 | | TUBING_PRESS | 250 |
| | Perforation Data: | | Interval Top: | 6648 ft. | # Of Holes: | 96 | | Interval Bottom: | 6944 ft. | Hole Size: | |
|
Formation NBRR Formation Classification: GW Status: CM - 10/29/2007 Interval Top: 6648 ft. Interval Bottom: 6774 ft.| Completed Information for Formation NIOBRARA | | 1st Production Date: | 11/7/2007 | Choke Size: | | | Formation Name: | NIOBRARA | Commingled: | Yes | | Production Method: | | | Open Hole Completion: | No |
| | Formation Treatment | | Treatment Date: | 11/6/2007 | | Treatment Summary: | 500 GAL 15% HCI, 1524 BBL SLICKWATER PAD, 191 BBL VISTAR 18# PAD, 2448 BBL VISTAR 18# FLUID SYSTEM, 244,580 LBS 30/50 WHITE SAND, 8000 LBS SB EXCEL 20/40 RESIN COATED PROPPANT. ATP: 4515 PSI, ATR: 27.2 BPM. |
| | Tubing Size: | | Tubing Setting Depth: | | | Tubing Packer Depth: | | Tubing Multiple Packer: | | | Open Hole Top: | | Open Hole Bottom: | | | No Initial Test Data was found for formation NBRR. |
| | Perforation Data: | | Interval Top: | 6648 ft. | # Of Holes: | 56 | | Interval Bottom: | 6774 ft. | Hole Size: | 0.27 in. |
|
|
|
|
|
|
|
| Reported Plugged | Y | 03/31/2020 |
| Out Of Service Repurposed | N | |
| Out Of Service | N | |
| Inactive Exception | N | |
| Noticed Inactive | N | |
| Defined Inactive | N | |
| Low Producing | N | |
| Total Oil Produced (Barrels) | 0 |
| Total Gas Produced (MCF) | 0 |
| GOR | |
| GOR Determination | |
| Average BOE per Day | 0.000 |
| Average MCFE per Day | 0.000 |
| Federal Financial Assurance | i | |
|
|
