COGIS - WELL SCOUT CARD

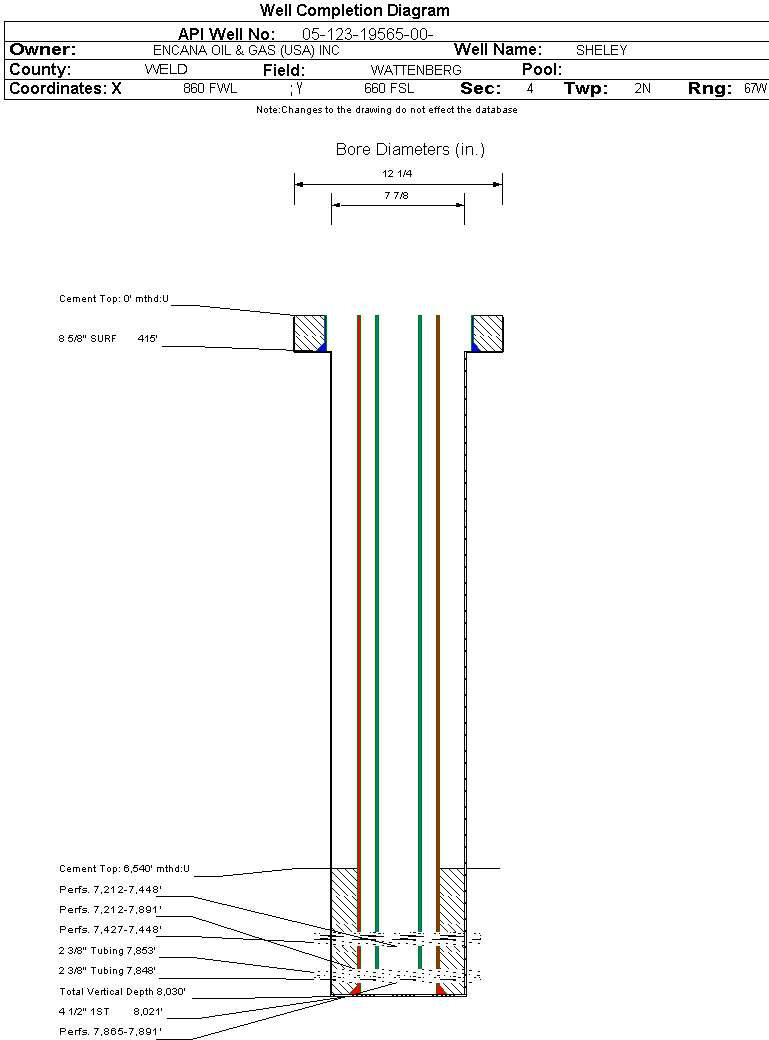

Click image to view related facilities. Related  Click image to view inspection information. InspClick image to view MIT information. MITClick image to access interactive map at well/facility location. GISClick image to view imaged documents for this well/facility. DocClick image to view imaged documents for this well/facility. COAClick image to view wellbore completion diagram. WellboreClick image to search for orders within this facility's section. OrdersClick image to view bradenhead scoutcard data. Bradenhead
 Surface Location
 API# 05-123-19565		Well Classification: GW Status: SI - 2/1/2022
Well Name/No:SHELEY #14-4
(Click Well Name for Production Data)		Click Here for Transporter Gatherer Info
Operator:CRESTONE PEAK RESOURCES OPERATING LLC - 10633
(Click Operator Name for Company Detail Report)		Federal Or State Lease #:
Facility Status:SIStatus Date2/1/2022
FacilityID:251761LocationID:330754
Municipality/County:FIRESTONE / WELD #123Location:SWSW 4 2N67W 6
Field:WATTENBERG - #90750Elevation:4910 ft.
Basin:DENVER (DJ) BASIN
Planned Location:660FSL  860 FWLLat/Long: 40.161817 / -104.901624Lat/Long Source: Calculated From Footages
As Drilled Location:Footages Not AvailableLat/Long: 40.161938 / -104.901405Lat/Long Source: Field Measured
 Wellbore And Formation Details -- select either a wellbore Or formation to expand.


Wellbore #00             Wellbore Classification: GW             Status: SI - 2/1/2022             Measured TD: 8030 ft.    Vertical TD: 0 ft.

 Wellbore Data for Original WellboreWellbore Classification: GW        SI - 2/1/2022
Wellbore Permit
Permit #:19980165 Expiration Date:11/29/2000
Proposed Depth/Form:8030 ft.
Surface Mineral Owner Same:No
Mineral Owner:FEESurface Owner:FEE
Unit: Unit Number:
Formation And Spacing:Code: CODL , Formation: CODELL , Order: 407-466 , Unit Acreage: 160, Drill Unit: SW4
Formation And Spacing:Code: JSND , Formation: J SAND , Order: 232 , Unit Acreage: 316, Drill Unit: S2
Wellbore Completed
Completion Date:4/29/1998
Spud Date:3/25/1998Spud Date Is:ACTUAL
Measured TD:8030 ft.Measured PB depth:7999 ft.
True Vertical TD:0 ft.True Vertical PB depth:
Log Types:DUAL INDUCATION GUARD LOG GR; COMPENSATED DENSITY AND NETURON GR; GR CEMENT BOND VDL
Casing:String Type: SURF, Hole Size: 12.25 in., Size: 8.625 in., Top: 0 ft., Depth: 415 ft., Weight: 24 , Citings Type: ACTUAL
Cement:Sacks: 150, Top: 0 ft., Bottom: 415 ft., Determination Method: CALC
Casing:String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: 0 ft., Depth: 8021 ft., Weight: 11.6 , Citings Type: ACTUAL
Cement:Sacks: 485, Top: 6540 ft., Bottom: 8021 ft., Determination Method: CBL
FormationInterval TopLog BottomCoredDSTs
SUSSEX4318 ft.
SHANNON4845 ft.
NIOBRARA7152 ft.
CODELL7427 ft.
GREENHORN7470 ft.
GRANEROS7689 ft.
MOWRY7840 ft.
J SAND7855 ft.
SKULL CREEK7962 ft.

Formation JSND                     Formation Classification:  GW                     Status:  SI - 2/1/2022                  Interval Top: 7865 ft.    Interval Bottom: 7891 ft.

 Completed Information for Formation J SAND
1st Production Date:5/2/1998Choke Size:0.468 in.
Formation Name:J SANDCommingled:No
Production Method:FLOWING
Open Hole Completion:No
Formation Treatment
Treatment Date:4/29/1998
Treatment Summary:FRAC'D WITH 450400# 20/40 SAND AND 187496 GALS 35# & 33# FRACGEL
Tubing Size:2.375 in.Tubing Setting Depth:7848 ft.
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:5/31/1998Test Method:FLOWING
Hours Tested:24Gas Type:
Gas Disposal:SOLD
Test TypeMeasure
BBLS_H2O 29
BBLS_OIL 2
BTU_GAS 1156
CALC_BBLS_H2O 29
CALC_BBLS_OIL 2
CALC_GOR 241500
CALC_MCF_GAS 483
CASING_PRESS 320
MCF_GAS 483
TUBING_PRESS 130
Perforation Data:
Interval Top:7865 ft.# Of Holes:21
Interval Bottom:7891 ft.Hole Size:0.38 in.

Formation CODL                     Formation Classification:  GW                     Status:  CM - 4/21/2000                 Interval Top: 7427 ft.    Interval Bottom: 7448 ft.

 Completed Information for Formation CODELL
1st Production Date:2/28/2000Choke Size:
Formation Name:CODELLCommingled:No
Production Method:FLOWING
Open Hole Completion:No
Formation Treatment
Treatment Date:4/29/1998
Treatment Summary:FRAC W/11080# 100 MESH 1/2 PPG, 1 PPG, 301080# 20/40 FRAC SAND 1 PPG THRU 4 PPG IN 128000 GAL PHOENIX 27# HT, & 27# FRAC FLUID.
Tubing Size:Tubing Setting Depth:
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:3/28/2000Test Method:FLOWING
Hours Tested:24Gas Type:
Gas Disposal:SOLD
Test TypeMeasure
BBLS_H2O 10
BBLS_OIL 39
CALC_BBLS_H2O 10
CALC_BBLS_OIL 39
CALC_GOR 2538
CALC_MCF_GAS 99
CASING_PRESS 220
MCF_GAS 99
Perforation Data:
Interval Top:7427 ft.# Of Holes:42
Interval Bottom:7448 ft.Hole Size:0.38 in.

Formation JNBCD                   Formation Classification:  GW                   Status:  CM - 6/4/2007                  Interval Top: 7212 ft.    Interval Bottom: 7891 ft.

 Completed Information for Formation J-NIOBRARA-CODELL
1st Production Date:N/AChoke Size:
Formation Name:J-NIOBRARA-CODELLCommingled:No
Production Method:
Open Hole Completion:No
Formation Treatment
Treatment Date:5/3/2007
Treatment Summary:JSND-NBRR-CDL COMMINGLE. DRILLED OUT CFP @ 7310'. 5/22/07. DRILLED OUT CFP @7600' TO COMMINGLE THE JSND-NBRR-CDL. 5/23/07.
Tubing Size:2.375 in.Tubing Setting Depth:7853 ft.
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:6/4/2007Test Method:FLOWING
Hours Tested:24Gas Type:WET
Gas Disposal:SOLD
Test TypeMeasure
BBLS_H2O 27
BBLS_OIL 13
BTU_GAS 1206
CALC_BBLS_H2O 27
CALC_BBLS_OIL 13
CALC_GOR 4308
CALC_MCF_GAS 56
CASING_PRESS 1174
GRAVITY_OIL 50
MCF_GAS 56
TUBING_PRESS 587
Perforation Data:
Interval Top:7212 ft.# Of Holes:103
Interval Bottom:7891 ft.Hole Size:0.42 in.

Formation NB-CD                   Formation Classification:  GW                   Status:  SI - 2/1/2022                  Interval Top: 7212 ft.    Interval Bottom: 7448 ft.

 Completed Information for Formation NIOBRARA-CODELL
1st Production Date:5/12/2007Choke Size:
Formation Name:NIOBRARA-CODELLCommingled:
Production Method:
Open Hole Completion:
Formation Treatment
Treatment Date:5/3/2007
Treatment Summary:NBRR-CDL RECOMPLETION. SET CFP @ 7600' 05/02/07 FRAC'D THE CODL WITH 132,050 GAL FRAC FLUID & 246,540# 20/40 SAND. SET CFP @ 7310' 05/03/07 FRAC'D THE NBRR WITH 181,734 GAL FRAC FLUID & 250,560# 20/40 SAND 05/03/07
Tubing Size:Tubing Setting Depth:
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:5/14/2007Test Method:FLOWING
Hours Tested:24Gas Type:SHALE
Gas Disposal:SOLD
Test TypeMeasure
BBLS_H2O 55
BBLS_OIL 60
CALC_BBLS_H2O 55
CALC_BBLS_OIL 60
CALC_GOR 3333
CALC_MCF_GAS 200
CASING_PRESS 138
MCF_GAS 200
Perforation Data:
Interval Top:7212 ft.# Of Holes:82
Interval Bottom:7448 ft.Hole Size:0.38 in.
Primary Well Designation:
Out Of Service      i
            All DesignationsDate
Reported PluggedN
Out Of Service RepurposedN
Out Of ServiceYPlugging Due Date
12/31/2030
Inactive ExceptionN
Noticed InactiveN
Defined Inactive (SI )YDefined Inactive
01/31/2022
Low ProducingYProduction Period
10/2024 - 09/2025

BOE/MCFE/GOR Calculations
Production for Previous 12 Months
October 2024 - September 2025i
Total Oil Produced (Barrels)0
Total Gas Produced (MCF)0
GOR
GOR DeterminationMCFE
Average BOE per Day0.000
Average MCFE per Day0.000

 Federal Financial Assurance  i

 Tribal Well  i No
