COGIS - WELL SCOUT CARD

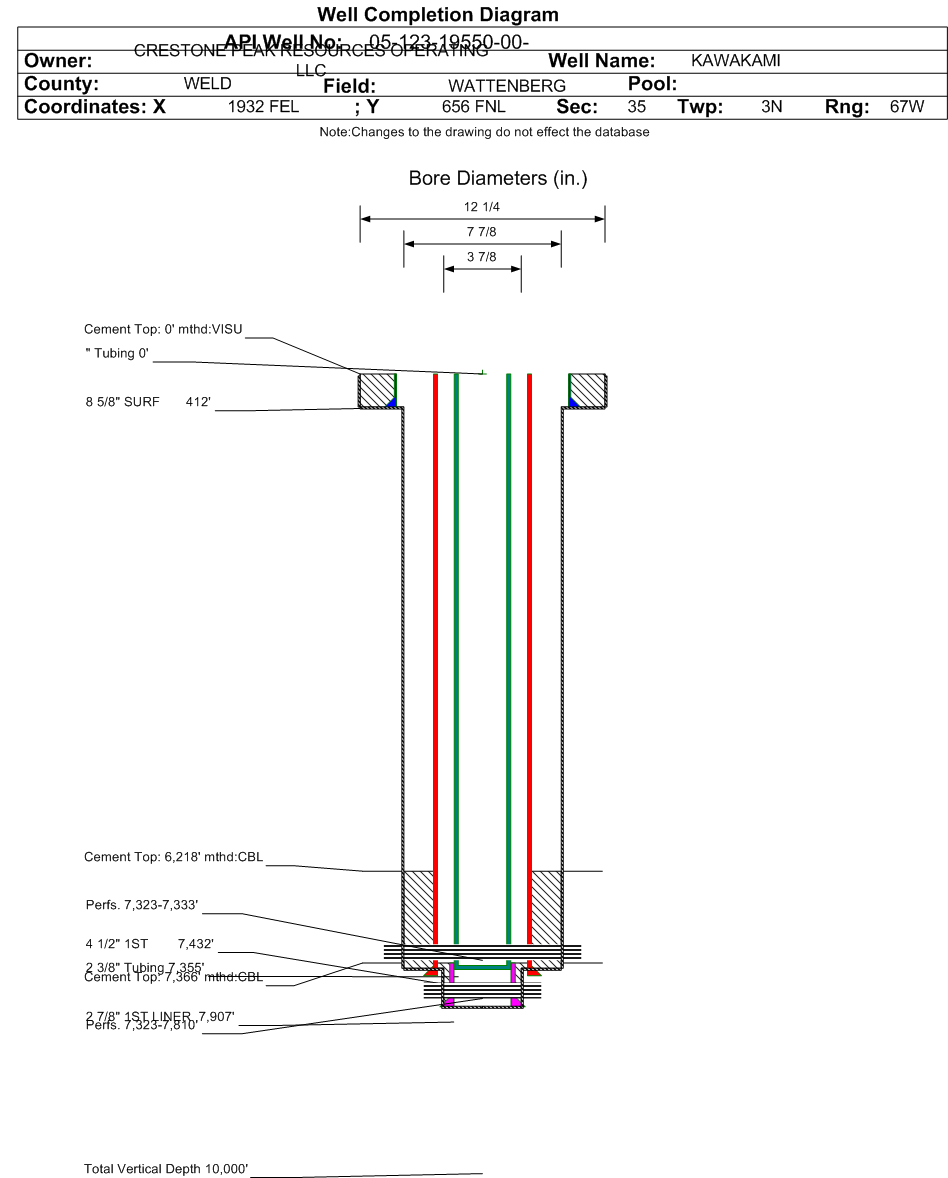

Click image to view related facilities. Related  Click image to view inspection information. InspClick image to view MIT information. MITClick image to access interactive map at well/facility location. GISClick image to view imaged documents for this well/facility. DocClick image to view imaged documents for this well/facility. COAClick image to view wellbore completion diagram. WellboreClick image to search for orders within this facility's section. OrdersClick image to view bradenhead scoutcard data. Bradenhead
 Surface Location
 API# 05-123-19550		Well Classification: GW Status: PA - 12/16/2020
Well Name/No:KAWAKAMI #31-35
(Click Well Name for Production Data)		Click Here for Transporter Gatherer Info
Operator:CRESTONE PEAK RESOURCES OPERATING LLC - 10633
(Click Operator Name for Company Detail Report)		Federal Or State Lease #:
Facility Status:PAStatus Date12/16/2020
FacilityID:251746LocationID:336343
County:WELD #123Location:NWNE 35 3N67W 6
Field:WATTENBERG - #90750Elevation:4814 ft.
Planned Location:656FNL  1932 FELLat/Long: 40.187106 / -104.855692Lat/Long Source: Calculated From Footages
As Drilled Location:461 FNL  1935 FELLat/Long: 40.187720 / -104.855720Lat/Long Source: Field Measured
 Wellbore And Formation Details -- select either a wellbore Or formation to expand.


Wellbore #00             Wellbore Classification: GW             Status: PA - 12/16/2020             Measured TD: 7916 ft.

 Wellbore Data for Original WellboreWellbore Classification: GW        PA - 12/16/2020
Wellbore Permit
Permit #:001419 Expiration Date:12/12/2001
Proposed Depth/Form:7950 ft.
Surface Mineral Owner Same:Yes
Mineral Owner:FEESurface Owner:FEE
Unit: Unit Number:
Formation And Spacing:Code: CODL , Formation: CODELL , Order: 0 , Unit Acreage: 80, Drill Unit: W2NE
Formation And Spacing:Code: JSND , Formation: J SAND , Order: 232 , Unit Acreage: 318, Drill Unit: E2
Casing:String Type: SURF, Hole Size: 12.25 in., Size: 8.625 in., Top: , Depth: 412 ft., Weight: 24 , Citings Type: PLANNED
Cement:Sacks: 225, Top: 0 ft., Bottom: 412 ft.
Casing:String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: , Depth: 7441 ft., Weight: 11.6 , Citings Type: PLANNED
Cement:Sacks: 200, Top: 6220 ft., Bottom: 7441 ft.
Wellbore Completed
Completion Date:2/13/2002
Spud Date:12/8/2001Spud Date Is:ACTUAL
Measured TD:7916 ft.Measured PB depth:7907 ft.
True Vertical TD:True Vertical PB depth:
Log Types:GAMMA RAY CB SLIM HOLE
Casing:String Type: SURF, Hole Size: 12.25 in., Size: 8.625 in., Top: 0 ft., Depth: 412 ft., Weight: 24 , Citings Type: ACTUAL
Cement:Sacks: 225, Top: 0 ft., Bottom: 412 ft., Determination Method: VISU
Casing:String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: 0 ft., Depth: 7432 ft., Weight: 11.6 , Citings Type: ACTUAL
Cement:Sacks: 200, Top: 6218 ft., Bottom: 7432 ft., Determination Method: CBL
Casing:String Type: 1ST LINER, Hole Size: 3.875 in., Size: 2.875 in., Top: 7366 ft., Depth: 7907 ft., Weight: 6.5 , Citings Type: ACTUAL
Cement:Sacks: 35, Top: 7366 ft., Bottom: 7907 ft., Determination Method: CBL
FormationInterval TopLog BottomCoredDSTs
SUSSEX4330 ft.NN
SHANNON4775 ft.NN
NIOBRARA7050 ft.NN
FORT HAYS7298 ft.NN
CODELL7320 ft.NN
GREENHORN7371 ft.NN
J-2 SAND7758 ft.NN

Formation CODL                     Formation Classification:  GW                     Status:  AB - 12/16/2020                Interval Top: 7323 ft.    Interval Bottom: 7333 ft.

 Completed Information for Formation CODELL
1st Production Date:N/AChoke Size:
Formation Name:CODELLCommingled:No
Production Method:
Open Hole Completion:No
Formation Treatment
Treatment Date:1/20/2010
Treatment Summary:CODELL REFRAC: FRAC W/ 251,000 # SAND IN 115,290 GAL FRAC FLUID
Tubing Size:2.428571 in.Tubing Setting Depth:7355 ft.
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:2/11/2010Test Method:FLOWING
Hours Tested:2Gas Type:DRY
Gas Disposal:SOLD
Test TypeMeasure
BBLS_H2O 1
BBLS_OIL 3
BTU_GAS 1072
CALC_BBLS_H2O 12
CALC_BBLS_OIL 36
CALC_GOR 0
CALC_MCF_GAS 1044
CASING_PRESS 373
GRAVITY_OIL 53
MCF_GAS 87
TUBING_PRESS 146
Perforation Data:
Interval Top:7323 ft.# Of Holes:
Interval Bottom:7333 ft.Hole Size:

Formation J-CDL                   Formation Classification:  GW                   Status:  CM - 2/11/2010                 Interval Top: 7323 ft.    Interval Bottom: 7810 ft.

 Completed Information for Formation J-CODELL
1st Production Date:N/AChoke Size:
Formation Name:J-CODELLCommingled:Yes
Production Method:FLOWING
Open Hole Completion:No
Formation Treatment
Treatment Date:2/13/2002
Treatment Summary:
Tubing Size:Tubing Setting Depth:
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:N/ATest Method:
Hours Tested:Gas Type:
Gas Disposal:
Test TypeMeasure
CALC_BBLS_H2O 23
CALC_BBLS_OIL 3
CALC_GOR 40000
CALC_MCF_GAS 122
Perforation Data:
Interval Top:7323 ft.# Of Holes:
Interval Bottom:7810 ft.Hole Size:

Formation JSND                     Formation Classification:  GW                     Status:  AB - 12/16/2020

 Completed Information for Formation J SAND
1st Production Date:N/AChoke Size:
Formation Name:J SANDCommingled:Yes
Production Method:
Open Hole Completion:
Tubing Size:Tubing Setting Depth:
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
No Initial Test Data was found for formation JSND.
No Perforation Data was found for formation JSND.
Primary Well Designation:
None      i
            All DesignationsDate
Reported PluggedY12/16/2020
Out Of Service RepurposedN
Out Of ServiceN
Inactive ExceptionN
Noticed InactiveN
Defined InactiveN
Low ProducingN

BOE/MCFE/GOR Calculations
Production for Previous 12 Months
February 2024 - January 2025i
Total Oil Produced (Barrels)0
Total Gas Produced (MCF)0
GOR
GOR Determination
Average BOE per Day0.000
Average MCFE per Day0.000

 Federal Financial Assurance  i

 Tribal Well  i No
