COGIS - WELL SCOUT CARD
Click image to view related facilities. Related  Click image to view inspection information. InspClick image to view MIT information. MITGIS Map GISClick image to view imaged documents for this well/facility. DocClick image to view imaged documents for this well/facility. COAClick image to view wellbore completion diagram. WellboreClick image to search for orders within this facility's section. OrdersClick image to view bradenhead scoutcard data. Bradenhead
 Surface Location
 API# 05-123-19505		Well Classification: GW Status: PR - 1/29/2026
Well Name/No:KAWAKAMI #32-35
(Click Well Name for Production Data)		Click Here for Transporter Gatherer Info
Operator:CRESTONE PEAK RESOURCES OPERATING LLC - 10633
(Click Operator Name for Company Detail Report)		Federal Or State Lease #:
Facility Status:PRStatus Date1/29/2026
FacilityID:251702LocationID:330718
County:WELD #123Location:SWNE 35 3N67W 6
Field:WATTENBERG - #90750Elevation:4812 ft.
Basin:DENVER (DJ) BASIN
Planned Location:2000FNL  2140 FELLat/Long: 40.183436 / -104.856332Lat/Long Source: Calculated From Footages
As Drilled Location:Footages Not AvailableLat/Long: 40.183494 / -104.856328Lat/Long Source: Field Measured
 Wellbore And Formation Details -- select either a wellbore Or formation to expand.


Wellbore #00             Wellbore Classification: GW             Status: PR - 1/29/2026             Measured TD: 7900 ft.    Vertical TD: 0 ft.

 Wellbore Data for Original WellboreWellbore Classification: GW        PR - 1/29/2026
Wellbore Permit
Permit #:Expiration Date:11/7/2000
Proposed Depth/Form:7980 ft.
Surface Mineral Owner Same:No
Mineral Owner:FEESurface Owner:FEE
Unit: Unit Number:
Formation And Spacing:Code: CODL , Formation: CODELL , Order: 407-240 , Unit Acreage: 160, Drill Unit: NE4
Formation And Spacing:Code: JSND , Formation: J SAND , Order: 0 , Unit Acreage: 320, Drill Unit: E2
Wellbore Completed
Completion Date:4/15/1998
Spud Date:3/2/1998Spud Date Is:ACTUAL
Measured TD:7900 ft.Measured PB depth:7892 ft.
True Vertical TD:0 ft.True Vertical PB depth:
Top PZ Location:Sec: Twp: Footage: 0 FL  0 FL

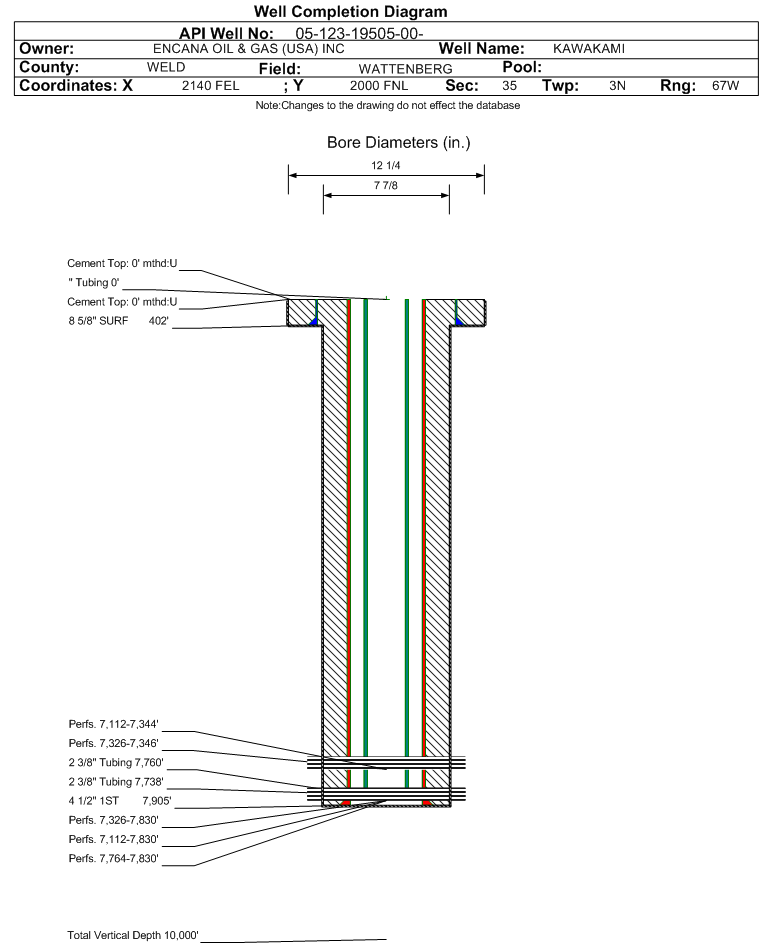

Casing:String Type: SURF, Hole Size: 12.25 in., Size: 8.625 in., Top: 0 ft., Depth: 402 ft., Weight: 24 , Citings Type: ACTUAL
Cement:Sacks: 320, Top: 0 ft., Bottom: 402 ft., Determination Method: VISU
Casing:String Type: SURF, Hole Size: 12.25 in., Size: 8.625 in., Top: 0 ft., Depth: 402 ft., Weight: , Citings Type: HISTORICAL
Cement:Sacks: 320, Top: 0 ft., Bottom: , Determination Method:
Casing:String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: 0 ft., Depth: 7905 ft., Weight: 11.36 , Citings Type: ACTUAL
Cement:Sacks: 225, Top: 6830 ft., Bottom: 7905 ft., Determination Method: CBL
Casing:String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: 0 ft., Depth: 7905 ft., Weight: , Citings Type: HISTORICAL
Cement:Sacks: 0, Top: 0 ft., Bottom: , Determination Method:
FormationInterval TopLog BottomCoredDSTs
SUSSEX4348 ft.
SHANNON4775 ft.
NIOBRARA7052 ft.
CODELL7324 ft.
GREENHORN7374 ft.
GRANEROS7594 ft.
MOWRY7744 ft.
J SAND7760 ft.
SKULL CREEK7876 ft.

Formation JSND                     Formation Classification:  GW                     Status:  PR - 1/29/2026                 Interval Top: 7764 ft.    Interval Bottom: 7830 ft.

 Completed Information for Formation J SAND
1st Production Date:4/15/1998Choke Size:
Formation Name:J SANDCommingled:No
Production Method:
Open Hole Completion:No
Formation Treatment
Treatment Date:4/15/1998
Treatment Summary:7764 - 7780; 7788 - 7830
Tubing Size:Tubing Setting Depth:
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
No Initial Test Data was found for formation JSND.
Perforation Data:
Interval Top:7764 ft.# Of Holes:116
Interval Bottom:7830 ft.Hole Size:0.35 in.

Formation CODL                     Formation Classification:  GW                     Status:  CM - 1/29/2026                 Interval Top: 7326 ft.    Interval Bottom: 7346 ft.

 Completed Information for Formation CODELL
1st Production Date:N/AChoke Size:
Formation Name:CODELLCommingled:Yes
Production Method:
Open Hole Completion:No
Formation Treatment
Treatment Date:3/24/2008
Treatment Summary:12/30/1999 perf'd 7326 - 7346 with 40 holes, 3/24/2008 perf'd 7326 - 7344 with 72 holes
Formation Treatment
Treatment Date:4/15/1998
Treatment Summary:FRAC WELL WITH 10,000 # 100 MESH , 1/2 PPG, 1PPG. 300000 # 20/40 FRAC SAND 1 PPG THRU 4PPG IN 220000 GALS VISTAR 22,20 FLUID.
Tubing Size:Tubing Setting Depth:
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:N/ATest Method:
Hours Tested:Gas Type:
Gas Disposal:
Test TypeMeasure
BBLS_H2O 12
BBLS_OIL 58
CALC_BBLS_H2O 12
CALC_BBLS_OIL 58
CALC_GOR 3810
CALC_MCF_GAS 221
CASING_PRESS 200
MCF_GAS 221
Perforation Data:
Interval Top:7326 ft.# Of Holes:112
Interval Bottom:7346 ft.Hole Size:0.38 in.

Formation J-CDL                   Formation Classification:  GW                   Status:  CM - 4/6/2008                  Interval Top: 7326 ft.    Interval Bottom: 7830 ft.

 Completed Information for Formation J-CODELL
1st Production Date:N/AChoke Size:0.250 in.
Formation Name:J-CODELLCommingled:Yes
Production Method:FLOWING
Open Hole Completion:No
Formation Treatment
Treatment Date:4/15/1998
Treatment Summary:
Tubing Size:2.375 in.Tubing Setting Depth:7760 ft.
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:6/9/2000Test Method:FLOWING
Hours Tested:24Gas Type:
Gas Disposal:SOLD
Test TypeMeasure
BBLS_H2O 13
BBLS_OIL 52
CALC_BBLS_H2O 13
CALC_BBLS_OIL 52
CALC_GOR 10538
CALC_MCF_GAS 548
CASING_PRESS 680
MCF_GAS 548
TUBING_PRESS 350
Perforation Data:
Interval Top:7326 ft.# Of Holes:156
Interval Bottom:7830 ft.Hole Size:

Formation JNBCD                   Formation Classification:  GW                   Status:  CM - 4/6/2008                  Interval Top: 7112 ft.    Interval Bottom: 7830 ft.

 Completed Information for Formation J-NIOBRARA-CODELL
1st Production Date:N/AChoke Size:
Formation Name:J-NIOBRARA-CODELLCommingled:No
Production Method:
Open Hole Completion:No
Formation Treatment
Treatment Date:4/15/1998
Treatment Summary:JNBCD COMMINGLE; DRILLED OUT CFP @7212' AND CBP @7530' TO COMMINGLE JNBCD. 4/1/2008
Tubing Size:2.375 in.Tubing Setting Depth:7738 ft.
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:4/6/2008Test Method:FLOWING
Hours Tested:24Gas Type:DRY
Gas Disposal:SOLD
Test TypeMeasure
BBLS_H2O 14
BBLS_OIL 36
BTU_GAS 1231
CALC_BBLS_H2O 14
CALC_BBLS_OIL 36
CALC_GOR 8111
CALC_MCF_GAS 292
CASING_PRESS 809
GRAVITY_OIL 49
MCF_GAS 292
TUBING_PRESS 330
Perforation Data:
Interval Top:7112 ft.# Of Holes:220
Interval Bottom:7830 ft.Hole Size:0.35 in.

Formation NB-CD                   Formation Classification:  GW                   Status:  PR - 1/29/2026                 Interval Top: 7112 ft.    Interval Bottom: 7346 ft.

 Completed Information for Formation NIOBRARA-CODELL
1st Production Date:4/1/2008Choke Size:
Formation Name:NIOBRARA-CODELLCommingled:No
Production Method:
Open Hole Completion:No
Formation Treatment
Treatment Date:3/24/2008
Treatment Summary:NB-CD RECOMPLETION; SET CBP @7530'.3/13/08.RE-FRAC CODL W/111,048 GAL FRAC FLUID & 253,920#SAND 3/24/08. SET CFP @7212'.3/24/08. FRAC NBRR W/162,100 GAL FRAC FLUID & 253,560# SAND.3/24/08.
Tubing Size:Tubing Setting Depth:
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
No Initial Test Data was found for formation NB-CD.
Perforation Data:
Interval Top:7112 ft.# Of Holes:144
Interval Bottom:7346 ft.Hole Size:0.41 in.

Formation NBRR                     Formation Classification:  GW                     Status:  CM - 2/24/2026                 Interval Top: 7112 ft.    Interval Bottom: 7128 ft.

 Completed Information for Formation NIOBRARA
1st Production Date:N/AChoke Size:
Formation Name:NIOBRARACommingled:Yes
Production Method:
Open Hole Completion:No
Tubing Size:Tubing Setting Depth:
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
No Initial Test Data was found for formation NBRR.
Perforation Data:
Interval Top:7112 ft.# Of Holes:32
Interval Bottom:7128 ft.Hole Size:
Primary Well Designation:
Out Of Service      i
            All DesignationsDate
Reported PluggedN
Out Of Service RepurposedN
Out Of ServiceYPlugging Due Date
12/31/2030
Inactive ExceptionN
Noticed InactiveN
Defined InactiveN
Low ProducingYProduction Period
12/2024 - 11/2025

BOE/MCFE/GOR Calculations
Production for Previous 12 Months
December 2024 - November 2025i
Total Oil Produced (Barrels)0
Total Gas Produced (MCF)0
GOR
GOR DeterminationMCFE
Average BOE per Day0.000
Average MCFE per Day0.000

 Federal Financial Assurance  i

 Tribal Well  i No
