COGIS

Facility Detail

COGIS - WELL SCOUT CARD

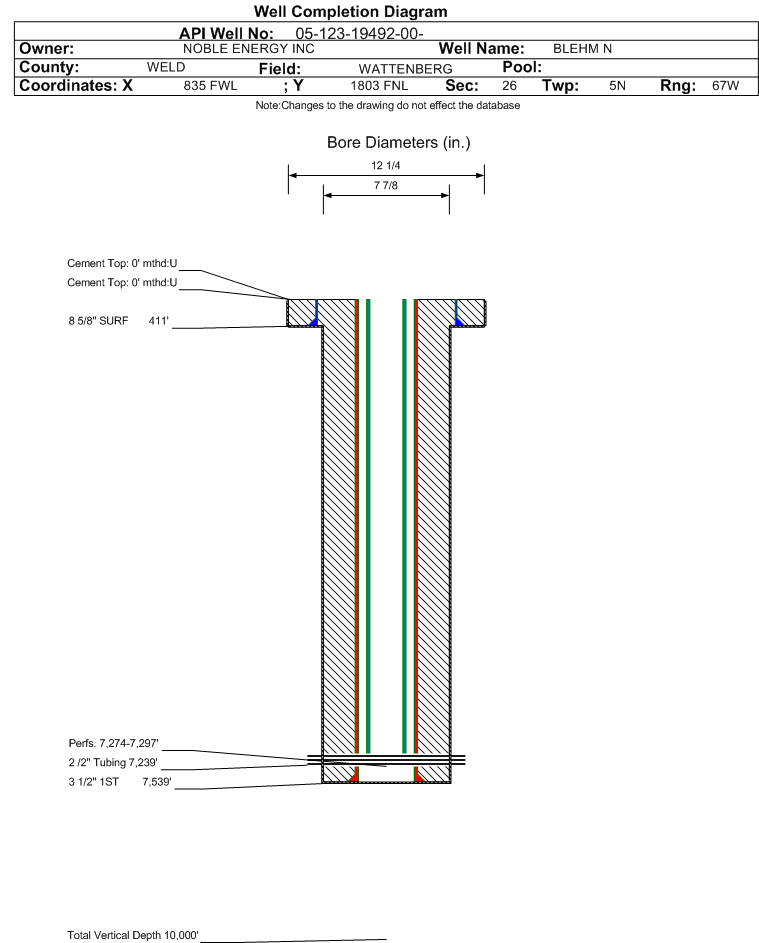

Click image to view related facilities. Related  Click image to view inspection information. InspClick image to view MIT information. MITGIS Map GISOld GIS Map Old GISClick image to view imaged documents for this well/facility. DocClick image to view imaged documents for this well/facility. COAClick image to view wellbore completion diagram. WellboreClick image to search for orders within this facility's section. OrdersClick image to view bradenhead scoutcard data. Bradenhead
 Surface Location
 API# 05-123-19492		Well Classification: GW Status: PA - 12/8/2023
Well Name/No:BLEHM N #26-5
(Click Well Name for Production Data)		Click Here for Transporter Gatherer Info
Operator:PDC ENERGY INC - 69175
(Click Operator Name for Company Detail Report)		Federal Or State Lease #:59570
Facility Status:PAStatus Date12/8/2023
FacilityID:251689LocationID:330707
County:WELD #123Location:SWNW 26 5N67W 6
Field:WATTENBERG - #90750Elevation:5032 ft.
Basin:DENVER (DJ) BASIN
Planned Location:1803FNL  835 FWLLat/Long: 40.372914 / -104.866934Lat/Long Source: Calculated From Footages
As Drilled Location:Footages Not AvailableLat/Long: 40.372966 / -104.866806Lat/Long Source: Field Measured
 Wellbore And Formation Details -- select either a wellbore Or formation to expand.


Wellbore #00             Wellbore Classification: GW             Status: PA - 12/5/2023             Measured TD: 7548 ft.    Vertical TD: 0 ft.

 Wellbore Data for Original WellboreWellbore Classification: GW        PA - 12/5/2023
Wellbore Permit
Permit #:970870 Expiration Date:11/12/1998
Proposed Depth/Form:
Surface Mineral Owner Same:No
Mineral Owner:FEESurface Owner:Not available
Unit: Unit Number:
Formation And Spacing:Code: CODL , Formation: CODELL , Order: 1 , Unit Acreage: 80, Drill Unit: S2NW
Wellbore Completed
Completion Date:2/17/1998
Measured TD:7548 ft.Measured PB depth:7535 ft.
True Vertical TD:0 ft.True Vertical PB depth:
Casing:String Type: SURF, Hole Size: 12.25 in., Size: 8.625 in., Top: 0 ft., Depth: 411 ft., Weight: 24 , Citings Type: ACTUAL
Cement:Sacks: 290, Top: 0 ft., Bottom: 411 ft., Determination Method: VISU
Casing:String Type: 1ST, Hole Size: 7.875 in., Size: 3.5 in., Top: 0 ft., Depth: 7539 ft., Weight: 9.3 , Citings Type: ACTUAL
Cement:Sacks: 175, Top: 6710 ft., Bottom: 7539 ft., Determination Method: CBL
FormationInterval TopLog BottomCoredDSTs
SHANNON4766 ft.
NIOBRARA6990 ft.
CODELL7274 ft.

Formation CODL                     Formation Classification:  GW                     Status:  AB - 6/7/2023                  Interval Top: 7274 ft.    Interval Bottom: 7297 ft.

 Completed Information for Formation CODELL
1st Production Date:3/17/1998Choke Size:
Formation Name:CODELLCommingled:No
Production Method:
Open Hole Completion:No
Formation Treatment
Treatment Date:1/12/2010
Treatment Summary:TRIFRACD CODELL WITH 128814 GALS OF SLICK WATER AND VISTAR WITH 243440 #S OF OTTAWA SAND.
Tubing Size:Tubing Setting Depth:
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:N/ATest Method:
Hours Tested:Gas Type:
Gas Disposal:
Test TypeMeasure
BBLS_H2O 3
BBLS_OIL 3
BTU_GAS 1258
CALC_BBLS_H2O 3
CALC_BBLS_OIL 3
CALC_GOR 16000
CALC_MCF_GAS 48
CASING_PRESS 290
GRAVITY_OIL 65
MCF_GAS 48
TUBING_PRESS 280
Perforation Data:
Interval Top:7274 ft.# Of Holes:132
Interval Bottom:7297 ft.Hole Size:0.34 in.
Primary Well Designation:
None      i
            All DesignationsDate
Reported PluggedY12/08/2023
Out Of Service RepurposedN
Out Of ServiceN
Inactive ExceptionN
Noticed InactiveN
Defined InactiveN
Low ProducingN

BOE/MCFE/GOR Calculations
Production for Previous 12 Months
January 2025 - December 2025i
Total Oil Produced (Barrels)0
Total Gas Produced (MCF)0
GOR
GOR DeterminationMCFE
Average BOE per Day0.000
Average MCFE per Day0.000

 Federal Financial Assurance  i

 Tribal Well  i No
