COGIS - WELL SCOUT CARD

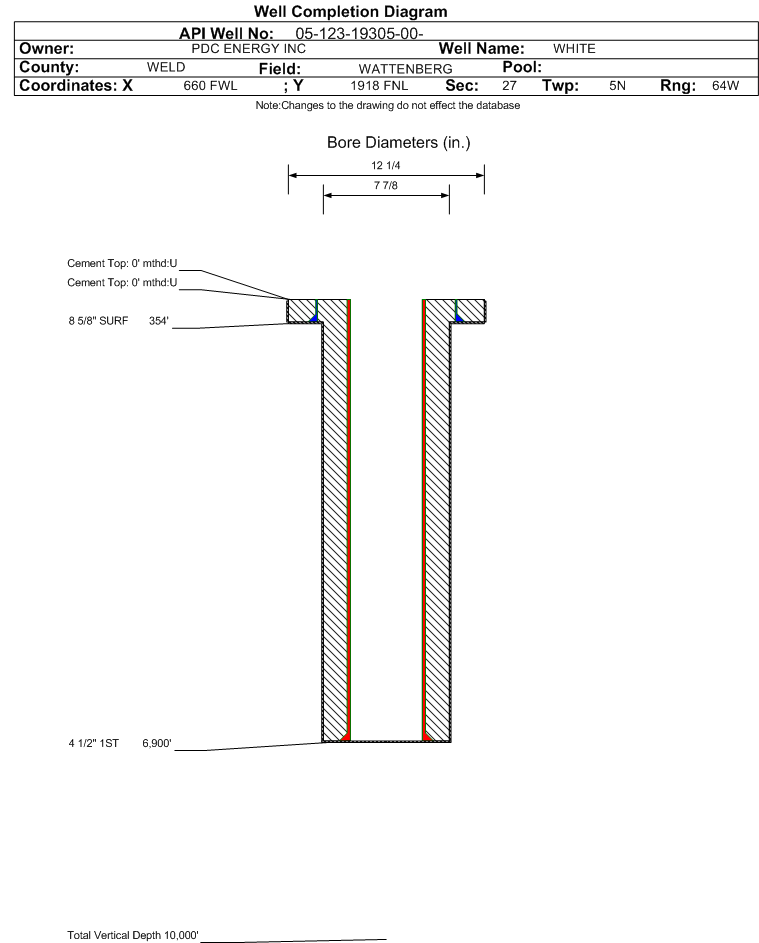

Click image to view related facilities. Related  Click image to view inspection information. InspClick image to view MIT information. MITClick image to access interactive map at well/facility location. GISClick image to view imaged documents for this well/facility. DocClick image to view imaged documents for this well/facility. COAClick image to view wellbore completion diagram. WellboreClick image to search for orders within this facility's section. OrdersClick image to view bradenhead scoutcard data. Bradenhead
 Surface Location
 API# 05-123-19305		Well Classification: GW Status: PA - 2/15/2023
Well Name/No:WHITE #27-6
(Click Well Name for Production Data)		Click Here for Transporter Gatherer Info
Operator:PDC ENERGY INC - 69175
(Click Operator Name for Company Detail Report)		Federal Or State Lease #:63838
Facility Status:PAStatus Date2/15/2023
FacilityID:251502LocationID:330574
County:WELD #123Location:SWNW 27 5N64W 6
Field:WATTENBERG - #90750Elevation:4610 ft.
Basin:DENVER (DJ) BASIN
Planned Location:1918FNL  660 FWLLat/Long: 40.372136 / -104.542924Lat/Long Source: Calculated From Footages
As Drilled Location:Footages Not AvailableLat/Long: 40.372222 / -104.542778Lat/Long Source: Field Measured
 Wellbore And Formation Details -- select either a wellbore Or formation to expand.


Wellbore #00             Wellbore Classification: GW             Status: PA - 2/15/2023             Measured TD: 6900 ft.    Vertical TD: 0 ft.

 Wellbore Data for Original WellboreWellbore Classification: GW        PA - 2/15/2023
Wellbore PermitDRIFTED
Permit #:970012 Expiration Date:1/8/1998
Proposed Depth/Form:
Surface Mineral Owner Same:Not available
Mineral Owner:FEESurface Owner:Not available
Unit: Unit Number:
Formation And Spacing:Code: NB-CD , Formation: NIOBRARA-CODELL , Order: 0 , Unit Acreage: 80, Drill Unit: W2NW
Wellbore Completed
Completion Date:2/24/1997
Measured TD:6900 ft.Measured PB depth:6858 ft.
True Vertical TD:0 ft.True Vertical PB depth:
Casing:String Type: SURF, Hole Size: 12.25 in., Size: 8.625 in., Top: 0 ft., Depth: 354 ft., Weight: 24 , Citings Type: ACTUAL
Cement:Sacks: 290, Top: 0 ft., Bottom: 354 ft., Determination Method: VISU
Casing:String Type: SURF, Hole Size: 12.25 in., Size: 8.625 in., Top: 0 ft., Depth: 354 ft., Weight: , Citings Type: HISTORICAL
Cement:Sacks: 0, Top: 0 ft., Bottom: , Determination Method:
Casing:String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: 0 ft., Depth: 6900 ft., Weight: 11.6 , Citings Type: ACTUAL
Cement:Sacks: 160, Top: 5880 ft., Bottom: 6900 ft., Determination Method: CBL
Casing:String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: 0 ft., Depth: 6900 ft., Weight: , Citings Type: HISTORICAL
Cement:Sacks: 0, Top: 0 ft., Bottom: , Determination Method:
FormationInterval TopLog BottomCoredDSTs
NIOBRARA6498 ft.
CODELL6778 ft.

Formation CODL                     Formation Classification:  GW                     Status:  CM - 5/2/2022                  Interval Top: 6780 ft.    Interval Bottom: 6789 ft.

 Completed Information for Formation CODELL
1st Production Date:3/3/1997Choke Size:
Formation Name:CODELLCommingled:Yes
Production Method:
Open Hole Completion:No
Tubing Size:Tubing Setting Depth:
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
No Initial Test Data was found for formation CODL.
Perforation Data:
Interval Top:6780 ft.# Of Holes:56
Interval Bottom:6789 ft.Hole Size:0.38 in.

Formation NB-CD                   Formation Classification:  GW                   Status:  AB - 2/15/2023                 Interval Top: 6606 ft.    Interval Bottom: 6789 ft.

 Completed Information for Formation NIOBRARA-CODELL
1st Production Date:3/3/1997Choke Size:
Formation Name:NIOBRARA-CODELLCommingled:No
Production Method:
Open Hole Completion:No
Tubing Size:Tubing Setting Depth:
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
No Initial Test Data was found for formation NB-CD.
Perforation Data:
Interval Top:6606 ft.# Of Holes:68
Interval Bottom:6789 ft.Hole Size:0.38 in.

Formation NBRR                     Formation Classification:  GW                     Status:  CM - 5/2/2022                  Interval Top: 6606 ft.    Interval Bottom: 6614 ft.

 Completed Information for Formation NIOBRARA
1st Production Date:3/3/1997Choke Size:
Formation Name:NIOBRARACommingled:Yes
Production Method:
Open Hole Completion:No
Tubing Size:Tubing Setting Depth:
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
No Initial Test Data was found for formation NBRR.
Perforation Data:
Interval Top:6606 ft.# Of Holes:12
Interval Bottom:6614 ft.Hole Size:0.38 in.
Primary Well Designation:
None      i
            All DesignationsDate
Reported PluggedY02/15/2023
Out Of Service RepurposedN
Out Of ServiceN
Inactive ExceptionN
Noticed InactiveYNoticed Date
12/12/2022
Defined InactiveN
Low ProducingN

BOE/MCFE/GOR Calculations
Production for Previous 12 Months
October 2024 - September 2025i
Total Oil Produced (Barrels)0
Total Gas Produced (MCF)0
GOR
GOR DeterminationMCFE
Average BOE per Day0.000
Average MCFE per Day0.000

 Federal Financial Assurance  i

 Tribal Well  i No
