COGIS

Facility Detail

COGIS - WELL SCOUT CARD

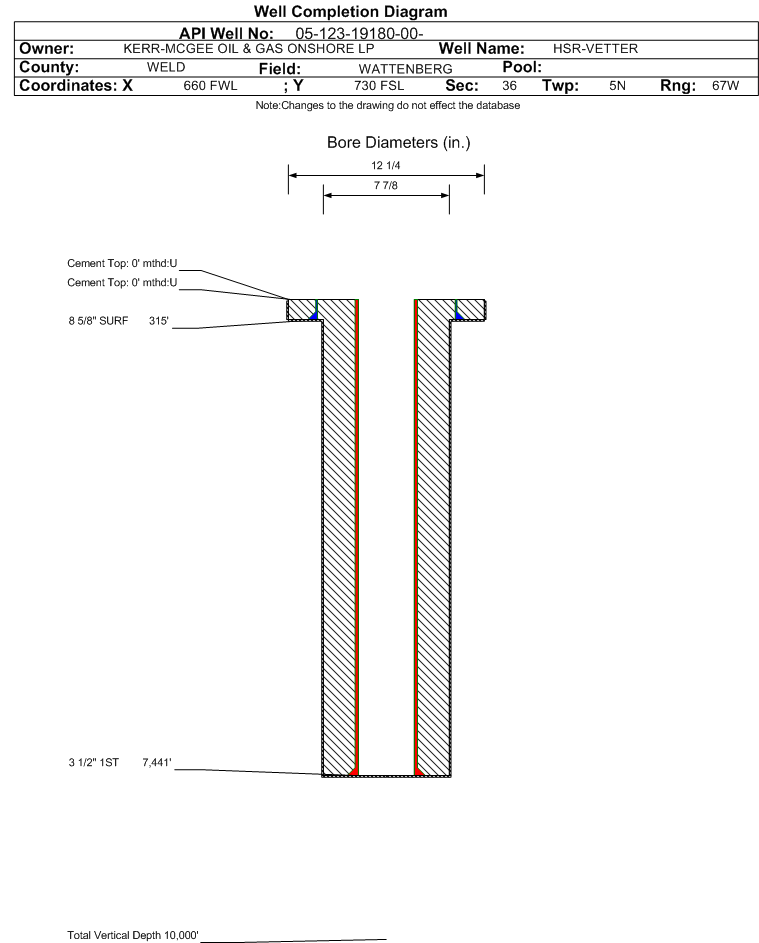

Click image to view related facilities. Related  Click image to view inspection information. InspClick image to view MIT information. MITClick image to access interactive map at well/facility location. GISClick image to view imaged documents for this well/facility. DocClick image to view imaged documents for this well/facility. COAClick image to view wellbore completion diagram. WellboreClick image to search for orders within this facility's section. OrdersClick image to view bradenhead scoutcard data. Bradenhead
 Surface Location
 API# 05-123-19180		Well Classification: GW Status: PA - 6/2/2025
Well Name/No:HSR-VETTER #13-36
(Click Well Name for Production Data)		Click Here for Transporter Gatherer Info
Operator:PDC ENERGY INC - 69175
(Click Operator Name for Company Detail Report)		Federal Or State Lease #:64382
Facility Status:PAStatus Date6/2/2025
FacilityID:251377LocationID:330486
County:WELD #123Location:SWSW 36 5N67W 6
Field:WATTENBERG - #90750Elevation:4816 ft.
Basin:DENVER (DJ) BASIN
Planned Location:730FSL  660 FWLLat/Long: 40.350874 / -104.848464Lat/Long Source: Calculated From Footages
As Drilled Location:Footages Not AvailableLat/Long: 40.350810 / -104.848590Lat/Long Source: Field Measured
 Wellbore And Formation Details -- select either a wellbore Or formation to expand.


Wellbore #00             Wellbore Classification: GW             Status: AB - 6/2/2025             Measured TD: 7458 ft.    Vertical TD: 0 ft.

 Wellbore Data for Original WellboreWellbore Classification: GW        AB - 6/2/2025
Wellbore Permit
Permit #:960367 Expiration Date:11/8/1996
Proposed Depth/Form:
Surface Mineral Owner Same:Not available
Mineral Owner:STATESurface Owner:Not available
Unit: Unit Number:
Formation And Spacing:Code: NB-CD , Formation: NIOBRARA-CODELL , Order: 0 , Unit Acreage: 80, Drill Unit: S2SW
Wellbore Completed
Completion Date:7/12/1996
Measured TD:7458 ft.Measured PB depth:7410 ft.
True Vertical TD:0 ft.True Vertical PB depth:
Casing:String Type: SURF, Hole Size: 12.25 in., Size: 8.625 in., Top: 0 ft., Depth: 312 ft., Weight: 23 , Citings Type: ACTUAL
Cement:Sacks: 220, Top: 0 ft., Bottom: 312 ft., Determination Method: VISU
Casing:String Type: 1ST, Hole Size: 7.875 in., Size: 3.5 in., Top: 0 ft., Depth: 7441 ft., Weight: 7.7 , Citings Type: ACTUAL
Cement:Sacks: 215, Top: 6509 ft., Bottom: 7441 ft., Determination Method: CBL
FormationInterval TopLog BottomCoredDSTs
SUSSEX4250 ft.
SHANNON4740 ft.
NIOBRARA6964 ft.
FORT HAYS7266 ft.
CODELL7288 ft.
GREENHORN7342 ft.

Formation NB-CD                   Formation Classification:  GW                   Status:  AB - 6/2/2025

 Completed Information for Formation NIOBRARA-CODELL
1st Production Date:7/12/1996Choke Size:1,664.000 in.
Formation Name:NIOBRARA-CODELLCommingled:
Production Method:
Open Hole Completion:
Tubing Size:Tubing Setting Depth:
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
No Initial Test Data was found for formation NB-CD.
No Perforation Data was found for formation NB-CD.
Primary Well Designation:
None      i
            All DesignationsDate
Reported PluggedY06/02/2025
Out Of Service RepurposedN
Out Of ServiceN
Inactive ExceptionN
Noticed InactiveN
Defined InactiveN
Low ProducingN

BOE/MCFE/GOR Calculations
Production for Previous 12 Months
October 2024 - September 2025i
Total Oil Produced (Barrels)152
Total Gas Produced (MCF)2086
GOR13723
GOR DeterminationBOE
Average BOE per Day1.387
Average MCFE per Day8.043

 Federal Financial Assurance  i

 Tribal Well  i No
