Wellbore #00 Wellbore Classification: GW Status: AB - 5/30/2025 Measured TD: 7480 ft. Vertical TD: 0 ft.| Wellbore Data for Original Wellbore | Wellbore Classification: GW AB - 5/30/2025 | | Wellbore Permit | DRIFTED | | Permit #: | 960366 | Expiration Date: | 11/8/1996 | | Proposed Depth/Form: | | | Surface Mineral Owner Same: | Not available | | Mineral Owner: | STATE | Surface Owner: | Not available | | Unit: | | Unit Number: | | | Formation And Spacing: | Code: NB-CD , Formation: NIOBRARA-CODELL , Order: 0 , Unit Acreage: 80, Drill Unit: N2SW |
| | |

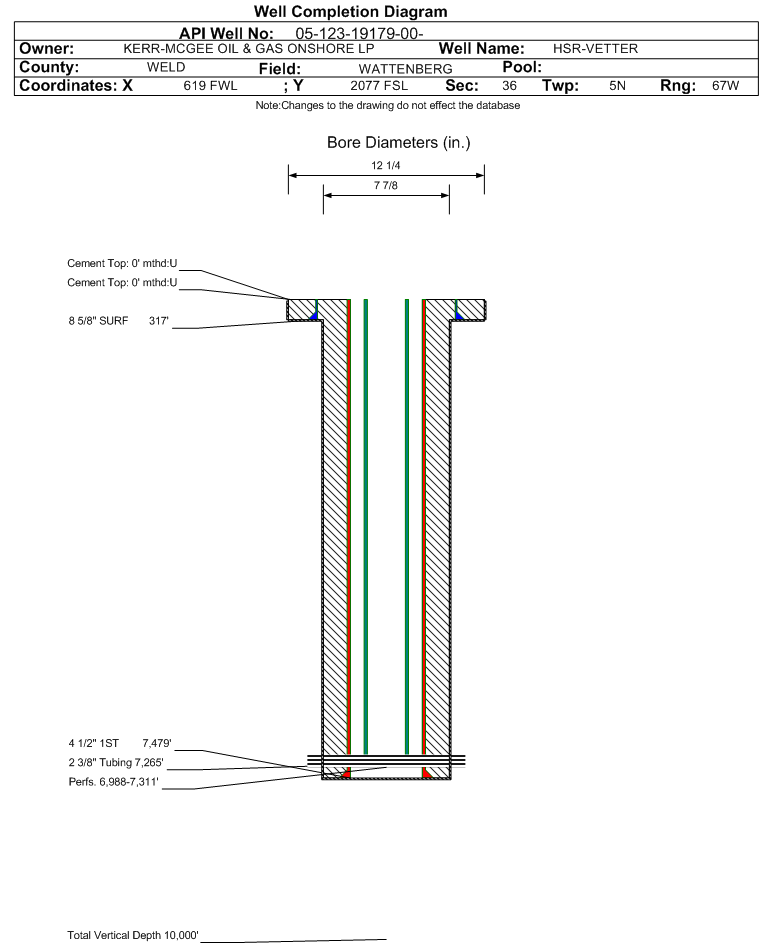

| Wellbore Completed | | Completion Date: | 7/12/1996 | | Measured TD: | 7480 ft. | Measured PB depth: | 7448 ft. | | True Vertical TD: | 0 ft. | True Vertical PB depth: | | | Casing: | String Type: SURF, Hole Size: 12.25 in., Size: 8.625 in., Top: 0 ft., Depth: 317 ft., Weight: 23 , Citings Type: ACTUAL | | Cement: | Sacks: 225, Top: 0 ft., Bottom: 317 ft., Determination Method: VISU | | Casing: | String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: 0 ft., Depth: 7479 ft., Weight: 11.6 , Citings Type: ACTUAL | | Cement: | Sacks: 175, Top: 6494 ft., Bottom: 7479 ft., Determination Method: CBL | | Formation | Interval Top | Log Bottom | Cored | DSTs | | SUSSEX | 4274 ft. | | | | | SHANNON | 4749 ft. | | | | | NIOBRARA | 6977 ft. | | | | | FORT HAYS | 7280 ft. | | | | | CODELL | 7302 ft. | | | | | GREENHORN | 7356 ft. | | | |
Formation NB-CD Formation Classification: GW Status: AB - 5/30/2025 Interval Top: 6988 ft. Interval Bottom: 7311 ft.| Completed Information for Formation NIOBRARA-CODELL | | 1st Production Date: | 7/12/1996 | Choke Size: | 24.000 in. | | Formation Name: | NIOBRARA-CODELL | Commingled: | No | | Production Method: | PLUNGER | | Open Hole Completion: | No |
| | Formation Treatment | | Treatment Date: | 7/12/1996 | | Treatment Summary: | FRACED W/119,703 GALLONS GELLED FLUID., 261140 LBS 20/40 LUCERN-UNIMIN-OTTAWA., PRODUCTION REFLECTS NIOBRARA-CODELL FORMATIONS |
| | Tubing Size: | 2.375 in. | Tubing Setting Depth: | 7265 ft. | | Tubing Packer Depth: | | Tubing Multiple Packer: | | | Open Hole Top: | | Open Hole Bottom: | | | Initial Test Data: | | Test Date: | 11/24/2003 | Test Method: | PLUNGER | | Hours Tested: | 24 | Gas Type: | SHALE | | Gas Disposal: | | |
| Test Type | Measure |
|---|
| BBLS_OIL | 11 | | CALC_BBLS_OIL | 11 | | CALC_GOR | 12000 | | CALC_MCF_GAS | 132 | | CASING_PRESS | 491 | | MCF_GAS | 132 | | TUBING_PRESS | 406 |
| | Perforation Data: | | Interval Top: | 6988 ft. | # Of Holes: | 18 | | Interval Bottom: | 7311 ft. | Hole Size: | |
|
|
|
|
|
|
|
| Reported Plugged | Y | 05/30/2025 |
| Out Of Service Repurposed | N | |
| Out Of Service | N | |
| Inactive Exception | N | |
| Noticed Inactive | N | |
| Defined Inactive | N | |
| Low Producing | N | |
| Total Oil Produced (Barrels) | 142 |
| Total Gas Produced (MCF) | 1962 |
| GOR | 13816 |
| GOR Determination | BOE |
| Average BOE per Day | 1.304 |
| Average MCFE per Day | 7.554 |
| Federal Financial Assurance | i | |
|
|
