Wellbore #00 Wellbore Classification: GW Status: PA - 9/26/2019 Measured TD: 7795 ft.| Wellbore Data for Original Wellbore | Wellbore Classification: GW PA - 9/26/2019 | | Wellbore Permit | | | Permit #: | 20064731 | Expiration Date: | 10/30/2007 | | Proposed Depth/Form: | 7820 ft. | | Surface Mineral Owner Same: | No | | Mineral Owner: | FEE | Surface Owner: | FEE | | Unit: | | Unit Number: | | | Formation And Spacing: | Code: JSND , Formation: J SAND , Order: 232 , Unit Acreage: 320, Drill Unit: E2 | | Formation And Spacing: | Code: NB-CD , Formation: NIOBRARA-CODELL , Order: 0 , Unit Acreage: 80, Drill Unit: N2SE | | Casing: | String Type: SURF, Hole Size: 12.25 in., Size: 8.625 in., Top: , Depth: 617 ft., Weight: 23 , Citings Type: PLANNED | | Cement: | Sacks: 430, Top: 0 ft., Bottom: 617 ft. | | Casing: | String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: , Depth: 7295 ft., Weight: 11.6 , Citings Type: PLANNED | | Cement: | Sacks: 165, Top: 6370 ft., Bottom: 7295 ft. |
| | |

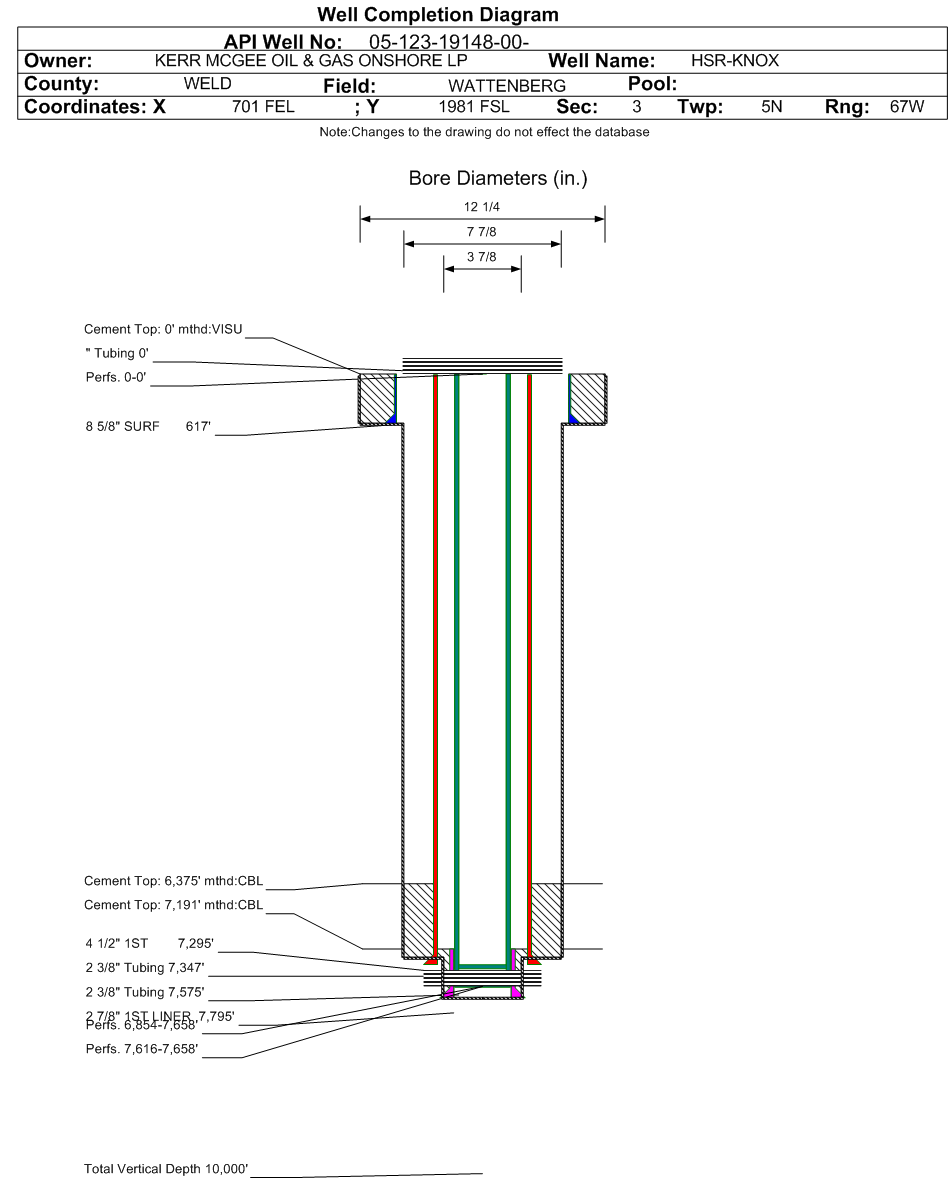

| Wellbore Completed | | Completion Date: | 12/9/2006 | | Spud Date: | 12/6/2006 | Spud Date Is: | ACTUAL | | Measured TD: | 7795 ft. | Measured PB depth: | 7762 ft. | | True Vertical TD: | | True Vertical PB depth: | | | Log Types: | CBL, SLIM ACCESS PEX-AIT | | Casing: | String Type: SURF, Hole Size: 12.25 in., Size: 8.625 in., Top: 10 ft., Depth: 617 ft., Weight: 24 , Citings Type: ACTUAL | | Cement: | Sacks: 430, Top: 0 ft., Bottom: 617 ft., Determination Method: VISU | | Casing: | String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: 10 ft., Depth: 7295 ft., Weight: 11.6 , Citings Type: ACTUAL | | Cement: | Sacks: 165, Top: 6375 ft., Bottom: 7295 ft., Determination Method: CBL | | Casing: | String Type: 1ST LINER, Hole Size: 3.875 in., Size: 2.875 in., Top: 7191 ft., Depth: 7795 ft., Weight: 6.5 , Citings Type: ACTUAL | | Cement: | Sacks: 50, Top: 7191 ft., Bottom: 7795 ft., Determination Method: CBL | | Formation | Interval Top | Log Bottom | Cored | DSTs | | SUSSEX | 4099 ft. | | | | | SHANNON | 4590 ft. | | | | | NIOBRARA | 6836 ft. | | | | | FORT HAYS | 7126 ft. | | | | | CODELL | 7147 ft. | | | | | GREENHORN | 7198 ft. | | | | | J SAND | 7615 ft. | | N | N |
Formation JSND Formation Classification: GW Status: AB - 9/26/2019 Interval Top: 7616 ft. Interval Bottom: 7658 ft.| Completed Information for Formation J SAND | | 1st Production Date: | 2/9/2007 | Choke Size: | | | Formation Name: | J SAND | Commingled: | Yes | | Production Method: | | | Open Hole Completion: | No |
| | Formation Treatment | | Treatment Date: | 1/5/2007 | | Treatment Summary: | 162,186 GALS FLUID & 4,000 LBS 12/20 SAND & 116,660 LBS 30/50 SAND J-DEEPENING , PERF, FRAC |
| | Tubing Size: | | Tubing Setting Depth: | | | Tubing Packer Depth: | | Tubing Multiple Packer: | | | Open Hole Top: | | Open Hole Bottom: | | | No Initial Test Data was found for formation JSND. |
| | Perforation Data: | | Interval Top: | 7616 ft. | # Of Holes: | 126 | | Interval Bottom: | 7658 ft. | Hole Size: | 0.21 in. |
|
Formation JNBCD Formation Classification: GW Status: CM - 3/9/2007 Interval Top: 6854 ft. Interval Bottom: 7658 ft.| Completed Information for Formation J-NIOBRARA-CODELL | | 1st Production Date: | N/A | Choke Size: | 0.344 in. | | Formation Name: | J-NIOBRARA-CODELL | Commingled: | No | | Production Method: | | | Open Hole Completion: | No |
| | Formation Treatment | | Treatment Date: | 3/9/2007 | | Treatment Summary: | NB PERFS 04/24/1999 6854-6956 CODL PERFS 04/24/1999 7154-7159 |
| | Tubing Size: | 2.375 in. | Tubing Setting Depth: | 7575 ft. | | Tubing Packer Depth: | | Tubing Multiple Packer: | | | Open Hole Top: | | Open Hole Bottom: | | | Initial Test Data: | | Test Date: | 3/9/2007 | Test Method: | FLOWING | | Hours Tested: | 24 | Gas Type: | WET | | Gas Disposal: | SOLD | |
| Test Type | Measure |
|---|
| BBLS_H2O | 0 | | BBLS_OIL | 4 | | CALC_BBLS_OIL | 4 | | CALC_GOR | 19500 | | CALC_MCF_GAS | 78 | | CASING_PRESS | 1320 | | GRAVITY_OIL | 53 | | MCF_GAS | 78 | | TUBING_PRESS | 1150 |
| | Perforation Data: | | Interval Top: | 6854 ft. | # Of Holes: | | | Interval Bottom: | 7658 ft. | Hole Size: | |
|
Formation NB-CD Formation Classification: GW Status: AB - 9/26/2019| Completed Information for Formation NIOBRARA-CODELL | | 1st Production Date: | 5/17/1996 | Choke Size: | 0.375 in. | | Formation Name: | NIOBRARA-CODELL | Commingled: | No | | Production Method: | PLUNGER | | Open Hole Completion: | No |
| | Formation Treatment | | Treatment Date: | 12/9/2006 | | Treatment Summary: | |
| | Tubing Size: | 2.375 in. | Tubing Setting Depth: | 7347 ft. | | Tubing Packer Depth: | | Tubing Multiple Packer: | | | Open Hole Top: | | Open Hole Bottom: | | | Initial Test Data: | | Test Date: | 11/10/2002 | Test Method: | PLUNGER | | Hours Tested: | 24 | Gas Type: | SHALE | | Gas Disposal: | SOLD | |
| Test Type | Measure |
|---|
| BBLS_OIL | 23 | | CALC_BBLS_OIL | 23 | | CALC_GOR | 2391 | | CALC_MCF_GAS | 55 | | CASING_PRESS | 575 | | GRAVITY_OIL | 60 | | MCF_GAS | 55 | | TUBING_PRESS | 525 |
| | Perforation Data: | | Interval Top: | | # Of Holes: | | | Interval Bottom: | | Hole Size: | |
|
|
|
|
|
|
|
| Reported Plugged | Y | 09/26/2019 |
| Out Of Service Repurposed | N | |
| Out Of Service | N | |
| Inactive Exception | N | |
| Noticed Inactive | N | |
| Defined Inactive | N | |
| Low Producing | N | |
| Total Oil Produced (Barrels) | 0 |
| Total Gas Produced (MCF) | 0 |
| GOR | |
| GOR Determination | |
| Average BOE per Day | 0.000 |
| Average MCFE per Day | 0.000 |
| Federal Financial Assurance | i | |
|
|
