COGIS - WELL SCOUT CARD

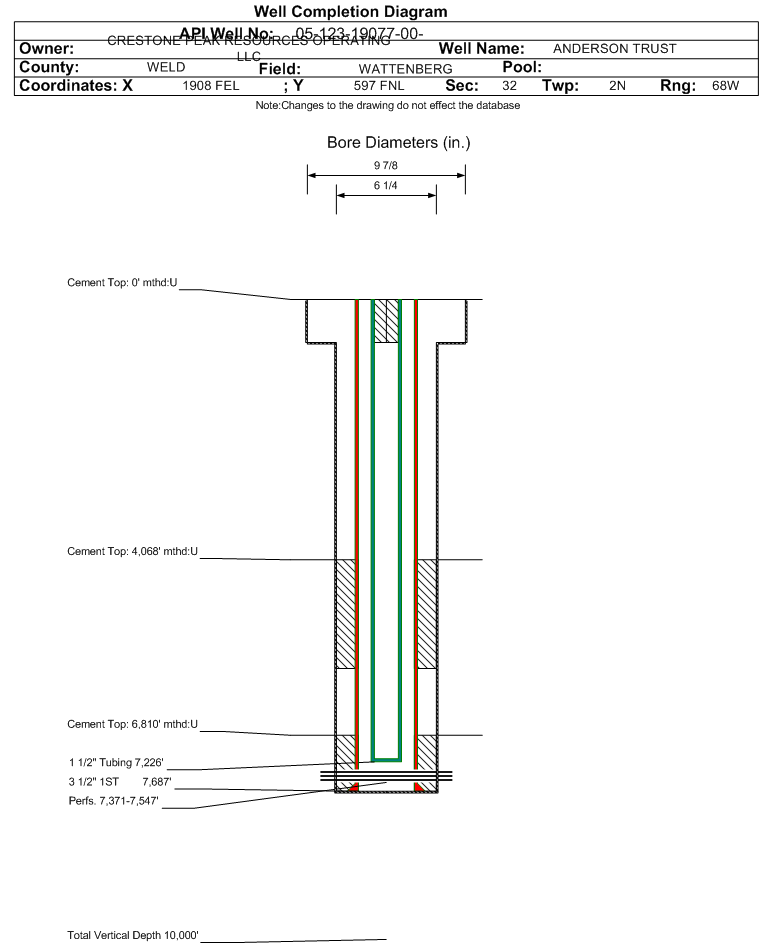

Click image to view related facilities. Related  Click image to view inspection information. InspClick image to view MIT information. MITClick image to access interactive map at well/facility location. GISClick image to view imaged documents for this well/facility. DocClick image to view imaged documents for this well/facility. COAClick image to view wellbore completion diagram. WellboreClick image to search for orders within this facility's section. OrdersClick image to view bradenhead scoutcard data. Bradenhead
 Surface Location
 API# 05-123-19077		Well Classification: GW Status: PA - 1/15/2019
Well Name/No:ANDERSON TRUST #32-2
(Click Well Name for Production Data)		Click Here for Transporter Gatherer Info
Operator:CRESTONE PEAK RESOURCES OPERATING LLC - 10633
(Click Operator Name for Company Detail Report)		Federal Or State Lease #:
Facility Status:PAStatus Date1/15/2019
FacilityID:251274LocationID:336429
County:WELD #123Location:NWNE 32 2N68W 6
Field:WATTENBERG - #90750Elevation:4941 ft.
Basin:DENVER (DJ) BASIN
Planned Location:597FNL  1908 FELLat/Long: 40.100677 / -105.024537Lat/Long Source: Calculated From Footages
As Drilled Location:Footages Not AvailableLat/Long: 40.100778 / -105.024533Lat/Long Source: Field Measured
 Wellbore And Formation Details -- select either a wellbore Or formation to expand.


Wellbore #00             Wellbore Classification: GW             Status: PA - 1/15/2019             Measured TD: 7690 ft.

 Wellbore Data for Original WellboreWellbore Classification: GW        PA - 1/15/2019
Wellbore Permit
Permit #:19960104 Expiration Date:8/16/1996
Proposed Depth/Form:7670 ft.
Surface Mineral Owner Same:Yes
Mineral Owner:FEESurface Owner:FEE
Unit: Unit Number:
Formation And Spacing:Code: NB-CD , Formation: NIOBRARA-CODELL , Order: 407 , Unit Acreage: 320, Drill Unit: N2
Wellbore Completed
Completion Date:3/18/1996
Spud Date:3/7/1996Spud Date Is:ACTUAL
Measured TD:7690 ft.Measured PB depth:7636 ft.
True Vertical TD:True Vertical PB depth:
Log Types:DIL-GR, FDC-GR & CBL
Casing:String Type: SURF, Hole Size: 9.875 in., Size: , Top: 0 ft., Depth: 673 ft., Weight: 17 , Citings Type: ACTUAL
Cement:Sacks: 260, Top: 0 ft., Bottom: 673 ft., Determination Method: VISU
Casing:String Type: 1ST, Hole Size: 6.25 in., Size: 3.5 in., Top: 0 ft., Depth: 7687 ft., Weight: 7.7 , Citings Type: ACTUAL
Cement:Sacks: 290, Top: 6810 ft., Bottom: 7687 ft., Determination Method: CBL
Casing:String Type: S.C. 1.1, Hole Size: , Size: , Top: , Depth: 5768 ft., Weight: , Citings Type: ACTUAL
Cement:Sacks: 175, Top: 4068 ft., Bottom: 5768 ft., Determination Method: CBL
FormationInterval TopLog BottomCoredDSTs
FOX HILLS BASE384 ft.NN
SUSSEX4220 ft.NN
SHANNON4854 ft.NN
NIOBRARA7242 ft.NN
FORT HAYS7515 ft.NN
CODELL7535 ft.NN
CARLILE7558 ft.NN
GREENHORN7604 ft.NN

Formation NB-CD                   Formation Classification:  GW                   Status:  AB - 1/15/2019                 Interval Top: 7371 ft.    Interval Bottom: 7547 ft.

 Completed Information for Formation NIOBRARA-CODELL
1st Production Date:3/18/1996Choke Size:0.250 in.
Formation Name:NIOBRARA-CODELLCommingled:
Production Method:FLOWING
Open Hole Completion:
Formation Treatment
Treatment Date:3/18/1996
Treatment Summary:ACIDIZED W/ 1,000 GALS HCL, FRAC W/ 280,000# 20-40 SAND IN 62,832 GALS FLUID
Tubing Size:1.5 in.Tubing Setting Depth:7226 ft.
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:3/19/1996Test Method:FLOWING
Hours Tested:24Gas Type:SHALE
Gas Disposal:SOLD
Test TypeMeasure
BBLS_H2O 37
BBLS_OIL 0
CALC_BBLS_H2O 37
CALC_BBLS_OIL 0
CALC_MCF_GAS 110
MCF_GAS 110
Perforation Data:
Interval Top:7371 ft.# Of Holes:8
Interval Bottom:7547 ft.Hole Size:0.24 in.
Primary Well Designation:
None      i
            All DesignationsDate
Reported PluggedY01/15/2019
Out Of Service RepurposedN
Out Of ServiceN
Inactive ExceptionN
Noticed InactiveN
Defined InactiveN
Low ProducingN

BOE/MCFE/GOR Calculations
Production for Previous 12 Months
October 2024 - September 2025i
Total Oil Produced (Barrels)0
Total Gas Produced (MCF)0
GOR
GOR Determination
Average BOE per Day0.000
Average MCFE per Day0.000

 Federal Financial Assurance  i

 Tribal Well  i No
