COGIS - WELL SCOUT CARD

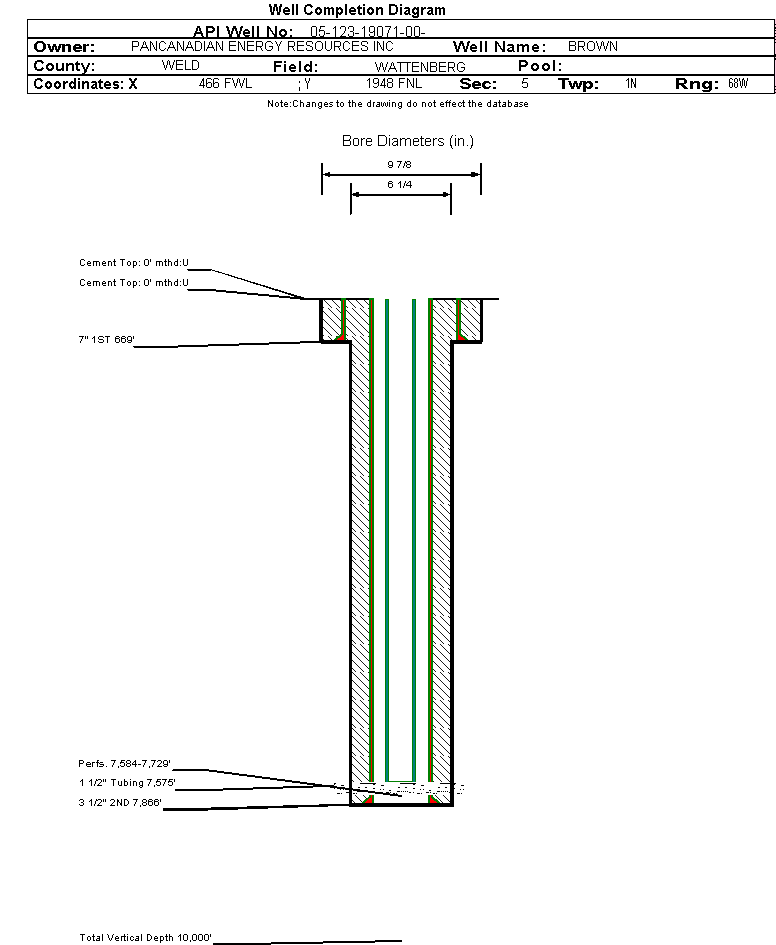

Click image to view related facilities. Related  Click image to view inspection information. InspClick image to view MIT information. MITGIS Map GISOld GIS Map Old GISClick image to view imaged documents for this well/facility. DocClick image to view imaged documents for this well/facility. COAClick image to view wellbore completion diagram. WellboreClick image to search for orders within this facility's section. OrdersClick image to view bradenhead scoutcard data. Bradenhead
 Surface Location
 API# 05-123-19071		Well Classification: GW Status: PA - 8/26/2025
Well Name/No:BROWN #5-5
(Click Well Name for Production Data)		Click Here for Transporter Gatherer Info
Operator:CRESTONE PEAK RESOURCES OPERATING LLC - 10633
(Click Operator Name for Company Detail Report)		Federal Or State Lease #:
Facility Status:PAStatus Date8/26/2025
FacilityID:251268LocationID:330409
County:WELD #123Location:SWNW 5 1N68W 6
Field:WATTENBERG - #90750Elevation:5019 ft.
Basin:DENVER (DJ) BASIN
Planned Location:1948FNL  466 FWLLat/Long: 40.082367 / -105.035417Lat/Long Source: Calculated From Footages
As Drilled Location:Footages Not AvailableLat/Long: 40.082414 / -105.035432Lat/Long Source: Field Measured
 Wellbore And Formation Details -- select either a wellbore Or formation to expand.


Wellbore #00             Wellbore Classification: GW             Status: AB - 8/26/2025             Measured TD: 7870 ft.    Vertical TD: 0 ft.

 Wellbore Data for Original WellboreWellbore Classification: GW        AB - 8/26/2025
Wellbore Permit
Permit #:19960085 Expiration Date:7/30/1996
Proposed Depth/Form:
Surface Mineral Owner Same:No
Mineral Owner:FEESurface Owner:Not available
Unit: Unit Number:
Formation And Spacing:Code: NB-CD , Formation: NIOBRARA-CODELL , Order: 407 , Unit Acreage: 320, Drill Unit: N2
Wellbore Completed
Completion Date:3/9/1996
Spud Date:2/25/1996Spud Date Is:ACTUAL
Measured TD:7870 ft.Measured PB depth:7800 ft.
True Vertical TD:0 ft.True Vertical PB depth:
Top PZ Location:Sec: Twp: Footage: 0 FL  0 FL
Log Types:FDC, DIL, CBL
Casing:String Type: SURF, Hole Size: 9.875 in., Size: , Top: 0 ft., Depth: 669 ft., Weight: 17 , Citings Type: ACTUAL
Cement:Sacks: 200, Top: 0 ft., Bottom: 669 ft., Determination Method: VISU
Casing:String Type: 1ST, Hole Size: 6.25 in., Size: 3.5 in., Top: 0 ft., Depth: 7866 ft., Weight: 7.7 , Citings Type: ACTUAL
Cement:Sacks: 120, Top: 6910 ft., Bottom: 7866 ft., Determination Method: CBL
Casing:String Type: S.C. 1.1, Hole Size: , Size: , Top: , Depth: 5477 ft., Weight: , Citings Type: ACTUAL
Cement:Sacks: 270, Top: 4300 ft., Bottom: 5477 ft., Determination Method: CBL
FormationInterval TopLog BottomCoredDSTs
FOX HILLS BASE450 ft.
SUSSEX4334 ft.
SHANNON5000 ft.
NIOBRARA7436 ft.
FORT HAYS7695 ft.
CODELL7714 ft.
CARLILE7736 ft.
GREENHORN7783 ft.

Formation CODL                     Formation Classification:  GW                     Status:  CM - 5/21/2025                 Interval Top: 7718 ft.    Interval Bottom: 7729 ft.

 Completed Information for Formation CODELL
1st Production Date:N/AChoke Size:
Formation Name:CODELLCommingled:Yes
Production Method:
Open Hole Completion:No
Formation Treatment
Treatment Date:3/9/1996
Treatment Summary:Codell Perfs: 7718', 7719', 7720', 7721', 7726', 7729'
Tubing Size:Tubing Setting Depth:
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
No Initial Test Data was found for formation CODL.
Perforation Data:
Interval Top:7718 ft.# Of Holes:6
Interval Bottom:7729 ft.Hole Size:0.31 in.

Formation NB-CD                   Formation Classification:  GW                   Status:  AB - 8/26/2025                 Interval Top: 7584 ft.    Interval Bottom: 7729 ft.

 Completed Information for Formation NIOBRARA-CODELL
1st Production Date:3/9/1996Choke Size:
Formation Name:NIOBRARA-CODELLCommingled:No
Production Method:
Open Hole Completion:No
Formation Treatment
Treatment Date:3/9/1996
Treatment Summary:ACIDIZE W/ 1,000 GAL HCL, FRAC W/ 325,000# 20/40 SAND IN 68,544 GAL FLUID
Tubing Size:Tubing Setting Depth:
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:N/ATest Method:
Hours Tested:Gas Type:
Gas Disposal:
Test TypeMeasure
BBLS_H2O 9
BBLS_OIL 12
CALC_GOR 5583
CALC_MCF_GAS 1450
MCF_GAS 67
TUBING_PRESS 1050
Perforation Data:
Interval Top:7584 ft.# Of Holes:8
Interval Bottom:7729 ft.Hole Size:0.31 in.

Formation NBRR                     Formation Classification:  GW                     Status:  CM - 5/21/2025                 Interval Top: 7584 ft.    Interval Bottom: 7594 ft.

 Completed Information for Formation NIOBRARA
1st Production Date:N/AChoke Size:
Formation Name:NIOBRARACommingled:Yes
Production Method:
Open Hole Completion:No
Formation Treatment
Treatment Date:3/9/1996
Treatment Summary:Niobrara Perfs: 7584' & 7594'
Tubing Size:Tubing Setting Depth:
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
No Initial Test Data was found for formation NBRR.
Perforation Data:
Interval Top:7584 ft.# Of Holes:2
Interval Bottom:7594 ft.Hole Size:0.31 in.
Primary Well Designation:
None      i
            All DesignationsDate
Reported PluggedY08/26/2025
Out Of Service RepurposedN
Out Of ServiceYPlugging Due Date
12/31/2030
Inactive ExceptionN
Noticed InactiveN
Defined InactiveN
Low ProducingN

BOE/MCFE/GOR Calculations
Production for Previous 12 Months
December 2024 - November 2025i
Total Oil Produced (Barrels)0
Total Gas Produced (MCF)0
GOR
GOR DeterminationMCFE
Average BOE per Day0.000
Average MCFE per Day0.000

 Federal Financial Assurance  i

 Tribal Well  i No
