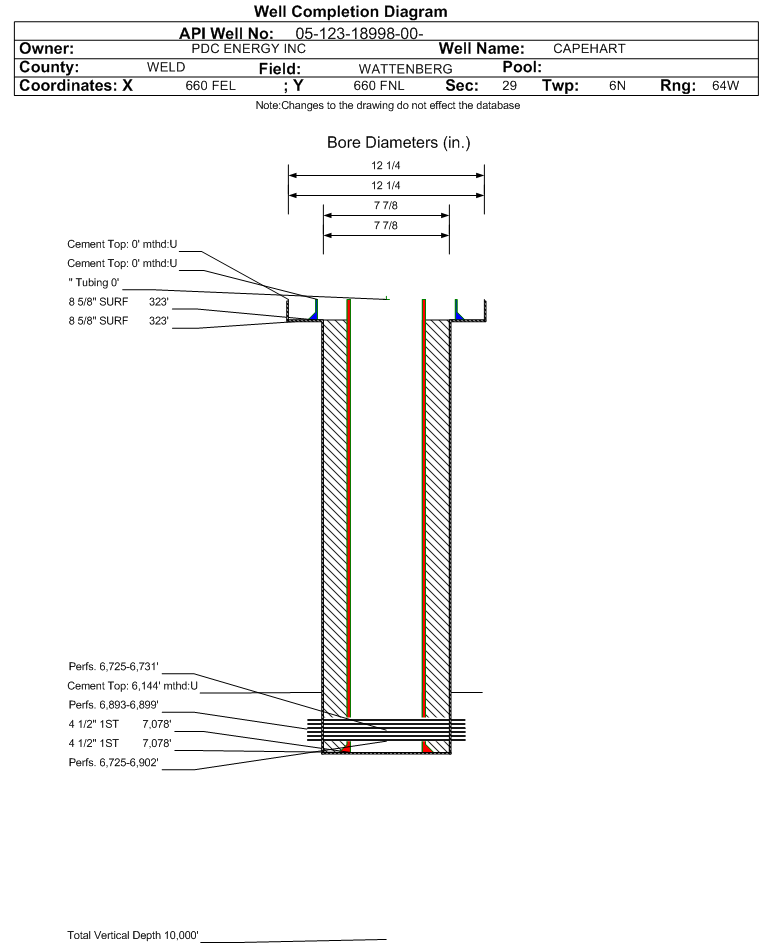

Wellbore #00 Wellbore Classification: OW Status: PA - 2/9/2022 Measured TD: 7078 ft.| Wellbore Data for Original Wellbore | Wellbore Classification: OW PA - 2/9/2022 | | Wellbore Permit | DRIFTED | | Permit #: | 950753 | Expiration Date: | 3/28/1996 | | Proposed Depth/Form: | | | Surface Mineral Owner Same: | Not available | | Mineral Owner: | FEE | Surface Owner: | Not available | | Unit: | | Unit Number: | | | Formation And Spacing: | Code: CODL , Formation: CODELL , Order: 0 , Unit Acreage: 80, Drill Unit: E2NE |
| | |
| Wellbore Completed | | Completion Date: | N/A | | Spud Date: | 12/3/1995 | Spud Date Is: | ACTUAL | | Measured TD: | 7078 ft. | Measured PB depth: | 7048 ft. | | True Vertical TD: | | True Vertical PB depth: | | | Log Types: | CBL | | Casing: | String Type: SURF, Hole Size: 12.25 in., Size: 8.625 in., Top: 0 ft., Depth: 323 ft., Weight: 24 , Citings Type: ACTUAL | | Cement: | Sacks: 200, Top: 0 ft., Bottom: 323 ft., Determination Method: VISU | | Casing: | String Type: SURF, Hole Size: 12.25 in., Size: 8.625 in., Top: 0 ft., Depth: 323 ft., Weight: , Citings Type: HISTORICAL | | Cement: | Sacks: 200, Top: 0 ft., Bottom: , Determination Method: | | Casing: | String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: 0 ft., Depth: 7078 ft., Weight: 15.1 , Citings Type: ACTUAL | | Cement: | Sacks: 160, Top: 6144 ft., Bottom: 7078 ft., Determination Method: CBL | | Casing: | String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: 0 ft., Depth: 7078 ft., Weight: , Citings Type: HISTORICAL | | Cement: | Sacks: 0, Top: 0 ft., Bottom: , Determination Method: | | Casing: | String Type: S.C. 1.1, Hole Size: , Size: , Top: , Depth: 3930 ft., Weight: , Citings Type: ACTUAL | | Cement: | Sacks: 195, Top: 3300 ft., Bottom: 3930 ft., Determination Method: CBL | | Casing: | String Type: S.C. 1.2, Hole Size: , Size: , Top: , Depth: 920 ft., Weight: , Citings Type: ACTUAL | | Cement: | Sacks: 273, Top: 0 ft., Bottom: 920 ft., Determination Method: CBL | | Additional Cement: | String Type: 1ST , Top: 0 ft., Depth: 900 ft., Bottom: 970 ft., Sacks: 273, Method: 1 INCH | | Formation | Interval Top | Log Bottom | Cored | DSTs | | PARKMAN | 3670 ft. | | | | | NIOBRARA | 6566 ft. | | | | | FORT HAYS | 6841 ft. | | | | | CODELL | 6890 ft. | | | |
Formation CODL Formation Classification: OW Status: CM - 7/3/2017 Interval Top: 6893 ft. Interval Bottom: 6902 ft.| Completed Information for Formation CODELL | | 1st Production Date: | 12/22/1995 | Choke Size: | | | Formation Name: | CODELL | Commingled: | Yes | | Production Method: | | | Open Hole Completion: | No |
| | Formation Treatment | | Treatment Type: | | | Treatment Date: | 8/10/2017 | Treatment End Date: | N/A | | Treatment Summary: | 6/28/2004 Re-Perforated the Codell from 6893-6899’ with 23 gram charge, .42 hole and 20.45 penetration. Each was 1 spf. | | Total fluid used in treatment (bbls): | | Max pressure during treatment (psi): | | | Total gas used in treatment (mcf): | | Fluid density (lbs/gal): | | | Type Of gas: | | Number Of staged intervals: | | | Total acid used in treatment (bbls): | | Min frac gradient (psi/ft): | | | Recycled water used in treatment (bbls): | | Total flowback volume recovered (bbls): | | | Fresh water used in treatment (bbls): | | Disposition method For flowback: | | | Total proppant used (lbs): | | Green completions techniques utilized: | -- | | Reason green techniques Not utilized: |
| | Tubing Size: | | Tubing Setting Depth: | | | Tubing Packer Depth: | | Tubing Multiple Packer: | | | Open Hole Top: | | Open Hole Bottom: | | | No Initial Test Data was found for formation CODL. |
| | Perforation Data: | | Interval Top: | 6893 ft. | # Of Holes: | 27 | | Interval Bottom: | 6902 ft. | Hole Size: | |
|
Formation NB-CD Formation Classification: OW Status: AB - 2/9/2022 Interval Top: 6725 ft. Interval Bottom: 6902 ft.| Completed Information for Formation NIOBRARA-CODELL | | 1st Production Date: | 10/1/2004 | Choke Size: | | | Formation Name: | NIOBRARA-CODELL | Commingled: | | | Production Method: | | | Open Hole Completion: | |
| | Formation Treatment | | Treatment Date: | 9/29/2004 | | Treatment Summary: | Frac'd Niobrara-Codell with 334,080# 20/40 white sand and 16,000# resin coated sand and 3728 bbls of fluid. |
| | Tubing Size: | | Tubing Setting Depth: | | | Tubing Packer Depth: | | Tubing Multiple Packer: | | | Open Hole Top: | | Open Hole Bottom: | | | No Initial Test Data was found for formation NB-CD. |
| | Perforation Data: | | Interval Top: | 6725 ft. | # Of Holes: | 34 | | Interval Bottom: | 6902 ft. | Hole Size: | |
|
Formation NBRR Formation Classification: OW Status: CM - 8/10/2017 Interval Top: 6725 ft. Interval Bottom: 6731 ft.| Completed Information for Formation NIOBRARA | | 1st Production Date: | 10/1/2004 | Choke Size: | | | Formation Name: | NIOBRARA | Commingled: | Yes | | Production Method: | | | Open Hole Completion: | No |
| | Tubing Size: | | Tubing Setting Depth: | | | Tubing Packer Depth: | | Tubing Multiple Packer: | | | Open Hole Top: | | Open Hole Bottom: | | | No Initial Test Data was found for formation NBRR. |
| | Perforation Data: | | Interval Top: | 6725 ft. | # Of Holes: | 7 | | Interval Bottom: | 6731 ft. | Hole Size: | 0.42 in. |
|
|
|
|
|
|
|
| Reported Plugged | Y | 02/09/2022 |
| Out Of Service Repurposed | N | |
| Out Of Service | N | |
| Inactive Exception | N | |
| Noticed Inactive | N | |
| Defined Inactive | N | |
| Low Producing | N | |
| Total Oil Produced (Barrels) | 0 |
| Total Gas Produced (MCF) | 0 |
| GOR | |
| GOR Determination | |
| Average BOE per Day | 0.000 |
| Average MCFE per Day | 0.000 |
| Federal Financial Assurance | i | |
|
|
