COGIS - WELL SCOUT CARD

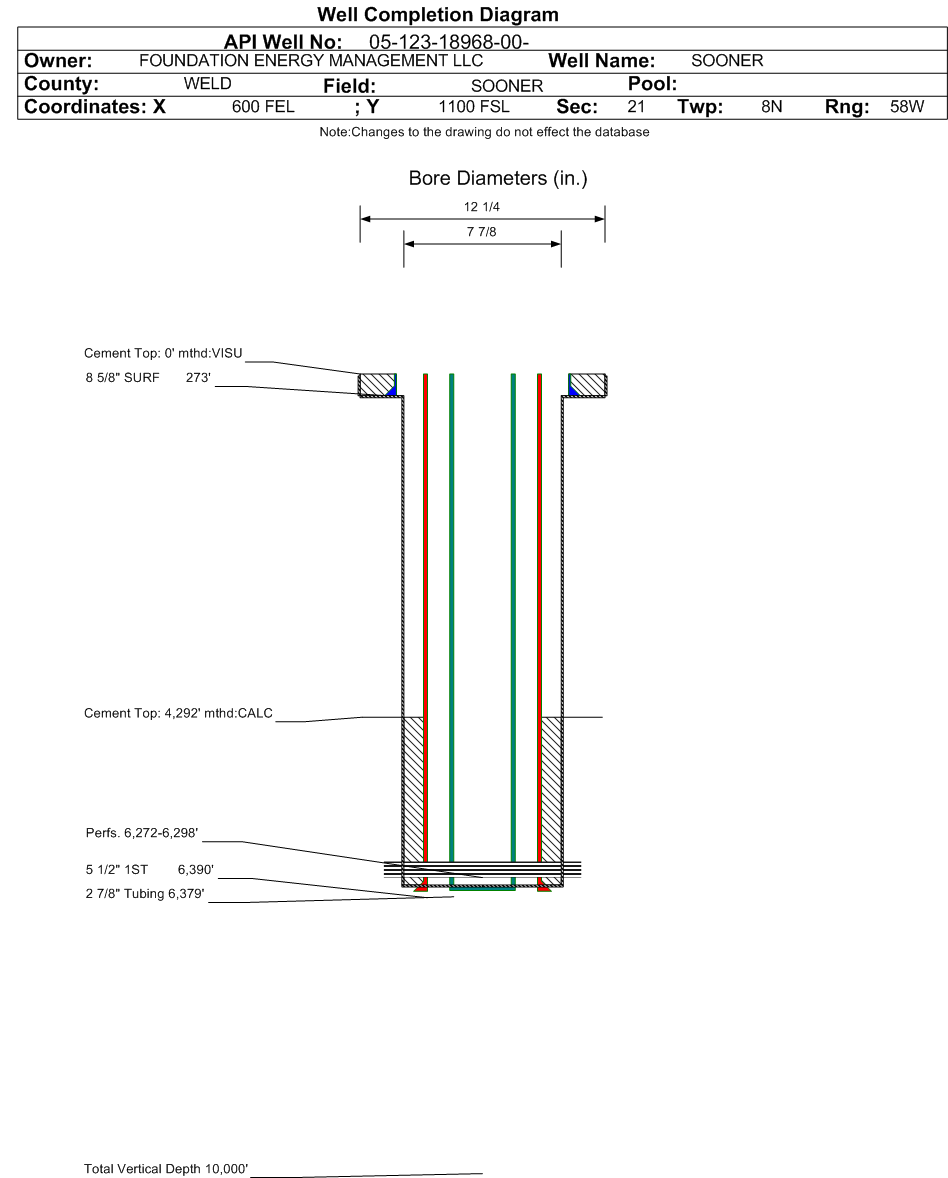

Click image to view related facilities. Related  Click image to view inspection information. InspClick image to view MIT information. MITGIS Map GISClick image to view imaged documents for this well/facility. DocClick image to view imaged documents for this well/facility. COAClick image to view wellbore completion diagram. WellboreClick image to search for orders within this facility's section. OrdersClick image to view bradenhead scoutcard data. Bradenhead
 Surface Location
 API# 05-123-18968		Well Classification: OW Status: PA - 5/19/2020
Well Name/No:SOONER #21-16-9
(Click Well Name for Production Data)		Click Here for Transporter Gatherer Info
Operator:FOUNDATION ENERGY MANAGEMENT LLC - 10112
(Click Operator Name for Company Detail Report)		Federal Or State Lease #:
Facility Status:PAStatus Date5/19/2020
FacilityID:251165LocationID:330359
County:WELD #123Location:SESE 21 8N58W 6
Field:SOONER - #77700Elevation:4716 ft.
Basin:DENVER (DJ) BASIN
Planned Location:1100FSL  600 FELLat/Long: 40.643106 / -103.860845Lat/Long Source: Calculated From Footages
As Drilled Location:Footages Not AvailableLat/Long: 40.642990 / -103.860697Lat/Long Source: Field Measured
 Wellbore And Formation Details -- select either a wellbore Or formation to expand.


Wellbore #00             Wellbore Classification: OW             Status: PA - 5/19/2020             Measured TD: 6400 ft.    Vertical TD: 0 ft.

 Wellbore Data for Original WellboreWellbore Classification: OW        PA - 5/19/2020
Wellbore Permit
Permit #:19950517 Expiration Date:12/12/1995
Proposed Depth/Form:6400 ft.
Surface Mineral Owner Same:Yes
Mineral Owner:FEESurface Owner:FEE
Unit:SOONER Unit Number:
Formation And Spacing:Code: DSND , Formation: D SAND , Order: 230 , Unit Acreage: 40, Drill Unit: SESE
Wellbore Completed
Completion Date:8/11/1995
Spud Date:7/13/1995Spud Date Is:ACTUAL
Measured TD:6400 ft.Measured PB depth:6383 ft.
True Vertical TD:0 ft.True Vertical PB depth:
Log Types:DIL, CNDL, CBL/GR
Casing:String Type: SURF, Hole Size: 12.25 in., Size: 8.625 in., Top: 0 ft., Depth: 273 ft., Weight: 24 , Citings Type: ACTUAL
Cement:Sacks: 200, Top: 0 ft., Bottom: 273 ft., Determination Method: VISU
Casing:String Type: 1ST, Hole Size: 7.875 in., Size: 5.5 in., Top: 0 ft., Depth: 6390 ft., Weight: 15.5 , Citings Type: ACTUAL
Cement:Sacks: 300, Top: 4292 ft., Bottom: 6390 ft., Determination Method: CBL
FormationInterval TopLog BottomCoredDSTs
NIOBRARA5584 ft.
FORT HAYS5770 ft.
BENTONITE6176 ft.
D SAND6282 ft.
J SAND6370 ft.

Formation DSND                     Formation Classification:  GW                     Status:  AB - 5/19/2020                 Interval Top: 6272 ft.    Interval Bottom: 6298 ft.

 Completed Information for Formation D SAND
1st Production Date:9/12/1995Choke Size:
Formation Name:D SANDCommingled:
Production Method:CASING SWAB
Open Hole Completion:
Formation Treatment
Treatment Date:8/11/1995
Treatment Summary:FRAC'D W/25,000 GAL X-LINK FLUID, 39,000# 20/40, 10,000# 12/20 INTERPROP
Tubing Size:2.875 in.Tubing Setting Depth:6379 ft.
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:8/11/1995Test Method:CASING SWAB
Hours Tested:10Gas Type:
Gas Disposal:VENTED
Test TypeMeasure
BBLS_H2O 178
BBLS_OIL 20
CALC_BBLS_H2O 427
CALC_BBLS_OIL 48
GRAVITY_OIL 39
Perforation Data:
Interval Top:6272 ft.# Of Holes:104
Interval Bottom:6298 ft.Hole Size:0.375 in.
Primary Well Designation:
None      i
            All DesignationsDate
Reported PluggedY05/19/2020
Out Of Service RepurposedN
Out Of ServiceN
Inactive ExceptionN
Noticed InactiveN
Defined InactiveN
Low ProducingN

BOE/MCFE/GOR Calculations
Production for Previous 12 Months
December 2024 - November 2025i
Total Oil Produced (Barrels)0
Total Gas Produced (MCF)0
GOR
GOR Determination
Average BOE per Day0.000
Average MCFE per Day0.000

 Federal Financial Assurance  i

 Tribal Well  i No
