COGIS - WELL SCOUT CARD

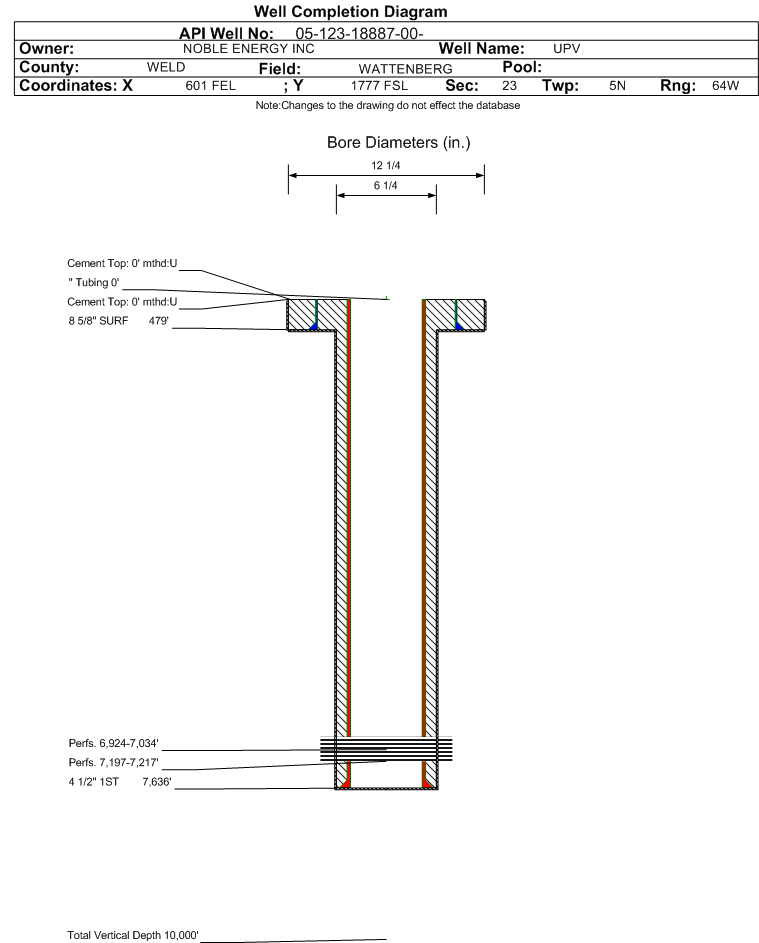

Click image to view related facilities. Related  Click image to view inspection information. InspClick image to view MIT information. MITGIS Map GISOld GIS Map Old GISClick image to view imaged documents for this well/facility. DocClick image to view imaged documents for this well/facility. COAClick image to view wellbore completion diagram. WellboreClick image to search for orders within this facility's section. OrdersClick image to view bradenhead scoutcard data. Bradenhead
 Surface Location
 API# 05-123-18887		Well Classification: GW Status: PA - 7/23/2024
Well Name/No:UPV #23-8H4
(Click Well Name for Production Data)		Click Here for Transporter Gatherer Info
Operator:NOBLE ENERGY INC - 100322
(Click Operator Name for Company Detail Report)		Federal Or State Lease #:61966
Facility Status:PAStatus Date7/23/2024
FacilityID:251084LocationID:336587
County:WELD #123Location:NESE 23 5N64W 6
Field:WATTENBERG - #90750Elevation:4592 ft.
Basin:DENVER (DJ) BASIN
Planned Location:1777FSL  601 FELLat/Long: 40.382316 / -104.509913Lat/Long Source: Calculated From Footages
As Drilled Location:Footages Not AvailableLat/Long: 40.382410 / -104.509880Lat/Long Source: Field Measured

FracFocus
Disclosure: Sidetrack #00
Start Date: 7/22/2011
End Date: 7/22/2011
Reported: 8/24/2011
Prior to rule 205A.b.(2)(A)
Days to report: 33
 Wellbore And Formation Details -- select either a wellbore Or formation to expand.


Wellbore #00             Wellbore Classification: GW             Status: PA - 7/23/2024             Measured TD: 7646 ft.    Vertical TD: 0 ft.

 Wellbore Data for Original WellboreWellbore Classification: GW        PA - 7/23/2024
Wellbore PermitDIRECTIONAL
Permit #:950104 Expiration Date:7/31/1995
Proposed Depth/Form:
Surface Mineral Owner Same:Not available
Mineral Owner:FEESurface Owner:Not available
Unit: Unit Number:
Formation And Spacing:Code: NB-CD , Formation: NIOBRARA-CODELL , Order: 0 , Unit Acreage: 320, Drill Unit: N2
Wellbore Completed
Completion Date:5/7/1995
Measured TD:7646 ft.Measured PB depth:7600 ft.
True Vertical TD:0 ft.True Vertical PB depth:
Casing:String Type: SURF, Hole Size: 12.25 in., Size: 8.625 in., Top: 0 ft., Depth: 479 ft., Weight: 24 , Citings Type: ACTUAL
Cement:Sacks: 450, Top: 0 ft., Bottom: 479 ft., Determination Method: VISU
Casing:String Type: 1ST, Hole Size: 6.25 in., Size: 4.5 in., Top: 0 ft., Depth: 7636 ft., Weight: 11.6 , Citings Type: ACTUAL
Cement:Sacks: 550, Top: 3490 ft., Bottom: 7636 ft., Determination Method: CBL
FormationInterval TopLog BottomCoredDSTs
PARKMAN3469 ft.
SUSSEX4279 ft.
NIOBRARA6896 ft.
FORT HAYS7174 ft.
GREENHORN7253 ft.

Formation CODL                     Formation Classification:  GW                     Status:  CM - 8/31/2022                 Interval Top: 7197 ft.    Interval Bottom: 7217 ft.

 Completed Information for Formation CODELL
1st Production Date:5/8/1995Choke Size:
Formation Name:CODELLCommingled:Yes
Production Method:
Open Hole Completion:No
Formation Treatment
Treatment Date:7/22/2011
Treatment Summary:Codell under sand plug.
Formation Treatment
Treatment Date:9/13/2006
Treatment Summary:JOB ABANDONDED DURING THE 2-4 LB SAND AFTER REACHING OUR BACKSIDE 3,000 PSI BOP LIMIT. TOTAL SAND PUMPED 89,006 LBS, 36% OF DESIGN, AND 85,470 GALS OF GEL PUMPED. COMMINGLE NBRR AND CODL.
Tubing Size:Tubing Setting Depth:
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:N/ATest Method:
Hours Tested:Gas Type:
Gas Disposal:
Test TypeMeasure
BBLS_H2O 0
BBLS_OIL 1
CALC_BBLS_H2O 19
CALC_BBLS_OIL 211
CALC_GOR 16000
CALC_MCF_GAS 643
CASING_PRESS 625
MCF_GAS 16
TUBING_PRESS 480
Perforation Data:
Interval Top:7197 ft.# Of Holes:160
Interval Bottom:7217 ft.Hole Size:0.421875 in.

Formation NB-CD                   Formation Classification:  GW                   Status:  AB - 7/23/2024                 Interval Top: 6924 ft.    Interval Bottom: 7217 ft.

 Completed Information for Formation NIOBRARA-CODELL
1st Production Date:7/26/2011Choke Size:
Formation Name:NIOBRARA-CODELLCommingled:No
Production Method:
Open Hole Completion:No
Tubing Size:Tubing Setting Depth:
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
No Initial Test Data was found for formation NB-CD.
Perforation Data:
Interval Top:6924 ft.# Of Holes:348
Interval Bottom:7217 ft.Hole Size:

Formation NBRR                     Formation Classification:  GW                     Status:  CM - 8/31/2022                 Interval Top: 6924 ft.    Interval Bottom: 7095 ft.

 Completed Information for Formation NIOBRARA
1st Production Date:7/26/2011Choke Size:
Formation Name:NIOBRARACommingled:Yes
Production Method:
Open Hole Completion:No
Formation Treatment
Treatment Date:7/22/2011
Treatment Summary:Re-Frac Niobrara w/ 148,490 gals of Slick Water, Vistar, and 15% HCI with 240,160#'s of Ottawa sand.
Tubing Size:Tubing Setting Depth:
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:N/ATest Method:
Hours Tested:Gas Type:
Gas Disposal:
Test TypeMeasure
BBLS_OIL 2
BTU_GAS 1260
CALC_BBLS_OIL 2
CALC_GOR 40500
CALC_MCF_GAS 81
CASING_PRESS 200
GRAVITY_OIL 48
MCF_GAS 81
Perforation Data:
Interval Top:6924 ft.# Of Holes:188
Interval Bottom:7095 ft.Hole Size:0.73 in.
Primary Well Designation:
None      i
            All DesignationsDate
Reported PluggedY07/23/2024
Out Of Service RepurposedN
Out Of ServiceYPlugging Due Date
12/31/2028
Inactive ExceptionN
Noticed InactiveN
Defined InactiveN
Low ProducingN

BOE/MCFE/GOR Calculations
Production for Previous 12 Months
January 2025 - December 2025i
Total Oil Produced (Barrels)0
Total Gas Produced (MCF)0
GOR
GOR Determination
Average BOE per Day0.000
Average MCFE per Day0.000

 Federal Financial Assurance  i

 Tribal Well  i No
