COGIS - WELL SCOUT CARD

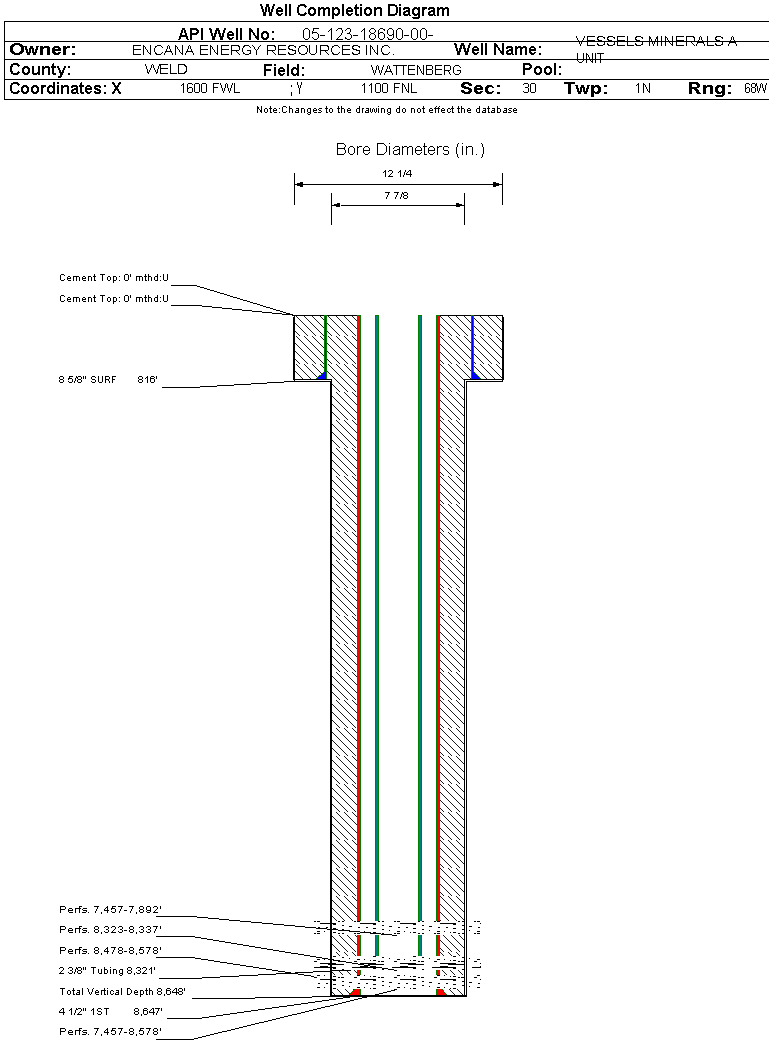

Click image to view related facilities. Related  Click image to view inspection information. InspClick image to view MIT information. MITClick image to access interactive map at well/facility location. GISClick image to view imaged documents for this well/facility. DocClick image to view imaged documents for this well/facility. COAClick image to view wellbore completion diagram. WellboreClick image to search for orders within this facility's section. OrdersClick image to view bradenhead scoutcard data. Bradenhead
 Surface Location
 API# 05-123-18690		Well Classification: GW Status: PR - 5/1/2025
Well Name/No:VESSELS MINERALS A UNIT #2
(Click Well Name for Production Data)		Click Here for Transporter Gatherer Info
Operator:CRESTONE PEAK RESOURCES OPERATING LLC - 10633
(Click Operator Name for Company Detail Report)		Federal Or State Lease #:
Facility Status:PRStatus Date5/1/2025
FacilityID:250887LocationID:335763
Municipality/County:ERIE / WELD #123Location:NENW 30 1N68W 6
Field:WATTENBERG - #90750Elevation:5072 ft.
Planned Location:1100FNL  1600 FWLLat/Long: 40.026217 / -105.049647Lat/Long Source: Calculated From Footages
As Drilled Location:Footages Not AvailableLat/Long: 40.026285 / -105.049665Lat/Long Source: Field Measured
 Wellbore And Formation Details -- select either a wellbore Or formation to expand.


Wellbore #00             Wellbore Classification: GW             Status: PR - 5/1/2025             Measured TD: 8648 ft.    Vertical TD: 0 ft.

 Wellbore Data for Original WellboreWellbore Classification: GW        PR - 5/1/2025
Wellbore Permit
Permit #:19941602 Expiration Date:4/11/1995
Proposed Depth/Form:8750 ft.
Surface Mineral Owner Same:No
Mineral Owner:FEESurface Owner:Not available
Unit: Unit Number:
Formation And Spacing:Code: DKJNC , Formation: DAKOTA-J-NIOBRARA-CODELL , Order: , Unit Acreage: 320, Drill Unit: W2
Wellbore Completed
Completion Date:6/26/1995
Spud Date:2/28/1995Spud Date Is:ACTUAL
Measured TD:8648 ft.Measured PB depth:8630 ft.
True Vertical TD:0 ft.True Vertical PB depth:
Log Types:DIL, FDC, CNL, ML, CBL
Casing:String Type: SURF, Hole Size: 12.25 in., Size: 8.625 in., Top: 0 ft., Depth: 816 ft., Weight: 24 , Citings Type: ACTUAL
Cement:Sacks: 365, Top: 0 ft., Bottom: , Determination Method:
Casing:String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: 0 ft., Depth: 8647 ft., Weight: 11.6 , Citings Type: ACTUAL
Cement:Sacks: 460, Top: 0 ft., Bottom: , Determination Method: CBL
FormationInterval TopLog BottomCoredDSTs
SUSSEX4518 ft.
SHANNON5213 ft.
NIOBRARA7429 ft.
CODELL7876 ft.
J SAND8310 ft.
DAKOTA8476 ft.
LAKOTA8539 ft.
MORRISON8578 ft.

Formation DK-LK                   Formation Classification:  GW                   Status:  AB - 7/26/1995                 Interval Top: 8478 ft.    Interval Bottom: 8578 ft.

 Completed Information for Formation DAKOTA-LAKOTA
1st Production Date:4/3/1995Choke Size:0.375 in.
Formation Name:DAKOTA-LAKOTACommingled:
Production Method:
Open Hole Completion:
Formation Treatment
Treatment Date:6/26/1995
Treatment Summary:FRAC W/ 15,000# 100 M, 250,000# 20/40 M IN 116,466 GAL FLUID
Tubing Size:2.375 in.Tubing Setting Depth:8321 ft.
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:4/18/1995Test Method:FLOWING
Hours Tested:24Gas Type:
Gas Disposal:
Test TypeMeasure
BBLS_H2O 104
CASING_PRESS 750
MCF_GAS 209
TUBING_PRESS 220
Perforation Data:
Interval Top:8478 ft.# Of Holes:236
Interval Bottom:8578 ft.Hole Size:

Formation JSND                     Formation Classification:  GW                     Status:  PR - 5/1/2025                  Interval Top: 8323 ft.    Interval Bottom: 8337 ft.

 Completed Information for Formation J SAND
1st Production Date:5/4/1995Choke Size:0.469 in.
Formation Name:J SANDCommingled:Yes
Production Method:FLOWING
Open Hole Completion:
Formation Treatment
Treatment Date:6/26/1995
Treatment Summary:FRAC W/ 565,000# 20/40 M IN 168,588 GAL FLUID
Tubing Size:2.375 in.Tubing Setting Depth:8321 ft.
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:5/9/1995Test Method:FLOWING
Hours Tested:24Gas Type:
Gas Disposal:SOLD
Test TypeMeasure
BBLS_H2O 36
BBLS_OIL 2
CALC_GOR 206000
CASING_PRESS 410
MCF_GAS 412
TUBING_PRESS 190
Perforation Data:
Interval Top:8323 ft.# Of Holes:56
Interval Bottom:8337 ft.Hole Size:

Formation JNBCD                   Formation Classification:  GW                   Status:  CM - 11/4/2009                 Interval Top: 7457 ft.    Interval Bottom: 8337 ft.

 Completed Information for Formation J-NIOBRARA-CODELL
1st Production Date:N/AChoke Size:
Formation Name:J-NIOBRARA-CODELLCommingled:No
Production Method:
Open Hole Completion:No
Formation Treatment
Treatment Date:6/26/1995
Treatment Summary:JSND-NBRR-CDL COMMINGLE. DRILLED OUT CBPS TO COMMINGLE THE JSND-NBRR-CDL. 10/29/2009
Tubing Size:2.375 in.Tubing Setting Depth:8294 ft.
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:11/4/2009Test Method:FLOWING
Hours Tested:24Gas Type:DRY
Gas Disposal:SOLD
Test TypeMeasure
BBLS_H2O 90
BBLS_OIL 34
BTU_GAS 1072
CALC_BBLS_H2O 90
CALC_BBLS_OIL 34
CALC_GOR 9882
CALC_MCF_GAS 336
CASING_PRESS 779
GRAVITY_OIL 46
MCF_GAS 336
TUBING_PRESS 303
Perforation Data:
Interval Top:7457 ft.# Of Holes:71
Interval Bottom:8337 ft.Hole Size:0.33 in.

Formation NB-CD                   Formation Classification:  GW                   Status:  PR - 5/1/2025                  Interval Top: 7457 ft.    Interval Bottom: 7894 ft.

 Completed Information for Formation NIOBRARA-CODELL
1st Production Date:N/AChoke Size:
Formation Name:NIOBRARA-CODELLCommingled:Yes
Production Method:
Open Hole Completion:No
Formation Treatment
Treatment Date:6/26/1995
Treatment Summary:* REFER TO OEPRATOR COMMENTS FOR DETAILS*
Tubing Size:Tubing Setting Depth:
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:N/ATest Method:
Hours Tested:Gas Type:SHALE
Gas Disposal:
Test TypeMeasure
BBLS_H2O 2
BBLS_OIL 8
CALC_GOR 23500
CASING_PRESS 150
MCF_GAS 188
Perforation Data:
Interval Top:7457 ft.# Of Holes:15
Interval Bottom:7894 ft.Hole Size:0.33 in.
Primary Well Designation:
Low Producing      i
            All DesignationsDate
Reported PluggedN
Out Of Service RepurposedN
Out Of ServiceN
Inactive ExceptionN
Noticed InactiveN
Defined InactiveN
Low ProducingYProduction Period
04/2024 - 03/2025

BOE/MCFE/GOR Calculations
Production for Previous 12 Months
April 2024 - March 2025i
Total Oil Produced (Barrels)0
Total Gas Produced (MCF)14
GOR
GOR DeterminationMCFE
Average BOE per Day0.008
Average MCFE per Day0.038

 Federal Financial Assurance  i

 Tribal Well  i No
