COGIS - WELL SCOUT CARD

Related Insp MIT GIS Doc COA Wellbore Orders Bradenhead
Surface Location API# 05-123-18575		Well Classification: OW	Status: PR - 3/19/2025
Well Name/No:	BROWN C UNIT #2 (Click Well Name for Production Data)	Click Here for Transporter Gatherer Info
Operator:	CRESTONE PEAK RESOURCES OPERATING LLC - 10633 (Click Operator Name for Company Detail Report)	Federal Or State Lease #:
Facility Status:	PR	Status Date	3/19/2025
FacilityID:	250772	LocationID:	330179
County:	WELD #123	Location:	NWNW 5 1N68W 6
Field:	WATTENBERG - #90750	Elevation:	5000 ft.
Planned Location:	1000FNL 1000 FWL	Lat/Long: 40.084937 / -105.033437	Lat/Long Source: Calculated From Footages
As Drilled Location:	Footages Not Available	Lat/Long: 40.085008 / -105.033419	Lat/Long Source: Field Measured

Wellbore And Formation Details -- select either a wellbore Or formation to expand.

Wellbore #00 Wellbore Classification: GW Status: PR - 3/19/2025 Measured TD: 8275 ft. Vertical TD: 0 ft.

Wellbore Data for Original Wellbore		Wellbore Classification: GW PR - 3/19/2025
Wellbore Permit
Permit #:	19941346	Expiration Date:	9/14/1995
Proposed Depth/Form:	8300 ft.
Surface Mineral Owner Same:	Yes
Mineral Owner:	FEE	Surface Owner:	Not available
Unit:		Unit Number:
Formation And Spacing:	Code: JNBCD , Formation: J-NIOBRARA-CODELL , Order: 232;407 , Unit Acreage: 320, Drill Unit: N2
Formation And Spacing:	Code: SX-SN , Formation: SUSSEX-SHANNON , Order: 316 , Unit Acreage: 320, Drill Unit: N2

Wellbore Completed
Completion Date:	7/17/1995
Spud Date:	3/24/1995	Spud Date Is:	ACTUAL
Measured TD:	8275 ft.	Measured PB depth:	8215 ft.
True Vertical TD:	0 ft.	True Vertical PB depth:
Log Types:	DIL, FDC, CBL

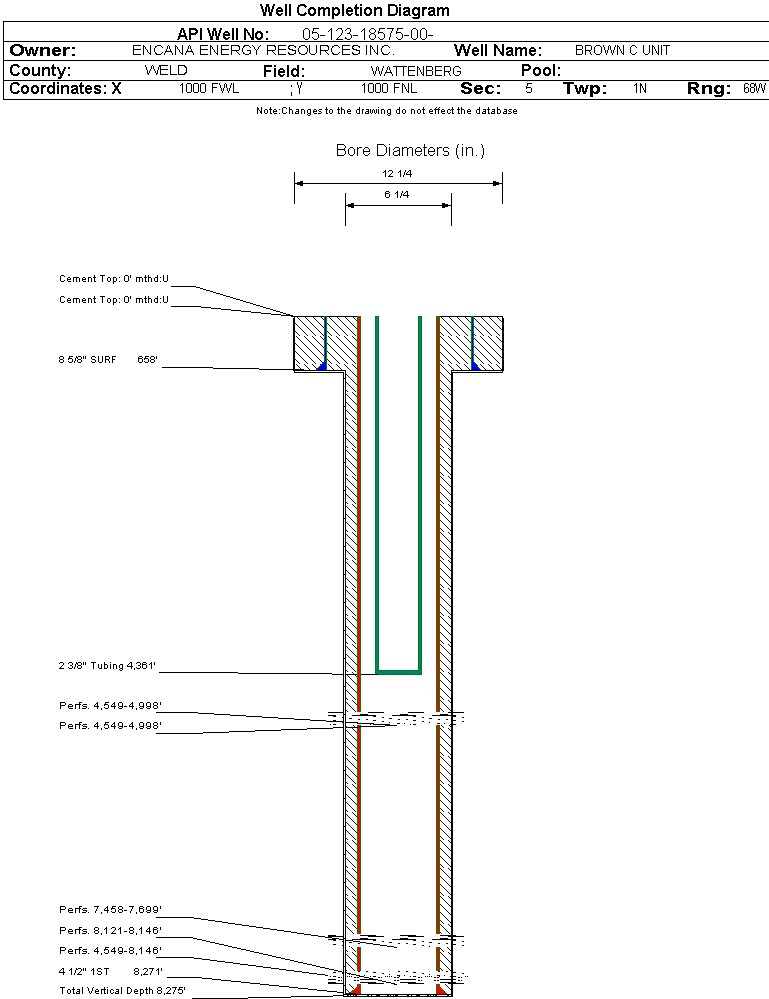

Casing:	String Type: SURF, Hole Size: 12.25 in., Size: 8.625 in., Top: 0 ft., Depth: 658 ft., Weight: 24 , Citings Type: ACTUAL
Cement:	Sacks: 305, Top: 0 ft., Bottom: 658 ft., Determination Method: VISU
Casing:	String Type: 1ST, Hole Size: 6.25 in., Size: 4.5 in., Top: 0 ft., Depth: 8271 ft., Weight: 11.6 , Citings Type: ACTUAL
Cement:	Sacks: 80, Top: 7316 ft., Bottom: 8271 ft., Determination Method: CBL
Casing:	String Type: S.C. 1.1, Hole Size: , Size: , Top: , Depth: 7312 ft., Weight: , Citings Type: ACTUAL
Cement:	Sacks: 75, Top: 6700 ft., Bottom: 7312 ft., Determination Method: CBL
Casing:	String Type: STAGE TOOL, Hole Size: , Size: , Top: , Depth: 5288 ft., Weight: , Citings Type: ACTUAL
Cement:	Sacks: 235, Top: 4040 ft., Bottom: 5288 ft., Determination Method: CBL
Formation	Interval Top	Log Bottom	Cored	DSTs
SUSSEX	4332 ft.
SHANNON	4982 ft.
NIOBRARA	7355 ft.
CODELL	7684 ft.
GREENHORN	7779 ft.
J SAND	8117 ft.
SKULL CREEK	8150 ft.

Formation JSND Formation Classification: GW Status: PR - 3/19/2025 Interval Top: 8121 ft. Interval Bottom: 8146 ft.

Completed Information for Formation J SAND

1st Production Date:	4/17/1995	Choke Size:
Formation Name:	J SAND	Commingled:	No
Production Method:
Open Hole Completion:	No

Formation Treatment
Treatment Date:	7/17/1995
Treatment Summary:	FRAC W/ 530,000# 20/40 SAND IN 165,018 GAL FLUID

Test Type	Measure
Tubing Size:		Tubing Setting Depth:
Tubing Packer Depth:		Tubing Multiple Packer:
Open Hole Top:		Open Hole Bottom:
Initial Test Data:
Test Date:	N/A	Test Method:
Hours Tested:		Gas Type:
Gas Disposal:
BBLS_H2O	11
BBLS_OIL	1
CASING_PRESS	460
MCF_GAS	60
TUBING_PRESS	180

Perforation Data:
Interval Top:	8121 ft.	# Of Holes:	50
Interval Bottom:	8146 ft.	Hole Size:

Formation CODL Formation Classification: GW Status: CM - 3/19/2025 Interval Top: 7687 ft. Interval Bottom: 7699 ft.

Completed Information for Formation CODELL

1st Production Date:	N/A	Choke Size:
Formation Name:	CODELL	Commingled:	Yes
Production Method:
Open Hole Completion:	No

Tubing Size:		Tubing Setting Depth:
Tubing Packer Depth:		Tubing Multiple Packer:
Open Hole Top:		Open Hole Bottom:
No Initial Test Data was found for formation CODL.

Perforation Data:
Interval Top:	7687 ft.	# Of Holes:	8
Interval Bottom:	7699 ft.	Hole Size:	0.27 in.

Formation NB-CD Formation Classification: OG Status: PR - 3/19/2025 Interval Top: 7458 ft. Interval Bottom: 7699 ft.

Completed Information for Formation NIOBRARA-CODELL

1st Production Date:	7/17/1995	Choke Size:
Formation Name:	NIOBRARA-CODELL	Commingled:	No
Production Method:
Open Hole Completion:	No

Formation Treatment
Treatment Date:	7/17/1995
Treatment Summary:	ACIDIZE W/ 24 BBL 10% HCL, FRAC W/ 400,000# 20/40 SAND IN 123,648 GAL FLUID

Test Type	Measure
Tubing Size:		Tubing Setting Depth:
Tubing Packer Depth:		Tubing Multiple Packer:
Open Hole Top:		Open Hole Bottom:
Initial Test Data:
Test Date:	N/A	Test Method:
Hours Tested:		Gas Type:
Gas Disposal:
BBLS_H2O	28
BBLS_OIL	33
CALC_GOR	7757
MCF_GAS	256
TUBING_PRESS	420

Perforation Data:
Interval Top:	7458 ft.	# Of Holes:	15
Interval Bottom:	7699 ft.	Hole Size:	0.27 in.

Formation NBRR Formation Classification: OG Status: CM - 3/19/2025 Interval Top: 7458 ft. Interval Bottom: 7590 ft.

Completed Information for Formation NIOBRARA

1st Production Date:	N/A	Choke Size:
Formation Name:	NIOBRARA	Commingled:	Yes
Production Method:
Open Hole Completion:	No

Tubing Size:		Tubing Setting Depth:
Tubing Packer Depth:		Tubing Multiple Packer:
Open Hole Top:		Open Hole Bottom:
No Initial Test Data was found for formation NBRR.

Perforation Data:
Interval Top:	7458 ft.	# Of Holes:	7
Interval Bottom:	7590 ft.	Hole Size:	0.27 in.

Formation SNSD Formation Classification: OG Status: PR - 3/19/2025 Interval Top: 4983 ft. Interval Bottom: 4998 ft.

Completed Information for Formation SHANNON

1st Production Date:	11/1/1996	Choke Size:
Formation Name:	SHANNON	Commingled:	No
Production Method:
Open Hole Completion:	No

Test Type	Measure
Tubing Size:		Tubing Setting Depth:
Tubing Packer Depth:		Tubing Multiple Packer:
Open Hole Top:		Open Hole Bottom:
Initial Test Data:
Test Date:	N/A	Test Method:
Hours Tested:		Gas Type:
Gas Disposal:
BBLS_H2O	40
BBLS_OIL	20
CALC_GOR	2000
MCF_GAS	40

Perforation Data:
Interval Top:	4983 ft.	# Of Holes:	8
Interval Bottom:	4998 ft.	Hole Size:	0.33 in.

Formation JNCSS Formation Classification: OW Status: CM - 1/1/2020 Interval Top: 4549 ft. Interval Bottom: 8146 ft.

Completed Information for Formation JSND-CODL-NIO-SUSX-SHAN

1st Production Date:	12/17/1996	Choke Size:
Formation Name:	JSND-CODL-NIO-SUSX-SHAN	Commingled:	Yes
Production Method:	FLOWING
Open Hole Completion:

Test Type	Measure
Tubing Size:	2.375 in.	Tubing Setting Depth:	4361 ft.
Tubing Packer Depth:		Tubing Multiple Packer:
Open Hole Top:		Open Hole Bottom:
Initial Test Data:
Test Date:	1/1/1997	Test Method:	FLOWING
Hours Tested:	24	Gas Type:
Gas Disposal:	SOLD
BBLS_H2O	4
BBLS_OIL	25
CALC_GOR	5800
CASING_PRESS	680
MCF_GAS	145
TUBING_PRESS	60

Perforation Data:
Interval Top:	4549 ft.	# Of Holes:	81
Interval Bottom:	8146 ft.	Hole Size:

Formation SUSX Formation Classification: OG Status: PR - 3/19/2025 Interval Top: 4549 ft. Interval Bottom: 4556 ft.

Completed Information for Formation SUSSEX

1st Production Date:	11/1/1996	Choke Size:
Formation Name:	SUSSEX	Commingled:	No
Production Method:
Open Hole Completion:	No

Test Type	Measure
Tubing Size:		Tubing Setting Depth:
Tubing Packer Depth:		Tubing Multiple Packer:
Open Hole Top:		Open Hole Bottom:
Initial Test Data:
Test Date:	N/A	Test Method:
Hours Tested:		Gas Type:
Gas Disposal:
BBLS_H2O	40
BBLS_OIL	20
CALC_GOR	2000
MCF_GAS	40

Perforation Data:
Interval Top:	4549 ft.	# Of Holes:	8
Interval Bottom:	4556 ft.	Hole Size:	0.33 in.

All Designations		Date
Primary Well Designation: Out Of Service i
Reported Plugged	N
Out Of Service Repurposed	N
Out Of Service	Y	Plugging Due Date 12/31/2030
Inactive Exception	N
Noticed Inactive	N
Defined Inactive	N
Low Producing	Y	Production Period 02/2024 - 01/2025

February 2024 - January 2025	i
BOE/MCFE/GOR Calculations Production for Previous 12 Months
Total Oil Produced (Barrels)	0
Total Gas Produced (MCF)	0
GOR
GOR Determination
Average BOE per Day	0.000
Average MCFE per Day	0.000

Federal Financial Assurance

Tribal Well
