COGIS - WELL SCOUT CARD
Click image to view related facilities. Related  Click image to view inspection information. InspClick image to view MIT information. MITGIS Map GISOld GIS Map Old GISClick image to view imaged documents for this well/facility. DocClick image to view imaged documents for this well/facility. COAClick image to view wellbore completion diagram. WellboreClick image to search for orders within this facility's section. OrdersClick image to view bradenhead scoutcard data. Bradenhead
 Surface Location
 API# 05-123-18497		Well Classification: OW Status: PA - 5/14/2024
Well Name/No:UPRC #31-13H6
(Click Well Name for Production Data)		Click Here for Transporter Gatherer Info
Operator:NOBLE ENERGY INC - 100322
(Click Operator Name for Company Detail Report)		Federal Or State Lease #:61897
Facility Status:PAStatus Date5/14/2024
FacilityID:250694LocationID:332666
County:WELD #123Location:SWSW 31 5N66W 6
Field:WATTENBERG - #90750Elevation:4840 ft.
Basin:DENVER (DJ) BASIN
Planned Location:490FSL  790 FWLLat/Long: 40.350165 / -104.829173Lat/Long Source: Calculated From Footages
As Drilled Location:Footages Not AvailableLat/Long: 40.350140 / -104.829170Lat/Long Source: Field Measured
 Wellbore And Formation Details -- select either a wellbore Or formation to expand.

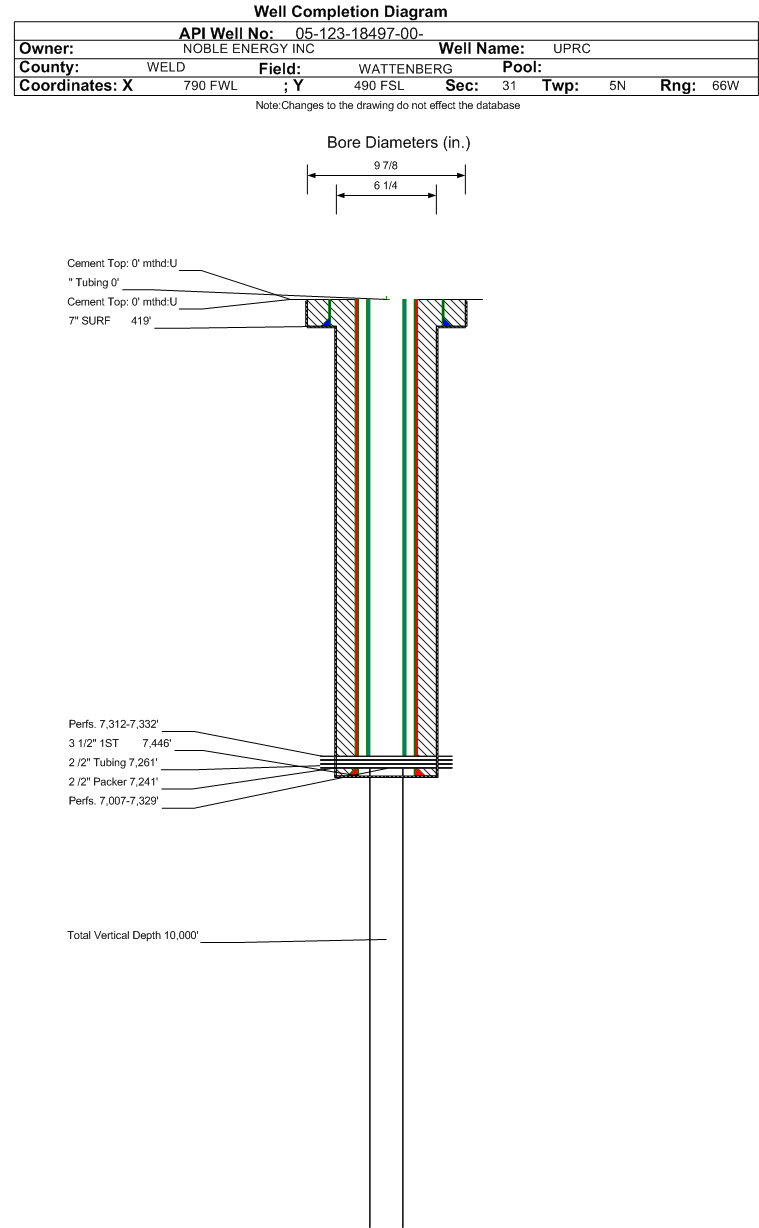

Wellbore #00             Wellbore Classification: OW             Status: PA - 4/16/2024             Measured TD: 7459 ft.    Vertical TD: 0 ft.

 Wellbore Data for Original WellboreWellbore Classification: OW        PA - 4/16/2024
Wellbore Permit
Permit #:941131 Expiration Date:2/22/1995
Proposed Depth/Form:
Surface Mineral Owner Same:No
Mineral Owner:FEESurface Owner:Not available
Unit: Unit Number:
Formation And Spacing:Code: NB-CD , Formation: NIOBRARA-CODELL , Order: 0 , Unit Acreage: 80, Drill Unit: W/2SW
Wellbore Completed
Completion Date:12/28/1994
Measured TD:7459 ft.Measured PB depth:7368 ft.
True Vertical TD:0 ft.True Vertical PB depth:
Casing:String Type: SURF, Hole Size: 9.875 in., Size: , Top: 0 ft., Depth: 419 ft., Weight: 17 , Citings Type: ACTUAL
Cement:Sacks: 125, Top: 0 ft., Bottom: 419 ft., Determination Method: VISU
Casing:String Type: 1ST, Hole Size: 6.25 in., Size: 3.5 in., Top: 0 ft., Depth: 7446 ft., Weight: 7.7 , Citings Type: ACTUAL
Cement:Sacks: 448, Top: 4332 ft., Bottom: 7446 ft., Determination Method: CBL
FormationInterval TopLog BottomCoredDSTs
PARKMAN3692 ft.
SUSSEX4466 ft.
NIOBRARA6968 ft.
FORT HAYS7292 ft.
CODELL7312 ft.

Formation CODL                     Formation Classification:  GW                     Status:  CM - 11/30/2001                Interval Top: 7312 ft.    Interval Bottom: 7332 ft.

 Completed Information for Formation CODELL
1st Production Date:N/AChoke Size:0.188 in.
Formation Name:CODELLCommingled:Yes
Production Method:FLOWING
Open Hole Completion:No
Formation Treatment
Treatment Date:12/28/1994
Treatment Summary:125,916 GAL VISTAR 26/24 FLUID & 245,840 # 20/40 SAND, 11/16/2001
Tubing Size:2.0625 in.Tubing Setting Depth:7261 ft.
Tubing Packer Depth:7261 ft.Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:11/30/2001Test Method:FLOWING
Hours Tested:24Gas Type:
Gas Disposal:SOLD
Test TypeMeasure
BBLS_H2O 11
BBLS_OIL 35
CALC_BBLS_H2O 11
CALC_BBLS_OIL 35
CALC_GOR 10
CALC_MCF_GAS 344
CASING_PRESS 650
MCF_GAS 344
Perforation Data:
Interval Top:7312 ft.# Of Holes:80
Interval Bottom:7332 ft.Hole Size:

Formation NB-CD                   Formation Classification:  GW                   Status:  AB - 5/14/2024                 Interval Top: 7007 ft.    Interval Bottom: 7329 ft.

 Completed Information for Formation NIOBRARA-CODELL
1st Production Date:1/13/1995Choke Size:
Formation Name:NIOBRARA-CODELLCommingled:No
Production Method:FLOWING
Open Hole Completion:No
Formation Treatment
Treatment Date:12/28/1994
Treatment Summary:ACIDIZE W/ 1000 GAL 7-1/2% HCL 104,790 GAL YF 535 FLUID & 416,280 # 20/40 SAND, 12/28/1994
Tubing Size:Tubing Setting Depth:
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:1/30/1995Test Method:FLOWING
Hours Tested:24Gas Type:SHALE
Gas Disposal:SOLD
Test TypeMeasure
BBLS_H2O 10
BBLS_OIL 14
CALC_BBLS_H2O 10
CALC_BBLS_OIL 14
CALC_GOR 10
CALC_MCF_GAS 143
CASING_PRESS 200
MCF_GAS 142
Perforation Data:
Interval Top:7007 ft.# Of Holes:16
Interval Bottom:7329 ft.Hole Size:0.4 in.
Primary Well Designation:
None      i
            All DesignationsDate
Reported PluggedY05/14/2024
Out Of Service RepurposedN
Out Of ServiceYPlugging Due Date
12/31/2030
Inactive ExceptionN
Noticed InactiveN
Defined InactiveN
Low ProducingN

BOE/MCFE/GOR Calculations
Production for Previous 12 Months
December 2024 - November 2025i
Total Oil Produced (Barrels)0
Total Gas Produced (MCF)0
GOR
GOR Determination
Average BOE per Day0.000
Average MCFE per Day0.000

 Federal Financial Assurance  i

 Tribal Well  i No
