COGIS - WELL SCOUT CARD

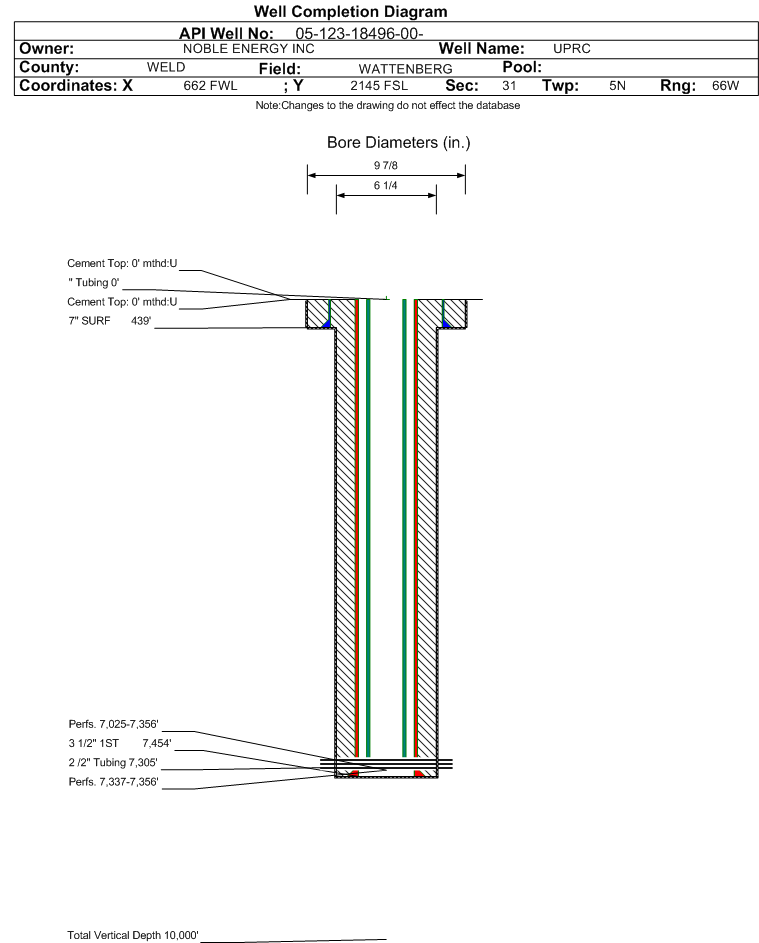

Click image to view related facilities. Related  Click image to view inspection information. InspClick image to view MIT information. MITClick image to access interactive map at well/facility location. GISClick image to view imaged documents for this well/facility. DocClick image to view imaged documents for this well/facility. COAClick image to view wellbore completion diagram. WellboreClick image to search for orders within this facility's section. OrdersClick image to view bradenhead scoutcard data. Bradenhead
 Surface Location
 API# 05-123-18496		Well Classification: GW Status: PA - 11/7/2024
Well Name/No:UPRC #31-12H6
(Click Well Name for Production Data)		Click Here for Transporter Gatherer Info
Operator:NOBLE ENERGY INC - 100322
(Click Operator Name for Company Detail Report)		Federal Or State Lease #:61897
Facility Status:PAStatus Date11/7/2024
FacilityID:250693LocationID:332665
County:WELD #123Location:NWSW 31 5N66W 6
Field:WATTENBERG - #90750Elevation:4855 ft.
Basin:DENVER (DJ) BASIN
Planned Location:2145FSL  662 FWLLat/Long: 40.354715 / -104.829673Lat/Long Source: Calculated From Footages
As Drilled Location:Footages Not AvailableLat/Long: 40.354690 / -104.829670Lat/Long Source: Field Measured
 Wellbore And Formation Details -- select either a wellbore Or formation to expand.


Wellbore #00             Wellbore Classification: OW             Status: AB - 11/7/2024             Measured TD: 7485 ft.

 Wellbore Data for Original WellboreWellbore Classification: OW        AB - 11/7/2024
Wellbore Permit
Permit #:941130 Expiration Date:2/22/1995
Proposed Depth/Form:
Surface Mineral Owner Same:No
Mineral Owner:FEESurface Owner:Not available
Unit: Unit Number:
Formation And Spacing:Code: NB-CD , Formation: NIOBRARA-CODELL , Order: 0 , Unit Acreage: 80, Drill Unit: W2SW
Wellbore Completed
Completion Date:11/25/1994
Spud Date:11/18/1994Spud Date Is:ACTUAL
Measured TD:7485 ft.Measured PB depth:7401 ft.
True Vertical TD:True Vertical PB depth:
Log Types:CBL
Casing:String Type: SURF, Hole Size: 9.875 in., Size: , Top: 0 ft., Depth: 439 ft., Weight: 17 , Citings Type: ACTUAL
Cement:Sacks: 121, Top: 0 ft., Bottom: 439 ft., Determination Method: VISU
Casing:String Type: 1ST, Hole Size: 6.25 in., Size: 3.5 in., Top: 0 ft., Depth: 7454 ft., Weight: 7.7 , Citings Type: ACTUAL
Cement:Sacks: 197, Top: 5886 ft., Bottom: 7454 ft., Determination Method: CBL
Casing:String Type: S.C. 1.1, Hole Size: 6.25 in., Size: 3.5 in., Top: 0 ft., Depth: 4990 ft., Weight: 7.7 , Citings Type: ACTUAL
Cement:Sacks: 250, Top: 3920 ft., Bottom: 5030 ft., Determination Method: CBL
Casing:String Type: S.C. 1.2, Hole Size: 6.25 in., Size: 3.5 in., Top: 0 ft., Depth: 1820 ft., Weight: 7.7 , Citings Type: ACTUAL
Cement:Sacks: 250, Top: 230 ft., Bottom: 1820 ft., Determination Method: CBL
FormationInterval TopLog BottomCoredDSTs
PARKMAN3724 ft.
SUSSEX4497 ft.
NIOBRARA6983 ft.
FORT HAYS7314 ft.
CODELL7336 ft.

Formation CODL                     Formation Classification:  GW                     Status:  CM - 12/10/2024                Interval Top: 7337 ft.    Interval Bottom: 7356 ft.

 Completed Information for Formation CODELL
1st Production Date:1/13/1995Choke Size:
Formation Name:CODELLCommingled:Yes
Production Method:
Open Hole Completion:No
Formation Treatment
Treatment Date:1/18/2011
Treatment Summary:Codell trifrac Frac'd Codell w/127928 gals Vistar and Slick Water with 234380 lbs Ottawa sand
Tubing Size:Tubing Setting Depth:
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
No Initial Test Data was found for formation CODL.
Perforation Data:
Interval Top:7337 ft.# Of Holes:85
Interval Bottom:7356 ft.Hole Size:

Formation NB-CD                   Formation Classification:  GW                   Status:  AB - 11/7/2024                 Interval Top: 7025 ft.    Interval Bottom: 7356 ft.

 Completed Information for Formation NIOBRARA-CODELL
1st Production Date:1/13/1995Choke Size:
Formation Name:NIOBRARA-CODELLCommingled:No
Production Method:
Open Hole Completion:No
Formation Treatment
Treatment Date:1/18/2011
Treatment Summary:Codlel & Niobrara are commingled; nothing new happened in Niobrara during Codell trifrac
Tubing Size:Tubing Setting Depth:
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:N/ATest Method:
Hours Tested:Gas Type:
Gas Disposal:
Test TypeMeasure
BBLS_H2O 2
BBLS_OIL 8
BTU_GAS 1297
CALC_BBLS_H2O 2
CALC_BBLS_OIL 8
CALC_GOR 23375
CALC_MCF_GAS 187
CASING_PRESS 450
GRAVITY_OIL 59
MCF_GAS 187
TUBING_PRESS 300
Perforation Data:
Interval Top:7025 ft.# Of Holes:92
Interval Bottom:7356 ft.Hole Size:

Formation NBRR                     Formation Classification:  GW                     Status:  CM - 12/11/2024                Interval Top: 7025 ft.    Interval Bottom: 7224 ft.

 Completed Information for Formation NIOBRARA
1st Production Date:1/13/1995Choke Size:
Formation Name:NIOBRARACommingled:Yes
Production Method:
Open Hole Completion:No
Tubing Size:Tubing Setting Depth:
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
No Initial Test Data was found for formation NBRR.
Perforation Data:
Interval Top:7025 ft.# Of Holes:7
Interval Bottom:7224 ft.Hole Size:
Primary Well Designation:
None      i
            All DesignationsDate
Reported PluggedY11/07/2024
Out Of Service RepurposedN
Out Of ServiceYPlugging Due Date
12/31/2030
Inactive ExceptionN
Noticed InactiveN
Defined InactiveN
Low ProducingN

BOE/MCFE/GOR Calculations
Production for Previous 12 Months
October 2024 - September 2025i
Total Oil Produced (Barrels)0
Total Gas Produced (MCF)0
GOR
GOR DeterminationMCFE
Average BOE per Day0.000
Average MCFE per Day0.000

 Federal Financial Assurance  i

 Tribal Well  i No
