Facility Detail

COGIS - WELL SCOUT CARD

Related Insp MIT GIS Doc COA Wellbore Orders Bradenhead
Surface Location API# 05-123-18192		Well Classification: GW	Status: PA - 7/9/2018
Well Name/No:	HSR-HUFFMAN #9-2A (Click Well Name for Production Data)	Click Here for Transporter Gatherer Info
Operator:	KERR MCGEE OIL & GAS ONSHORE LP - 47120 (Click Operator Name for Company Detail Report)	Federal Or State Lease #:
Facility Status:	PA	Status Date	7/9/2018
FacilityID:	250389	LocationID:	330009
Municipality/County:	MILLIKEN / WELD #123	Location:	NESE 2 3N67W 6
Field:	WATTENBERG - #90750	Elevation:	4762 ft.
Basin:	DENVER (DJ) BASIN
Planned Location:	2105FSL 792 FEL	Lat/Long: 40.252716 / -104.851753	Lat/Long Source: Calculated From Footages
As Drilled Location:	Footages Not Available	Lat/Long: 40.252690 / -104.851710	Lat/Long Source: Field Measured


Wellbore And Formation Details -- select either a wellbore Or formation to expand.

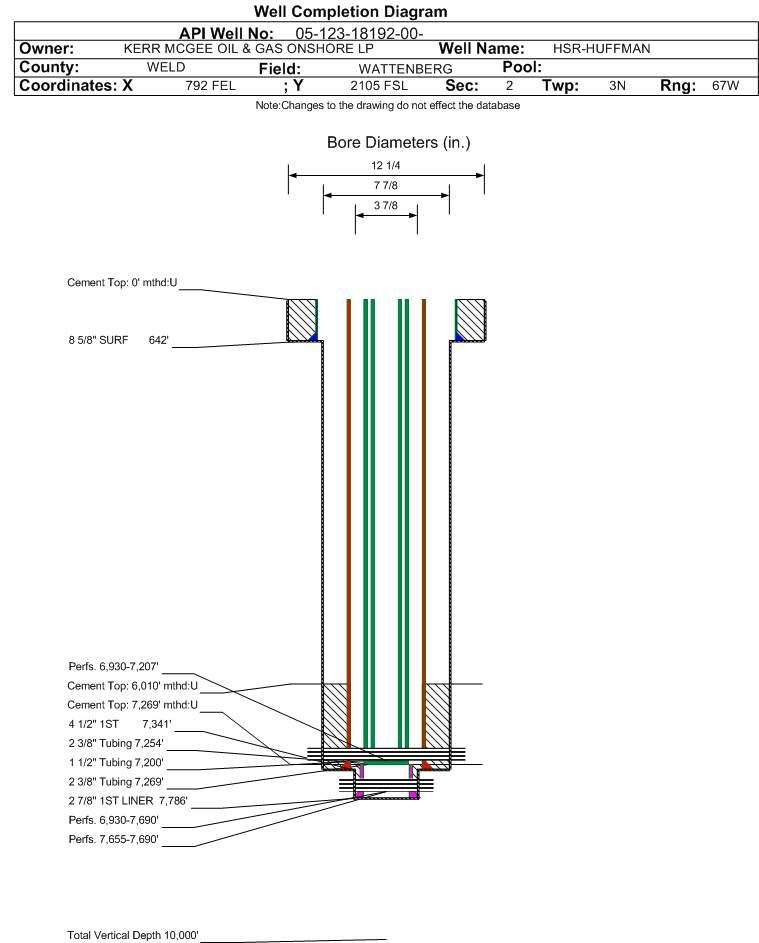

Wellbore #00 Wellbore Classification: GW Status: PA - 7/9/2018 Measured TD: 7786 ft.

Wellbore Data for Original Wellbore		Wellbore Classification: GW PA - 7/9/2018
Wellbore Permit			DRIFTED
Permit #:	20000449	Expiration Date:	5/11/2001
Proposed Depth/Form:	7790 ft.
Surface Mineral Owner Same:	No
Mineral Owner:	FEE	Surface Owner:	FEE
Unit:		Unit Number:
Formation And Spacing:	Code: JSND , Formation: J SAND , Order: 232 , Unit Acreage: 320, Drill Unit: E2
Formation And Spacing:	Code: NB-CD , Formation: NIOBRARA-CODELL , Order: 407 , Unit Acreage: 80, Drill Unit: E2SE

Wellbore Completed
Completion Date:	7/28/2000
Spud Date:	4/18/1994	Spud Date Is:	ACTUAL
Measured TD:	7786 ft.	Measured PB depth:	7786 ft.
True Vertical TD:		True Vertical PB depth:
Log Types:	SACNLD, SAAILC, CBL DIL/SFL/GR; CDEN/GR
Casing:	String Type: SURF, Hole Size: 12.25 in., Size: 8.625 in., Top: 0 ft., Depth: 642 ft., Weight: 24 , Citings Type: ACTUAL
Cement:	Sacks: 450, Top: 0 ft., Bottom: 642 ft., Determination Method: VISU
Casing:	String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: 0 ft., Depth: 7341 ft., Weight: 11.6 , Citings Type: ACTUAL
Cement:	Sacks: 200, Top: 6010 ft., Bottom: 7341 ft., Determination Method: CBL
Casing:	String Type: 1ST LINER, Hole Size: 3.875 in., Size: 2.875 in., Top: 7269 ft., Depth: 7786 ft., Weight: 6.5 , Citings Type: ACTUAL
Cement:	Sacks: 30, Top: 7269 ft., Bottom: 7786 ft., Determination Method: CBL
Formation	Interval Top	Log Bottom	Cored	DSTs
FOX HILLS	100 ft.	200 ft.	N	N
SUSSEX	4240 ft.	4320 ft.	N	N
SHANNON	4669 ft.	4730 ft.	N	N
NIOBRARA	6911 ft.	7176 ft.	N	N
FORT HAYS	7176 ft.	7197 ft.	N	N
CODELL	7197 ft.	7207 ft.	N	N
CARLILE	7207 ft.	7275 ft.	N	N
GREENHORN	7275 ft.		N	N
J SAND	7642 ft.		N	N

Formation JSND Formation Classification: GW Status: AB - 7/9/2018 Interval Top: 7655 ft. Interval Bottom: 7690 ft.

Completed Information for Formation J SAND

1st Production Date:	N/A	Choke Size:	0.250 in.
Formation Name:	J SAND	Commingled:
Production Method:	PLUNGER
Open Hole Completion:	No

Formation Treatment
Treatment Date:	7/28/2000
Treatment Summary:	FRAC'D J SAND W/500,940# 20/40 MESH; 209,288 GAL. GELLED FLUID

Test Type	Measure
Tubing Size:	2.375 in.	Tubing Setting Depth:	7269 ft.
Tubing Packer Depth:		Tubing Multiple Packer:
Open Hole Top:		Open Hole Bottom:
Initial Test Data:
Test Date:	9/25/2000	Test Method:	PLUNGER
Hours Tested:	24	Gas Type:
Gas Disposal:	SOLD
BBLS_H2O	6
BBLS_OIL	5
CALC_BBLS_H2O	6
CALC_BBLS_OIL	5
CALC_GOR	156600
CALC_MCF_GAS	783
GRAVITY_OIL	60
MCF_GAS	783
TUBING_PRESS	900

Perforation Data:
Interval Top:	7655 ft.	# Of Holes:	45
Interval Bottom:	7690 ft.	Hole Size:	0.23 in.

Formation JNBCD Formation Classification: GW Status: CM - 12/6/2000 Interval Top: 6930 ft. Interval Bottom: 7690 ft.

Completed Information for Formation J-NIOBRARA-CODELL

1st Production Date:	N/A	Choke Size:	0.313 in.
Formation Name:	J-NIOBRARA-CODELL	Commingled:	No
Production Method:	PLUNGER
Open Hole Completion:	No

Formation Treatment
Treatment Date:	7/28/2000
Treatment Summary:	FRAC'D J SAND W/500,940# 20/40 MESH; 209,288 GAL. GELLED FLUID COMMINGLED WITH NB-CD

Test Type	Measure
Tubing Size:	2.375 in.	Tubing Setting Depth:	7254 ft.
Tubing Packer Depth:		Tubing Multiple Packer:
Open Hole Top:		Open Hole Bottom:
Initial Test Data:
Test Date:	12/6/2000	Test Method:	PLUNGER
Hours Tested:	24	Gas Type:
Gas Disposal:	SOLD
BBLS_H2O	0
BBLS_OIL	7
CALC_BBLS_H2O	0
CALC_BBLS_OIL	7
CALC_GOR	97429
CALC_MCF_GAS	682
CASING_PRESS	700
GRAVITY_OIL	60
MCF_GAS	682
TUBING_PRESS	600

Perforation Data:
Interval Top:	6930 ft.	# Of Holes:
Interval Bottom:	7690 ft.	Hole Size:

Formation NB-CD Formation Classification: GW Status: AB - 7/9/2018 Interval Top: 6930 ft. Interval Bottom: 7207 ft.

Completed Information for Formation NIOBRARA-CODELL

1st Production Date:	5/18/1994	Choke Size:	0.187 in.
Formation Name:	NIOBRARA-CODELL	Commingled:
Production Method:	FLOWING
Open Hole Completion:	No

Formation Treatment
Treatment Date:	7/28/2000
Treatment Summary:	FRACD W/ 412000# 20/40 MESH 113652 GAL GELLED FLUID

Test Type	Measure
Tubing Size:	1.5 in.	Tubing Setting Depth:	7200 ft.
Tubing Packer Depth:		Tubing Multiple Packer:
Open Hole Top:		Open Hole Bottom:
Initial Test Data:
Test Date:	5/29/1994	Test Method:	FLOWING
Hours Tested:	24	Gas Type:	SHALE
Gas Disposal:	SOLD
BBLS_H2O	0
BBLS_OIL	41
CALC_BBLS_OIL	3463
CASING_PRESS	1400
GRAVITY_OIL	60
MCF_GAS	142
TUBING_PRESS	900

Perforation Data:
Interval Top:	6930 ft.	# Of Holes:	18
Interval Bottom:	7207 ft.	Hole Size:	0.31 in.

All Designations		Date
Primary Well Designation: None i
Reported Plugged	Y	07/09/2018
Out Of Service Repurposed	N
Out Of Service	N
Inactive Exception	N
Noticed Inactive	N
Defined Inactive	N
Low Producing	N

October 2024 - September 2025	i
BOE/MCFE/GOR Calculations Production for Previous 12 Months
Total Oil Produced (Barrels)	0
Total Gas Produced (MCF)	0
GOR
GOR Determination
Average BOE per Day	0.000
Average MCFE per Day	0.000

Federal Financial Assurance

Tribal Well
