COGIS - WELL SCOUT CARD

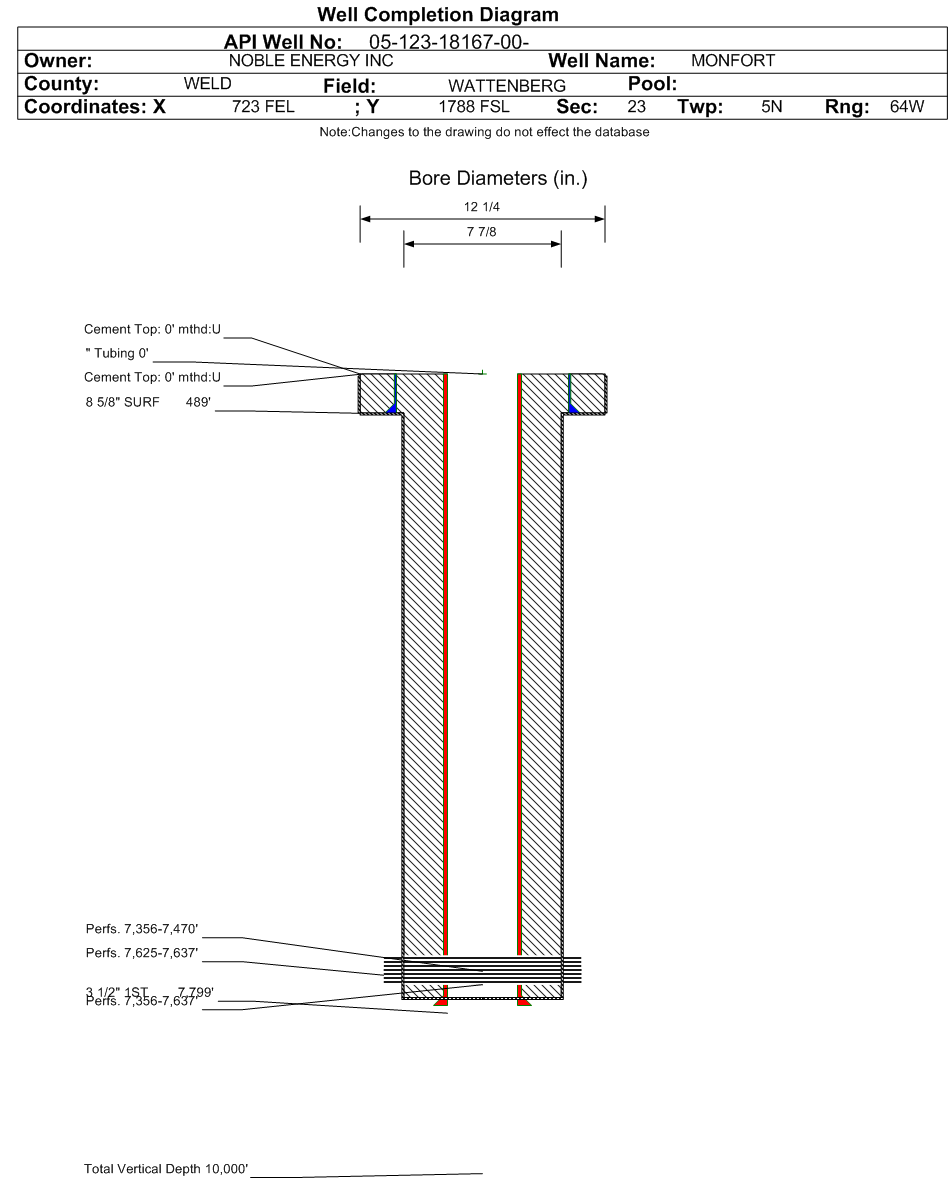

Click image to view related facilities. Related  Click image to view inspection information. InspClick image to view MIT information. MITGIS Map GISOld GIS Map Old GISClick image to view imaged documents for this well/facility. DocClick image to view imaged documents for this well/facility. COAClick image to view wellbore completion diagram. WellboreClick image to search for orders within this facility's section. OrdersClick image to view bradenhead scoutcard data. Bradenhead
 Surface Location
 API# 05-123-18167		Well Classification: OW Status: PA - 10/13/2023
Well Name/No:MONFORT #24-6H4
(Click Well Name for Production Data)		Click Here for Transporter Gatherer Info
Operator:NOBLE ENERGY INC - 100322
(Click Operator Name for Company Detail Report)		Federal Or State Lease #:61497
Facility Status:PAStatus Date10/13/2023
FacilityID:250364LocationID:336587
County:WELD #123Location:NESE 23 5N64W 6
Field:WATTENBERG - #90750Elevation:4590 ft.
Basin:DENVER (DJ) BASIN
Planned Location:1788FSL  723 FELLat/Long: 40.382346 / -104.510353Lat/Long Source: Calculated From Footages
As Drilled Location:1840 FSL  758 FELLat/Long: 40.382500 / -104.510420Lat/Long Source: Field Measured
 Wellbore And Formation Details -- select either a wellbore Or formation to expand.


Wellbore #00             Wellbore Classification: OW             Status: PA - 10/13/2023             Measured TD: 7820 ft.    Vertical TD: 7799 ft.

 Wellbore Data for Original WellboreWellbore Classification: OW        PA - 10/13/2023
Wellbore PermitDIRECTIONAL
Permit #:940371 Expiration Date:9/25/1994
Bottom Hole Location:Sec:24 Twp: 5N 64W Footage: 1967 FNL  1996 FWL
Proposed Depth/Form:
Surface Mineral Owner Same:Not available
Mineral Owner:FEESurface Owner:Not available
Unit: Unit Number:
Formation And Spacing:Code: NB-CD , Formation: NIOBRARA-CODELL , Order: 0 , Unit Acreage: 80, Drill Unit: S2NE
Wellbore Completed
Completion Date:4/6/1994
Spud Date:3/29/1994Spud Date Is:ACTUAL
Measured TD:7820 ft.Measured PB depth:7760 ft.
True Vertical TD:7799 ft.True Vertical PB depth:7749 ft.
Top PZ Location:Sec:24 Twp: 5N 64WFootage: 2006 FNL  2009 FWL
Bottom Hole Location:Sec:24 Twp: 5N 64WFootage: 1984 FNL  2042 FWL
Log Types:CBL
Casing:String Type: SURF, Hole Size: 12.25 in., Size: 8.625 in., Top: 0 ft., Depth: 489 ft., Weight: 23 , Citings Type: ACTUAL
Cement:Sacks: 350, Top: 0 ft., Bottom: 489 ft., Determination Method: VISU
Casing:String Type: 1ST, Hole Size: 7.875 in., Size: 3.5 in., Top: 0 ft., Depth: 7799 ft., Weight: 7.7 , Citings Type: ACTUAL
Cement:Sacks: 210, Top: 6606 ft., Bottom: 7799 ft., Determination Method: CBL
Casing:String Type: S.C. 1.1, Hole Size: 7.875 in., Size: 3.5 in., Top: 0 ft., Depth: 3508 ft., Weight: 7.7 , Citings Type: ACTUAL
Cement:Sacks: 292, Top: 1320 ft., Bottom: 3570 ft., Determination Method: CBL
FormationInterval TopLog BottomCoredDSTs
PARKMAN3693 ft.
SUSSEX4360 ft.
NIOBRARA7334 ft.
FORT HAYS7596 ft.
CODELL7620 ft.

Formation CODL                     Formation Classification:  OW                     Status:  CM - 8/26/2022                 Interval Top: 7625 ft.    Interval Bottom: 7637 ft.

 Completed Information for Formation CODELL
1st Production Date:5/14/1994Choke Size:
Formation Name:CODELLCommingled:Yes
Production Method:
Open Hole Completion:No
Formation Treatment
Treatment Date:7/10/2009
Treatment Summary:REMOVE PLUS TO COMMINGLE
Tubing Size:Tubing Setting Depth:
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:N/ATest Method:
Hours Tested:Gas Type:
Gas Disposal:
Test TypeMeasure
BBLS_H2O 12
BBLS_OIL 22
CALC_BBLS_H2O 12
CALC_BBLS_OIL 22
CALC_GOR 5
CALC_MCF_GAS 110
MCF_GAS 110
TUBING_PRESS 190
Perforation Data:
Interval Top:7625 ft.# Of Holes:57
Interval Bottom:7637 ft.Hole Size:

Formation NB-CD                   Formation Classification:  OW                   Status:  AB - 10/13/2023                Interval Top: 7356 ft.    Interval Bottom: 7637 ft.

 Completed Information for Formation NIOBRARA-CODELL
1st Production Date:5/14/1994Choke Size:
Formation Name:NIOBRARA-CODELLCommingled:No
Production Method:
Open Hole Completion:No
Formation Treatment
Treatment Date:7/10/2009
Treatment Summary:NIOBRARA PERFS 7356-7470. RE-FRAC'D NIOBRARA W/ 174,169 GALS OF SLICK WATER, VISTAR AND 15% HCI WITH 248,100#S OF OTTAWA SAND. COMMINGLE CODELL AND NIOBRARA.
Tubing Size:Tubing Setting Depth:
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:N/ATest Method:
Hours Tested:Gas Type:
Gas Disposal:
Test TypeMeasure
BBLS_H2O 8
BBLS_OIL 8
BTU_GAS 1323
CALC_BBLS_H2O 8
CALC_BBLS_OIL 8
CALC_GOR 5625
CALC_MCF_GAS 45
CASING_PRESS 975
GRAVITY_OIL 57
MCF_GAS 45
TUBING_PRESS 850
Perforation Data:
Interval Top:7356 ft.# Of Holes:223
Interval Bottom:7637 ft.Hole Size:

Formation NBRR                     Formation Classification:  OW                     Status:  CM - 8/26/2022                 Interval Top: 7356 ft.    Interval Bottom: 7470 ft.

 Completed Information for Formation NIOBRARA
1st Production Date:5/14/1994Choke Size:
Formation Name:NIOBRARACommingled:Yes
Production Method:
Open Hole Completion:No
Tubing Size:Tubing Setting Depth:
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
No Initial Test Data was found for formation NBRR.
Perforation Data:
Interval Top:7356 ft.# Of Holes:166
Interval Bottom:7470 ft.Hole Size:
Primary Well Designation:
None      i
            All DesignationsDate
Reported PluggedY10/13/2023
Out Of Service RepurposedN
Out Of ServiceYPlugging Due Date
12/31/2028
Inactive ExceptionN
Noticed InactiveN
Defined InactiveN
Low ProducingN

BOE/MCFE/GOR Calculations
Production for Previous 12 Months
January 2025 - December 2025i
Total Oil Produced (Barrels)0
Total Gas Produced (MCF)0
GOR
GOR Determination
Average BOE per Day0.000
Average MCFE per Day0.000

 Federal Financial Assurance  i

 Tribal Well  i No
