COGIS - WELL SCOUT CARD

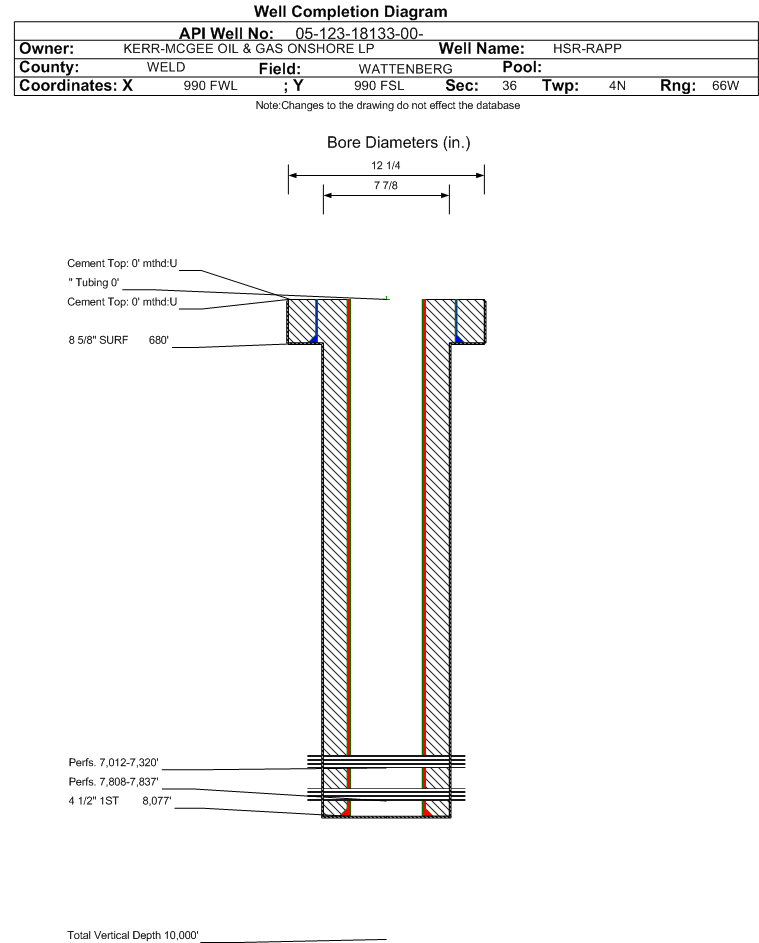

Click image to view related facilities. Related  Click image to view inspection information. InspClick image to view MIT information. MITClick image to access interactive map at well/facility location. GISClick image to view imaged documents for this well/facility. DocClick image to view imaged documents for this well/facility. COAClick image to view wellbore completion diagram. WellboreClick image to search for orders within this facility's section. OrdersClick image to view bradenhead scoutcard data. Bradenhead
 Surface Location
 API# 05-123-18133		Well Classification: GW Status: SI - 5/1/2025
Well Name/No:HSR-RAPP #13-36
(Click Well Name for Production Data)		Click Here for Transporter Gatherer Info
Operator:KERR MCGEE OIL & GAS ONSHORE LP - 47120
(Click Operator Name for Company Detail Report)		Federal Or State Lease #:70/8155-S
Facility Status:SIStatus Date5/1/2025
FacilityID:250330LocationID:329978
County:WELD #123Location:SWSW 36 4N66W 6
Field:WATTENBERG - #90750Elevation:4854 ft.
Planned Location:990FSL  990 FWLLat/Long: 40.263814 / -104.731017Lat/Long Source: Field Measured
As Drilled Location:Footages Not AvailableLat/Long: 40.263814 / -104.731017Lat/Long Source: Field Measured
 Wellbore And Formation Details -- select either a wellbore Or formation to expand.


Wellbore #00             Wellbore Classification: GW             Status: SI - 5/1/2025             Measured TD: 8091 ft.    Vertical TD: 0 ft.

 Wellbore Data for Original WellboreWellbore Classification: GW        SI - 5/1/2025
Wellbore Permit
Permit #: Expiration Date:1/6/2011
Proposed Depth/Form:8094 ft.
Surface Mineral Owner Same:No
Mineral Owner:STATESurface Owner:FEE
Unit: Unit Number:
Formation And Spacing:Code: JSND , Formation: J SAND , Order: 15 , Unit Acreage: 320, Drill Unit: S2
Formation And Spacing:Code: NB-CD , Formation: NIOBRARA-CODELL , Order: 407 , Unit Acreage: 160, Drill Unit: SW/4
Casing:String Type: SURF, Hole Size: 12.25 in., Size: 8.625 in., Top: , Depth: 680 ft., Weight: 24 , Citings Type: PLANNED
Cement:Sacks: 475, Top: 0 ft., Bottom: 680 ft.
Casing:String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: , Depth: 8077 ft., Weight: 11.6 , Citings Type: PLANNED
Cement:Sacks: 680, Top: 3840 ft., Bottom: 8077 ft.
Casing:String Type: S.C. 1.1, Hole Size: , Size: , Top: , Depth: 100 ft., Weight: , Citings Type: PLANNED
Cement:Sacks: 100, Top: 7308 ft., Bottom: 7311 ft.
Wellbore Completed
Completion Date:4/16/1994
Measured TD:8091 ft.Measured PB depth:7980 ft.
True Vertical TD:0 ft.True Vertical PB depth:
Casing:String Type: SURF, Hole Size: 12.25 in., Size: 8.625 in., Top: 0 ft., Depth: 680 ft., Weight: 24 , Citings Type: ACTUAL
Cement:Sacks: 475, Top: 0 ft., Bottom: 680 ft., Determination Method: VISU
Casing:String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: 0 ft., Depth: 8077 ft., Weight: 11.6 , Citings Type: ACTUAL
Cement:Sacks: 680, Top: 3820 ft., Bottom: 8077 ft., Determination Method: CBL
FormationInterval TopLog BottomCoredDSTs
FOX HILLS200 ft.
SUSSEX4429 ft.
SHANNON4930 ft.
NIOBRARA7008 ft.
FORT HAYS7280 ft.
CODELL7301 ft.
CARLILE7317 ft.
GREENHORN7366 ft.
J SAND7765 ft.
DAKOTA7985 ft.

Formation JSND                     Formation Classification:  GW                     Status:  TA - 2/1/2017                  Interval Top: 7808 ft.    Interval Bottom: 7837 ft.

 Completed Information for Formation J SAND
1st Production Date:4/16/1994Choke Size:
Formation Name:J SANDCommingled:No
Production Method:
Open Hole Completion:No
Formation Treatment
Treatment Date:4/5/2010
Treatment Summary:SET SAND PLUG AT 7600 FOR MECHANICAL INTEGRITY. OUR INTENT IS TO DRILL OUT SAND PLUG AND COMMINGLE THE WELL IN THE NEXT SIX MONTHS.
Tubing Size:Tubing Setting Depth:
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
No Initial Test Data was found for formation JSND.
Perforation Data:
Interval Top:7808 ft.# Of Holes:29
Interval Bottom:7837 ft.Hole Size:0.38 in.

Formation NB-CD                   Formation Classification:  GW                   Status:  SI - 4/1/2022                  Interval Top: 7012 ft.    Interval Bottom: 7320 ft.

 Completed Information for Formation NIOBRARA-CODELL
1st Production Date:4/15/2010Choke Size:0.156 in.
Formation Name:NIOBRARA-CODELLCommingled:No
Production Method:
Open Hole Completion:No
Formation Treatment
Treatment Date:4/12/2010
Treatment Summary:NB PERF 7012-7174 HOLES 62 @.38. CD PERF 7304-7320 HOLES 64@.38. FRAC NB W/500 GAL HCI 244089 GAL SW W/200250# 40/70 & 4000# 20/40 SB EXCEL. FRAC CD W/ 211013 GAL SW W/150720# 40/70 & 4000# 20/40 SB EXCEL.
Tubing Size:Tubing Setting Depth:
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:4/29/2010Test Method:FLOWING
Hours Tested:Gas Type:SHALE
Gas Disposal:SOLD
Test TypeMeasure
BTU_GAS 1202
CALC_BBLS_OIL 115
CALC_GOR 8870
CALC_MCF_GAS 1020
CASING_PRESS 1700
Perforation Data:
Interval Top:7012 ft.# Of Holes:126
Interval Bottom:7320 ft.Hole Size:0.38 in.
Primary Well Designation:
Out Of Service      i
            All DesignationsDate
Reported PluggedN
Out Of Service RepurposedN
Out Of ServiceYPlugging Due Date
12/31/2030
Inactive ExceptionN
Noticed InactiveN
Defined Inactive (SI )YDefined Inactive
04/29/2024
Low ProducingYProduction Period
04/2024 - 03/2025

BOE/MCFE/GOR Calculations
Production for Previous 12 Months
April 2024 - March 2025i
Total Oil Produced (Barrels)0
Total Gas Produced (MCF)0
GOR
GOR DeterminationMCFE
Average BOE per Day0.000
Average MCFE per Day0.000

 Federal Financial Assurance  i

 Tribal Well  i No
