COGIS - WELL SCOUT CARD

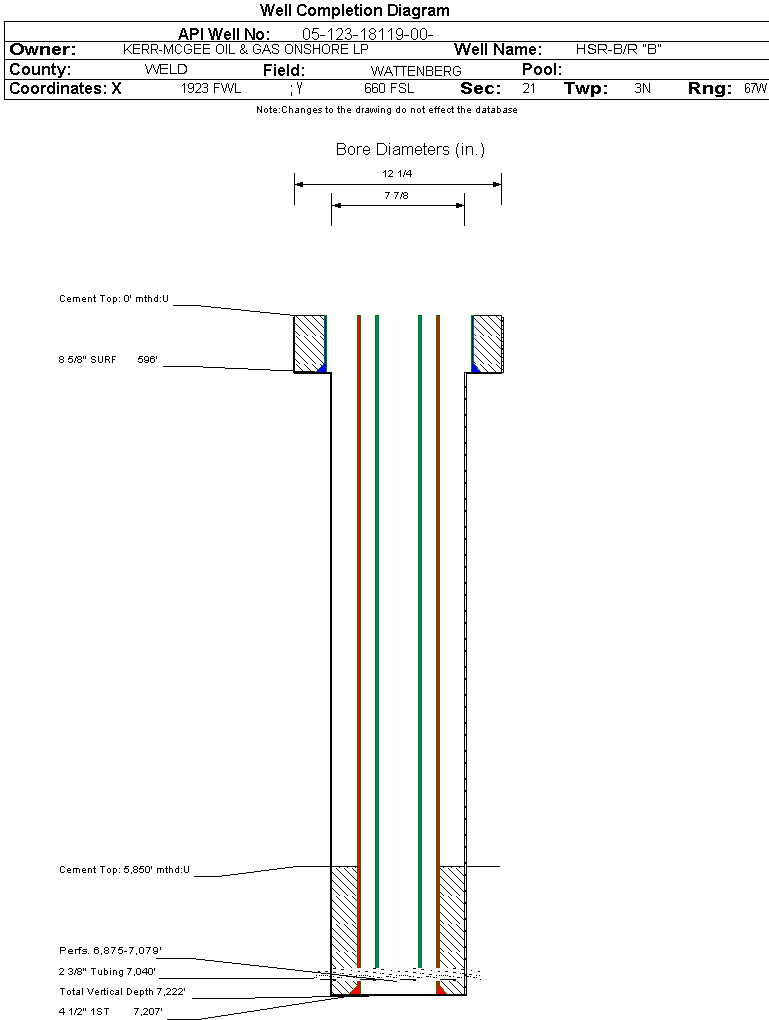

Click image to view related facilities. Related  Click image to view inspection information. InspClick image to view MIT information. MITClick image to access interactive map at well/facility location. GISClick image to view imaged documents for this well/facility. DocClick image to view imaged documents for this well/facility. COAClick image to view wellbore completion diagram. WellboreClick image to search for orders within this facility's section. OrdersClick image to view bradenhead scoutcard data. Bradenhead
 Surface Location
 API# 05-123-18119		Well Classification: GW Status: PA - 9/11/2024
Well Name/No:HSR-B/R "B" #14-21
(Click Well Name for Production Data)		Click Here for Transporter Gatherer Info
Operator:KERR MCGEE OIL & GAS ONSHORE LP - 47120
(Click Operator Name for Company Detail Report)		Federal Or State Lease #:61820
Facility Status:PAStatus Date9/11/2024
FacilityID:250316LocationID:329972
County:WELD #123Location:SESW 21 3N67W 6
Field:WATTENBERG - #90750Elevation:4785 ft.
Planned Location:660FSL  1923 FWLLat/Long: 40.205776 / -104.897814Lat/Long Source: Calculated From Footages
As Drilled Location:658 FSL  1937 FWLLat/Long: 40.205819 / -104.897613Lat/Long Source: Field Measured
 Wellbore And Formation Details -- select either a wellbore Or formation to expand.


Wellbore #00             Wellbore Classification: GW             Status: PA - 9/9/2024             Measured TD: 7222 ft.

 Wellbore Data for Original WellboreWellbore Classification: GW        PA - 9/9/2024
Wellbore Permit
Permit #:19940308 Expiration Date:9/7/1994
Proposed Depth/Form:7235 ft.
Surface Mineral Owner Same:Yes
Mineral Owner:FEESurface Owner:FEE
Unit: Unit Number:
Formation And Spacing:Code: NB-CD , Formation: NIOBRARA-CODELL , Order: 407 , Unit Acreage: 80, Drill Unit: S2SW
Wellbore Completed
Completion Date:4/5/1994
Spud Date:3/12/1994Spud Date Is:ACTUAL
Measured TD:7222 ft.Measured PB depth:7160 ft.
True Vertical TD:True Vertical PB depth:
Log Types:DIL/SFL/GR; CBL; DEN/GR
Casing:String Type: SURF, Hole Size: 12.25 in., Size: 8.625 in., Top: 0 ft., Depth: 596 ft., Weight: 24 , Citings Type: ACTUAL
Cement:Sacks: 420, Top: 0 ft., Bottom: 596 ft., Determination Method: VISU
Casing:String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: 0 ft., Depth: 7207 ft., Weight: 11.6 , Citings Type: ACTUAL
Cement:Sacks: 200, Top: 5870 ft., Bottom: 7207 ft., Determination Method: CBL
FormationInterval TopLog BottomCoredDSTs
FOX HILLS100 ft.200 ft.NN
SUSSEX4148 ft.4217 ft.NN
SHANNON4579 ft.4608 ft.NN
NIOBRARA6823 ft.7049 ft.NN
FORT HAYS7049 ft.7071 ft.NN
CODELL7071 ft.7080 ft.NN
CARLILE7080 ft.7146 ft.NN
GREENHORN7146 ft.NN

Formation NB-CD                   Formation Classification:  GW                   Status:  AB - 9/11/2024                 Interval Top: 6875 ft.    Interval Bottom: 7079 ft.

 Completed Information for Formation NIOBRARA-CODELL
1st Production Date:4/5/1994Choke Size:0.187 in.
Formation Name:NIOBRARA-CODELLCommingled:
Production Method:FLOWING
Open Hole Completion:
Formation Treatment
Treatment Date:4/5/1994
Treatment Summary:FRAC W/ 412000# 20/40 MESH SAND PLUS 109152 GALS GELLED FLUID
Tubing Size:2.375 in.Tubing Setting Depth:7040 ft.
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:4/14/1994Test Method:FLOWING
Hours Tested:24Gas Type:SHALE
Gas Disposal:SOLD
Test TypeMeasure
BBLS_H2O 0
BBLS_OIL 54
CALC_BBLS_H2O 0
CALC_BBLS_OIL 54
CALC_GOR 1259
CALC_MCF_GAS 68
CASING_PRESS 1700
MCF_GAS 68
TUBING_PRESS 1200
Perforation Data:
Interval Top:6875 ft.# Of Holes:18
Interval Bottom:7079 ft.Hole Size:0.31 in.
Primary Well Designation:
None      i
            All DesignationsDate
Reported PluggedY09/11/2024
Out Of Service RepurposedN
Out Of ServiceN
Inactive ExceptionN
Noticed InactiveN
Defined InactiveN
Low ProducingN

BOE/MCFE/GOR Calculations
Production for Previous 12 Months
February 2024 - January 2025i
Total Oil Produced (Barrels)0
Total Gas Produced (MCF)840
GOR
GOR DeterminationMCFE
Average BOE per Day0.393
Average MCFE per Day2.293

 Federal Financial Assurance  i

 Tribal Well  i No
