Wellbore #00 Wellbore Classification: GW Status: PA - 3/13/2023 Measured TD: 7330 ft. Vertical TD: 0 ft.| Wellbore Data for Original Wellbore | Wellbore Classification: GW PA - 3/13/2023 | | Wellbore Permit | | | Permit #: | 931948 | Expiration Date: | 4/16/1994 | | Proposed Depth/Form: | | | Surface Mineral Owner Same: | Not available | | Mineral Owner: | FEE | Surface Owner: | Not available | | Unit: | | Unit Number: | | | Formation And Spacing: | Code: NB-CD , Formation: NIOBRARA-CODELL , Order: 0 , Unit Acreage: 160, Drill Unit: SE4 |
| | |

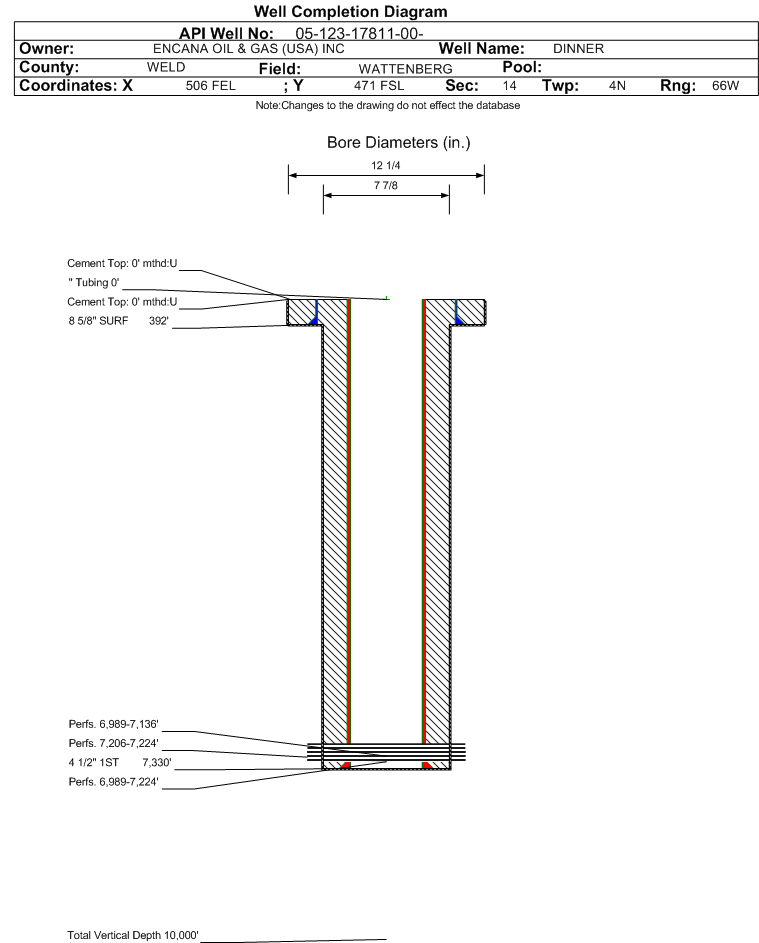

| Wellbore Completed | | Completion Date: | 2/18/1994 | | Measured TD: | 7330 ft. | Measured PB depth: | 0 ft. | | True Vertical TD: | 0 ft. | True Vertical PB depth: | | | Casing: | String Type: SURF, Hole Size: 12.25 in., Size: 8.625 in., Top: 0 ft., Depth: 392 ft., Weight: 24 , Citings Type: ACTUAL | | Cement: | Sacks: 355, Top: 0 ft., Bottom: 392 ft., Determination Method: VISU | | Casing: | String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: 0 ft., Depth: 7330 ft., Weight: 11.6 , Citings Type: ACTUAL | | Cement: | Sacks: 500, Top: 6550 ft., Bottom: 7330 ft., Determination Method: CBL | | Casing: | String Type: S.C. 1.1, Hole Size: , Size: , Top: , Depth: 5150 ft., Weight: , Citings Type: ACTUAL | | Cement: | Sacks: 160, Top: 4020 ft., Bottom: 5150 ft., Determination Method: CBL | | Formation | Interval Top | Log Bottom | Cored | DSTs | | SUSSEX | 4136 ft. | | | | | NIOBRARA | 6980 ft. | | | | | FORT HAYS | 7182 ft. | | | | | CODELL | 7206 ft. | | | | | GREENHORN | 7250 ft. | | | |
Formation CODL Formation Classification: GW Status: CM - 4/18/2012 Interval Top: 7206 ft. Interval Bottom: 7224 ft.| Completed Information for Formation CODELL | | 1st Production Date: | 2/18/1994 | Choke Size: | | | Formation Name: | CODELL | Commingled: | Yes | | Production Method: | | | Open Hole Completion: | |
| | Formation Treatment | | Treatment Date: | 10/20/2011 | | Treatment Summary: | Frac'd 7206-7224 w/114,244 gal frac fluid and 251,180 # sand.
CIBP set @ 7250 on 10/18/11 and sand plug pumped @ 7220 on 10/20/11. |
| | Tubing Size: | | Tubing Setting Depth: | | | Tubing Packer Depth: | | Tubing Multiple Packer: | | | Open Hole Top: | | Open Hole Bottom: | | | No Initial Test Data was found for formation CODL. |
| | Perforation Data: | | Interval Top: | 7206 ft. | # Of Holes: | 144 | | Interval Bottom: | 7224 ft. | Hole Size: | |
|
Formation NBRR Formation Classification: GW Status: CM - 4/18/2012 Interval Top: 6989 ft. Interval Bottom: 7136 ft.| Completed Information for Formation NIOBRARA | | 1st Production Date: | 2/18/1994 | Choke Size: | | | Formation Name: | NIOBRARA | Commingled: | Yes | | Production Method: | | | Open Hole Completion: | |
| | Formation Treatment | | Treatment Date: | 10/20/2011 | | Treatment Summary: | Frac’d 6989-7136’ w/ 127,928 gal frac fluid and 252,280 # sand.
Pumped sand plug @ 7148. |
| | Tubing Size: | | Tubing Setting Depth: | | | Tubing Packer Depth: | | Tubing Multiple Packer: | | | Open Hole Top: | | Open Hole Bottom: | | | No Initial Test Data was found for formation NBRR. |
| | Perforation Data: | | Interval Top: | 6989 ft. | # Of Holes: | 344 | | Interval Bottom: | 7136 ft. | Hole Size: | |
|
Formation NB-CD Formation Classification: GW Status: AB - 3/13/2023 Interval Top: 6986 ft. Interval Bottom: 7224 ft.| Completed Information for Formation NIOBRARA-CODELL | | 1st Production Date: | 2/18/1994 | Choke Size: | | | Formation Name: | NIOBRARA-CODELL | Commingled: | No | | Production Method: | | | Open Hole Completion: | No |
| | Formation Treatment | | Treatment Date: | 2/18/1994 | | Treatment Summary: | NB-CD RECOMPLETION. SET CBP @ 7180'. 02-08-04. NB-CD COMMINGLE. FRAC'D THE NIOBRARA W/139,020 GAL FRAC FLUID AND 200,490# 20/40 SAND. 02-09-04. FRAC'D THE NIOBRARA- CODELL W/250,900# 20/40 FRAC SAND, 1PPG-4PPG IN 132,157 GALS FLUID. 02-07-01 (CONT) |
| | Tubing Size: | | Tubing Setting Depth: | | | Tubing Packer Depth: | | Tubing Multiple Packer: | | | Open Hole Top: | | Open Hole Bottom: | | | Initial Test Data: | | Test Date: | N/A | Test Method: | | | Hours Tested: | | Gas Type: | | | Gas Disposal: | | |
| Test Type | Measure |
|---|
| BBLS_H2O | 15 | | BBLS_OIL | 9 | | CALC_BBLS_H2O | 15 | | CALC_BBLS_OIL | 9 | | CALC_GOR | 23667 | | CALC_MCF_GAS | 213 | | CASING_PRESS | 425 | | MCF_GAS | 213 | | TUBING_PRESS | 140 |
| | Perforation Data: | | Interval Top: | 6986 ft. | # Of Holes: | 488 | | Interval Bottom: | 7224 ft. | Hole Size: | 0.42 in. |
|
|
|
|
|
|
|
| Reported Plugged | Y | 03/13/2023 |
| Out Of Service Repurposed | N | |
| Out Of Service | N | |
| Inactive Exception | N | |
| Noticed Inactive | Y | Noticed Date
12/08/2022 |
| Defined Inactive | N | |
| Low Producing | N | |
| Total Oil Produced (Barrels) | 0 |
| Total Gas Produced (MCF) | 0 |
| GOR | |
| GOR Determination | MCFE |
| Average BOE per Day | 0.000 |
| Average MCFE per Day | 0.000 |
| Federal Financial Assurance | i | |
|
|
