 Surface Location
 API# 05-123-17810		Well Classification: GW Status: PA - 3/13/2023
Well Name/No:DINNER #14-A-1
(Click Well Name for Production Data)		Click Here for Transporter Gatherer Info
Operator:PDC ENERGY INC - 69175
(Click Operator Name for Company Detail Report)		Federal Or State Lease #:61861
Facility Status:PAStatus Date3/13/2023
FacilityID:250007LocationID:332753
County:WELD #123Location:NESE 14 4N66W 6
Field:WATTENBERG - #90750Elevation:4720 ft.
Planned Location:1791FSL  862 FELLat/Long: 40.309456 / -104.738100Lat/Long Source: Calculated From Footages
As Drilled Location:Footages Not AvailableLat/Long: 40.309605 / -104.738045Lat/Long Source: Field Measured
 Wellbore And Formation Details -- select either a wellbore Or formation to expand.


Wellbore #00             Wellbore Classification: GW             Status: PA - 3/13/2023             Measured TD: 7372 ft.    Vertical TD: 0 ft.

 Wellbore Data for Original WellboreWellbore Classification: GW        PA - 3/13/2023
Wellbore Permit
Permit #:931947 Expiration Date:4/16/1994
Proposed Depth/Form:
Surface Mineral Owner Same:Not available
Mineral Owner:FEESurface Owner:Not available
Unit: Unit Number:
Formation And Spacing:Code: NB-CD , Formation: NIOBRARA-CODELL , Order: 0 , Unit Acreage: 160, Drill Unit: SE4
Wellbore Completed
Completion Date:2/19/1994
Measured TD:7372 ft.Measured PB depth:0 ft.
True Vertical TD:0 ft.True Vertical PB depth:

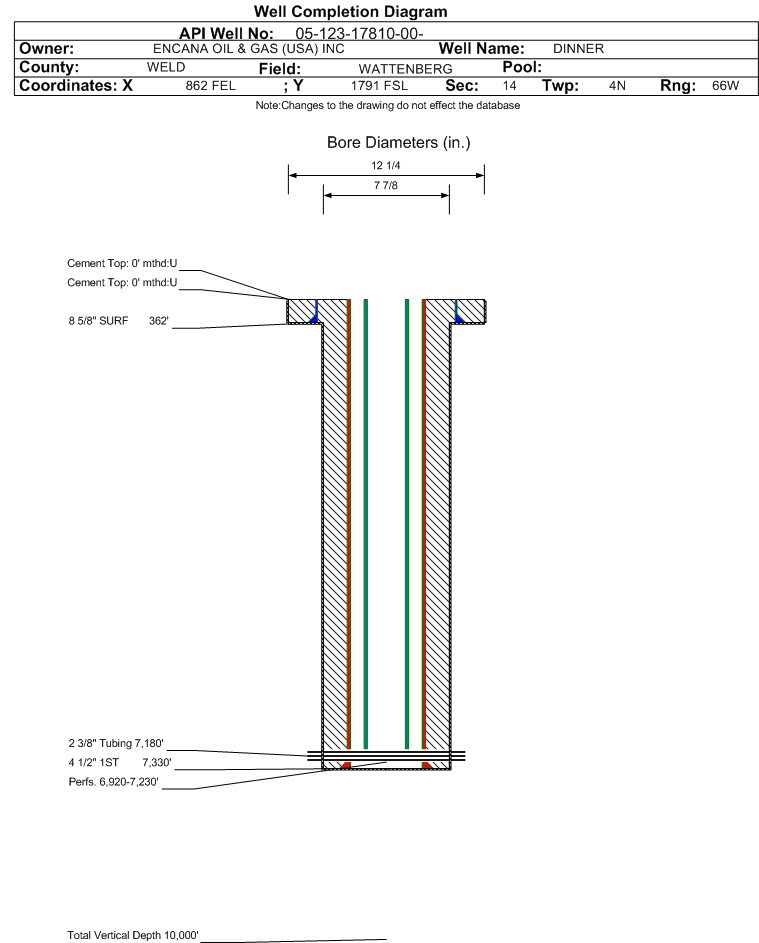

Casing:String Type: SURF, Hole Size: 12.25 in., Size: 8.625 in., Top: 0 ft., Depth: 362 ft., Weight: 24 , Citings Type: ACTUAL
Cement:Sacks: 300, Top: 0 ft., Bottom: 362 ft., Determination Method: VISU
Casing:String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: 0 ft., Depth: 7330 ft., Weight: 11.6 , Citings Type: ACTUAL
Cement:Sacks: 540, Top: 6250 ft., Bottom: 7341 ft., Determination Method: CBL
Casing:String Type: S.C. 1.1, Hole Size: , Size: , Top: , Depth: 4740 ft., Weight: , Citings Type: ACTUAL
Cement:Sacks: 220, Top: 3650 ft., Bottom: 4740 ft., Determination Method: CBL
FormationInterval TopLog BottomCoredDSTs
SUSSEX4134 ft.
NIOBRARA6880 ft.
FORT HAYS7188 ft.
CODELL7212 ft.
CARLILE7228 ft.
GREENHORN7250 ft.

Formation NB-CD                   Formation Classification:  GW                   Status:  AB - 3/13/2023                 Interval Top: 6897 ft.    Interval Bottom: 7230 ft.

 Completed Information for Formation NIOBRARA-CODELL
1st Production Date:2/19/1994Choke Size:
Formation Name:NIOBRARA-CODELLCommingled:No
Production Method:
Open Hole Completion:No
Formation Treatment
Treatment Date:2/5/2010
Treatment Summary:NIOBRARA - FRACED WITH 150,906 GAL FRAC FLUID AND 250,940 # SAND. CODELL - FRACED WITH 116,844 GAL FRAC FLUID AND 250,420# SAND.
Tubing Size:Tubing Setting Depth:
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:N/ATest Method:
Hours Tested:Gas Type:
Gas Disposal:
Test TypeMeasure
BBLS_H2O 16
BBLS_OIL 10
BTU_GAS 1240
CALC_BBLS_H2O 16
CALC_BBLS_OIL 10
CALC_GOR 25100
CALC_MCF_GAS 251
CASING_PRESS 497
GRAVITY_OIL 64
MCF_GAS 251
TUBING_PRESS 431
Perforation Data:
Interval Top:6897 ft.# Of Holes:468
Interval Bottom:7230 ft.Hole Size:0.38 in.
Primary Well Designation:
None      i
            All DesignationsDate
Reported PluggedY03/13/2023
Out Of Service RepurposedN
Out Of ServiceN
Inactive ExceptionN
Noticed InactiveYNoticed Date
12/08/2022
Defined InactiveN
Low ProducingN

BOE/MCFE/GOR Calculations
Production for Previous 12 Months
May 2024 - April 2025i
Total Oil Produced (Barrels)0
Total Gas Produced (MCF)0
GOR
GOR DeterminationMCFE
Average BOE per Day0.000
Average MCFE per Day0.000

 Federal Financial Assurance  i

 Tribal Well  i No
