COGIS - WELL SCOUT CARD
Click image to view related facilities. Related  Click image to view inspection information. InspClick image to view MIT information. MITGIS Map GISOld GIS Map Old GISClick image to view imaged documents for this well/facility. DocClick image to view imaged documents for this well/facility. COAClick image to view wellbore completion diagram. WellboreClick image to search for orders within this facility's section. OrdersClick image to view bradenhead scoutcard data. Bradenhead
 Surface Location
 API# 05-123-17663		Well Classification: GW Status: SI - 8/1/2024
Well Name/No:LEWIS TRUST #33-13
(Click Well Name for Production Data)		Click Here for Transporter Gatherer Info
Operator:KP KAUFFMAN COMPANY INC - 46290
(Click Operator Name for Company Detail Report)		Federal Or State Lease #:
Facility Status:SIStatus Date8/1/2024
FacilityID:249860LocationID:329653
County:WELD #123Location:NWSE 13 1N67W 6
Field:SPINDLE - #77900Elevation:4923 ft.
Basin:DENVER (DJ) BASIN
Planned Location:1865FSL  1934 FELLat/Long: 40.048818 / -104.836791Lat/Long Source: Calculated From Footages
As Drilled Location:Footages Not AvailableLat/Long: 40.048940 / -104.836670Lat/Long Source: Field Measured
 Wellbore And Formation Details -- select either a wellbore Or formation to expand.


Wellbore #00             Wellbore Classification: GW             Status: SI - 8/1/2024             Measured TD: 4920 ft.    Vertical TD: 0 ft.

 Wellbore Data for Original WellboreWellbore Classification: GW        SI - 8/1/2024
Wellbore Permit
Permit #:19931734 Expiration Date:3/16/1994
Proposed Depth/Form:4823 ft.
Surface Mineral Owner Same:Not available
Mineral Owner:FEESurface Owner:Not available
Unit: Unit Number:
Formation And Spacing:Code: SUSX , Formation: SUSSEX , Order: 0 , Unit Acreage: 80, Drill Unit: N2SE
Wellbore Completed
Completion Date:12/8/1993
Spud Date:11/28/1993Spud Date Is:ACTUAL
Measured TD:4920 ft.Measured PB depth:4873 ft.
True Vertical TD:0 ft.True Vertical PB depth:
Log Types:DIL/FDC/GR-CBL

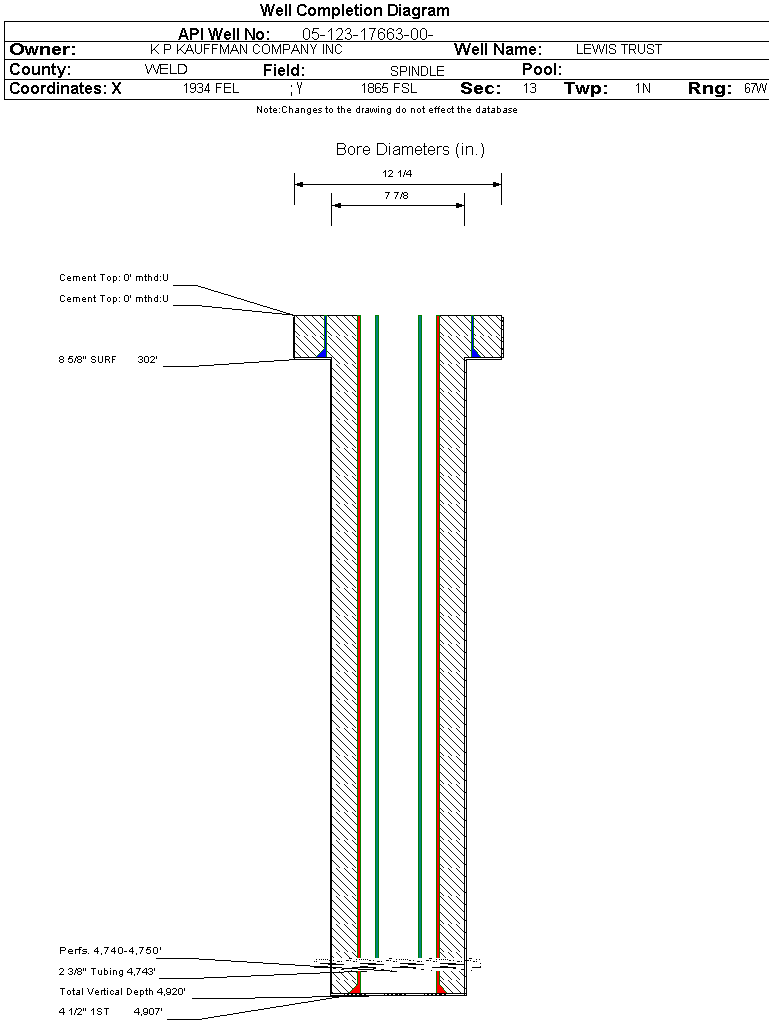

Casing:String Type: SURF, Hole Size: 12.25 in., Size: 8.625 in., Top: 0 ft., Depth: 302 ft., Weight: 24 , Citings Type: ACTUAL
Cement:Sacks: 210, Top: 0 ft., Bottom: , Determination Method:
Casing:String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: 0 ft., Depth: 4907 ft., Weight: 10.5 , Citings Type: ACTUAL
Cement:Sacks: 285, Top: 0 ft., Bottom: , Determination Method:
FormationInterval TopLog BottomCoredDSTs
SUSSEX4670 ft.

Formation SUSX                     Formation Classification:  GW                     Status:  SI - 8/1/2024                  Interval Top: 4740 ft.    Interval Bottom: 4750 ft.

 Completed Information for Formation SUSSEX
1st Production Date:1/13/1994Choke Size:0.000 in.
Formation Name:SUSSEXCommingled:
Production Method:PUMPING
Open Hole Completion:
Tubing Size:2.375 in.Tubing Setting Depth:4743 ft.
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:3/5/1994Test Method:PUMPING
Hours Tested:24Gas Type:
Gas Disposal:SOLD
Test TypeMeasure
BBLS_OIL 13
CALC_BBLS_OIL 13
CALC_GOR 2692
CALC_MCF_GAS 35
CASING_PRESS 50
MCF_GAS 35
TUBING_PRESS 50
Perforation Data:
Interval Top:4740 ft.# Of Holes:20
Interval Bottom:4750 ft.Hole Size:
Primary Well Designation:
Defined Inactive      i
            All DesignationsDate
Reported PluggedN
Out Of Service RepurposedN
Out Of ServiceN
Inactive ExceptionN
Noticed InactiveN
Defined Inactive (SI )YDefined Inactive
07/31/2024
Low ProducingYProduction Period
12/2024 - 11/2025

BOE/MCFE/GOR Calculations
Production for Previous 12 Months
December 2024 - November 2025i
Total Oil Produced (Barrels)0
Total Gas Produced (MCF)0
GOR
GOR DeterminationMCFE
Average BOE per Day0.000
Average MCFE per Day0.000

 Federal Financial Assurance  i

 Tribal Well  i No
