COGIS - WELL SCOUT CARD

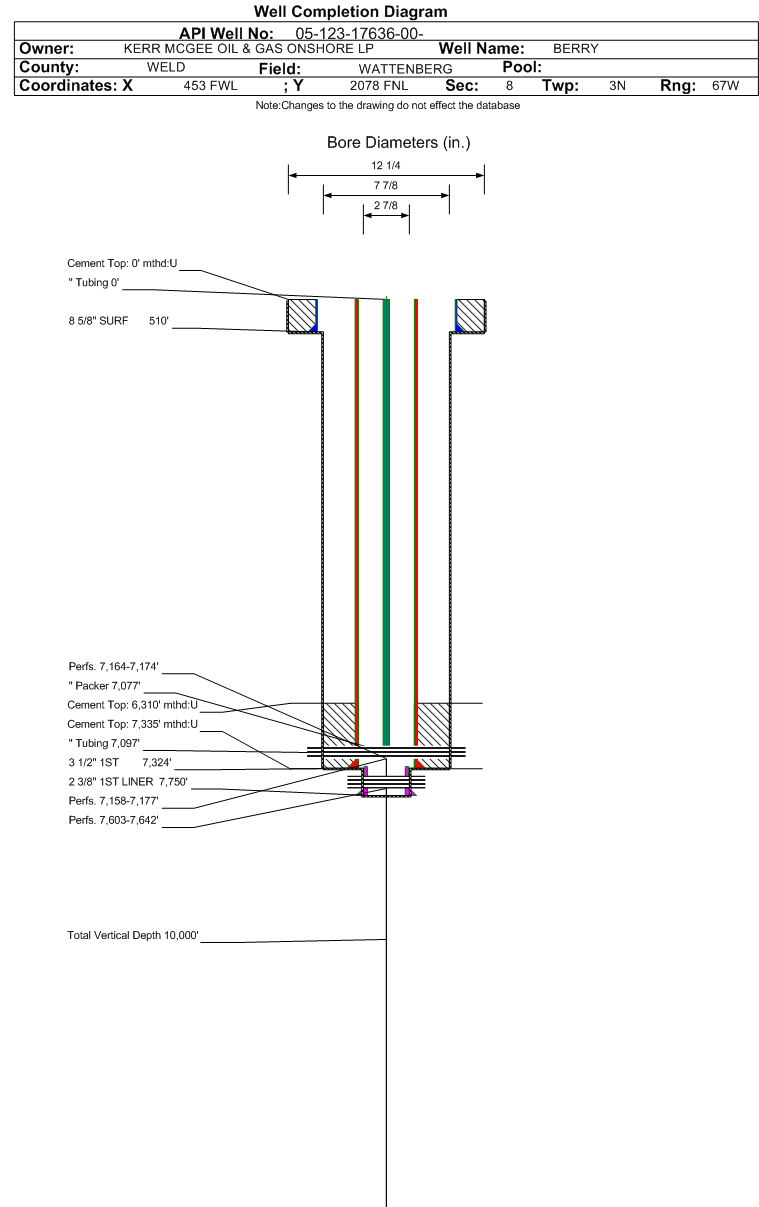

Click image to view related facilities. Related  Click image to view inspection information. InspClick image to view MIT information. MITClick image to access interactive map at well/facility location. GISClick image to view imaged documents for this well/facility. DocClick image to view imaged documents for this well/facility. COAClick image to view wellbore completion diagram. WellboreClick image to search for orders within this facility's section. OrdersClick image to view bradenhead scoutcard data. Bradenhead
 Surface Location
 API# 05-123-17636		Well Classification: GW Status: PA - 1/25/2017
Well Name/No:BERRY #8-5L
(Click Well Name for Production Data)		Click Here for Transporter Gatherer Info
Operator:KERR MCGEE OIL & GAS ONSHORE LP - 47120
(Click Operator Name for Company Detail Report)		Federal Or State Lease #:
Facility Status:PAStatus Date1/25/2017
FacilityID:249833LocationID:329641
County:WELD #123Location:SWNW 8 3N67W 6
Field:WATTENBERG - #90750Elevation:4841 ft.
Planned Location:2078FNL  453 FWLLat/Long: 40.242085 / -104.921725Lat/Long Source: Calculated From Footages
As Drilled Location:Footages Not AvailableLat/Long: 40.242120 / -104.921640Lat/Long Source: Field Measured
 Wellbore And Formation Details -- select either a wellbore Or formation to expand.


Wellbore #00             Wellbore Classification: GW             Status: PA - 1/25/2017             Measured TD: 7753 ft.

 Wellbore Data for Original WellboreWellbore Classification: GW        PA - 1/25/2017
Wellbore Permit
Permit #:20020807 Expiration Date:5/28/2003
Proposed Depth/Form:8000 ft.
Surface Mineral Owner Same:Yes
Mineral Owner:FEESurface Owner:FEE
Unit: Unit Number:
Formation And Spacing:Code: JSND , Formation: J SAND , Order: 318A , Unit Acreage: 320, Drill Unit: W/2
Formation And Spacing:Code: NB-CD , Formation: NIOBRARA-CODELL , Order: 407 , Unit Acreage: 80, Drill Unit: S2NW
Wellbore Completed
Completion Date:1/3/1994
Spud Date:12/14/1993Spud Date Is:ACTUAL
Measured TD:7753 ft.Measured PB depth:7742 ft.
True Vertical TD:True Vertical PB depth:4852 ft.
Log Types:CBL DIFL/GR; CDL/GR; CCL
Casing:String Type: SURF, Hole Size: 12.25 in., Size: 8.625 in., Top: 0 ft., Depth: 510 ft., Weight: 23 , Citings Type: ACTUAL
Cement:Sacks: 290, Top: 0 ft., Bottom: 510 ft., Determination Method: VISU
Casing:String Type: 1ST, Hole Size: 7.875 in., Size: 3.5 in., Top: 0 ft., Depth: 7324 ft., Weight: 7.7 , Citings Type: ACTUAL
Cement:Sacks: 195, Top: 6310 ft., Bottom: 7324 ft., Determination Method: CBL
Casing:String Type: 1ST LINER, Hole Size: 2.875 in., Size: 2.375 in., Top: 7300 ft., Depth: 7750 ft., Weight: 4.7 , Citings Type: ACTUAL
Cement:Sacks: 4, Top: 7335 ft., Bottom: 7750 ft., Determination Method: CBL
FormationInterval TopLog BottomCoredDSTs
PARKMAN3545 ft.NN
SUSSEX3995 ft.NN
NIOBRARA6910 ft.NN
FORT HAYS7137 ft.NN
CODELL7156 ft.NN
J SAND7605 ft.NN

Formation JSND                     Formation Classification:  GW                     Status:  AB - 1/25/2017                 Interval Top: 7603 ft.    Interval Bottom: 7642 ft.

 Completed Information for Formation J SAND
1st Production Date:N/AChoke Size:
Formation Name:J SANDCommingled:No
Production Method:
Open Hole Completion:No
Formation Treatment
Treatment Date:1/3/1994
Treatment Summary:ISOLATED WITH SAND PLUG SET @ 7360', 1/11/05.
Tubing Size:Tubing Setting Depth:
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:11/27/2002Test Method:FLOWING
Hours Tested:24Gas Type:
Gas Disposal:SOLD
Test TypeMeasure
BBLS_H2O 22
BBLS_OIL 1
CALC_BBLS_H2O 22
CALC_BBLS_OIL 1
CALC_GOR 100000
CALC_MCF_GAS 100
CASING_PRESS 400
MCF_GAS 100
TUBING_PRESS 175
Perforation Data:
Interval Top:7603 ft.# Of Holes:58
Interval Bottom:7642 ft.Hole Size:

Formation J-CDL                   Formation Classification:  GW                   Status:  CM - 1/25/2017                 Interval Top: 7164 ft.    Interval Bottom: 7174 ft.

 Completed Information for Formation J-CODELL
1st Production Date:N/AChoke Size:
Formation Name:J-CODELLCommingled:
Production Method:
Open Hole Completion:
Tubing Size:Tubing Setting Depth:
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
No Initial Test Data was found for formation J-CDL.
Perforation Data:
Interval Top:7164 ft.# Of Holes:20
Interval Bottom:7174 ft.Hole Size:

Formation CODL                     Formation Classification:  GW                     Status:  AB - 1/25/2017                 Interval Top: 7158 ft.    Interval Bottom: 7177 ft.

 Completed Information for Formation CODELL
1st Production Date:1/12/1994Choke Size:0.250 in.
Formation Name:CODELLCommingled:No
Production Method:FLOWING
Open Hole Completion:
Formation Treatment
Treatment Date:1/3/1994
Treatment Summary:FRACD W/ 52424 GAL S STR W/ CLAYTREATE W/ 35# FUAR. 190000# 20/40 SAND // RE-PERF CODELL 7158'-7177' (76 HOLES) RE-FRAC'D CODELL W/133,171 GAL VISTAR 28# GEL & 246,120# 20/40 SAND, 1/19/05
Tubing Size:Tubing Setting Depth:7097 ft.
Tubing Packer Depth:7097 ft.Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:2/3/2005Test Method:FLOWING
Hours Tested:24Gas Type:WET
Gas Disposal:SOLD
Test TypeMeasure
BBLS_H2O 10
BBLS_OIL 35
BTU_GAS 1209
CALC_BBLS_H2O 10
CALC_BBLS_OIL 35
CALC_GOR 5086
CALC_MCF_GAS 178
GRAVITY_OIL 50
MCF_GAS 178
TUBING_PRESS 200
Perforation Data:
Interval Top:7158 ft.# Of Holes:96
Interval Bottom:7177 ft.Hole Size:
Primary Well Designation:
None      i
            All DesignationsDate
Reported PluggedY01/25/2017
Out Of Service RepurposedN
Out Of ServiceN
Inactive ExceptionN
Noticed InactiveN
Defined InactiveN
Low ProducingN

BOE/MCFE/GOR Calculations
Production for Previous 12 Months
April 2024 - March 2025i
Total Oil Produced (Barrels)0
Total Gas Produced (MCF)0
GOR
GOR Determination
Average BOE per Day0.000
Average MCFE per Day0.000

 Federal Financial Assurance  i

 Tribal Well  i No
