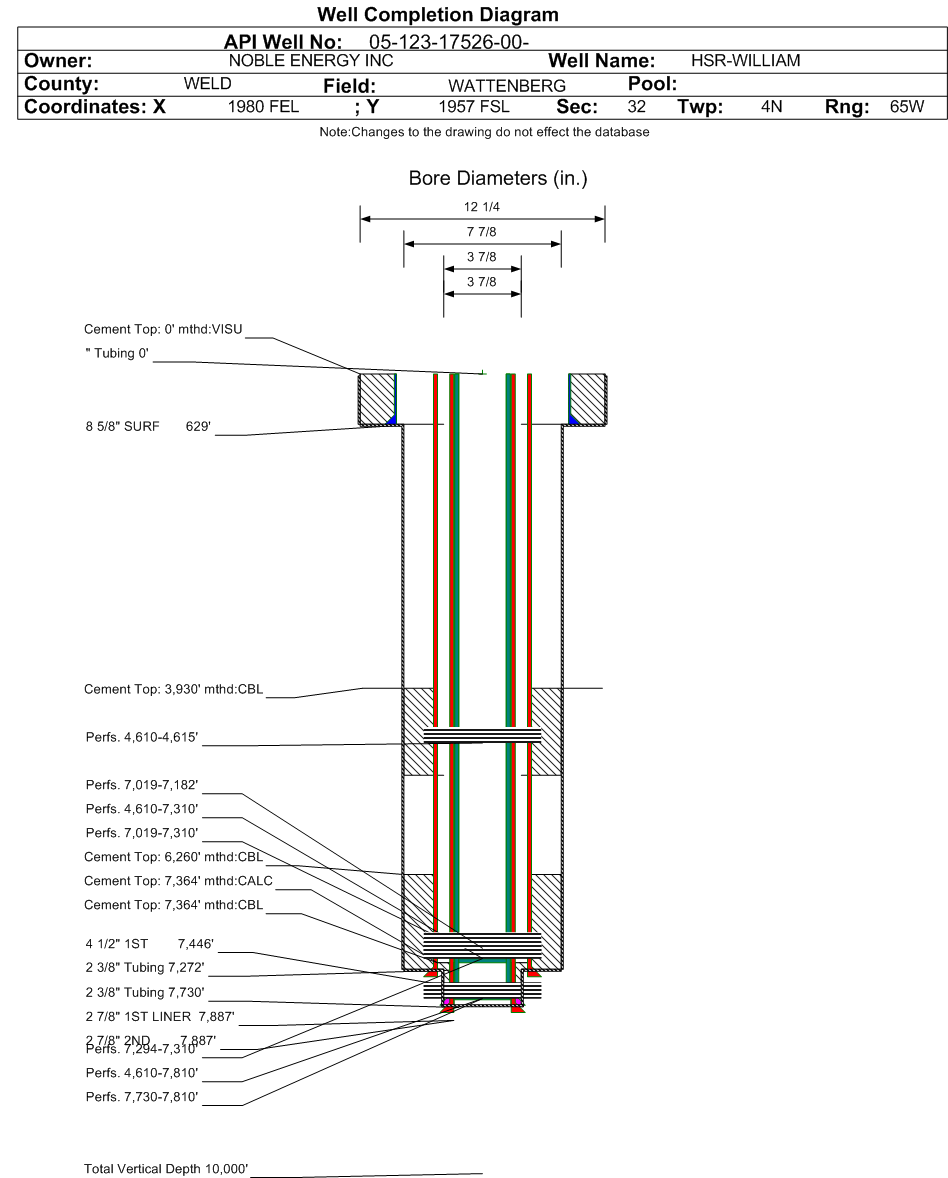

Wellbore #00 Wellbore Classification: GW Status: PA - 12/21/2020 Measured TD: 7887 ft.| Wellbore Data for Original Wellbore | Wellbore Classification: GW PA - 12/21/2020 | | Wellbore Permit | | | Permit #: | 011579 | Expiration Date: | 8/5/2002 | | Proposed Depth/Form: | 7910 ft. | | Surface Mineral Owner Same: | No | | Mineral Owner: | FEE | Surface Owner: | FEE | | Unit: | | Unit Number: | | | Formation And Spacing: | Code: JSND , Formation: J SAND , Order: 232 , Unit Acreage: 320, Drill Unit: S/2 | | Formation And Spacing: | Code: NB-CD , Formation: NIOBRARA-CODELL , Order: 0 , Unit Acreage: 80, Drill Unit: W2SE | | Casing: | String Type: SURF, Hole Size: 12.25 in., Size: 8.625 in., Top: , Depth: 629 ft., Weight: 24 , Citings Type: PLANNED | | Cement: | Sacks: 440, Top: 0 ft., Bottom: 629 ft. | | Casing: | String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: , Depth: 7446 ft., Weight: 11.6 , Citings Type: PLANNED | | Cement: | Sacks: 145, Top: 3930 ft., Bottom: 7446 ft. |
| | |
| Wellbore Completed | | Completion Date: | 1/3/2002 | | Spud Date: | 10/19/1993 | Spud Date Is: | ACTUAL | | Measured TD: | 7887 ft. | Measured PB depth: | 7854 ft. | | True Vertical TD: | | True Vertical PB depth: | | | Log Types: | CDCNGR, IGRS CBL | | Casing: | String Type: SURF, Hole Size: 12.25 in., Size: 8.625 in., Top: 0 ft., Depth: 629 ft., Weight: 24 , Citings Type: ACTUAL | | Cement: | Sacks: 440, Top: 0 ft., Bottom: 629 ft., Determination Method: VISU | | Casing: | String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: 0 ft., Depth: 7446 ft., Weight: 11.6 , Citings Type: ACTUAL | | Cement: | Sacks: 145, Top: 6260 ft., Bottom: 7446 ft., Determination Method: CBL | | Casing: | String Type: S.C. 1.1, Hole Size: , Size: , Top: , Depth: 7446 ft., Weight: , Citings Type: ACTUAL | | Cement: | Sacks: 285, Top: 3930 ft., Bottom: 5020 ft., Determination Method: CBL | | Casing: | String Type: 2ND, Hole Size: 3.875 in., Size: 2.875 in., Top: , Depth: 7887 ft., Weight: 6.5 , Citings Type: ACTUAL | | Cement: | Sacks: 21, Top: 7364 ft., Bottom: 7887 ft., Determination Method: CALC | | Casing: | String Type: 1ST LINER, Hole Size: 3.875 in., Size: 2.875 in., Top: 7364 ft., Depth: 7887 ft., Weight: 6.5 , Citings Type: ACTUAL | | Cement: | Sacks: 21, Top: 7364 ft., Bottom: 7887 ft., Determination Method: CBL | | Formation | Interval Top | Log Bottom | Cored | DSTs | | FOX HILLS | 100 ft. | | | | | SUSSEX | 4490 ft. | | N | N | | NIOBRARA | 7015 ft. | | N | N | | FORT HAYS | 7272 ft. | | N | N | | CODELL | 7294 ft. | | N | N | | GREENHORN | 7370 ft. | | | | | J SAND | 7752 ft. | | N | N |
Formation JSND Formation Classification: OW Status: AB - 12/21/2020 Interval Top: 7730 ft. Interval Bottom: 7810 ft.| Completed Information for Formation J SAND | | 1st Production Date: | 2/24/2002 | Choke Size: | | | Formation Name: | J SAND | Commingled: | No | | Production Method: | | | Open Hole Completion: | No |
| | Formation Treatment | | Treatment Date: | 3/7/2011 | | Treatment Summary: | SET SAND PLUG @ 7510'
(HOLE SIZE NOT AVAILABLE) |
| | Tubing Size: | | Tubing Setting Depth: | | | Tubing Packer Depth: | | Tubing Multiple Packer: | | | Open Hole Top: | | Open Hole Bottom: | | | No Initial Test Data was found for formation JSND. |
| | Perforation Data: | | Interval Top: | 7730 ft. | # Of Holes: | 74 | | Interval Bottom: | 7810 ft. | Hole Size: | |
|
Formation CODL Formation Classification: Status: CM - 4/1/2011 Interval Top: 7294 ft. Interval Bottom: 7310 ft.| Completed Information for Formation CODELL | | 1st Production Date: | 11/6/1993 | Choke Size: | | | Formation Name: | CODELL | Commingled: | Yes | | Production Method: | | | Open Hole Completion: | No |
| | Tubing Size: | | Tubing Setting Depth: | | | Tubing Packer Depth: | | Tubing Multiple Packer: | | | Open Hole Top: | | Open Hole Bottom: | | | No Initial Test Data was found for formation CODL. |
| | Perforation Data: | | Interval Top: | 7294 ft. | # Of Holes: | 56 | | Interval Bottom: | 7310 ft. | Hole Size: | 0.38 in. |
|
Formation NB-CD Formation Classification: OW Status: AB - 12/21/2020 Interval Top: 7019 ft. Interval Bottom: 7310 ft.| Completed Information for Formation NIOBRARA-CODELL | | 1st Production Date: | 11/6/1993 | Choke Size: | | | Formation Name: | NIOBRARA-CODELL | Commingled: | Yes | | Production Method: | | | Open Hole Completion: | No |
| | Formation Treatment | | Treatment Date: | 3/17/2011 | | Treatment Summary: | REPERF CD (3/8/2011) 7294-7310 HOLES 32 SIZE .38
Re-Frac Codell down 2-7/8" Tbg w/ Pkr ^ Nio w/ 123,509 gal Dynaflow 2 w/ 262,780# 20/40, 4,000# SuperLC. |
| | Tubing Size: | | Tubing Setting Depth: | | | Tubing Packer Depth: | | Tubing Multiple Packer: | | | Open Hole Top: | | Open Hole Bottom: | | | No Initial Test Data was found for formation NB-CD. |
| | Perforation Data: | | Interval Top: | 7019 ft. | # Of Holes: | 76 | | Interval Bottom: | 7310 ft. | Hole Size: | 0.38 in. |
|
Formation NBRR Formation Classification: Status: CM - 4/1/2011 Interval Top: 7019 ft. Interval Bottom: 7182 ft.| Completed Information for Formation NIOBRARA | | 1st Production Date: | 11/6/1993 | Choke Size: | | | Formation Name: | NIOBRARA | Commingled: | Yes | | Production Method: | | | Open Hole Completion: | No |
| | Tubing Size: | | Tubing Setting Depth: | | | Tubing Packer Depth: | | Tubing Multiple Packer: | | | Open Hole Top: | | Open Hole Bottom: | | | No Initial Test Data was found for formation NBRR. |
| | Perforation Data: | | Interval Top: | 7019 ft. | # Of Holes: | 20 | | Interval Bottom: | 7182 ft. | Hole Size: | 0.38 in. |
|
Formation JNCSX Formation Classification: GW Status: CM - 4/26/2011 Interval Top: 4610 ft. Interval Bottom: 7810 ft.| Completed Information for Formation J-CODELL-NIOBRARA-SUSSEX | | 1st Production Date: | N/A | Choke Size: | 0.281 in. | | Formation Name: | J-CODELL-NIOBRARA-SUSSEX | Commingled: | Yes | | Production Method: | PLUNGER | | Open Hole Completion: | No |
| | Formation Treatment | | Treatment Date: | 1/3/2002 | | Treatment Summary: | FRAC'D J SAND W/500420# 20/40 MESH; 211981 GAL. GELLED FLUID J SND PERFS; 7730' - 7810' COMMINGLED J SAND WITH NBCSX |
| | Tubing Size: | 2.375 in. | Tubing Setting Depth: | 7730 ft. | | Tubing Packer Depth: | | Tubing Multiple Packer: | | | Open Hole Top: | | Open Hole Bottom: | | | Initial Test Data: | | Test Date: | 2/24/2002 | Test Method: | PLUNGER | | Hours Tested: | 24 | Gas Type: | | | Gas Disposal: | SOLD | |
| Test Type | Measure |
|---|
| BBLS_OIL | 5 | | CALC_BBLS_OIL | 5 | | CALC_GOR | 83800 | | CALC_MCF_GAS | 419 | | CASING_PRESS | 500 | | GRAVITY_OIL | 60 | | MCF_GAS | 419 | | TUBING_PRESS | 350 |
| | Perforation Data: | | Interval Top: | 4610 ft. | # Of Holes: | | | Interval Bottom: | 7810 ft. | Hole Size: | |
|
Formation NBCSX Formation Classification: OG Status: CM - 4/1/2011 Interval Top: 4610 ft. Interval Bottom: 7310 ft.| Completed Information for Formation NIOBRARA-CODELL-SUSSEX | | 1st Production Date: | 3/22/2011 | Choke Size: | | | Formation Name: | NIOBRARA-CODELL-SUSSEX | Commingled: | No | | Production Method: | | | Open Hole Completion: | No |
| | Formation Treatment | | Treatment Date: | 3/17/2011 | | Treatment Summary: | CD REFRAC |
| | Tubing Size: | 2.375 in. | Tubing Setting Depth: | 7272 ft. | | Tubing Packer Depth: | | Tubing Multiple Packer: | | | Open Hole Top: | | Open Hole Bottom: | | | Initial Test Data: | | Test Date: | 4/1/2011 | Test Method: | FLOWING | | Hours Tested: | 24 | Gas Type: | SHALE | | Gas Disposal: | SOLD | |
| Test Type | Measure |
|---|
| BBLS_OIL | 3 | | BTU_GAS | 1214 | | CALC_BBLS_OIL | 3 | | CALC_GOR | 17000 | | CALC_MCF_GAS | 51 | | CASING_PRESS | 950 | | GRAVITY_OIL | 62 | | MCF_GAS | 51 | | TUBING_PRESS | 550 |
| | Perforation Data: | | Interval Top: | 4610 ft. | # Of Holes: | 91 | | Interval Bottom: | 7310 ft. | Hole Size: | 0.38 in. |
|
Formation SUSX Formation Classification: GW Status: AB - 12/21/2020 Interval Top: 4610 ft. Interval Bottom: 4615 ft.| Completed Information for Formation SUSSEX | | 1st Production Date: | N/A | Choke Size: | | | Formation Name: | SUSSEX | Commingled: | | | Production Method: | | | Open Hole Completion: | |
| | Tubing Size: | | Tubing Setting Depth: | | | Tubing Packer Depth: | | Tubing Multiple Packer: | | | Open Hole Top: | | Open Hole Bottom: | | | No Initial Test Data was found for formation SUSX. |
| | Perforation Data: | | Interval Top: | 4610 ft. | # Of Holes: | 15 | | Interval Bottom: | 4615 ft. | Hole Size: | 0.38 in. |
|
|
|
|
|
|
|
| Reported Plugged | Y | 12/21/2020 |
| Out Of Service Repurposed | N | |
| Out Of Service | N | |
| Inactive Exception | N | |
| Noticed Inactive | N | |
| Defined Inactive | N | |
| Low Producing | N | |
| Total Oil Produced (Barrels) | 0 |
| Total Gas Produced (MCF) | 0 |
| GOR | |
| GOR Determination | |
| Average BOE per Day | 0.000 |
| Average MCFE per Day | 0.000 |
| Federal Financial Assurance | i | |
|
|
