COGIS - WELL SCOUT CARD

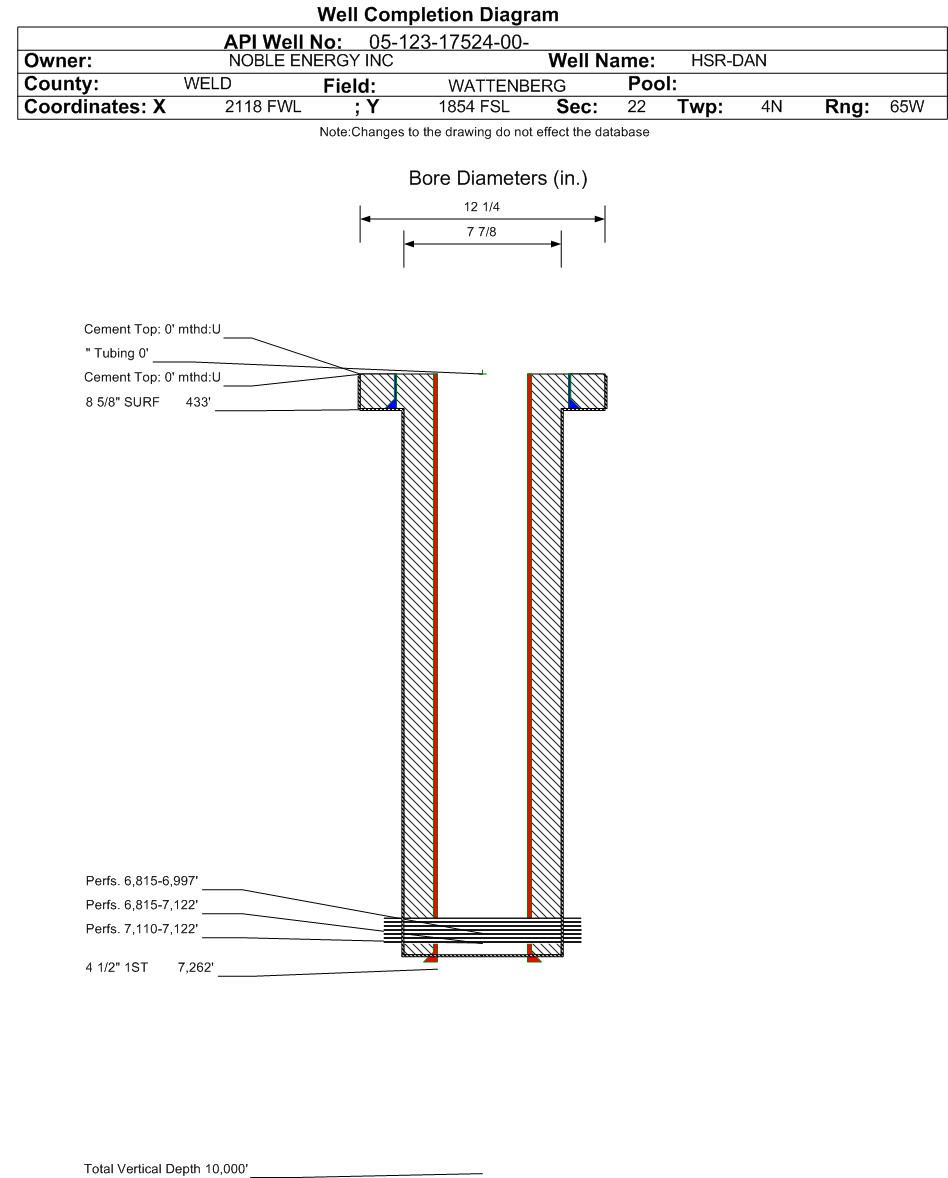

Click image to view related facilities. Related  Click image to view inspection information. InspClick image to view MIT information. MITClick image to access interactive map at well/facility location. GISClick image to view imaged documents for this well/facility. DocClick image to view imaged documents for this well/facility. COAClick image to view wellbore completion diagram. WellboreClick image to search for orders within this facility's section. OrdersClick image to view bradenhead scoutcard data. Bradenhead
 Surface Location
 API# 05-123-17524		Well Classification: GW Status: TA - 5/6/2020
Well Name/No:HSR-DAN #11-22
(Click Well Name for Production Data)		Click Here for Transporter Gatherer Info
Operator:NOBLE ENERGY INC - 100322
(Click Operator Name for Company Detail Report)		Federal Or State Lease #:61164
Facility Status:TAStatus Date5/6/2020
FacilityID:249721LocationID:329559
County:WELD #123Location:NESW 22 4N65W 6
Field:WATTENBERG - #90750Elevation:4747 ft.
Basin:DENVER (DJ) BASIN
Planned Location:1854FSL  2118 FWLLat/Long: 40.295576 / -104.651137Lat/Long Source: Calculated From Footages
As Drilled Location:Footages Not AvailableLat/Long: 40.295700 / -104.651194Lat/Long Source: Field Measured
 Wellbore And Formation Details -- select either a wellbore Or formation to expand.


Wellbore #00             Wellbore Classification: GW             Status: TA - 5/6/2020             Measured TD: 7466 ft.    Vertical TD: 0 ft.

 Wellbore Data for Original WellboreWellbore Classification: GW        TA - 5/6/2020
Wellbore Permit
Permit #:931525 Expiration Date:2/11/1994
Proposed Depth/Form:
Surface Mineral Owner Same:Not available
Mineral Owner:FEESurface Owner:Not available
Unit: Unit Number:
Formation And Spacing:Code: NB-CD , Formation: NIOBRARA-CODELL , Order: 0 , Unit Acreage: 80, Drill Unit: N2SW
Wellbore Completed
Completion Date:12/3/1993
Spud Date:11/4/1993Spud Date Is:ACTUAL
Measured TD:7466 ft.Measured PB depth:7235 ft.
True Vertical TD:0 ft.True Vertical PB depth:
Casing:String Type: SURF, Hole Size: 12.25 in., Size: 8.625 in., Top: 0 ft., Depth: 433 ft., Weight: 24 , Citings Type: ACTUAL
Cement:Sacks: 300, Top: 0 ft., Bottom: 433 ft., Determination Method: VISU
Casing:String Type: SURF, Hole Size: 12.25 in., Size: 8.625 in., Top: 0 ft., Depth: 433 ft., Weight: , Citings Type: HISTORICAL
Cement:Sacks: 300, Top: 0 ft., Bottom: , Determination Method:
Casing:String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: 0 ft., Depth: 7262 ft., Weight: 11.6 , Citings Type: ACTUAL
Cement:Sacks: 140, Top: 6184 ft., Bottom: 7262 ft., Determination Method: CBL
Casing:String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: 0 ft., Depth: 7262 ft., Weight: , Citings Type: HISTORICAL
Cement:Sacks: 0, Top: 0 ft., Bottom: , Determination Method:
Casing:String Type: S.C. 1.1, Hole Size: 7.875 in., Size: 4.5 in., Top: 0 ft., Depth: 7262 ft., Weight: 11.6 , Citings Type: ACTUAL
Cement:Sacks: 270, Top: 3950 ft., Bottom: 5198 ft., Determination Method: CBL
FormationInterval TopLog BottomCoredDSTs
SUSSEX4405 ft.
NIOBRARA6809 ft.
FORT HAYS7089 ft.
CODELL7108 ft.

Formation CODL                     Formation Classification:  GW                     Status:  CM - 5/6/2020                  Interval Top: 7110 ft.    Interval Bottom: 7122 ft.

 Completed Information for Formation CODELL
1st Production Date:3/18/1998Choke Size:
Formation Name:CODELLCommingled:Yes
Production Method:
Open Hole Completion:No
Formation Treatment
Treatment Date:12/3/1993
Treatment Summary:FRACED W/121,933 GALLONS GELLED FLUID., 261200 LBS 20/40 LUCERN-UNIMIN-OTTAWA., PRODUCTION REFLECTS NIOBRARA-CODELL FORMATIONS
Tubing Size:Tubing Setting Depth:
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:N/ATest Method:
Hours Tested:Gas Type:
Gas Disposal:
Test TypeMeasure
BBLS_H2O 0
BBLS_OIL 6
CALC_BBLS_H2O 0
CALC_BBLS_OIL 6
CALC_GOR 23333
CALC_MCF_GAS 140
CASING_PRESS 358
MCF_GAS 140
TUBING_PRESS 250
Perforation Data:
Interval Top:7110 ft.# Of Holes:64
Interval Bottom:7122 ft.Hole Size:0.31 in.

Formation NB-CD                   Formation Classification:  GW                   Status:  TA - 5/6/2020                  Interval Top: 6815 ft.    Interval Bottom: 7122 ft.

 Completed Information for Formation NIOBRARA-CODELL
1st Production Date:12/3/1993Choke Size:
Formation Name:NIOBRARA-CODELLCommingled:Yes
Production Method:
Open Hole Completion:No
Tubing Size:Tubing Setting Depth:
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
No Initial Test Data was found for formation NB-CD.
Perforation Data:
Interval Top:6815 ft.# Of Holes:97
Interval Bottom:7122 ft.Hole Size:

Formation NBRR                     Formation Classification:  GW                     Status:  CM - 8/18/2020                 Interval Top: 6815 ft.    Interval Bottom: 6997 ft.

 Completed Information for Formation NIOBRARA
1st Production Date:12/3/1993Choke Size:
Formation Name:NIOBRARACommingled:Yes
Production Method:
Open Hole Completion:No
Tubing Size:Tubing Setting Depth:
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
No Initial Test Data was found for formation NBRR.
Perforation Data:
Interval Top:6815 ft.# Of Holes:31
Interval Bottom:6997 ft.Hole Size:
Primary Well Designation:
Out Of Service      i
            All DesignationsDate
Reported PluggedN
Out Of Service RepurposedN
Out Of ServiceYPlugging Due Date
12/31/2030
Inactive ExceptionN
Noticed InactiveN
Defined Inactive (TA )YDefined Inactive
04/30/2016
Low ProducingYProduction Period
10/2024 - 09/2025

BOE/MCFE/GOR Calculations
Production for Previous 12 Months
October 2024 - September 2025i
Total Oil Produced (Barrels)0
Total Gas Produced (MCF)0
GOR
GOR DeterminationMCFE
Average BOE per Day0.000
Average MCFE per Day0.000

 Federal Financial Assurance  i

 Tribal Well  i No
