COGIS - WELL SCOUT CARD

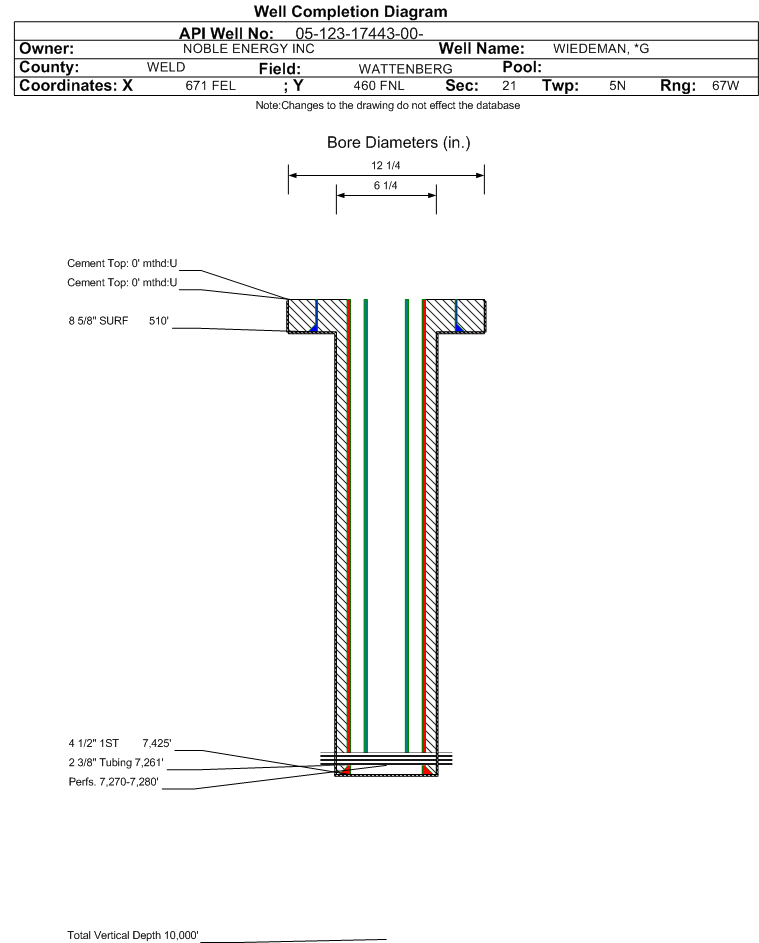

Click image to view related facilities. Related  Click image to view inspection information. InspClick image to view MIT information. MITClick image to access interactive map at well/facility location. GISClick image to view imaged documents for this well/facility. DocClick image to view imaged documents for this well/facility. COAClick image to view wellbore completion diagram. WellboreClick image to search for orders within this facility's section. OrdersClick image to view bradenhead scoutcard data. Bradenhead
 Surface Location
 API# 05-123-17443		Well Classification: GW Status: PA - 2/1/2023
Well Name/No:WIEDEMAN, *G #21-11
(Click Well Name for Production Data)		Click Here for Transporter Gatherer Info
Operator:KERR MCGEE OIL & GAS ONSHORE LP - 47120
(Click Operator Name for Company Detail Report)		Federal Or State Lease #:59364
Facility Status:PAStatus Date2/1/2023
FacilityID:249640LocationID:329504
County:WELD #123Location:NENE 21 5N67W 6
Field:WATTENBERG - #90750Elevation:5044 ft.
Planned Location:460FNL  671 FELLat/Long: 40.391034 / -104.890525Lat/Long Source: Calculated From Footages
As Drilled Location:Footages Not AvailableLat/Long: 40.391249 / -104.890387Lat/Long Source: Field Measured
 Wellbore And Formation Details -- select either a wellbore Or formation to expand.


Wellbore #00             Wellbore Classification: GW             Status: PA - 2/1/2023             Measured TD: 7425 ft.    Vertical TD: 0 ft.

 Wellbore Data for Original WellboreWellbore Classification: GW        PA - 2/1/2023
Wellbore Permit
Permit #:931376 Expiration Date:1/25/1994
Proposed Depth/Form:
Surface Mineral Owner Same:Not available
Mineral Owner:FEESurface Owner:Not available
Unit: Unit Number:
Formation And Spacing:Code: CODL , Formation: CODELL , Order: 0 , Unit Acreage: 80, Drill Unit: E2NE
Wellbore Completed
Completion Date:12/26/1993
Measured TD:7425 ft.Measured PB depth:7390 ft.
True Vertical TD:0 ft.True Vertical PB depth:
Casing:String Type: SURF, Hole Size: 12.25 in., Size: 8.625 in., Top: 0 ft., Depth: 510 ft., Weight: 24 , Citings Type: ACTUAL
Cement:Sacks: 350, Top: 0 ft., Bottom: 510 ft., Determination Method: VISU
Casing:String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: 0 ft., Depth: 7425 ft., Weight: 11.6 , Citings Type: ACTUAL
Cement:Sacks: 100, Top: 6274 ft., Bottom: 7425 ft., Determination Method: CBL
Casing:String Type: S.C. 1.1, Hole Size: 7.875 in., Size: 4.5 in., Top: , Depth: 7425 ft., Weight: 11.6 , Citings Type: ACTUAL
Cement:Sacks: 320, Top: 260 ft., Bottom: 5320 ft., Determination Method: CBL
FormationInterval TopLog BottomCoredDSTs
NIOBRARA6930 ft.
CODELL7266 ft.

Formation CODL                     Formation Classification:  GW                     Status:  AB - 2/1/2023                  Interval Top: 7270 ft.    Interval Bottom: 7280 ft.

 Completed Information for Formation CODELL
1st Production Date:12/26/1993Choke Size:0.500 in.
Formation Name:CODELLCommingled:No
Production Method:FLOWING
Open Hole Completion:No
Formation Treatment
Treatment Date:12/26/1993
Treatment Summary:REFRAC CODL W/260120# 20/40 SD USING 12506 GAL 22#,20# 18# GEL.
Tubing Size:2.375 in.Tubing Setting Depth:7261 ft.
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:1/4/2001Test Method:FLOWING
Hours Tested:3Gas Type:
Gas Disposal:SOLD
Test TypeMeasure
BBLS_H2O 8
BBLS_OIL 18
CALC_BBLS_H2O 64
CALC_BBLS_OIL 144
CALC_GOR 4390
CALC_MCF_GAS 632
CASING_PRESS 620
MCF_GAS 79
TUBING_PRESS 560
Perforation Data:
Interval Top:7270 ft.# Of Holes:40
Interval Bottom:7280 ft.Hole Size:3 in.
Primary Well Designation:
None      i
            All DesignationsDate
Reported PluggedY02/01/2023
Out Of Service RepurposedN
Out Of ServiceYPlugging Due Date
12/31/2030
Inactive ExceptionN
Noticed InactiveN
Defined InactiveN
Low ProducingN

BOE/MCFE/GOR Calculations
Production for Previous 12 Months
April 2024 - March 2025i
Total Oil Produced (Barrels)0
Total Gas Produced (MCF)0
GOR
GOR DeterminationMCFE
Average BOE per Day0.000
Average MCFE per Day0.000

 Federal Financial Assurance  i

 Tribal Well  i No
