COGIS - WELL SCOUT CARD
Click image to view related facilities. Related  Click image to view inspection information. InspClick image to view MIT information. MITClick image to access interactive map at well/facility location. GISClick image to view imaged documents for this well/facility. DocClick image to view imaged documents for this well/facility. COAClick image to view wellbore completion diagram. WellboreClick image to search for orders within this facility's section. OrdersClick image to view bradenhead scoutcard data. Bradenhead
 Surface Location
 API# 05-123-17356		Well Classification: GW Status: PA - 1/2/2020
Well Name/No:LUNDVALL #13-12
(Click Well Name for Production Data)		Click Here for Transporter Gatherer Info
Operator:PDC ENERGY INC - 69175
(Click Operator Name for Company Detail Report)		Federal Or State Lease #:59748
Facility Status:PAStatus Date1/2/2020
FacilityID:249553LocationID:329440
Municipality/County:GREELEY / WELD #123Location:NWNE 13 5N67W 6
Field:WATTENBERG - #90750Elevation:4852 ft.
Basin:DENVER (DJ) BASIN
Planned Location:546FNL  1748 FELLat/Long: 40.405154 / -104.838554Lat/Long Source: Calculated From Footages
As Drilled Location:Footages Not AvailableLat/Long: 40.405176 / -104.838952Lat/Long Source: Field Measured
 Wellbore And Formation Details -- select either a wellbore Or formation to expand.


Wellbore #00             Wellbore Classification: GW             Status: PA - 1/2/2020             Measured TD: 7487 ft.    Vertical TD: 0 ft.

 Wellbore Data for Original WellboreWellbore Classification: GW        PA - 1/2/2020
Wellbore Permit
Permit #:931255 Expiration Date:1/8/1994
Proposed Depth/Form:
Surface Mineral Owner Same:Not available
Mineral Owner:FEESurface Owner:Not available
Unit: Unit Number:
Formation And Spacing:Code: CODL , Formation: CODELL , Order: 0 , Unit Acreage: 80, Drill Unit: W2NE
Wellbore Completed
Completion Date:10/27/1993
Measured TD:7487 ft.Measured PB depth:7359 ft.
True Vertical TD:0 ft.True Vertical PB depth:

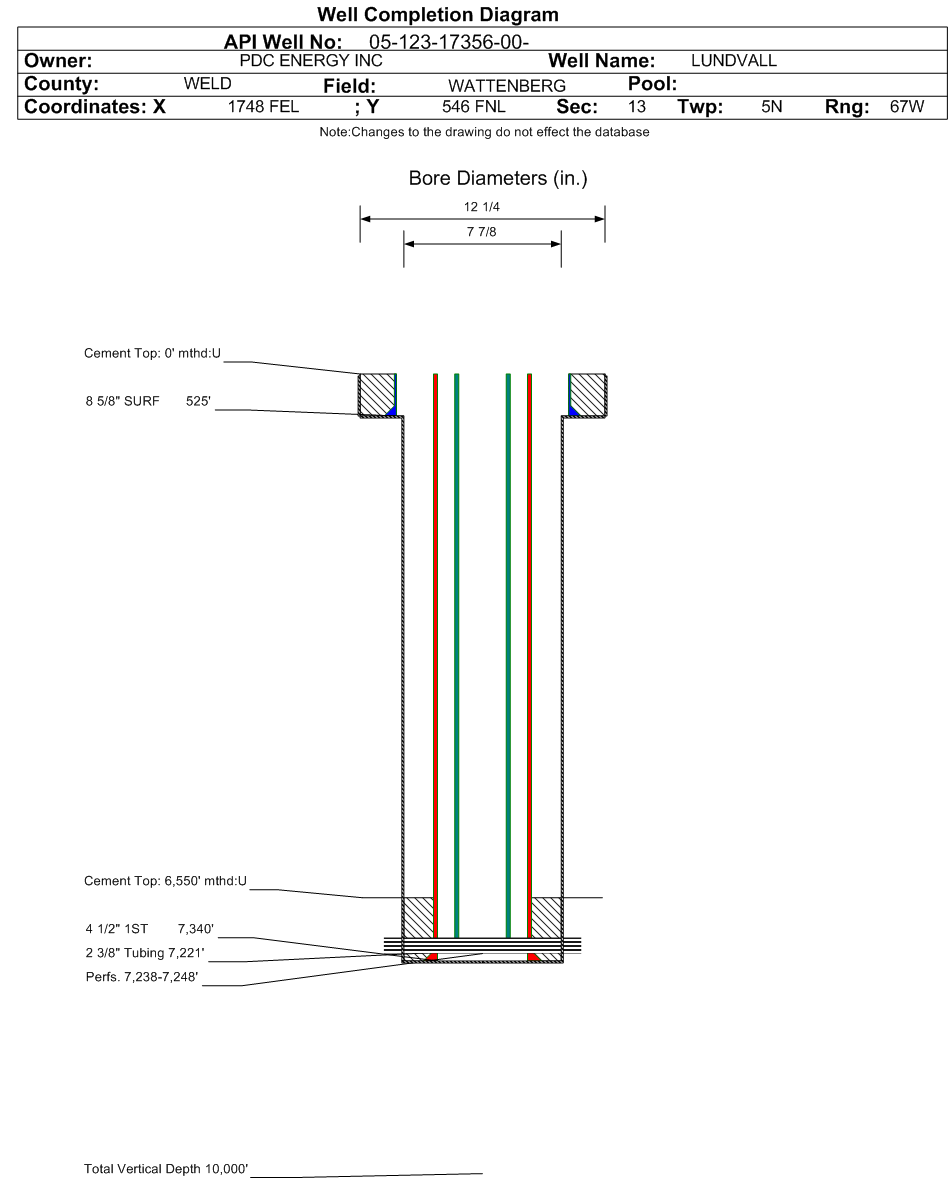

Casing:String Type: SURF, Hole Size: 12.25 in., Size: 8.625 in., Top: 0 ft., Depth: 525 ft., Weight: 24 , Citings Type: ACTUAL
Cement:Sacks: 250, Top: 0 ft., Bottom: 525 ft., Determination Method: VISU
Casing:String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: 0 ft., Depth: 7340 ft., Weight: 15.1 , Citings Type: ACTUAL
Cement:Sacks: 100, Top: 6550 ft., Bottom: 7340 ft., Determination Method: CBL
FormationInterval TopLog BottomCoredDSTs
NIOBRARA6928 ft.
CODELL7235 ft.

Formation CODL                     Formation Classification:  GW                     Status:  AB - 1/2/2020                  Interval Top: 7238 ft.    Interval Bottom: 7248 ft.

 Completed Information for Formation CODELL
1st Production Date:10/26/1993Choke Size:0.219 in.
Formation Name:CODELLCommingled:No
Production Method:FLOWING
Open Hole Completion:No
Formation Treatment
Treatment Date:10/27/1993
Treatment Summary:REFRAC'D CODELL W/260,660# 20-40 SD USING 125,874 GAL 20#, 18#,16# AND 14# VISTAR GEL
Tubing Size:2.375 in.Tubing Setting Depth:7221 ft.
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:5/2/2001Test Method:FLOWING
Hours Tested:24Gas Type:
Gas Disposal:SOLD
Test TypeMeasure
BBLS_H2O 4
BBLS_OIL 16
CALC_GOR 18875
CASING_PRESS 730
MCF_GAS 302
TUBING_PRESS 420
Perforation Data:
Interval Top:7238 ft.# Of Holes:
Interval Bottom:7248 ft.Hole Size:
Primary Well Designation:
None      i
            All DesignationsDate
Reported PluggedY01/02/2020
Out Of Service RepurposedN
Out Of ServiceN
Inactive ExceptionN
Noticed InactiveN
Defined InactiveN
Low ProducingN

BOE/MCFE/GOR Calculations
Production for Previous 12 Months
December 2024 - November 2025i
Total Oil Produced (Barrels)0
Total Gas Produced (MCF)0
GOR
GOR Determination
Average BOE per Day0.000
Average MCFE per Day0.000

 Federal Financial Assurance  i

 Tribal Well  i No
