COGIS - WELL SCOUT CARD
Click image to view related facilities. Related  Click image to view inspection information. InspClick image to view MIT information. MITClick image to access interactive map at well/facility location. GISClick image to view imaged documents for this well/facility. DocClick image to view imaged documents for this well/facility. COAClick image to view wellbore completion diagram. WellboreClick image to search for orders within this facility's section. OrdersClick image to view bradenhead scoutcard data. Bradenhead
 Surface Location
 API# 05-123-17335		Well Classification: GW Status: PA - 9/17/2024
Well Name/No:LUNDVALL #13-13
(Click Well Name for Production Data)		Click Here for Transporter Gatherer Info
Operator:PDC ENERGY INC - 69175
(Click Operator Name for Company Detail Report)		Federal Or State Lease #:59749
Facility Status:PAStatus Date9/17/2024
FacilityID:249532LocationID:329427
Municipality/County:GREELEY / WELD #123Location:SWNE 13 5N67W 6
Field:WATTENBERG - #90750Elevation:4893 ft.
Basin:DENVER (DJ) BASIN
Planned Location:2228FNL  2148 FELLat/Long: 40.400524 / -104.839974Lat/Long Source: Calculated From Footages
As Drilled Location:Footages Not AvailableLat/Long: 40.400667 / -104.839969Lat/Long Source: Field Measured

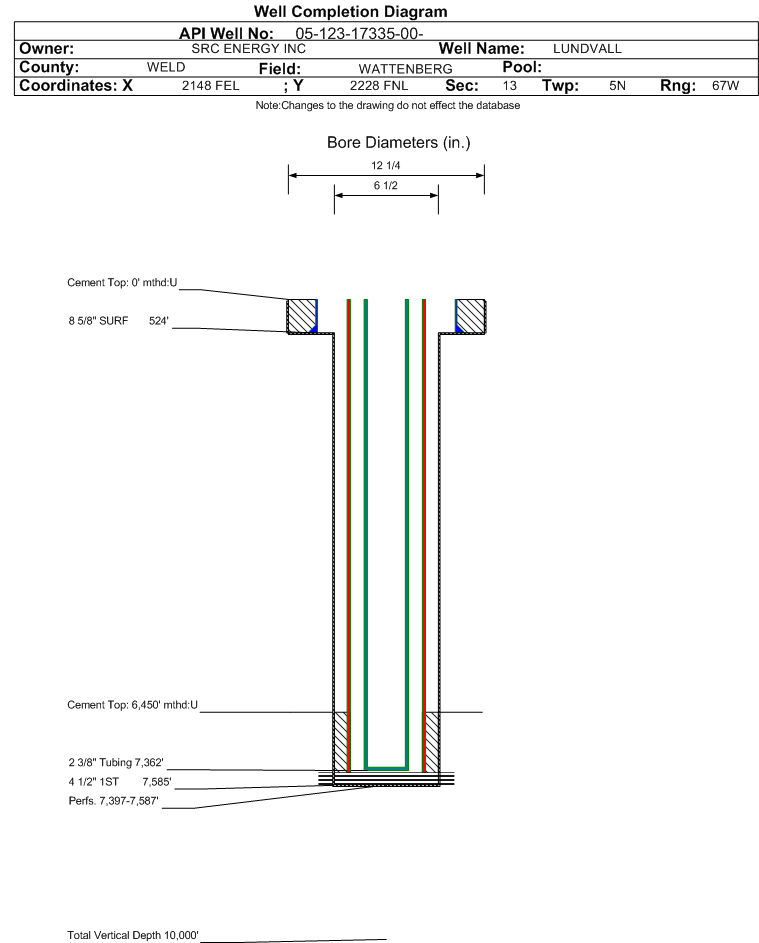

 Wellbore And Formation Details -- select either a wellbore Or formation to expand.


Wellbore #00             Wellbore Classification: GW             Status: PA - 9/17/2024             Measured TD: 7585 ft.    Vertical TD: 0 ft.

 Wellbore Data for Original WellboreWellbore Classification: GW        PA - 9/17/2024
Wellbore Permit
Permit #:931218 Expiration Date:1/1/1994
Proposed Depth/Form:
Surface Mineral Owner Same:Not available
Mineral Owner:FEESurface Owner:Not available
Unit: Unit Number:
Formation And Spacing:Code: CODL , Formation: CODELL , Order: 0 , Unit Acreage: 80, Drill Unit: W2NE
Wellbore Completed
Completion Date:10/29/1993
Measured TD:7585 ft.Measured PB depth:7425 ft.
True Vertical TD:0 ft.True Vertical PB depth:
Casing:String Type: SURF, Hole Size: 12.25 in., Size: 8.625 in., Top: 0 ft., Depth: 524 ft., Weight: 24 , Citings Type: ACTUAL
Cement:Sacks: 250, Top: 0 ft., Bottom: 524 ft., Determination Method: VISU
Casing:String Type: 1ST, Hole Size: 6.5 in., Size: 4.5 in., Top: 0 ft., Depth: 7440 ft., Weight: 11.6 , Citings Type: ACTUAL
Cement:Sacks: 100, Top: 6443 ft., Bottom: 7440 ft., Determination Method: CBL
FormationInterval TopLog BottomCoredDSTs
NIOBRARA7079 ft.
CODELL7383 ft.

Formation CODL                     Formation Classification:  GW                     Status:  AB - 9/17/2024                 Interval Top: 7387 ft.    Interval Bottom: 7397 ft.

 Completed Information for Formation CODELL
1st Production Date:10/29/1993Choke Size:
Formation Name:CODELLCommingled:No
Production Method:
Open Hole Completion:No
Formation Treatment
Treatment Date:10/29/1993
Treatment Summary:REFRACED CODL W/260060# 20/40 AND 188020 GAL 22, 20 & 18# VISTAR.
Tubing Size:Tubing Setting Depth:
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:N/ATest Method:
Hours Tested:Gas Type:
Gas Disposal:
Test TypeMeasure
BBLS_H2O 3
BBLS_OIL 3
CALC_BBLS_H2O 24
CALC_BBLS_OIL 24
CALC_GOR 17000
CALC_MCF_GAS 408
CASING_PRESS 1150
MCF_GAS 51
TUBING_PRESS 930
Perforation Data:
Interval Top:7387 ft.# Of Holes:80
Interval Bottom:7397 ft.Hole Size:0.32 in.
Primary Well Designation:
None      i
            All DesignationsDate
Reported PluggedY09/17/2024
Out Of Service RepurposedN
Out Of ServiceN
Inactive ExceptionN
Noticed InactiveYNoticed Date
02/13/2024
Defined InactiveN
Low ProducingN

BOE/MCFE/GOR Calculations
Production for Previous 12 Months
October 2024 - September 2025i
Total Oil Produced (Barrels)0
Total Gas Produced (MCF)0
GOR
GOR DeterminationMCFE
Average BOE per Day0.000
Average MCFE per Day0.000

 Federal Financial Assurance  i

 Tribal Well  i No
