COGIS - WELL SCOUT CARD

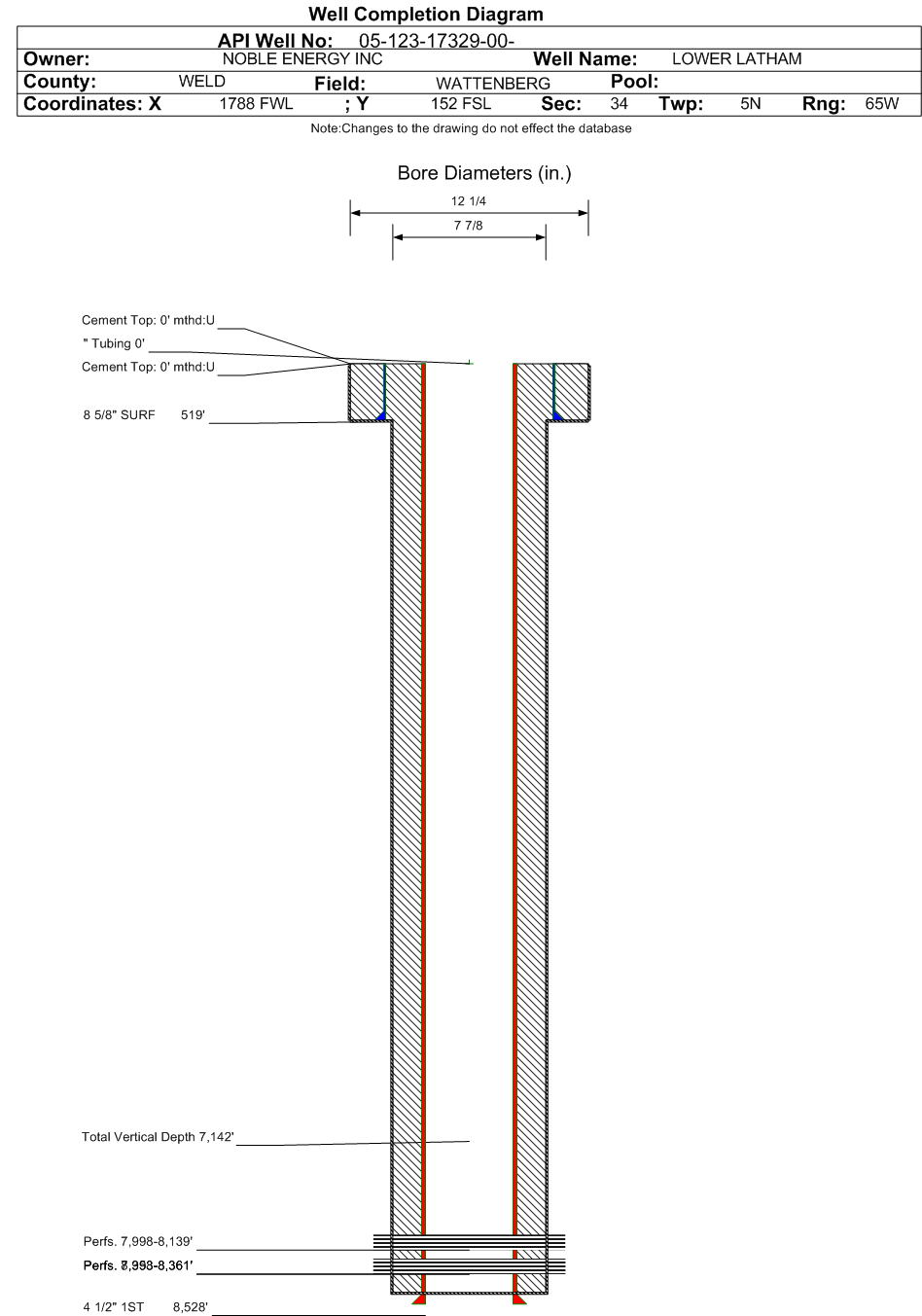

Click image to view related facilities. Related  Click image to view inspection information. InspClick image to view MIT information. MITGIS Map GISOld GIS Map Old GISClick image to view imaged documents for this well/facility. DocClick image to view imaged documents for this well/facility. COAClick image to view wellbore completion diagram. WellboreClick image to search for orders within this facility's section. OrdersClick image to view bradenhead scoutcard data. Bradenhead
 Surface Location
 API# 05-123-17329		Well Classification: GW Status: PA - 9/13/2023
Well Name/No:LOWER LATHAM #3-8G
(Click Well Name for Production Data)		Click Here for Transporter Gatherer Info
Operator:NOBLE ENERGY INC - 100322
(Click Operator Name for Company Detail Report)		Federal Or State Lease #:61604
Facility Status:PAStatus Date9/13/2023
FacilityID:249526LocationID:336586
County:WELD #123Location:SESW 34 5N65W 6
Field:WATTENBERG - #90750Elevation:4661 ft.
Basin:DENVER (DJ) BASIN
Planned Location:152FSL  1788 FWLLat/Long: 40.348895 / -104.652427Lat/Long Source: Calculated From Footages
As Drilled Location:Footages Not AvailableLat/Long: 40.348830 / -104.652460Lat/Long Source: Field Measured
 Wellbore And Formation Details -- select either a wellbore Or formation to expand.


Wellbore #00             Wellbore Classification: GW             Status: PA - 9/13/2023             Measured TD: 8528 ft.    Vertical TD: 7142 ft.

 Wellbore Data for Original WellboreWellbore Classification: GW        PA - 9/13/2023
Wellbore PermitDIRECTIONAL
Permit #:931205 Expiration Date:12/30/1993
Proposed Depth/Form:
Surface Mineral Owner Same:Not available
Mineral Owner:FEESurface Owner:Not available
Unit: Unit Number:
Formation And Spacing:Code: NB-CD , Formation: NIOBRARA-CODELL , Order: 0 , Unit Acreage: 80, Drill Unit: S2SW
Wellbore Completed
Completion Date:11/2/1993
Measured TD:8528 ft.Measured PB depth:8460 ft.
True Vertical TD:7142 ft.True Vertical PB depth:
Casing:String Type: SURF, Hole Size: 12.25 in., Size: 8.625 in., Top: 0 ft., Depth: 519 ft., Weight: 24 , Citings Type: ACTUAL
Cement:Sacks: 285, Top: 0 ft., Bottom: 519 ft., Determination Method: VISU
Casing:String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: 0 ft., Depth: 8528 ft., Weight: 11.6 , Citings Type: ACTUAL
Cement:Sacks: 550, Top: 4404 ft., Bottom: 8528 ft., Determination Method: CBL
FormationInterval TopLog BottomCoredDSTs
PARKMAN3782 ft.
SUSSEX4410 ft.
NIOBRARA7960 ft.
FORT HAYS8322 ft.
CODELL8349 ft.
GREENHORN8421 ft.

Formation CODL                     Formation Classification:  GW                     Status:  CM - 5/26/2020                 Interval Top: 8353 ft.    Interval Bottom: 8361 ft.

 Completed Information for Formation CODELL
1st Production Date:11/5/2007Choke Size:
Formation Name:CODELLCommingled:Yes
Production Method:
Open Hole Completion:No
Formation Treatment
Treatment Date:9/26/2007
Treatment Summary:TRI-FRAC CODL W/108,125 GAL VISTAR W/28# GEL LOADING AND 245,050#'S 20/40 OTTAWA SAND.
Tubing Size:Tubing Setting Depth:
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:N/ATest Method:
Hours Tested:Gas Type:
Gas Disposal:
Test TypeMeasure
BBLS_H2O 21
BBLS_OIL 40
CALC_BBLS_H2O 21
CALC_BBLS_OIL 40
CALC_GOR 19
CALC_MCF_GAS 753
MCF_GAS 753
TUBING_PRESS 200
Perforation Data:
Interval Top:8353 ft.# Of Holes:41
Interval Bottom:8361 ft.Hole Size:

Formation NB-CD                   Formation Classification:  GW                   Status:  AB - 9/13/2023                 Interval Top: 7998 ft.    Interval Bottom: 8361 ft.

 Completed Information for Formation NIOBRARA-CODELL
1st Production Date:11/5/2007Choke Size:
Formation Name:NIOBRARA-CODELLCommingled:No
Production Method:
Open Hole Completion:No
Formation Treatment
Treatment Date:11/2/1993
Treatment Summary:COMMINGLE CODELL AND NIOBRARA
Tubing Size:Tubing Setting Depth:
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:N/ATest Method:
Hours Tested:Gas Type:
Gas Disposal:
Test TypeMeasure
BBLS_H2O 1
BBLS_OIL 5
BTU_GAS 1260
CALC_GOR 34000
CASING_PRESS 500
GRAVITY_OIL 66
MCF_GAS 170
TUBING_PRESS 440
Perforation Data:
Interval Top:7998 ft.# Of Holes:47
Interval Bottom:8361 ft.Hole Size:

Formation NBRR                     Formation Classification:  GW                     Status:  CM - 7/20/2020                 Interval Top: 7998 ft.    Interval Bottom: 8139 ft.

 Completed Information for Formation NIOBRARA
1st Production Date:11/5/2007Choke Size:
Formation Name:NIOBRARACommingled:Yes
Production Method:
Open Hole Completion:No
Tubing Size:Tubing Setting Depth:
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
No Initial Test Data was found for formation NBRR.
Perforation Data:
Interval Top:7998 ft.# Of Holes:6
Interval Bottom:8139 ft.Hole Size:0.31 in.
Primary Well Designation:
None      i
            All DesignationsDate
Reported PluggedY09/13/2023
Out Of Service RepurposedN
Out Of ServiceYPlugging Due Date
12/31/2030
Inactive ExceptionN
Noticed InactiveN
Defined InactiveN
Low ProducingN

BOE/MCFE/GOR Calculations
Production for Previous 12 Months
January 2025 - December 2025i
Total Oil Produced (Barrels)0
Total Gas Produced (MCF)0
GOR
GOR Determination
Average BOE per Day0.000
Average MCFE per Day0.000

 Federal Financial Assurance  i

 Tribal Well  i No
