COGIS - WELL SCOUT CARD

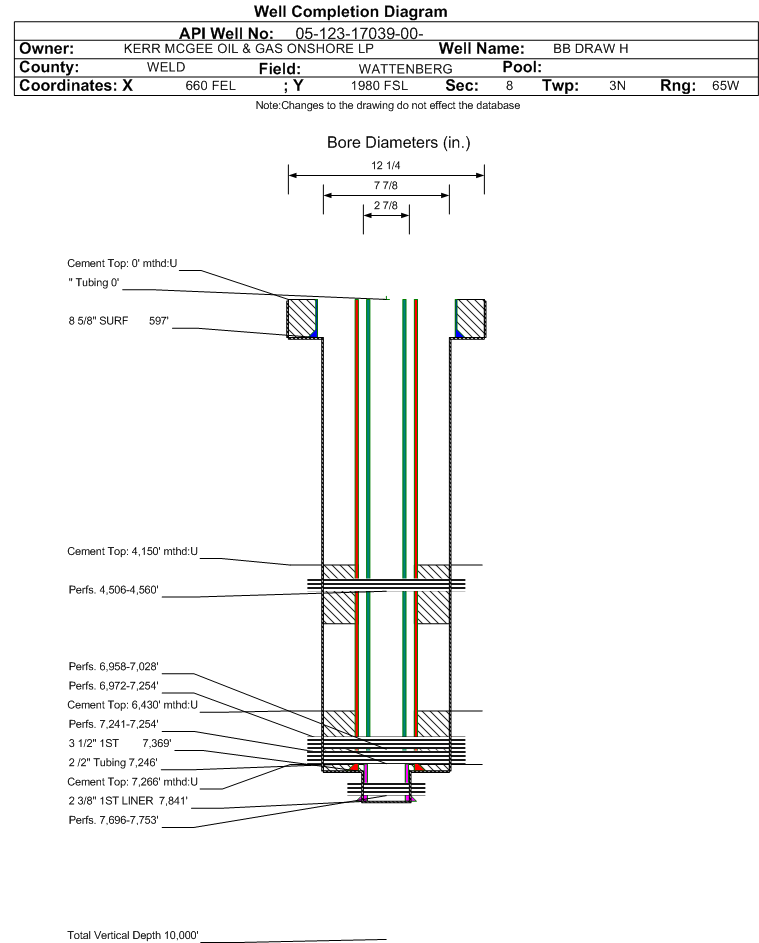

Click image to view related facilities. Related  Click image to view inspection information. InspClick image to view MIT information. MITClick image to access interactive map at well/facility location. GISClick image to view imaged documents for this well/facility. DocClick image to view imaged documents for this well/facility. COAClick image to view wellbore completion diagram. WellboreClick image to search for orders within this facility's section. OrdersClick image to view bradenhead scoutcard data. Bradenhead
 Surface Location
 API# 05-123-17039		Well Classification: GW Status: PA - 4/29/2019
Well Name/No:BB DRAW H #8-9
(Click Well Name for Production Data)		Click Here for Transporter Gatherer Info
Operator:KERR MCGEE OIL & GAS ONSHORE LP - 47120
(Click Operator Name for Company Detail Report)		Federal Or State Lease #:
Facility Status:PAStatus Date4/29/2019
FacilityID:249237LocationID:329229
County:WELD #123Location:NESE 8 3N65W 6
Field:WATTENBERG - #90750Elevation:4865 ft.
Planned Location:1980FSL  660 FELLat/Long: 40.238117 / -104.680227Lat/Long Source: Calculated From Footages
As Drilled Location:Footages Not AvailableLat/Long: 40.237990 / -104.680380Lat/Long Source: Field Measured
 Wellbore And Formation Details -- select either a wellbore Or formation to expand.


Wellbore #00             Wellbore Classification: GW             Status: PA - 4/29/2019             Measured TD: 7865 ft.

 Wellbore Data for Original WellboreWellbore Classification: GW        PA - 4/29/2019
Wellbore PermitDRIFTED
Permit #:19990184 Expiration Date:3/30/2000
Proposed Depth/Form:8000 ft.
Surface Mineral Owner Same:No
Mineral Owner:FEESurface Owner:FEE
Unit: Unit Number:
Formation And Spacing:Code: CODL , Formation: CODELL , Order: 407 , Unit Acreage: 80, Drill Unit: N2SE
Formation And Spacing:Code: JSND , Formation: J SAND , Order: 232 , Unit Acreage: 320, Drill Unit: E2
Formation And Spacing:Code: SUSX , Formation: SUSSEX , Order: 493-2 , Unit Acreage: 80, Drill Unit: N2SE
Wellbore Completed
Completion Date:8/19/1993
Spud Date:7/16/1993Spud Date Is:ACTUAL
Measured TD:7865 ft.Measured PB depth:7829 ft.
True Vertical TD:True Vertical PB depth:
Log Types:COMP.DENISTY, DIL, CBL-CCL-GR
Log Types:GR,CBL,CCL
Casing:String Type: SURF, Hole Size: 12.25 in., Size: 8.625 in., Top: 0 ft., Depth: 597 ft., Weight: 24 , Citings Type: ACTUAL
Cement:Sacks: 310, Top: 0 ft., Bottom: 597 ft., Determination Method: VISU
Casing:String Type: 1ST, Hole Size: 7.875 in., Size: 3.5 in., Top: 0 ft., Depth: 7369 ft., Weight: 7.7 , Citings Type: ACTUAL
Cement:Sacks: 170, Top: 6430 ft., Bottom: 7369 ft., Determination Method: CBL
Casing:String Type: S.C. 1.1, Hole Size: , Size: , Top: , Depth: 5200 ft., Weight: , Citings Type: ACTUAL
Cement:Sacks: 466, Top: 4150 ft., Bottom: 5066 ft., Determination Method: CBL
Casing:String Type: 1ST LINER, Hole Size: 2.875 in., Size: 2.375 in., Top: 7260 ft., Depth: 7841 ft., Weight: 4.7 , Citings Type: ACTUAL
Cement:Sacks: 9, Top: 7266 ft., Bottom: 7841 ft., Determination Method: CBL
FormationInterval TopLog BottomCoredDSTs
SUSSEX4504 ft.NN
NIOBRARA6934 ft.NN
CODELL7240 ft.NN
J SAND7696 ft.NN

Formation JSND                     Formation Classification:  OW                     Status:  AB - 4/29/2019                 Interval Top: 7696 ft.    Interval Bottom: 7753 ft.

 Completed Information for Formation J SAND
1st Production Date:6/12/1999Choke Size:
Formation Name:J SANDCommingled:
Production Method:
Open Hole Completion:
Formation Treatment
Treatment Date:8/19/1993
Treatment Summary:SET SAND PLUG @ 7335' .
Tubing Size:2.062 in.Tubing Setting Depth:7246 ft.
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
No Initial Test Data was found for formation JSND.
Perforation Data:
Interval Top:7696 ft.# Of Holes:80
Interval Bottom:7753 ft.Hole Size:

Formation CODL                     Formation Classification:  GW                     Status:  CM - 8/22/2008                 Interval Top: 7241 ft.    Interval Bottom: 7254 ft.

 Completed Information for Formation CODELL
1st Production Date:N/AChoke Size:
Formation Name:CODELLCommingled:No
Production Method:
Open Hole Completion:No
Formation Treatment
Treatment Date:8/19/1993
Treatment Summary:CD OVER SAND PLUG
Tubing Size:Tubing Setting Depth:
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
No Initial Test Data was found for formation CODL.
Perforation Data:
Interval Top:7241 ft.# Of Holes:52
Interval Bottom:7254 ft.Hole Size:

Formation NB-CD                   Formation Classification:  OW                   Status:  AB - 4/29/2019                 Interval Top: 6972 ft.    Interval Bottom: 7254 ft.

 Completed Information for Formation NIOBRARA-CODELL
1st Production Date:8/19/1993Choke Size:0.406 in.
Formation Name:NIOBRARA-CODELLCommingled:
Production Method:FLOWING
Open Hole Completion:
Formation Treatment
Treatment Date:8/19/1993
Treatment Summary:SEE SCANNED DOCS #00613053; #00826898; & 01418510
Tubing Size:Tubing Setting Depth:
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:4/27/2005Test Method:FLOWING
Hours Tested:24Gas Type:SHALE
Gas Disposal:SOLD
Test TypeMeasure
BBLS_H2O 3
BBLS_OIL 8
CALC_BBLS_H2O 3
CALC_BBLS_OIL 8
CALC_GOR 21875
CALC_MCF_GAS 175
CASING_PRESS 160
MCF_GAS 175
Perforation Data:
Interval Top:6972 ft.# Of Holes:66
Interval Bottom:7254 ft.Hole Size:

Formation NBRR                     Formation Classification:  GW                     Status:  CM - 8/22/2008                 Interval Top: 6958 ft.    Interval Bottom: 7028 ft.

 Completed Information for Formation NIOBRARA
1st Production Date:8/7/2008Choke Size:0.281 in.
Formation Name:NIOBRARACommingled:No
Production Method:
Open Hole Completion:No
Formation Treatment
Treatment Date:8/7/2008
Treatment Summary:RE-FRAC'D NB W/ 4368 GALS OF VISTAR AND SLICKWATER WITH 253,000#'S OF OTTAWA SAND
Tubing Size:Tubing Setting Depth:
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:8/22/2008Test Method:FLOWING
Hours Tested:24Gas Type:SHALE
Gas Disposal:SOLD
Test TypeMeasure
BBLS_H2O 8
BBLS_OIL 6
BTU_GAS 1118
CALC_BBLS_H2O 8
CALC_BBLS_OIL 6
CALC_GOR 20000
CALC_MCF_GAS 120
CASING_PRESS 180
GRAVITY_OIL 60
MCF_GAS 120
TUBING_PRESS 0
Perforation Data:
Interval Top:6958 ft.# Of Holes:120
Interval Bottom:7028 ft.Hole Size:0.32 in.

Formation SUSX                     Formation Classification:  OW                     Status:  AB - 9/12/1994                 Interval Top: 4506 ft.    Interval Bottom: 4560 ft.

 Completed Information for Formation SUSSEX
1st Production Date:9/12/1994Choke Size:
Formation Name:SUSSEXCommingled:
Production Method:
Open Hole Completion:
Formation Treatment
Treatment Date:8/19/1993
Treatment Summary:
Tubing Size:Tubing Setting Depth:
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:9/12/1994Test Method:FLOWING
Hours Tested:24Gas Type:
Gas Disposal:SOLD
Test TypeMeasure
BBLS_H2O 16
BBLS_OIL 11
CALC_BBLS_H2O 16
CALC_BBLS_OIL 11
CALC_GOR 28727
CALC_MCF_GAS 316
MCF_GAS 316
Perforation Data:
Interval Top:4506 ft.# Of Holes:20
Interval Bottom:4560 ft.Hole Size:0.32 in.
Primary Well Designation:
None      i
            All DesignationsDate
Reported PluggedY04/29/2019
Out Of Service RepurposedN
Out Of ServiceN
Inactive ExceptionN
Noticed InactiveN
Defined InactiveN
Low ProducingN

BOE/MCFE/GOR Calculations
Production for Previous 12 Months
April 2024 - March 2025i
Total Oil Produced (Barrels)0
Total Gas Produced (MCF)0
GOR
GOR Determination
Average BOE per Day0.000
Average MCFE per Day0.000

 Federal Financial Assurance  i

 Tribal Well  i No
