Wellbore #00 Wellbore Classification: OW Status: PR - 7/10/2025 Measured TD: 7257 ft.| Wellbore Data for Original Wellbore | Wellbore Classification: OW PR - 7/10/2025 | | Wellbore Permit | | | Permit #: | 19930313 | Expiration Date: | 7/17/1993 | | Proposed Depth/Form: | 7230 ft. | | Surface Mineral Owner Same: | No | | Mineral Owner: | FEDERAL | Surface Owner: | Not available | | Unit: | | Unit Number: | | | Formation And Spacing: | Code: NB-CD , Formation: NIOBRARA-CODELL , Order: 407 , Unit Acreage: 160, Drill Unit: NW4 |
| | |

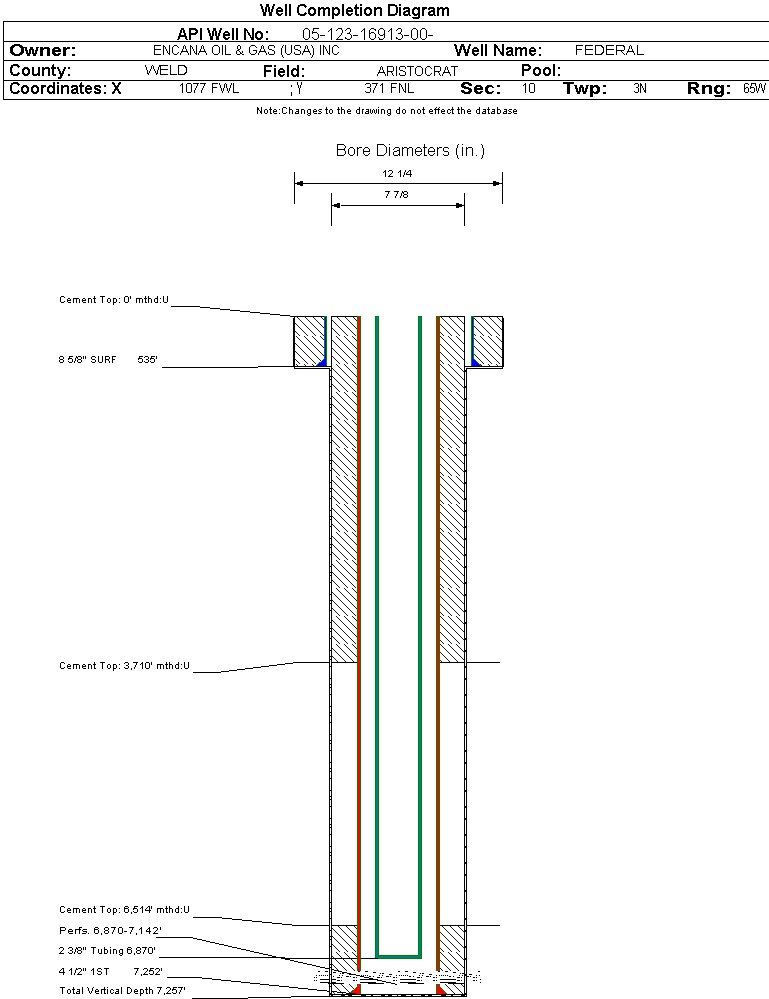

| Wellbore Completed | | Completion Date: | 3/26/1993 | | Spud Date: | 3/20/1993 | Spud Date Is: | ACTUAL | | Measured TD: | 7257 ft. | Measured PB depth: | 7213 ft. | | True Vertical TD: | | True Vertical PB depth: | | | Log Types: | DIL/FDC/CNL-GR | | Casing: | String Type: SURF, Hole Size: 12.25 in., Size: 8.625 in., Top: 0 ft., Depth: 535 ft., Weight: 24 , Citings Type: ACTUAL | | Cement: | Sacks: 300, Top: 0 ft., Bottom: 535 ft., Determination Method: VISU | | Casing: | String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: 0 ft., Depth: 7252 ft., Weight: 11.6 , Citings Type: ACTUAL | | Cement: | Sacks: 158, Top: 6514 ft., Bottom: 7252 ft., Determination Method: CBL | | Casing: | String Type: S.C. 1.1, Hole Size: , Size: , Top: , Depth: 4920 ft., Weight: , Citings Type: ACTUAL | | Cement: | Sacks: 657, Top: 3710 ft., Bottom: 4920 ft., Determination Method: CBL | | Formation | Interval Top | Log Bottom | Cored | DSTs | | FOX HILLS | 385 ft. | 470 ft. | N | N | | SUSSEX | 4387 ft. | 4481 ft. | N | N | | BENTONITE | 4506 ft. | | N | N | | NIOBRARA | 6851 ft. | 7108 ft. | N | N | | FORT HAYS | 7108 ft. | | N | N | | CODELL | 7131 ft. | 7191 ft. | N | N | | GREENHORN | 7191 ft. | | N | N |
Formation CODL Formation Classification: OW Status: CM - 7/10/2025 Interval Top: 7130 ft. Interval Bottom: 7146 ft.| Completed Information for Formation CODELL | | 1st Production Date: | N/A | Choke Size: | | | Formation Name: | CODELL | Commingled: | Yes | | Production Method: | | | Open Hole Completion: | No |
| | Tubing Size: | | Tubing Setting Depth: | | | Tubing Packer Depth: | | Tubing Multiple Packer: | | | Open Hole Top: | | Open Hole Bottom: | | | No Initial Test Data was found for formation CODL. |
| | Perforation Data: | | Interval Top: | 7130 ft. | # Of Holes: | 5 | | Interval Bottom: | 7146 ft. | Hole Size: | 0.33 in. |
|
Formation NB-CD Formation Classification: OW Status: PR - 7/10/2025 Interval Top: 6870 ft. Interval Bottom: 7146 ft.| Completed Information for Formation NIOBRARA-CODELL | | 1st Production Date: | N/A | Choke Size: | | | Formation Name: | NIOBRARA-CODELL | Commingled: | No | | Production Method: | | | Open Hole Completion: | No |
| | Formation Treatment | | Treatment Date: | 10/11/2011 | | Treatment Summary: | NIOBRARA - PERFED 6910-6930 4 SPF, 80 HOLES. REFRAC'D 6870-7060' W/134,613 GAL FRAC FLUID AND 251,100 # SAND. (10/11/11)
CODELL: REFRAC'D 7130-7146' W/116,172 GAL FRAC FLUID AND 253,600 # SAND (10/11/11)
SET CIBP @ 7170' ON 8/16/11. DRILLED OUT 10/13/11. | | Formation Treatment | | Treatment Date: | 3/26/1993 | | Treatment Summary: | DRILL CBP AND CHASE TO THE BOTTOM. CIRC HOLE CLEAN. TIH W/PRODUCTION TBG. LAND PRODUCTION TBG @ 6870'. BROACH TBG. SWAB. ((TREATMENT IN 1993: 6920-7142' FRAC W/400,000# 20/40 SAND IN 88,556 GALS OF X-LINKED PUR-GEL FLUID)) |
| | Tubing Size: | | Tubing Setting Depth: | | | Tubing Packer Depth: | | Tubing Multiple Packer: | | | Open Hole Top: | | Open Hole Bottom: | | | Initial Test Data: | | Test Date: | N/A | Test Method: | | | Hours Tested: | | Gas Type: | | | Gas Disposal: | | |
| Test Type | Measure |
|---|
| BBLS_H2O | 21 | | BBLS_OIL | 10 | | BTU_GAS | 1 | | CALC_BBLS_H2O | 21 | | CALC_BBLS_OIL | 10 | | CALC_GOR | 12300 | | CALC_MCF_GAS | 123 | | CASING_PRESS | 407 | | GRAVITY_OIL | 59 | | MCF_GAS | 123 | | TUBING_PRESS | 112 |
| | Perforation Data: | | Interval Top: | 6870 ft. | # Of Holes: | 208 | | Interval Bottom: | 7146 ft. | Hole Size: | 0.33 in. |
|
Formation NBRR Formation Classification: OW Status: CM - 7/10/2025 Interval Top: 6870 ft. Interval Bottom: 7060 ft.| Completed Information for Formation NIOBRARA | | 1st Production Date: | N/A | Choke Size: | | | Formation Name: | NIOBRARA | Commingled: | Yes | | Production Method: | | | Open Hole Completion: | No |
| | Tubing Size: | | Tubing Setting Depth: | | | Tubing Packer Depth: | | Tubing Multiple Packer: | | | Open Hole Top: | | Open Hole Bottom: | | | No Initial Test Data was found for formation NBRR. |
| | Perforation Data: | | Interval Top: | 6870 ft. | # Of Holes: | 203 | | Interval Bottom: | 7060 ft. | Hole Size: | 0.33 in. |
|
|
|
|
|
|
|
| Reported Plugged | N | |
| Out Of Service Repurposed | N | |
| Out Of Service | N | |
| Inactive Exception | N | |
| Noticed Inactive | N | |
| Defined Inactive | N | |
| Low Producing | Y | Production Period
04/2024 - 03/2025 |
| Total Oil Produced (Barrels) | 0 |
| Total Gas Produced (MCF) | 31 |
| GOR | |
| GOR Determination | MCFE |
| Average BOE per Day | 0.016 |
| Average MCFE per Day | 0.085 |
| Federal Financial Assurance | i | |
|
|
