COGIS - WELL SCOUT CARD

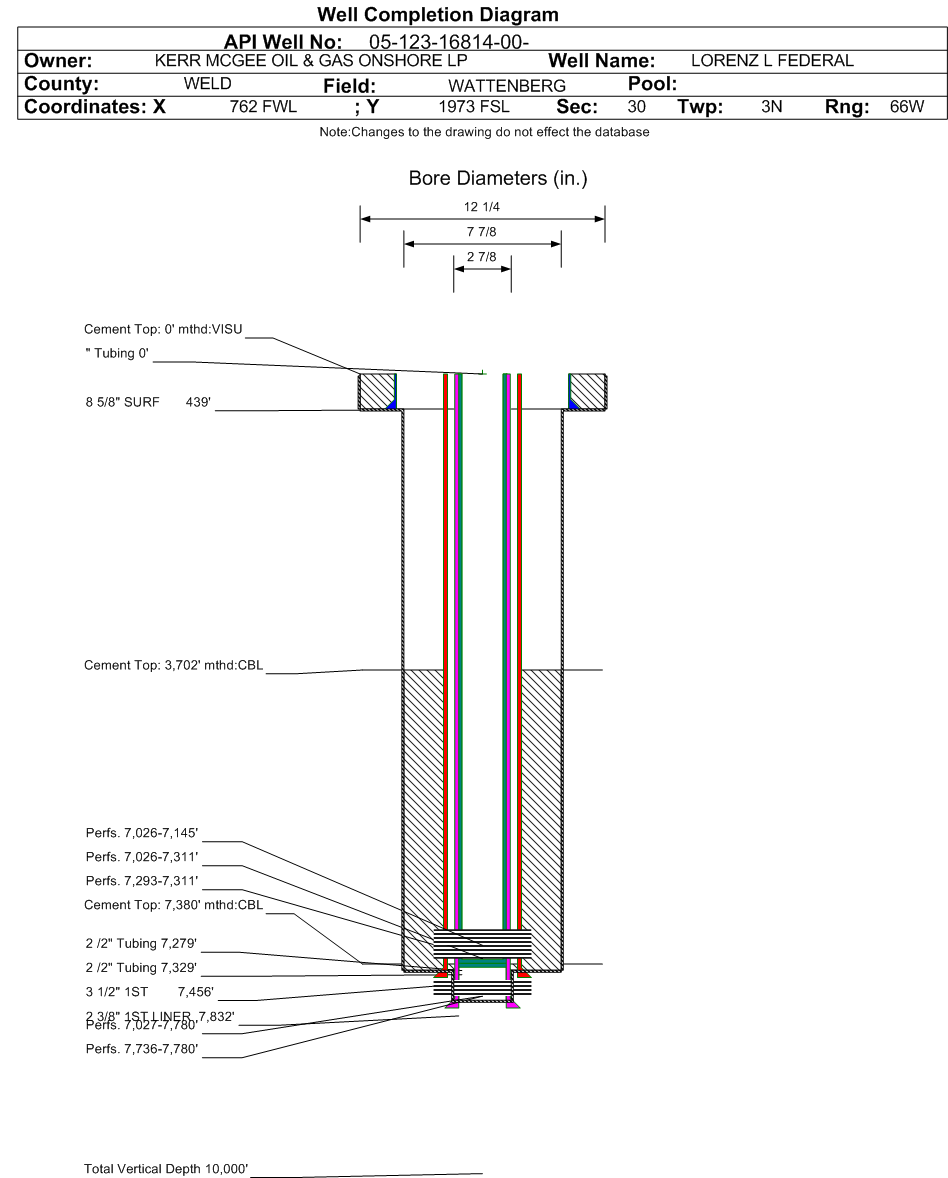

Click image to view related facilities. Related  Click image to view inspection information. InspClick image to view MIT information. MITClick image to access interactive map at well/facility location. GISClick image to view imaged documents for this well/facility. DocClick image to view imaged documents for this well/facility. COAClick image to view wellbore completion diagram. WellboreClick image to search for orders within this facility's section. OrdersClick image to view bradenhead scoutcard data. Bradenhead
 Surface Location
 API# 05-123-16814		Well Classification: GW Status: PA - 10/12/2020
Well Name/No:LORENZ L FEDERAL #30-12
(Click Well Name for Production Data)		Click Here for Transporter Gatherer Info
Operator:KERR MCGEE OIL & GAS ONSHORE LP - 47120
(Click Operator Name for Company Detail Report)		Federal Or State Lease #:
Facility Status:PAStatus Date10/12/2020
FacilityID:249012LocationID:329063
County:WELD #123Location:NWSW 30 3N66W 6
Field:WATTENBERG - #90750Elevation:4808 ft.
Basin:DENVER (DJ) BASIN
Planned Location:1973FSL  762 FWLLat/Long: 40.193676 / -104.827102Lat/Long Source: Calculated From Footages
As Drilled Location:Footages Not AvailableLat/Long: 40.193750 / -104.827220Lat/Long Source: Field Measured

FracFocus
Disclosure: Sidetrack #00
Start Date: 10/5/2011
End Date: 10/5/2011
Reported: 11/16/2011
Prior to rule 205A.b.(2)(A)
Days to report: 42
 Wellbore And Formation Details -- select either a wellbore Or formation to expand.


Wellbore #00             Wellbore Classification: GW             Status: PA - 10/12/2020             Measured TD: 7832 ft.

 Wellbore Data for Original WellboreWellbore Classification: GW        PA - 10/12/2020
Wellbore Permit
Permit #:19990559 Expiration Date:8/12/2000
Proposed Depth/Form:7900 ft.
Surface Mineral Owner Same:No
Mineral Owner:FEESurface Owner:FEE
Unit: Unit Number:
Formation And Spacing:Code: CODL , Formation: CODELL , Order: 407 , Unit Acreage: 160, Drill Unit: SW4
Formation And Spacing:Code: JSND , Formation: J SAND , Order: 232 , Unit Acreage: 320, Drill Unit: W2
Wellbore Completed
Completion Date:11/9/1993
Spud Date:10/9/1993Spud Date Is:ACTUAL
Measured TD:7832 ft.Measured PB depth:7780 ft.
True Vertical TD:True Vertical PB depth:
Log Types:COMP.DENSITY, DIL, CBL-CCL-GR
Log Types:GR, CBL
Casing:String Type: SURF, Hole Size: 12.25 in., Size: 8.625 in., Top: 0 ft., Depth: 439 ft., Weight: 24 , Citings Type: ACTUAL
Cement:Sacks: 300, Top: 0 ft., Bottom: 439 ft., Determination Method: VISU
Casing:String Type: 1ST, Hole Size: 7.875 in., Size: 3.5 in., Top: 0 ft., Depth: 7456 ft., Weight: 7.7 , Citings Type: ACTUAL
Cement:Sacks: 535, Top: 3702 ft., Bottom: 7456 ft., Determination Method: CBL
Casing:String Type: 1ST LINER, Hole Size: 2.875 in., Size: 2.375 in., Top: 0 ft., Depth: 7832 ft., Weight: 4.7 , Citings Type: ACTUAL
Cement:Sacks: 20, Top: 7380 ft., Bottom: 7832 ft., Determination Method: CBL
FormationInterval TopLog BottomCoredDSTs
SUSSEX4365 ft.NN
NIOBRARA7044 ft.NN
CODELL7291 ft.NN
J SAND7727 ft.NN

Formation JSND                     Formation Classification:  OG                     Status:  AB - 8/16/2012                 Interval Top: 7736 ft.    Interval Bottom: 7780 ft.

 Completed Information for Formation J SAND
1st Production Date:N/AChoke Size:
Formation Name:J SANDCommingled:No
Production Method:
Open Hole Completion:
Formation Treatment
Treatment Date:11/9/1993
Treatment Summary:201,398 GALS & 500,680# SAND ON 1/6/2000. SHUT IN W/SAND PLUG SET @7536', 5/17/05.
Tubing Size:Tubing Setting Depth:
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:N/ATest Method:
Hours Tested:Gas Type:
Gas Disposal:
Test TypeMeasure
BBLS_H2O 15
BBLS_OIL 12
CALC_BBLS_H2O 15
CALC_BBLS_OIL 12
CALC_GOR 72916
CALC_MCF_GAS 875
CASING_PRESS 650
MCF_GAS 875
Perforation Data:
Interval Top:7736 ft.# Of Holes:88
Interval Bottom:7780 ft.Hole Size:

Formation CODL                     Formation Classification:  OG                     Status:  CM - 8/16/2012                 Interval Top: 7293 ft.    Interval Bottom: 7311 ft.

 Completed Information for Formation CODELL
1st Production Date:11/9/1993Choke Size:
Formation Name:CODELLCommingled:Yes
Production Method:
Open Hole Completion:
Formation Treatment
Treatment Date:11/9/1993
Treatment Summary:SEE NB-CD. // 11/24/1993 CODL SI, ISOLATED AT THIS TIME W/LINER.// REPERF'D CODL 7293-7311' (72 HOLES) 5/18/05. REFRAC'D W/126,924 GAL VISTAR 28# GEL & 243,800# 20/40 OTTAWA SAND, 6/7/05.
Tubing Size:Tubing Setting Depth:
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:N/ATest Method:
Hours Tested:Gas Type:
Gas Disposal:
Test TypeMeasure
BBLS_H2O 8
BBLS_OIL 40
BTU_GAS 1245
CALC_BBLS_H2O 8
CALC_BBLS_OIL 40
CALC_GOR 2750
CALC_MCF_GAS 110
CASING_PRESS 190
GRAVITY_OIL 51
MCF_GAS 110
Perforation Data:
Interval Top:7293 ft.# Of Holes:72
Interval Bottom:7311 ft.Hole Size:0.34 in.

Formation JNBCD                   Formation Classification:  GW                   Status:  CM - 9/12/2006                 Interval Top: 7027 ft.    Interval Bottom: 7780 ft.

 Completed Information for Formation J-NIOBRARA-CODELL
1st Production Date:6/17/2002Choke Size:0.500 in.
Formation Name:J-NIOBRARA-CODELLCommingled:
Production Method:FLOWING
Open Hole Completion:
Formation Treatment
Treatment Date:8/23/2006
Treatment Summary:COMMINGLE NIOBRARA, CODELL, AND J-SAND.
Tubing Size:2.062 in.Tubing Setting Depth:7329 ft.
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:9/12/2006Test Method:FLOWING
Hours Tested:24Gas Type:WET
Gas Disposal:SOLD
Test TypeMeasure
BBLS_H2O 6
BBLS_OIL 15
CALC_BBLS_H2O 2
CALC_BBLS_OIL 2
CALC_GOR 73
CALC_MCF_GAS 110
CASING_PRESS 350
MCF_GAS 108
TUBING_PRESS 280
Perforation Data:
Interval Top:7027 ft.# Of Holes:174
Interval Bottom:7780 ft.Hole Size:

Formation NB-CD                   Formation Classification:  OG                   Status:  AB - 10/12/2020                Interval Top: 7026 ft.    Interval Bottom: 7311 ft.

 Completed Information for Formation NIOBRARA-CODELL
1st Production Date:N/AChoke Size:32.000 in.
Formation Name:NIOBRARA-CODELLCommingled:No
Production Method:
Open Hole Completion:
Formation Treatment
Treatment Date:11/9/1993
Treatment Summary:7027-7310' 107,210 GALS APOLLO 1 W/301,000# 20/40 SAND, 1993.
Tubing Size:2.0625 in.Tubing Setting Depth:7279 ft.
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:10/21/2011Test Method:Flowing
Hours Tested:24Gas Type:SHALE
Gas Disposal:SOLD
Test TypeMeasure
BBLS_H2O 12
BBLS_OIL 2
BTU_GAS 1233
CALC_BBLS_H2O 12
CALC_BBLS_OIL 2
CALC_GOR 19000
CALC_MCF_GAS 38
CASING_PRESS 1075
GRAVITY_OIL 51
MCF_GAS 38
TUBING_PRESS 650
Perforation Data:
Interval Top:7026 ft.# Of Holes:203
Interval Bottom:7311 ft.Hole Size:0.32 in.

Formation NBRR                     Formation Classification:  OG                     Status:  CM - 9/13/2012                 Interval Top: 7026 ft.    Interval Bottom: 7145 ft.

 Completed Information for Formation NIOBRARA
1st Production Date:11/9/1993Choke Size:
Formation Name:NIOBRARACommingled:Yes
Production Method:
Open Hole Completion:
Formation Treatment
Treatment Date:10/5/2011
Treatment Summary:Frac'd Niobrara w/ 122488 gals of Slick Water, Vistar, and 15% NEFE with 250140#'s of Ottawa sand.
Tubing Size:Tubing Setting Depth:
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
No Initial Test Data was found for formation NBRR.
Perforation Data:
Interval Top:7026 ft.# Of Holes:131
Interval Bottom:7145 ft.Hole Size:0.27 in.

Formation J-CDL                   Formation Classification:  GW                   Status:  CM - 6/20/2002

 Completed Information for Formation J-CODELL
1st Production Date:6/17/2002Choke Size:0.250 in.
Formation Name:J-CODELLCommingled:
Production Method:FLOWING
Open Hole Completion:
Formation Treatment
Treatment Date:11/9/1993
Treatment Summary:LINER PULLED - JSAND & CODL COMMINGLED 6/17/2002.
Tubing Size:Tubing Setting Depth:
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:6/20/2002Test Method:FLOWING
Hours Tested:24Gas Type:
Gas Disposal:SOLD
Test TypeMeasure
BBLS_H2O 2
BBLS_OIL 1.5
CALC_BBLS_H2O 2
CALC_BBLS_OIL 1.5
CALC_GOR 73333
CALC_MCF_GAS 110
CASING_PRESS 440
MCF_GAS 110
TUBING_PRESS 250
No Perforation Data was found for formation J-CDL.
Primary Well Designation:
None      i
            All DesignationsDate
Reported PluggedY10/12/2020
Out Of Service RepurposedN
Out Of ServiceN
Inactive ExceptionN
Noticed InactiveN
Defined InactiveN
Low ProducingN

BOE/MCFE/GOR Calculations
Production for Previous 12 Months
October 2024 - September 2025i
Total Oil Produced (Barrels)0
Total Gas Produced (MCF)0
GOR
GOR Determination
Average BOE per Day0.000
Average MCFE per Day0.000

 Federal Financial Assurance  i

 Tribal Well  i No
