COGIS - WELL SCOUT CARD

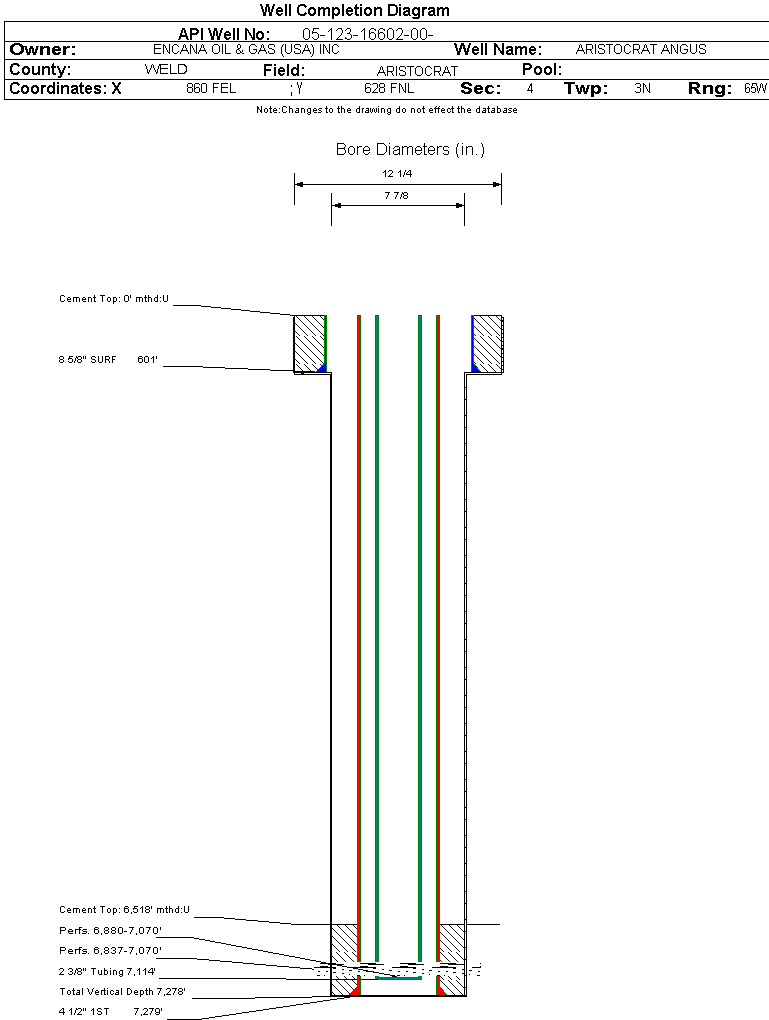

Click image to view related facilities. Related  Click image to view inspection information. InspClick image to view MIT information. MITGIS Map GISOld GIS Map Old GISClick image to view imaged documents for this well/facility. DocClick image to view imaged documents for this well/facility. COAClick image to view wellbore completion diagram. WellboreClick image to search for orders within this facility's section. OrdersClick image to view bradenhead scoutcard data. Bradenhead
 Surface Location
 API# 05-123-16602		Well Classification: GW Status: PA - 6/30/2023
Well Name/No:ARISTOCRAT ANGUS #41-4C
(Click Well Name for Production Data)		Click Here for Transporter Gatherer Info
Operator:CRESTONE PEAK RESOURCES OPERATING LLC - 10633
(Click Operator Name for Company Detail Report)		Federal Or State Lease #:
Facility Status:PAStatus Date6/30/2023
FacilityID:248800LocationID:328905
County:WELD #123Location:NENE 4 3N65W 6
Field:ARISTOCRAT - #2925Elevation:4802 ft.
Basin:DENVER (DJ) BASIN
Planned Location:628FNL  860 FELLat/Long: 40.259936 / -104.661847Lat/Long Source: Calculated From Footages
As Drilled Location:Footages Not AvailableLat/Long: 40.259278 / -104.661049Lat/Long Source: Field Measured
 Wellbore And Formation Details -- select either a wellbore Or formation to expand.


Wellbore #00             Wellbore Classification: GW             Status: PA - 6/30/2023             Measured TD: 7278 ft.

 Wellbore Data for Original WellboreWellbore Classification: GW        PA - 6/30/2023
Wellbore PermitDIRECTIONAL
Permit #:19921866 Expiration Date:4/9/1993
Proposed Depth/Form:7260 ft.
Surface Mineral Owner Same:No
Mineral Owner:FEESurface Owner:Not available
Unit: Unit Number:
Formation And Spacing:Code: CODL , Formation: CODELL , Order: , Unit Acreage: 80, Drill Unit: E2NE
Wellbore Completed
Completion Date:4/25/1993
Spud Date:12/18/1992Spud Date Is:ACTUAL
Measured TD:7278 ft.Measured PB depth:7197 ft.
True Vertical TD:True Vertical PB depth:
Log Types:DIF/CDL/GR
Casing:String Type: SURF, Hole Size: 12.25 in., Size: 8.625 in., Top: 0 ft., Depth: 601 ft., Weight: 24 , Citings Type: ACTUAL
Cement:Sacks: 250, Top: 0 ft., Bottom: 601 ft., Determination Method: CALC
Casing:String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: 0 ft., Depth: 7279 ft., Weight: 11.6 , Citings Type: ACTUAL
Cement:Sacks: 390, Top: 6518 ft., Bottom: 7279 ft., Determination Method: CBL
Casing:String Type: S.C. 1.1, Hole Size: , Size: , Top: 0 ft., Depth: 4872 ft., Weight: , Citings Type: ACTUAL
Cement:Sacks: 0, Top: 3998 ft., Bottom: 4872 ft., Determination Method: CBL
FormationInterval TopLog BottomCoredDSTs
SUSSEX4378 ft.NN
NIOBRARA6864 ft.NN
FORT HAYS7121 ft.NN
CODELL7143 ft.NN

Formation CODL                     Formation Classification:  GW                     Status:  CM - 3/24/2023                 Interval Top: 7144 ft.    Interval Bottom: 7160 ft.

 Completed Information for Formation CODELL
1st Production Date:4/25/1993Choke Size:
Formation Name:CODELLCommingled:Yes
Production Method:
Open Hole Completion:No
Tubing Size:Tubing Setting Depth:
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
No Initial Test Data was found for formation CODL.
Perforation Data:
Interval Top:7144 ft.# Of Holes:40
Interval Bottom:7160 ft.Hole Size:

Formation NB-CD                   Formation Classification:  GW                   Status:  AB - 6/30/2023                 Interval Top: 6837 ft.    Interval Bottom: 7160 ft.

 Completed Information for Formation NIOBRARA-CODELL
1st Production Date:4/25/1993Choke Size:
Formation Name:NIOBRARA-CODELLCommingled:No
Production Method:
Open Hole Completion:No
Formation Treatment
Treatment Date:6/15/2009
Treatment Summary:NBRR-CODL COMMINGLE. RELEASED RBP @ 7100' TO COMMINGLE THE NBRR & CODL. 6/19/09
Tubing Size:Tubing Setting Depth:
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:N/ATest Method:
Hours Tested:Gas Type:
Gas Disposal:
Test TypeMeasure
BBLS_H2O 17
BBLS_OIL 1
BTU_GAS 1287
CALC_BBLS_H2O 11
CALC_BBLS_OIL 1
CALC_GOR 189000
CALC_MCF_GAS 189
CASING_PRESS 362
GRAVITY_OIL 58
MCF_GAS 189
TUBING_PRESS 132
Perforation Data:
Interval Top:6837 ft.# Of Holes:160
Interval Bottom:7160 ft.Hole Size:0.38 in.

Formation NBRR                     Formation Classification:  GW                     Status:  CM - 3/21/2023                 Interval Top: 6837 ft.    Interval Bottom: 7070 ft.

 Completed Information for Formation NIOBRARA
1st Production Date:4/25/1993Choke Size:
Formation Name:NIOBRARACommingled:Yes
Production Method:
Open Hole Completion:No
Formation Treatment
Treatment Date:4/25/1993
Treatment Summary:6837-7154' FRAC W/406,800# 20/40 SAND IN 89,509 GALS X-LINKED PUR-GEL FLUID.(4/93) SET CIBP @ 7130. DUMP 1 SX CMT ON PLUG. TIH W/PKR, TBG. SET PKR. REL PKR. PERF'D THE NBRR FROM 6880-6910, 7040-7070 W/2 SPF. FRAC'D NBRR W/138,512 GAL FRAC FLUID AND 200,080 SAND. FLOW BACK FRAC. (2/2004)
Tubing Size:Tubing Setting Depth:
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:N/ATest Method:
Hours Tested:Gas Type:
Gas Disposal:
Test TypeMeasure
BBLS_H2O 15
BBLS_OIL 15
CALC_BBLS_H2O 15
CALC_BBLS_OIL 15
CALC_GOR 16667
CALC_MCF_GAS 250
MCF_GAS 250
TUBING_PRESS 205
Perforation Data:
Interval Top:6837 ft.# Of Holes:120
Interval Bottom:7070 ft.Hole Size:0.35 in.
Primary Well Designation:
None      i
            All DesignationsDate
Reported PluggedY06/30/2023
Out Of Service RepurposedN
Out Of ServiceN
Inactive ExceptionN
Noticed InactiveN
Defined InactiveN
Low ProducingN

BOE/MCFE/GOR Calculations
Production for Previous 12 Months
December 2024 - November 2025i
Total Oil Produced (Barrels)0
Total Gas Produced (MCF)0
GOR
GOR Determination
Average BOE per Day0.000
Average MCFE per Day0.000

 Federal Financial Assurance  i

 Tribal Well  i No
