COGIS - WELL SCOUT CARD

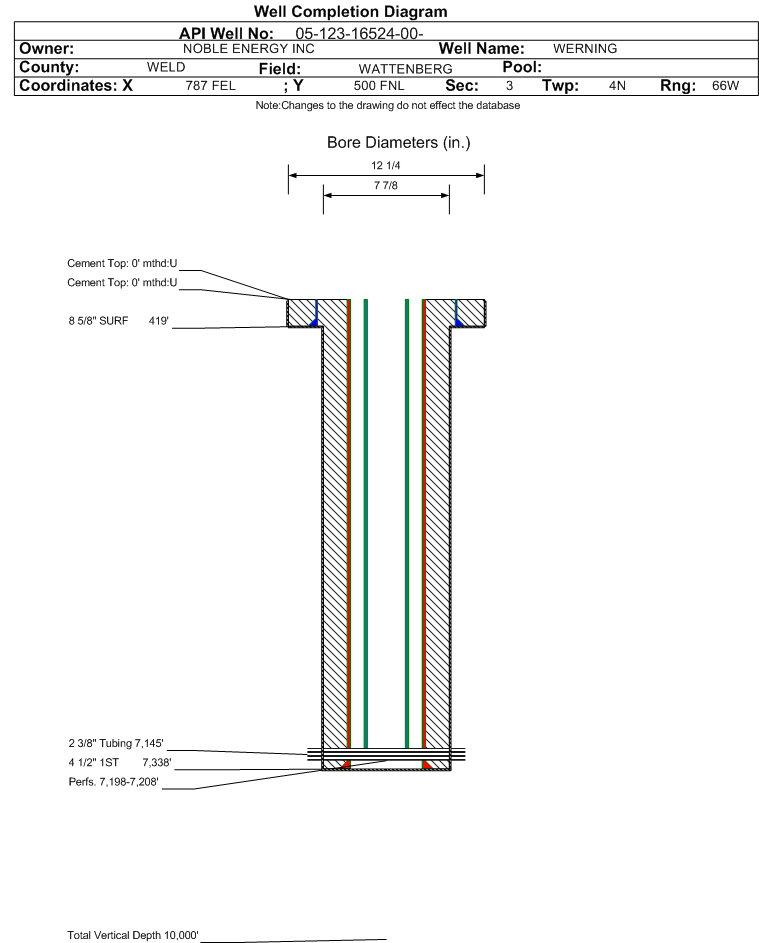

Click image to view related facilities. Related  Click image to view inspection information. InspClick image to view MIT information. MITClick image to access interactive map at well/facility location. GISClick image to view imaged documents for this well/facility. DocClick image to view imaged documents for this well/facility. COAClick image to view wellbore completion diagram. WellboreClick image to search for orders within this facility's section. OrdersClick image to view bradenhead scoutcard data. Bradenhead
 Surface Location
 API# 05-123-16524		Well Classification: GW Status: PR - 10/1/2025
Well Name/No:WERNING #41-3
(Click Well Name for Production Data)		Click Here for Transporter Gatherer Info
Operator:PDC ENERGY INC - 69175
(Click Operator Name for Company Detail Report)		Federal Or State Lease #:60181
Facility Status:PRStatus Date10/1/2025
FacilityID:248722LocationID:328858
Municipality/County:EVANS / WELD #123Location:NENE 3 4N66W 6
Field:WATTENBERG - #90750Elevation:4677 ft.
Basin:DENVER (DJ) BASIN
Planned Location:500FNL  787 FELLat/Long: 40.347195 / -104.756861Lat/Long Source: Calculated From Footages
As Drilled Location:Footages Not AvailableLat/Long: 40.347370 / -104.756530Lat/Long Source: Field Measured
 Wellbore And Formation Details -- select either a wellbore Or formation to expand.


Wellbore #00             Wellbore Classification: GW             Status: PR - 10/1/2025             Measured TD: 7342 ft.    Vertical TD: 0 ft.

 Wellbore Data for Original WellboreWellbore Classification: GW        PR - 10/1/2025
Wellbore Permit
Permit #:931270 Expiration Date:1/12/1994
Proposed Depth/Form:
Surface Mineral Owner Same:Not available
Mineral Owner:FEESurface Owner:Not available
Unit: Unit Number:
Formation And Spacing:Code: NB-CD , Formation: NIOBRARA-CODELL , Order: 0 , Unit Acreage: 80, Drill Unit: E2NE
Wellbore Completed
Completion Date:2/9/1994
Measured TD:7342 ft.Measured PB depth:0 ft.
True Vertical TD:0 ft.True Vertical PB depth:
Top PZ Location:Sec: Twp: Footage: 0 FL  0 FL
Casing:String Type: SURF, Hole Size: 12.25 in., Size: 8.625 in., Top: 0 ft., Depth: 419 ft., Weight: 23 , Citings Type: ACTUAL
Cement:Sacks: 348, Top: 0 ft., Bottom: 419 ft., Determination Method: VISU
Casing:String Type: SURF, Hole Size: 12.25 in., Size: 8.625 in., Top: 0 ft., Depth: 419 ft., Weight: , Citings Type: HISTORICAL
Cement:Sacks: 348, Top: 0 ft., Bottom: , Determination Method:
Casing:String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: 0 ft., Depth: 7338 ft., Weight: 11.6 , Citings Type: ACTUAL
Cement:Sacks: 205, Top: 6197 ft., Bottom: 7338 ft., Determination Method: CBL
Casing:String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: 0 ft., Depth: 7338 ft., Weight: , Citings Type: HISTORICAL
Cement:Sacks: 0, Top: 0 ft., Bottom: , Determination Method:
Casing:String Type: S.C. 1.1, Hole Size: 7.875 in., Size: 4.5 in., Top: 0 ft., Depth: 7338 ft., Weight: 11.6 , Citings Type: ACTUAL
Cement:Sacks: 290, Top: 3510 ft., Bottom: 4916 ft., Determination Method: CBL
FormationInterval TopLog BottomCoredDSTs
PARKMAN3606 ft.
SUSSEX4292 ft.
SHANNON4752 ft.
NIOBRARA6868 ft.
FORT HAYS7185 ft.
CODELL7198 ft.

Formation CODL                     Formation Classification:  GW                     Status:  CM - 11/11/2025                Interval Top: 7198 ft.    Interval Bottom: 7213 ft.

 Completed Information for Formation CODELL
1st Production Date:2/9/1994Choke Size:
Formation Name:CODELLCommingled:Yes
Production Method:
Open Hole Completion:No
Formation Treatment
Treatment Date:2/9/1994
Treatment Summary:REFRAC CODELL; 3130 BBLS VISTAR 28 & 26 FLUID, 246,080# 20/40 SAND @ 14.3 BPM AVE RATE, 5762 PSI MAX, 5229 PSI MIN, 5516 PSI AVE, ISDP 3909
Tubing Size:Tubing Setting Depth:
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:N/ATest Method:
Hours Tested:Gas Type:
Gas Disposal:
Test TypeMeasure
BBLS_H2O 6
BBLS_OIL 15
CALC_BBLS_H2O 6
CALC_BBLS_OIL 15
CALC_GOR 19933
CALC_MCF_GAS 299
CASING_PRESS 400
MCF_GAS 299
TUBING_PRESS 290
Perforation Data:
Interval Top:7198 ft.# Of Holes:47
Interval Bottom:7213 ft.Hole Size:0.375 in.

Formation NB-CD                   Formation Classification:  GW                   Status:  PR - 10/1/2025                 Interval Top: 6885 ft.    Interval Bottom: 7213 ft.

 Completed Information for Formation NIOBRARA-CODELL
1st Production Date:2/19/1994Choke Size:
Formation Name:NIOBRARA-CODELLCommingled:No
Production Method:
Open Hole Completion:No
Tubing Size:Tubing Setting Depth:
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
No Initial Test Data was found for formation NB-CD.
Perforation Data:
Interval Top:6885 ft.# Of Holes:55
Interval Bottom:7213 ft.Hole Size:0.38 in.

Formation NBRR                     Formation Classification:  GW                     Status:  CM - 11/20/2025                Interval Top: 6884 ft.    Interval Bottom: 7024 ft.

 Completed Information for Formation NIOBRARA
1st Production Date:2/9/1994Choke Size:
Formation Name:NIOBRARACommingled:Yes
Production Method:
Open Hole Completion:No
Tubing Size:Tubing Setting Depth:
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
No Initial Test Data was found for formation NBRR.
Perforation Data:
Interval Top:6884 ft.# Of Holes:8
Interval Bottom:7024 ft.Hole Size:0.38 in.
Primary Well Designation:
None      i
            All DesignationsDate
Reported PluggedN
Out Of Service RepurposedN
Out Of ServiceN
Inactive ExceptionN
Noticed InactiveN
Defined InactiveN
Low ProducingN

BOE/MCFE/GOR Calculations
Production for Previous 12 Months
October 2024 - September 2025i
Total Oil Produced (Barrels)96
Total Gas Produced (MCF)4336
GOR45166
GOR DeterminationMCFE
Average BOE per Day2.306
Average MCFE per Day13.369

 Federal Financial Assurance  i

 Tribal Well  i No
