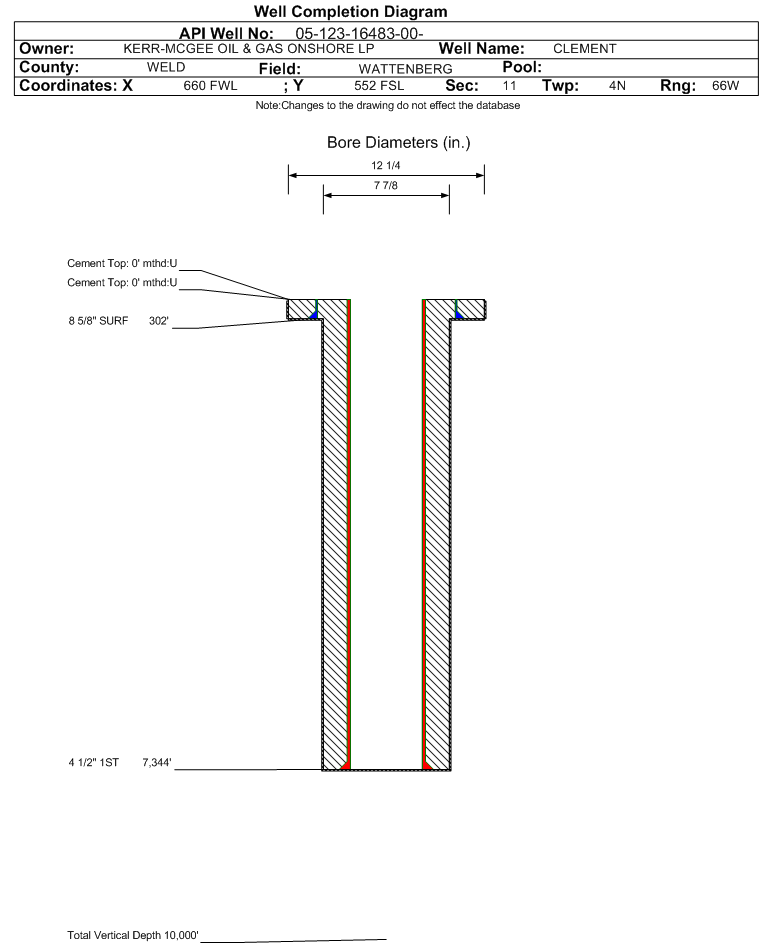

Click image to view related facilities. Related  Click image to view inspection information. InspClick image to view MIT information. MITClick image to access interactive map at well/facility location. GISClick image to view imaged documents for this well/facility. DocClick image to view imaged documents for this well/facility. COAClick image to view wellbore completion diagram. WellboreClick image to search for orders within this facility's section. OrdersClick image to view bradenhead scoutcard data. Bradenhead
 Surface Location
 API# 05-123-16483		Well Classification: GW Status: SI - 10/15/2025
Well Name/No:CLEMENT #14-11
(Click Well Name for Production Data)		Click Here for Transporter Gatherer Info
Operator:PDC ENERGY INC - 69175
(Click Operator Name for Company Detail Report)		Federal Or State Lease #:60892
Facility Status:SIStatus Date10/15/2025
FacilityID:248682LocationID:328824
County:WELD #123Location:SWSW 11 4N66W 6
Field:WATTENBERG - #90750Elevation:4724 ft.
Basin:DENVER (DJ) BASIN
Planned Location:552FSL  660 FWLLat/Long: 40.320485 / -104.751660Lat/Long Source: Calculated From Footages
As Drilled Location:Footages Not AvailableLat/Long: 40.320586 / -104.751786Lat/Long Source: Field Measured
 Wellbore And Formation Details -- select either a wellbore Or formation to expand.


Wellbore #00             Wellbore Classification: GW             Status: SI - 10/15/2025             Measured TD: 7349 ft.    Vertical TD: 0 ft.

 Wellbore Data for Original WellboreWellbore Classification: GW        SI - 10/15/2025
Wellbore PermitDRIFTED
Permit #:921676 Expiration Date:3/13/1993
Proposed Depth/Form:
Surface Mineral Owner Same:Not available
Mineral Owner:FEESurface Owner:Not available
Unit: Unit Number:
Formation And Spacing:Code: NB-CD , Formation: NIOBRARA-CODELL , Order: 0 , Unit Acreage: 80, Drill Unit: S2SW
Wellbore Completed
Completion Date:12/31/1992
Measured TD:7349 ft.Measured PB depth:7305 ft.
True Vertical TD:0 ft.True Vertical PB depth:
Top PZ Location:Sec: Twp: Footage: 0 FL  0 FL
Casing:String Type: SURF, Hole Size: 12.25 in., Size: 8.625 in., Top: 0 ft., Depth: 302 ft., Weight: 24 , Citings Type: ACTUAL
Cement:Sacks: 100, Top: 0 ft., Bottom: 302 ft., Determination Method: VISU
Casing:String Type: SURF, Hole Size: 12.25 in., Size: 8.625 in., Top: 0 ft., Depth: 302 ft., Weight: , Citings Type: HISTORICAL
Cement:Sacks: 100, Top: 0 ft., Bottom: , Determination Method:
Casing:String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: 0 ft., Depth: 7344 ft., Weight: 11.6 , Citings Type: ACTUAL
Cement:Sacks: 175, Top: 6080 ft., Bottom: 7344 ft., Determination Method: CBL
Casing:String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: 0 ft., Depth: 7344 ft., Weight: , Citings Type: HISTORICAL
Cement:Sacks: 0, Top: 0 ft., Bottom: , Determination Method:
Casing:String Type: S.C. 1.1, Hole Size: 7.875 in., Size: 4.5 in., Top: 0 ft., Depth: 7344 ft., Weight: 11.6 , Citings Type: ACTUAL
Cement:Sacks: 310, Top: 4220 ft., Bottom: 5200 ft., Determination Method: CBL
FormationInterval TopLog BottomCoredDSTs
SUSSEX4386 ft.
NIOBRARA6880 ft.
CODELL7218 ft.

Formation CODL                     Formation Classification:  GW                     Status:  CM - 11/4/2025                 Interval Top: 7219 ft.    Interval Bottom: 7230 ft.

 Completed Information for Formation CODELL
1st Production Date:1/14/1993Choke Size:
Formation Name:CODELLCommingled:Yes
Production Method:
Open Hole Completion:No
Tubing Size:Tubing Setting Depth:
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
No Initial Test Data was found for formation CODL.
Perforation Data:
Interval Top:7219 ft.# Of Holes:50
Interval Bottom:7230 ft.Hole Size:0.38 in.

Formation NB-CD                   Formation Classification:  GW                   Status:  SI - 10/15/2025                Interval Top: 6898 ft.    Interval Bottom: 7230 ft.

 Completed Information for Formation NIOBRARA-CODELL
1st Production Date:1/14/1993Choke Size:
Formation Name:NIOBRARA-CODELLCommingled:No
Production Method:
Open Hole Completion:No
Tubing Size:Tubing Setting Depth:
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
No Initial Test Data was found for formation NB-CD.
Perforation Data:
Interval Top:6898 ft.# Of Holes:76
Interval Bottom:7230 ft.Hole Size:0.38 in.

Formation NBRR                     Formation Classification:  GW                     Status:  CM - 11/4/2025                 Interval Top: 6898 ft.    Interval Bottom: 7026 ft.

 Completed Information for Formation NIOBRARA
1st Production Date:1/14/1993Choke Size:
Formation Name:NIOBRARACommingled:Yes
Production Method:
Open Hole Completion:No
Tubing Size:Tubing Setting Depth:
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
No Initial Test Data was found for formation NBRR.
Perforation Data:
Interval Top:6898 ft.# Of Holes:26
Interval Bottom:7026 ft.Hole Size:0.38 in.
Primary Well Designation:
Out Of Service      i
            All DesignationsDate
Reported PluggedN
Out Of Service RepurposedN
Out Of ServiceYPlugging Due Date
03/31/2029
Inactive ExceptionN
Noticed InactiveYNoticed Date
07/26/2024
Defined Inactive (SI )YDefined Inactive
10/01/2024
Low ProducingYProduction Period
10/2024 - 09/2025

BOE/MCFE/GOR Calculations
Production for Previous 12 Months
October 2024 - September 2025i
Total Oil Produced (Barrels)0
Total Gas Produced (MCF)0
GOR
GOR DeterminationMCFE
Average BOE per Day0.000
Average MCFE per Day0.000

 Federal Financial Assurance  i

 Tribal Well  i No
