COGIS - WELL SCOUT CARD

Related Insp MIT GIS Doc COA Wellbore Orders Bradenhead
Surface Location API# 05-123-16336		Well Classification: GW	Status: PA - 9/29/2022
Well Name/No:	HSR-HAAS #5-15 (Click Well Name for Production Data)	Click Here for Transporter Gatherer Info
Operator:	NOBLE ENERGY INC - 100322 (Click Operator Name for Company Detail Report)	Federal Or State Lease #:
Facility Status:	PA	Status Date	9/29/2022
FacilityID:	248538	LocationID:	332518
County:	WELD #123	Location:	SWNW 15 3N65W 6
Field:	WATTENBERG - #90750	Elevation:	4810 ft.
Planned Location:	2412FNL 490 FWL	Lat/Long: 40.226037 / -104.657637	Lat/Long Source: Calculated From Footages
As Drilled Location:	2403 FNL 505 FWL	Lat/Long: 40.226030 / -104.657580	Lat/Long Source: Field Measured


Wellbore And Formation Details -- select either a wellbore Or formation to expand.

Wellbore #00 Wellbore Classification: GW Status: AB - 9/29/2022 Measured TD: 8141 ft. Vertical TD: 7927 ft.

Wellbore Data for Original Wellbore		Wellbore Classification: GW AB - 9/29/2022
Wellbore Permit			DIRECTIONAL
Permit #:	19921399	Expiration Date:	10/8/1994
Bottom Hole Location:	Sec:15 Twp: 3N 65W	Footage: 1498 FNL 1090 FWL
Proposed Depth/Form:	8086 ft.
Surface Mineral Owner Same:	No
Mineral Owner:	FEE	Surface Owner:	Not available
Unit:		Unit Number:
Formation And Spacing:	Code: DKTA , Formation: DAKOTA , Order: 499 , Unit Acreage: 320, Drill Unit: N2
Formation And Spacing:	Code: NB-CD , Formation: NIOBRARA-CODELL , Order: 499-15 , Unit Acreage: 80, Drill Unit: W2NW
Formation And Spacing:	Code: SUSX , Formation: SUSSEX , Order: , Unit Acreage: 80, Drill Unit: W2NW4

Wellbore Completed
Completion Date:	1/8/1993
Spud Date:	10/18/1992	Spud Date Is:	ACTUAL
Measured TD:	8141 ft.	Measured PB depth:	7968 ft.
True Vertical TD:	7927 ft.	True Vertical PB depth:
Log Types:	DIL/SFL/GR; CBL; DEN/CNL/GR

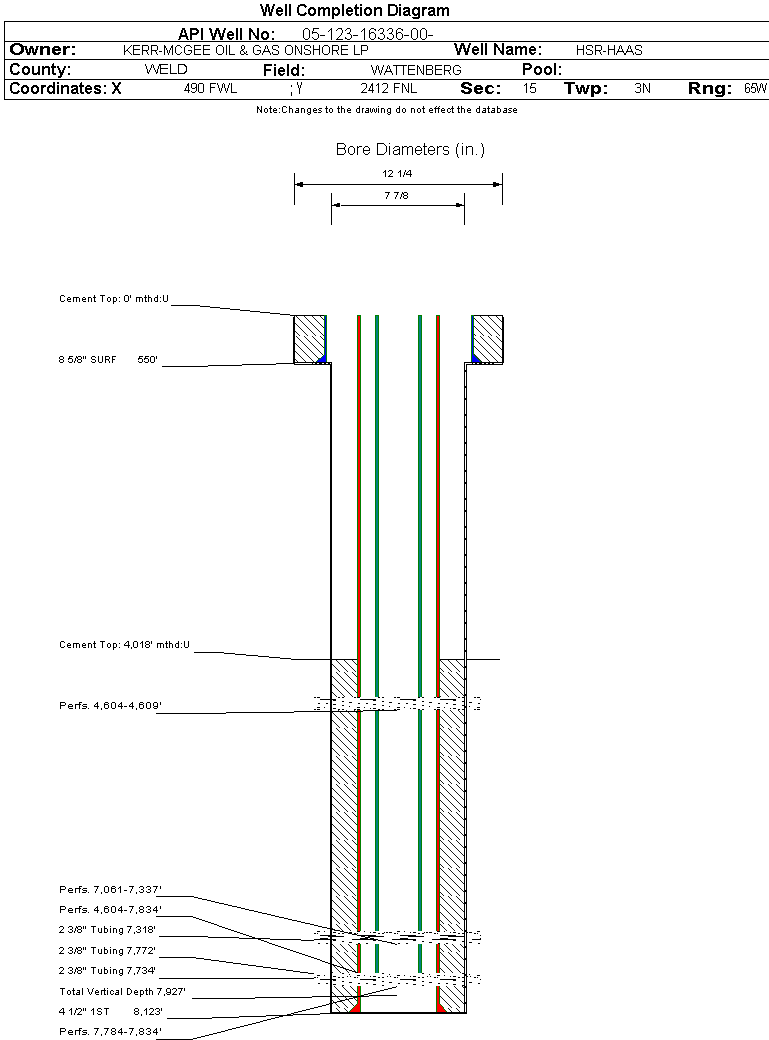

Casing:	String Type: SURF, Hole Size: 12.25 in., Size: 8.625 in., Top: 0 ft., Depth: 550 ft., Weight: 24 , Citings Type: ACTUAL
Cement:	Sacks: 330, Top: 0 ft., Bottom: 550 ft., Determination Method: VISU
Casing:	String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: 0 ft., Depth: 8123 ft., Weight: 11.6 , Citings Type: ACTUAL
Cement:	Sacks: 447, Top: 6950 ft., Bottom: 8123 ft., Determination Method: CBL
Casing:	String Type: S.C. 1.1, Hole Size: , Size: , Top: , Depth: 8123 ft., Weight: , Citings Type: ACTUAL
Cement:	Sacks: 224, Top: 4032 ft., Bottom: 4840 ft., Determination Method: CBL
Formation	Interval Top	Log Bottom	Cored	DSTs
FOX HILLS	100 ft.	200 ft.	N	N
SUSSEX	4544 ft.	4609 ft.	N	N
NIOBRARA	7060 ft.	7299 ft.	N	N
FORT HAYS	7299 ft.	7322 ft.	N	N
CODELL	7322 ft.	7338 ft.	N	N
CARLILE	7338 ft.	7397 ft.	N	N
GREENHORN	7397 ft.	7597 ft.	N	N
J SAND	7770 ft.	7880 ft.	N	N
DAKOTA	7980 ft.	8040 ft.	N	N
LAKOTA	8040 ft.	8117 ft.	N	N
MORRISON	8117 ft.		N	N

Formation JSND Formation Classification: GW Status: AB - 9/29/2022 Interval Top: 7784 ft. Interval Bottom: 7834 ft.

Completed Information for Formation J SAND

1st Production Date:	4/28/1994	Choke Size:
Formation Name:	J SAND	Commingled:	No
Production Method:
Open Hole Completion:	No

Formation Treatment
Treatment Date:	1/8/1993
Treatment Summary:	FRAC'D W/ 610,000# 20/40 MESH SAND + 195,030 GALS. GELLED FLUID.

Test Type	Measure
Tubing Size:		Tubing Setting Depth:
Tubing Packer Depth:		Tubing Multiple Packer:
Open Hole Top:		Open Hole Bottom:
Initial Test Data:
Test Date:	N/A	Test Method:
Hours Tested:		Gas Type:
Gas Disposal:
BBLS_H2O	0
BBLS_OIL	7
CALC_BBLS_OIL	7
CALC_GOR	128429
CALC_MCF_GAS	899
CASING_PRESS	1000
GRAVITY_OIL	60
MCF_GAS	899
TUBING_PRESS	800

Perforation Data:
Interval Top:	7784 ft.	# Of Holes:	50
Interval Bottom:	7834 ft.	Hole Size:	0.38 in.

Formation CODL Formation Classification: GW Status: CM - 3/22/2022 Interval Top: 7324 ft. Interval Bottom: 7337 ft.

Completed Information for Formation CODELL

1st Production Date:	4/28/1994	Choke Size:
Formation Name:	CODELL	Commingled:	Yes
Production Method:
Open Hole Completion:	No

Tubing Size:		Tubing Setting Depth:
Tubing Packer Depth:		Tubing Multiple Packer:
Open Hole Top:		Open Hole Bottom:
No Initial Test Data was found for formation CODL.

Perforation Data:
Interval Top:	7324 ft.	# Of Holes:	10
Interval Bottom:	7337 ft.	Hole Size:

Formation NB-CD Formation Classification: GW Status: AB - 9/29/2022 Interval Top: 7061 ft. Interval Bottom: 7337 ft.

Completed Information for Formation NIOBRARA-CODELL

1st Production Date:	4/28/1994	Choke Size:
Formation Name:	NIOBRARA-CODELL	Commingled:	No
Production Method:
Open Hole Completion:	No

Formation Treatment
Treatment Date:	1/8/1993
Treatment Summary:	SEE SCANNED DOCUMENTS # 00613452 & # 01209666.

Test Type	Measure
Tubing Size:		Tubing Setting Depth:
Tubing Packer Depth:		Tubing Multiple Packer:
Open Hole Top:		Open Hole Bottom:
Initial Test Data:
Test Date:	N/A	Test Method:
Hours Tested:		Gas Type:
Gas Disposal:
BBLS_H2O	0
BBLS_OIL	845
CALC_GOR	7133
CASING_PRESS	1950
MCF_GAS	321
TUBING_PRESS	1400

Perforation Data:
Interval Top:	7061 ft.	# Of Holes:	20
Interval Bottom:	7337 ft.	Hole Size:	0.38 in.

Formation NBRR Formation Classification: GW Status: CM - 3/22/2022 Interval Top: 7061 ft. Interval Bottom: 7200 ft.

Completed Information for Formation NIOBRARA

1st Production Date:	4/28/1994	Choke Size:
Formation Name:	NIOBRARA	Commingled:	Yes
Production Method:
Open Hole Completion:	No

Tubing Size:		Tubing Setting Depth:
Tubing Packer Depth:		Tubing Multiple Packer:
Open Hole Top:		Open Hole Bottom:
No Initial Test Data was found for formation NBRR.

Perforation Data:
Interval Top:	7061 ft.	# Of Holes:	10
Interval Bottom:	7200 ft.	Hole Size:

Formation JNCSX Formation Classification: GW Status: CM - 1/5/2003 Interval Top: 4604 ft. Interval Bottom: 7834 ft.

Completed Information for Formation J-CODELL-NIOBRARA-SUSSEX

1st Production Date:	4/28/1994	Choke Size:	0.375 in.
Formation Name:	J-CODELL-NIOBRARA-SUSSEX	Commingled:
Production Method:	PLUNGER 500
Open Hole Completion:

Formation Treatment
Treatment Date:	1/8/1993
Treatment Summary:	COMMINGLED

Test Type	Measure
Tubing Size:	2.375 in.	Tubing Setting Depth:	7734 ft.
Tubing Packer Depth:		Tubing Multiple Packer:
Open Hole Top:		Open Hole Bottom:
Initial Test Data:
Test Date:	1/5/2003	Test Method:	PLUNGER 500
Hours Tested:	11.6	Gas Type:
Gas Disposal:
BBLS_H2O	0
BBLS_OIL	8
CALC_BBLS_OIL	17
CALC_GOR	20058
CALC_MCF_GAS	341
CASING_PRESS	522
MCF_GAS	341
TUBING_PRESS	297

Perforation Data:
Interval Top:	4604 ft.	# Of Holes:	79
Interval Bottom:	7834 ft.	Hole Size:	0.38 in.

Formation SUSX Formation Classification: GW Status: AB - 9/29/2022 Interval Top: 4604 ft. Interval Bottom: 4609 ft.

Completed Information for Formation SUSSEX

1st Production Date:	4/28/1994	Choke Size:
Formation Name:	SUSSEX	Commingled:	No
Production Method:
Open Hole Completion:	No

Tubing Size:		Tubing Setting Depth:
Tubing Packer Depth:		Tubing Multiple Packer:
Open Hole Top:		Open Hole Bottom:
No Initial Test Data was found for formation SUSX.

Perforation Data:
Interval Top:	4604 ft.	# Of Holes:	10
Interval Bottom:	4609 ft.	Hole Size:	0.38 in.

All Designations		Date
Primary Well Designation: None i
Reported Plugged	Y	09/29/2022
Out Of Service Repurposed	N
Out Of Service	Y	Plugging Due Date 12/31/2030
Inactive Exception	N
Noticed Inactive	N
Defined Inactive	N
Low Producing	N

May 2024 - April 2025	i
BOE/MCFE/GOR Calculations Production for Previous 12 Months
Total Oil Produced (Barrels)	0
Total Gas Produced (MCF)	0
GOR
GOR Determination
Average BOE per Day	0.000
Average MCFE per Day	0.000

Federal Financial Assurance

Tribal Well
