COGIS - WELL SCOUT CARD

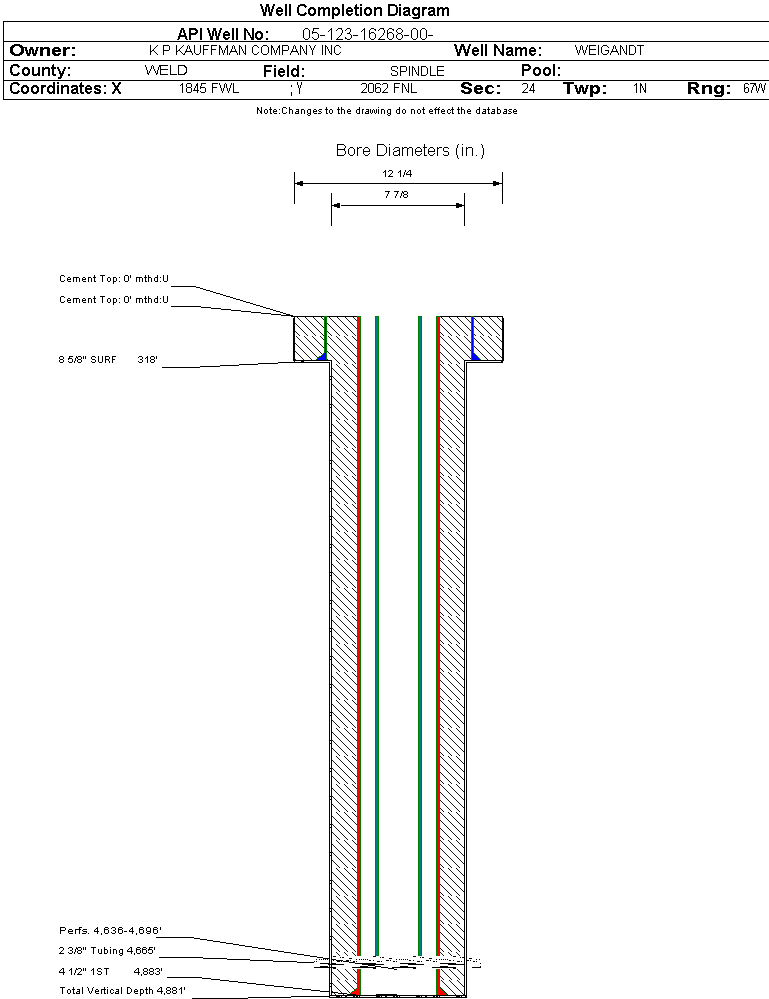

Click image to view related facilities. Related  Click image to view inspection information. InspClick image to view MIT information. MITGIS Map GISOld GIS Map Old GISClick image to view imaged documents for this well/facility. DocClick image to view imaged documents for this well/facility. COAClick image to view wellbore completion diagram. WellboreClick image to search for orders within this facility's section. OrdersClick image to view bradenhead scoutcard data. Bradenhead
 Surface Location
 API# 05-123-16268		Well Classification: OW Status: PR - 12/1/2024
Well Name/No:WEIGANDT #22-24
(Click Well Name for Production Data)		Click Here for Transporter Gatherer Info
Operator:KP KAUFFMAN COMPANY INC - 46290
(Click Operator Name for Company Detail Report)		Federal Or State Lease #:
Facility Status:PRStatus Date12/1/2024
FacilityID:248470LocationID:328657
County:WELD #123Location:SENW 24 1N67W 6
Field:SPINDLE - #77900Elevation:4932 ft.
Basin:DENVER (DJ) BASIN
Planned Location:2062FNL  1845 FWLLat/Long: 40.038008 / -104.841951Lat/Long Source: Calculated From Footages
As Drilled Location:Footages Not AvailableLat/Long: 40.037960 / -104.841760Lat/Long Source: Field Measured
 Wellbore And Formation Details -- select either a wellbore Or formation to expand.


Wellbore #00             Wellbore Classification: OW             Status: PR - 12/1/2024             Measured TD: 4881 ft.    Vertical TD: 0 ft.

 Wellbore Data for Original WellboreWellbore Classification: OW        PR - 12/1/2024
Wellbore Permit
Permit #:19930245 Expiration Date:7/7/1993
Proposed Depth/Form:4832 ft.
Surface Mineral Owner Same:Yes
Mineral Owner:FEESurface Owner:Not available
Unit: Unit Number:
Formation And Spacing:Code: SUSX , Formation: SUSSEX , Order: 250 , Unit Acreage: 40, Drill Unit: SENW
Wellbore Completed
Completion Date:6/16/1993
Spud Date:6/6/1993Spud Date Is:ACTUAL
Measured TD:4881 ft.Measured PB depth:4852 ft.
True Vertical TD:0 ft.True Vertical PB depth:
Log Types:DIL-FDC/GR/SP-CBL
Casing:String Type: SURF, Hole Size: 12.25 in., Size: 8.625 in., Top: 0 ft., Depth: 318 ft., Weight: 24 , Citings Type: ACTUAL
Cement:Sacks: 220, Top: 0 ft., Bottom: , Determination Method:
Casing:String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: 0 ft., Depth: 4883 ft., Weight: 10.5 , Citings Type: ACTUAL
Cement:Sacks: 225, Top: 0 ft., Bottom: , Determination Method:
FormationInterval TopLog BottomCoredDSTs
SUSSEX4684 ft.NN

Formation SUSX                     Formation Classification:  GW                     Status:  PR - 12/1/2024                 Interval Top: 4636 ft.    Interval Bottom: 4696 ft.

 Completed Information for Formation SUSSEX
1st Production Date:6/29/1993Choke Size:0.000 in.
Formation Name:SUSSEXCommingled:No
Production Method:PUMPING
Open Hole Completion:
Formation Treatment
Treatment Date:6/16/1993
Treatment Summary:79,674 GAL GEL W/280,000# 12/20 SAND. 1185# AIR AT 33 BPM/ISDP 900#.
Tubing Size:2.375 in.Tubing Setting Depth:4665 ft.
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:8/15/1993Test Method:PUMPING
Hours Tested:24Gas Type:
Gas Disposal:SOLD
Test TypeMeasure
BBLS_H2O 10
BBLS_OIL 31
CALC_GOR 1452
CASING_PRESS 46
GRAVITY_OIL 43
MCF_GAS 45
TUBING_PRESS 46
Perforation Data:
Interval Top:4636 ft.# Of Holes:24
Interval Bottom:4696 ft.Hole Size:
Primary Well Designation:
Low Producing      i
            All DesignationsDate
Reported PluggedN
Out Of Service RepurposedN
Out Of ServiceN
Inactive ExceptionN
Noticed InactiveN
Defined InactiveN
Low ProducingYProduction Period
12/2024 - 11/2025

BOE/MCFE/GOR Calculations
Production for Previous 12 Months
December 2024 - November 2025i
Total Oil Produced (Barrels)131
Total Gas Produced (MCF)296
GOR2259
GOR DeterminationBOE
Average BOE per Day0.494
Average MCFE per Day2.880

 Federal Financial Assurance  i

 Tribal Well  i No
