Facility Detail

COGIS - WELL SCOUT CARD

Related Insp MIT GIS Doc COA Wellbore Orders Bradenhead
Surface Location API# 05-123-16264		Well Classification: GW	Status: PA - 12/21/2020
Well Name/No:	HSR-NICHOLS #15-32 (Click Well Name for Production Data)	Click Here for Transporter Gatherer Info
Operator:	NOBLE ENERGY INC - 100322 (Click Operator Name for Company Detail Report)	Federal Or State Lease #:	63352
Facility Status:	PA	Status Date	12/21/2020
FacilityID:	248466	LocationID:	328656
County:	WELD #123	Location:	SWSE 32 4N65W 6
Field:	WATTENBERG - #90750	Elevation:	4896 ft.
Basin:	DENVER (DJ) BASIN
Planned Location:	1000FSL 1650 FEL	Lat/Long: 40.264486 / -104.683418	Lat/Long Source: Calculated From Footages
As Drilled Location:	Footages Not Available	Lat/Long: 40.264414 / -104.683622	Lat/Long Source: Field Measured

Wellbore And Formation Details -- select either a wellbore Or formation to expand.

Wellbore #00 Wellbore Classification: GW Status: PA - 12/21/2020 Measured TD: 8095 ft. Vertical TD: 0 ft.

Wellbore Data for Original Wellbore		Wellbore Classification: GW PA - 12/21/2020
Wellbore Permit
Permit #:	921275	Expiration Date:	1/22/1995
Proposed Depth/Form:
Surface Mineral Owner Same:	Not available
Mineral Owner:	FEE	Surface Owner:	Not available
Unit:		Unit Number:
Formation And Spacing:	Code: DKTA , Formation: DAKOTA , Order: 0 , Unit Acreage: 320, Drill Unit: E2

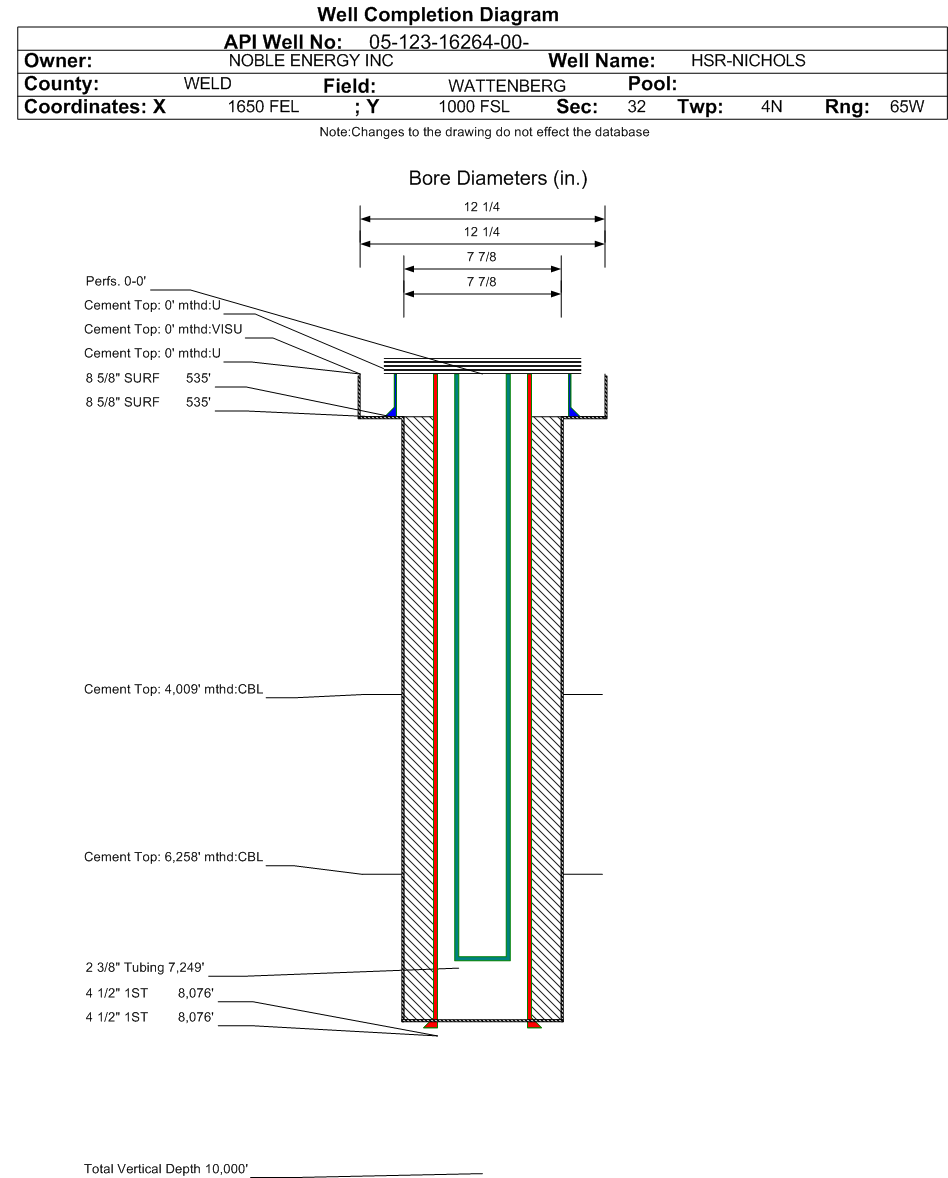

Wellbore Completed
Completion Date:	11/23/1992
Measured TD:	8095 ft.	Measured PB depth:	8025 ft.
True Vertical TD:	0 ft.	True Vertical PB depth:
Casing:	String Type: SURF, Hole Size: 12.25 in., Size: 8.625 in., Top: , Depth: 535 ft., Weight: 24 , Citings Type: ACTUAL
Cement:	Sacks: 370, Top: 0 ft., Bottom: 535 ft., Determination Method: VISU
Casing:	String Type: SURF, Hole Size: 12.25 in., Size: 8.625 in., Top: 0 ft., Depth: 535 ft., Weight: , Citings Type: HISTORICAL
Cement:	Sacks: 270, Top: 0 ft., Bottom: , Determination Method:
Casing:	String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: , Depth: 8076 ft., Weight: 11.6 , Citings Type: ACTUAL
Cement:	Sacks: 374, Top: 6258 ft., Bottom: 8095 ft., Determination Method: CBL
Casing:	String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: 0 ft., Depth: 8076 ft., Weight: , Citings Type: HISTORICAL
Cement:	Sacks: 0, Top: 0 ft., Bottom: , Determination Method:
Casing:	String Type: S.C. 1.1, Hole Size: , Size: , Top: , Depth: 4916 ft., Weight: , Citings Type: ACTUAL
Cement:	Sacks: 255, Top: 4009 ft., Bottom: 4970 ft., Determination Method: CBL
Formation	Interval Top	Log Bottom	Cored	DSTs
FOX HILLS	200 ft.
SUSSEX	4518 ft.
NIOBRARA	6993 ft.
FORT HAYS	7248 ft.
CODELL	7270 ft.
CARLILE	7286 ft.
GREENHORN	7346 ft.
J SAND	7730 ft.
DAKOTA	7944 ft.
LAKOTA	8038 ft.
MORRISON	8065 ft.

Formation DKTA Formation Classification: GW Status: AB - 12/21/2020 Interval Top: 7957 ft. Interval Bottom: 7965 ft.

Completed Information for Formation DAKOTA

1st Production Date:	11/23/1992	Choke Size:
Formation Name:	DAKOTA	Commingled:	No
Production Method:
Open Hole Completion:	No

Tubing Size:		Tubing Setting Depth:
Tubing Packer Depth:		Tubing Multiple Packer:
Open Hole Top:		Open Hole Bottom:
No Initial Test Data was found for formation DKTA.

Perforation Data:
Interval Top:	7957 ft.	# Of Holes:	18
Interval Bottom:	7965 ft.	Hole Size:

Formation JSND Formation Classification: GW Status: AB - 12/21/2020 Interval Top: 7730 ft. Interval Bottom: 7802 ft.

Completed Information for Formation J SAND

1st Production Date:	3/26/1993	Choke Size:
Formation Name:	J SAND	Commingled:	No
Production Method:
Open Hole Completion:	No

Tubing Size:		Tubing Setting Depth:
Tubing Packer Depth:		Tubing Multiple Packer:
Open Hole Top:		Open Hole Bottom:
No Initial Test Data was found for formation JSND.

Perforation Data:
Interval Top:	7730 ft.	# Of Holes:	24
Interval Bottom:	7802 ft.	Hole Size:

Formation CODL Formation Classification: GW Status: CM - 10/27/2020 Interval Top: 7271 ft. Interval Bottom: 7287 ft.

Completed Information for Formation CODELL

1st Production Date:	2/5/1994	Choke Size:
Formation Name:	CODELL	Commingled:	Yes
Production Method:
Open Hole Completion:	No

Tubing Size:		Tubing Setting Depth:
Tubing Packer Depth:		Tubing Multiple Packer:
Open Hole Top:		Open Hole Bottom:
No Initial Test Data was found for formation CODL.

Perforation Data:
Interval Top:	7271 ft.	# Of Holes:	34
Interval Bottom:	7287 ft.	Hole Size:

Formation NB-CD Formation Classification: GW Status: AB - 12/21/2020 Interval Top: 6994 ft. Interval Bottom: 7287 ft.

Completed Information for Formation NIOBRARA-CODELL

1st Production Date:	2/5/1994	Choke Size:
Formation Name:	NIOBRARA-CODELL	Commingled:	No
Production Method:
Open Hole Completion:	No

Tubing Size:		Tubing Setting Depth:
Tubing Packer Depth:		Tubing Multiple Packer:
Open Hole Top:		Open Hole Bottom:
No Initial Test Data was found for formation NB-CD.

Perforation Data:
Interval Top:	6994 ft.	# Of Holes:	53
Interval Bottom:	7287 ft.	Hole Size:

Formation NBRR Formation Classification: GW Status: CM - 10/27/2020 Interval Top: 6994 ft. Interval Bottom: 7159 ft.

Completed Information for Formation NIOBRARA

1st Production Date:	2/5/1994	Choke Size:
Formation Name:	NIOBRARA	Commingled:	Yes
Production Method:
Open Hole Completion:	No

Tubing Size:		Tubing Setting Depth:
Tubing Packer Depth:		Tubing Multiple Packer:
Open Hole Top:		Open Hole Bottom:
No Initial Test Data was found for formation NBRR.

Perforation Data:
Interval Top:	6994 ft.	# Of Holes:	19
Interval Bottom:	7159 ft.	Hole Size:

Formation SUSX Formation Classification: GW Status: AB - 12/21/2020 Interval Top: 4576 ft. Interval Bottom: 4581 ft.

Completed Information for Formation SUSSEX

1st Production Date:	10/10/1994	Choke Size:
Formation Name:	SUSSEX	Commingled:	No
Production Method:
Open Hole Completion:	No

Tubing Size:		Tubing Setting Depth:
Tubing Packer Depth:		Tubing Multiple Packer:
Open Hole Top:		Open Hole Bottom:
No Initial Test Data was found for formation SUSX.

Perforation Data:
Interval Top:	4576 ft.	# Of Holes:	12
Interval Bottom:	4581 ft.	Hole Size:

Formation DKJCS Formation Classification: GW Status: CM - 12/23/2002

Completed Information for Formation DAKOTA-J SAND-CODELL-SUSS

1st Production Date:	N/A	Choke Size:	0.281 in.
Formation Name:	DAKOTA-J SAND-CODELL-SUSS	Commingled:	Yes
Production Method:	PLUNGER
Open Hole Completion:	No

Formation Treatment
Treatment Date:	11/23/1992
Treatment Summary:	11/4/02 REFRAC NB-CD #100 MESH 261500 #20/40 MESH 91265 GAL. GELLED FLUID.

Test Type	Measure
Tubing Size:	2.375 in.	Tubing Setting Depth:	7249 ft.
Tubing Packer Depth:		Tubing Multiple Packer:
Open Hole Top:		Open Hole Bottom:
Initial Test Data:
Test Date:	12/23/2002	Test Method:	PLUNGER
Hours Tested:	24	Gas Type:
Gas Disposal:	SOLD
BBLS_H2O	0
BBLS_OIL	12
CALC_BBLS_OIL	12
CALC_GOR	37833
CALC_MCF_GAS	454
CASING_PRESS	300
GRAVITY_OIL	60
MCF_GAS	454
TUBING_PRESS	260

Perforation Data:
Interval Top:		# Of Holes:
Interval Bottom:		Hole Size:

All Designations		Date
Primary Well Designation: None i
Reported Plugged	Y	12/21/2020
Out Of Service Repurposed	N
Out Of Service	N
Inactive Exception	N
Noticed Inactive	N
Defined Inactive	N
Low Producing	N

September 2024 - August 2025	i
BOE/MCFE/GOR Calculations Production for Previous 12 Months
Total Oil Produced (Barrels)	0
Total Gas Produced (MCF)	0
GOR
GOR Determination
Average BOE per Day	0.000
Average MCFE per Day	0.000
